Description

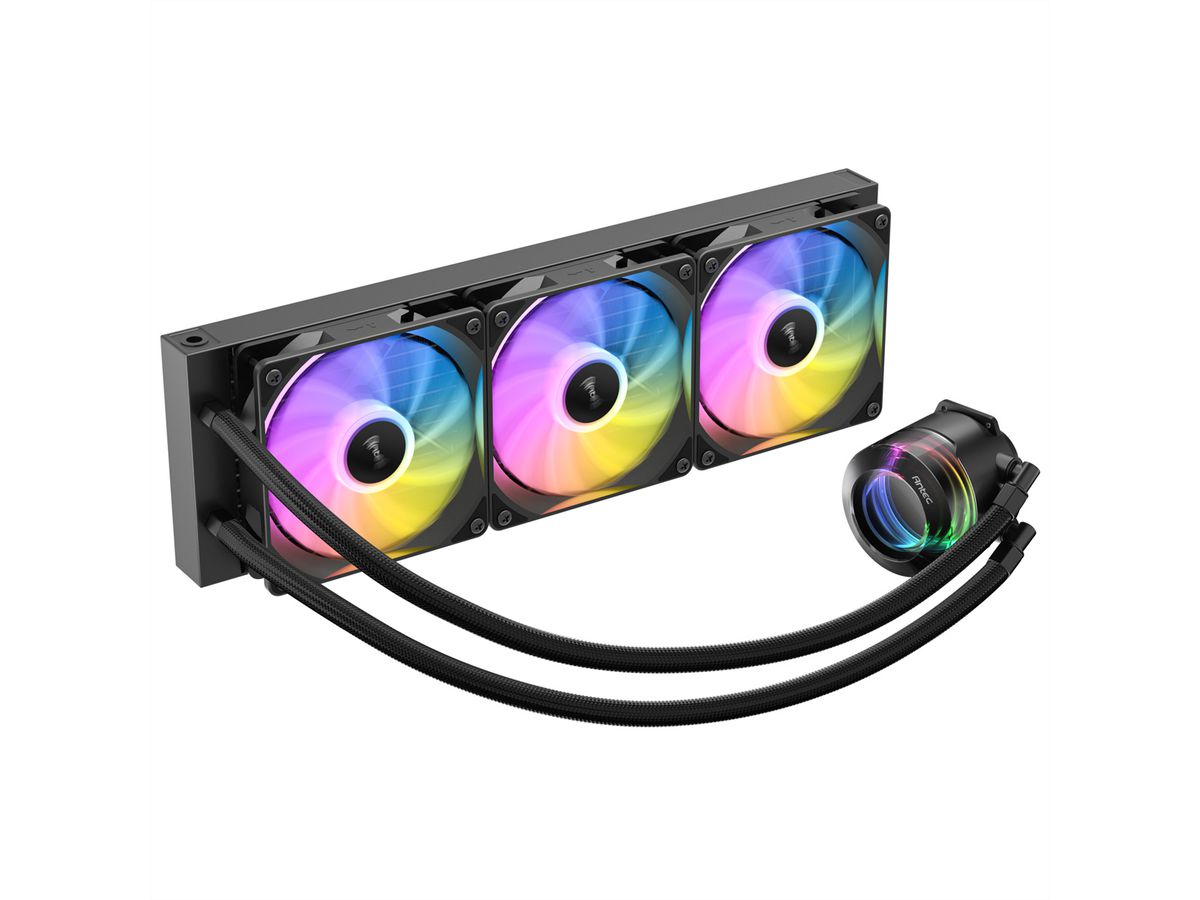

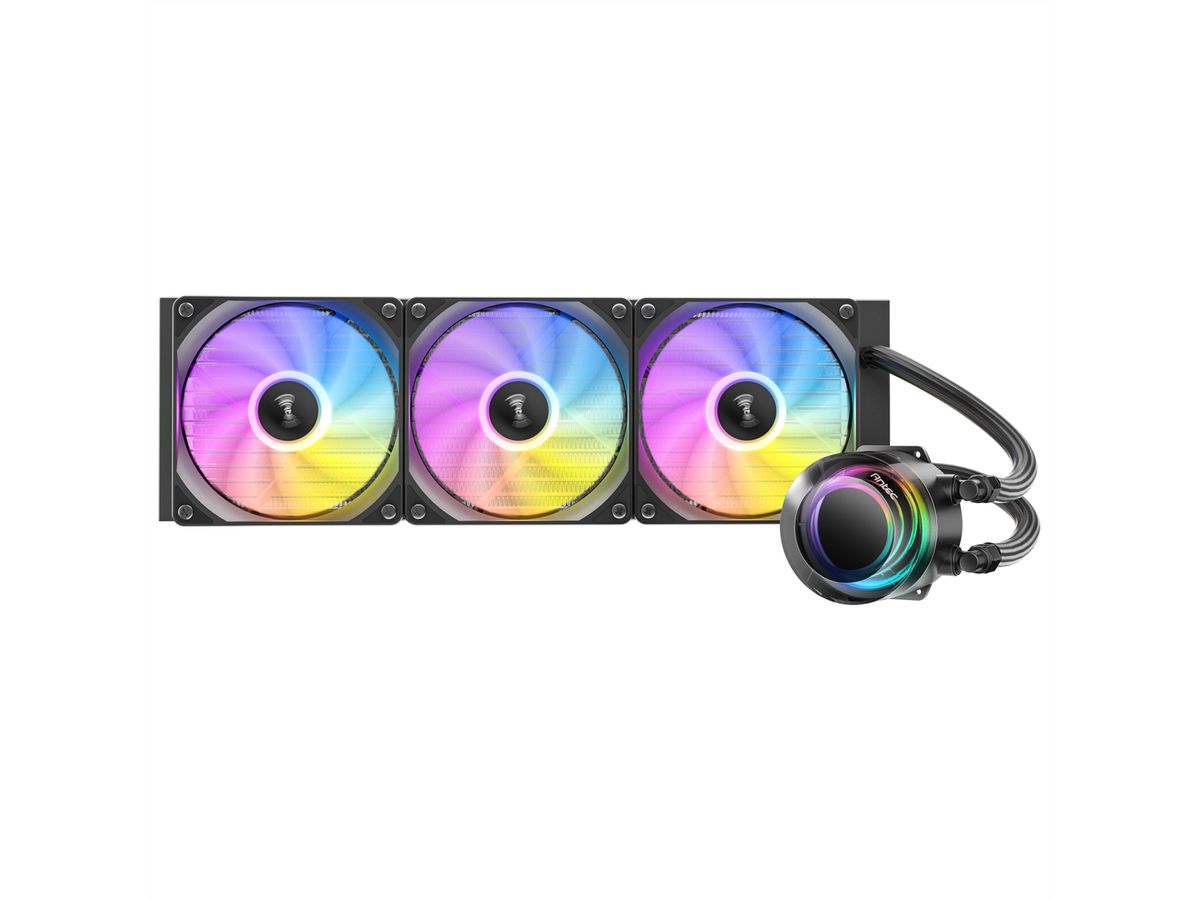

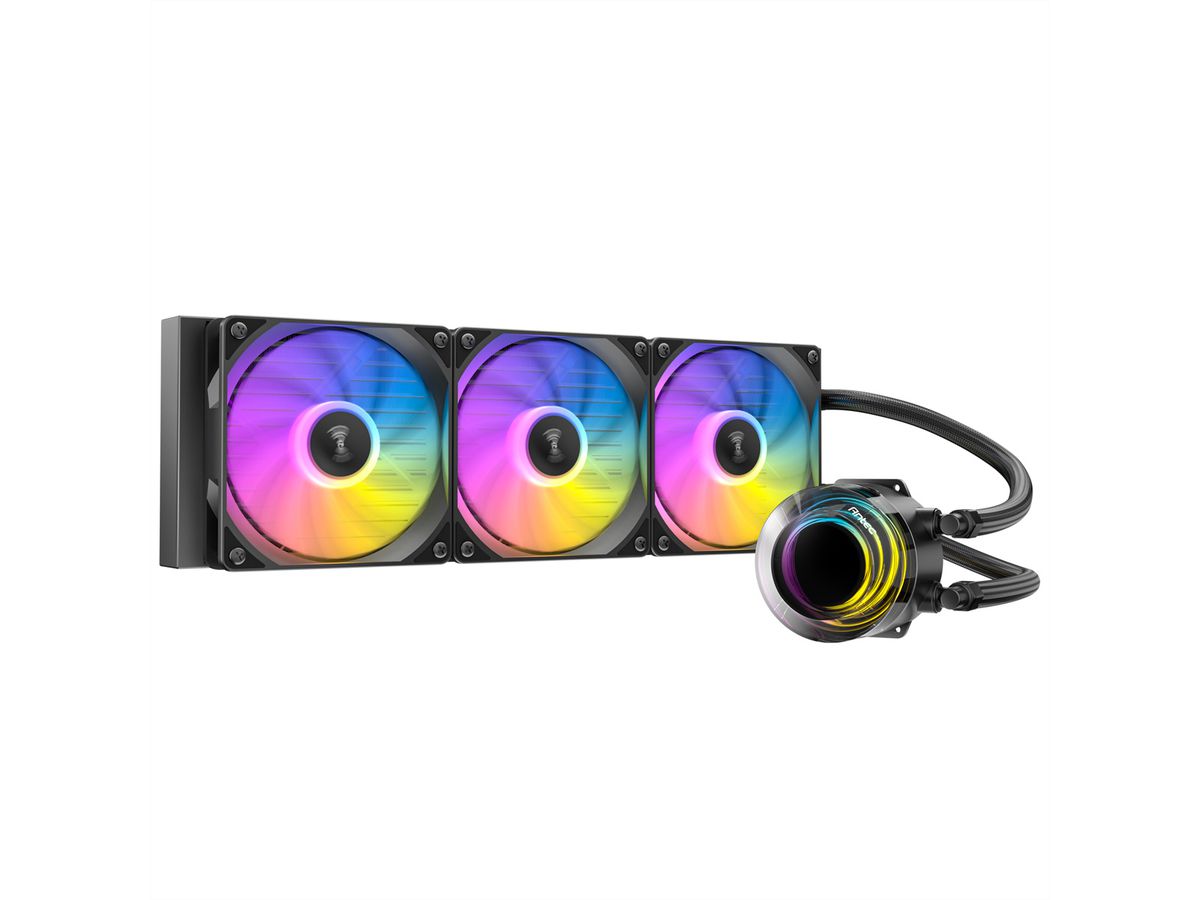

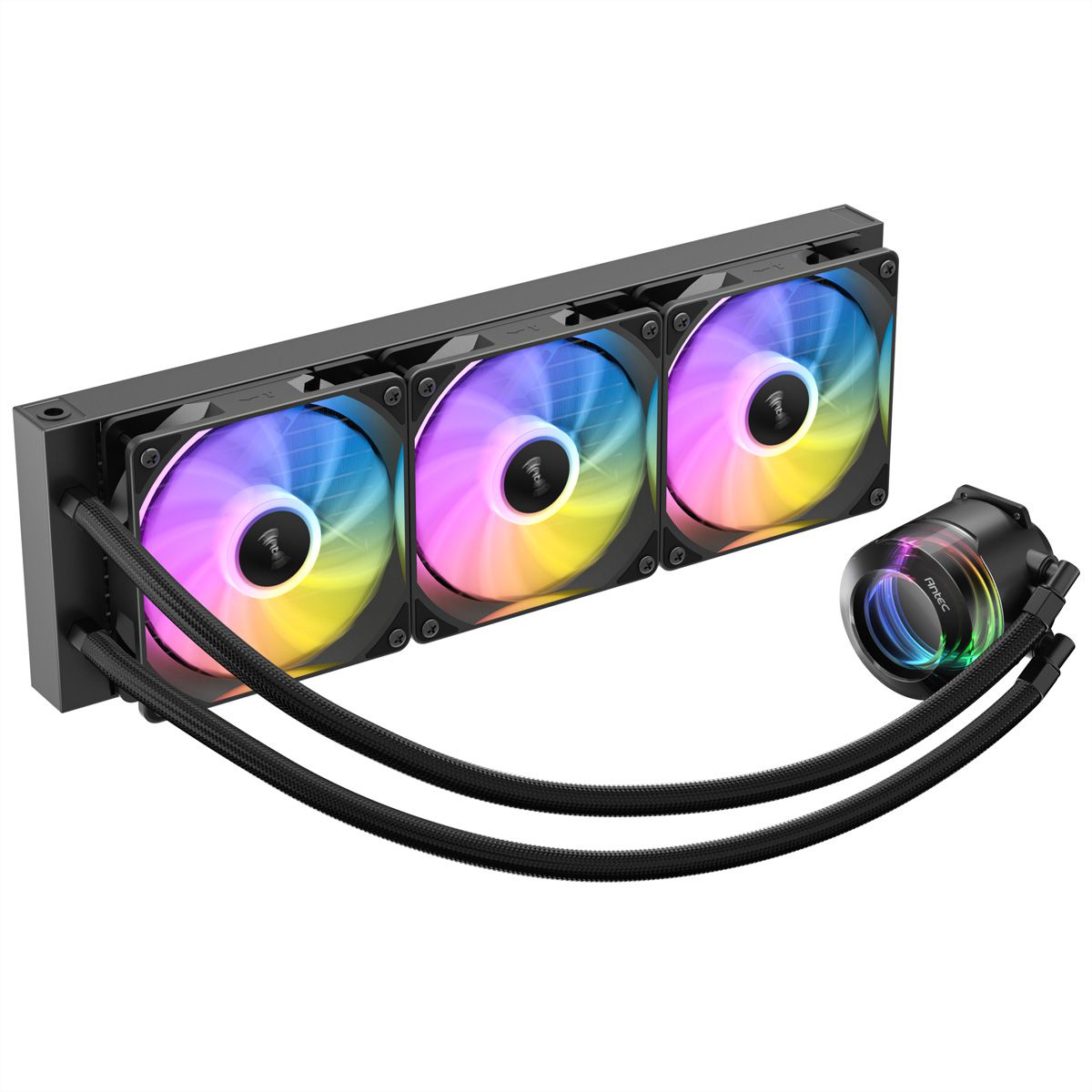

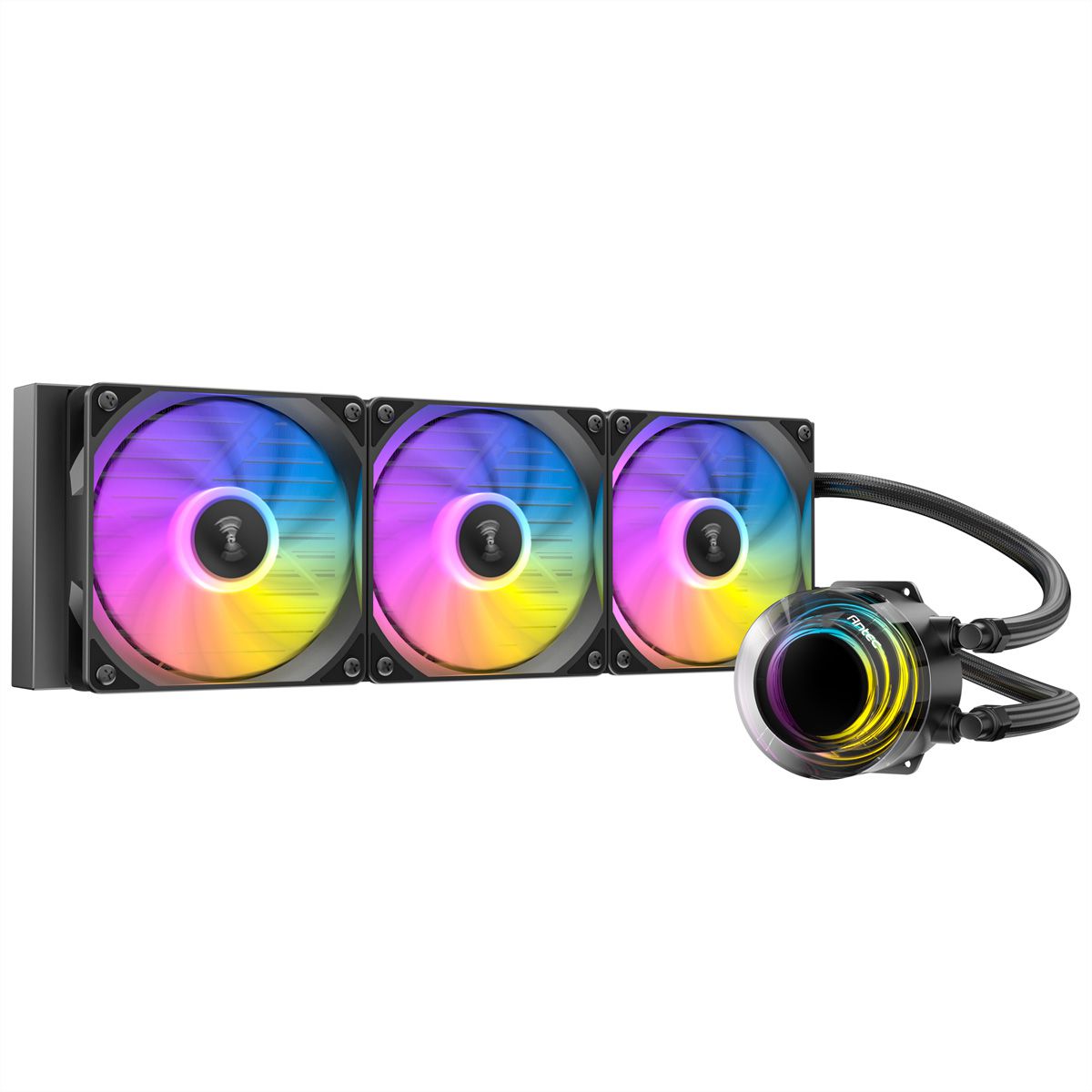

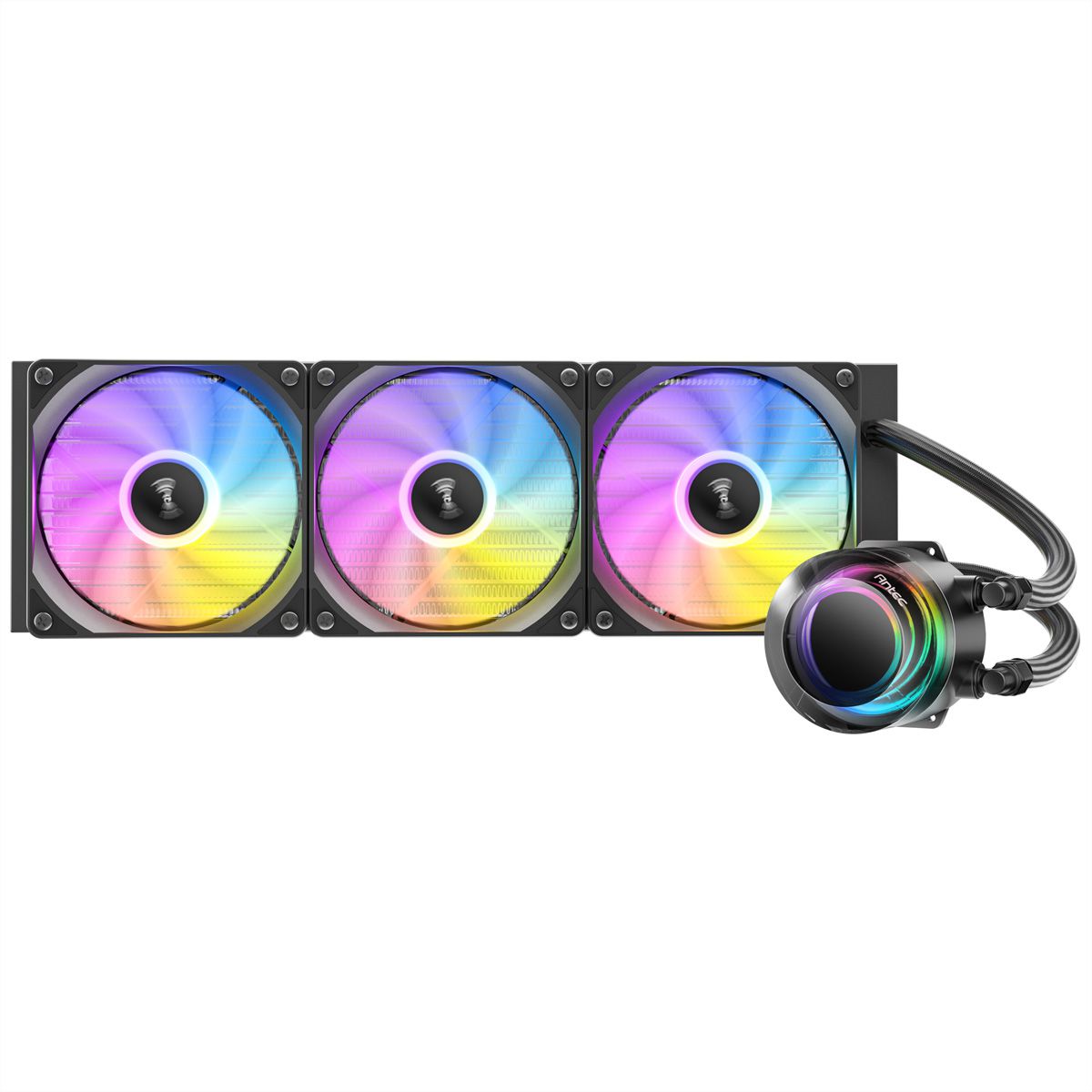

The groundbreaking all-in-one ARGB CPU water cooling system

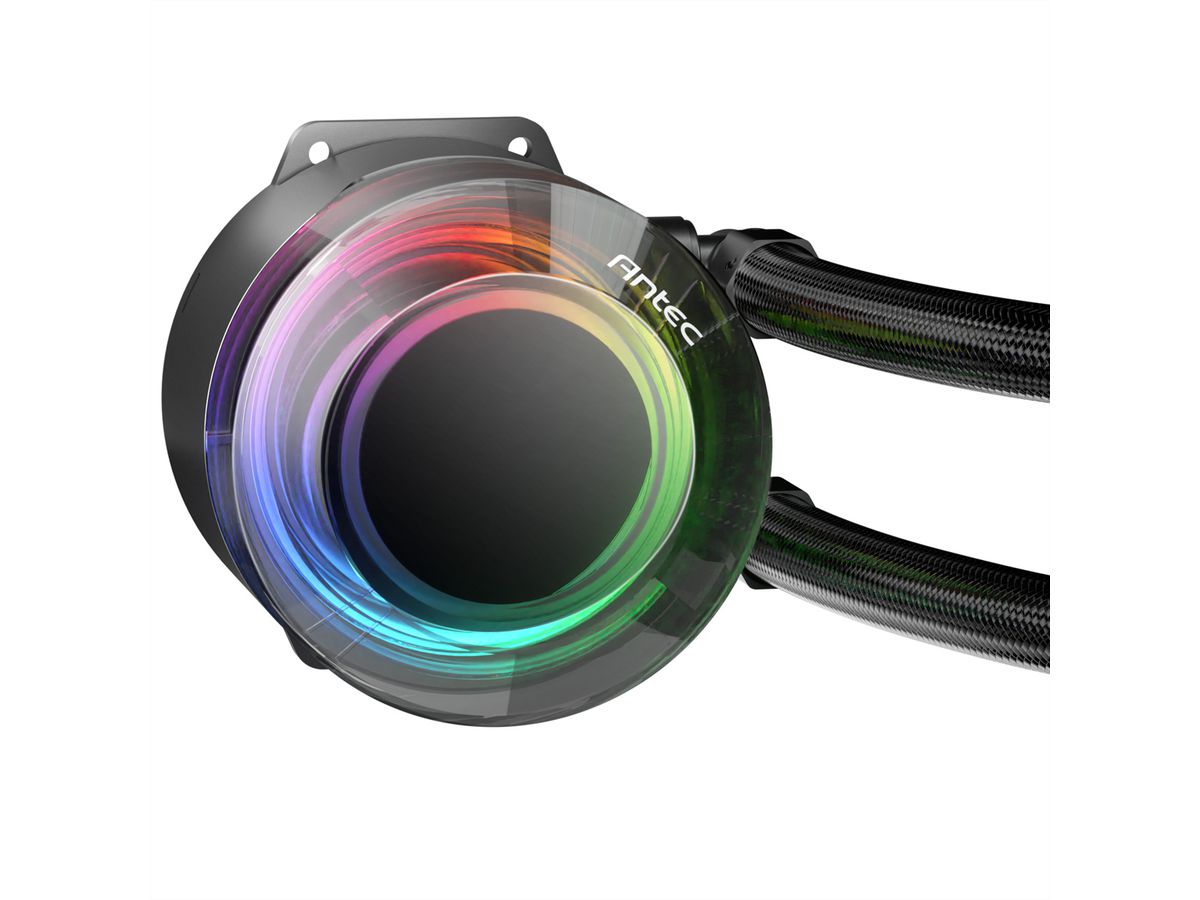

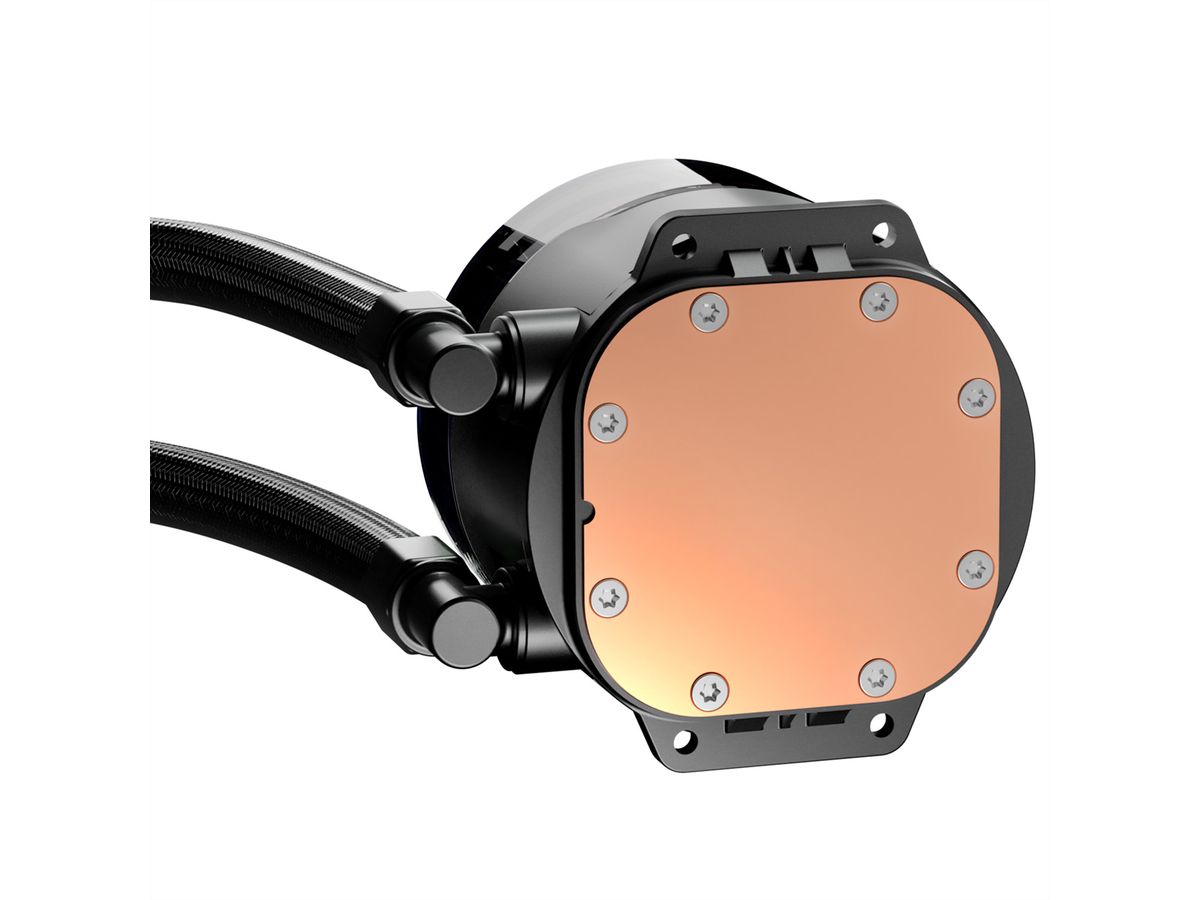

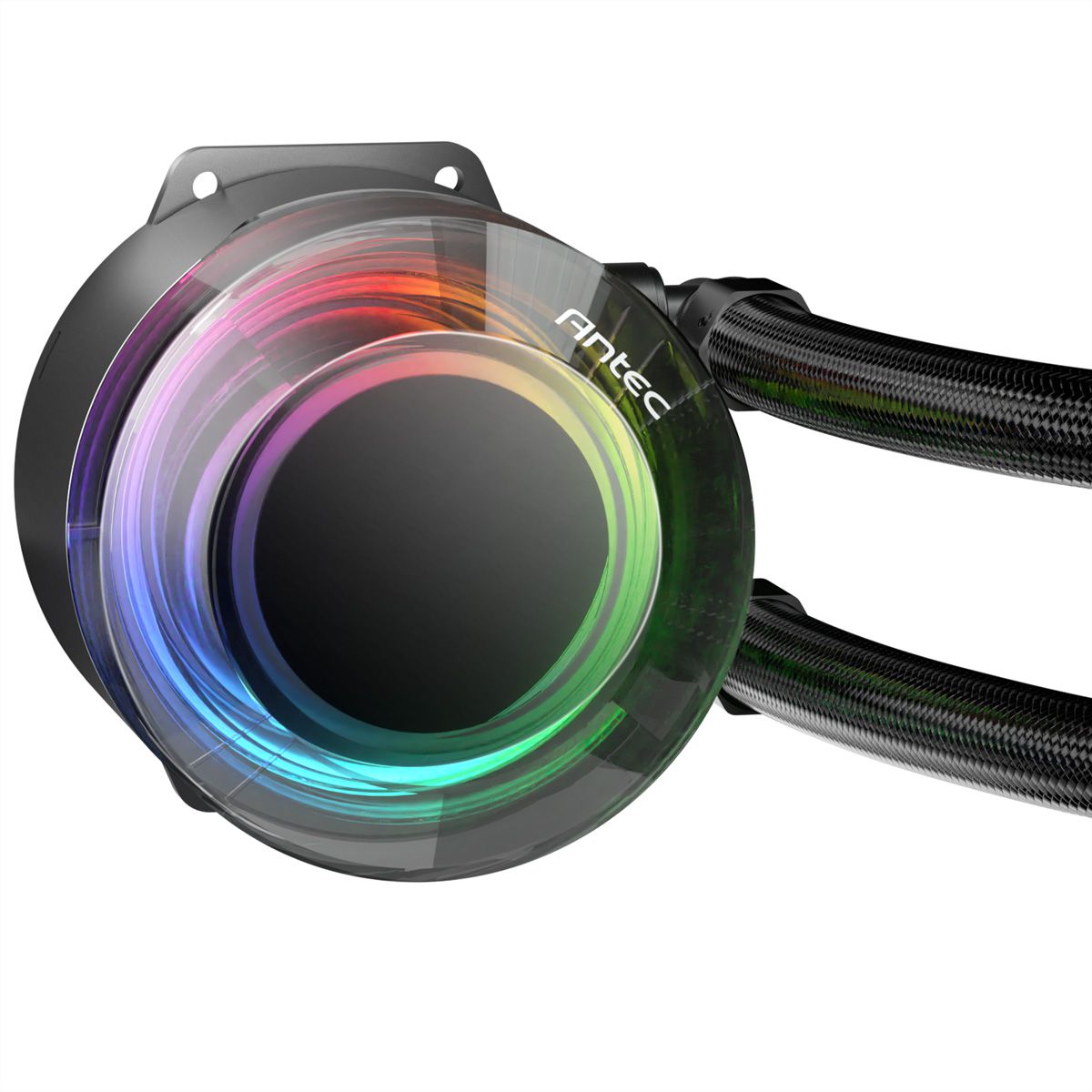

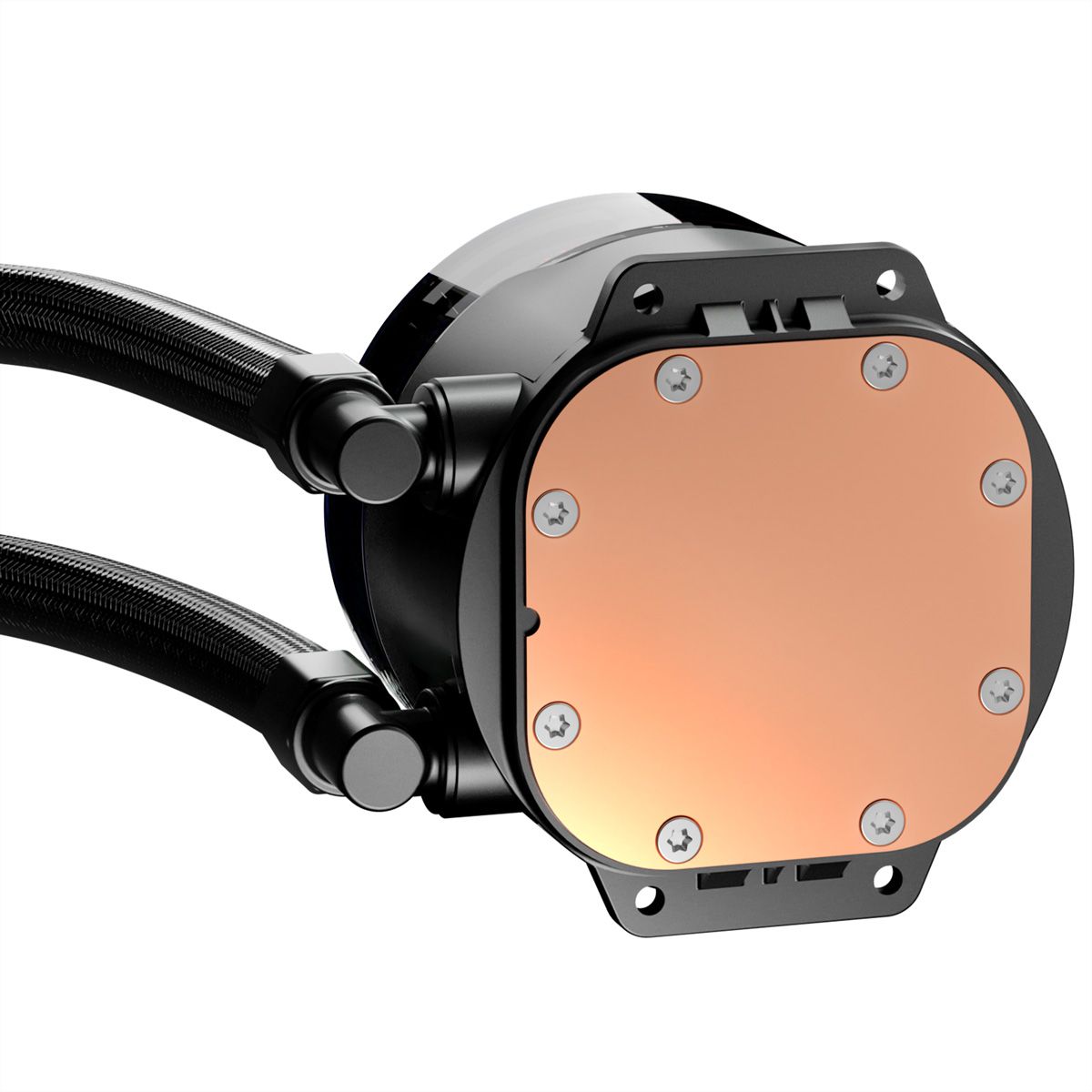

Pump:

• Dimensions: Φ67*48.5 mm
• Nominal voltage: DC 12 V
• Minimum starting voltage: ≥5.0 V
• Fan speed: 2800±10 % rpm
• Nominal current: 0.25±20 % A
• Power consumption: 3.0 W
• Flow rate: ≥1300 ml/min
• Water pressure: 1.4 m
• Operating temperature: -10 °C to +60 °C
• Noise level: ≤28 dB(A)
• Service life: 40,000 hours
• Connection: PUMP: 3-pin | LED: 3-pin

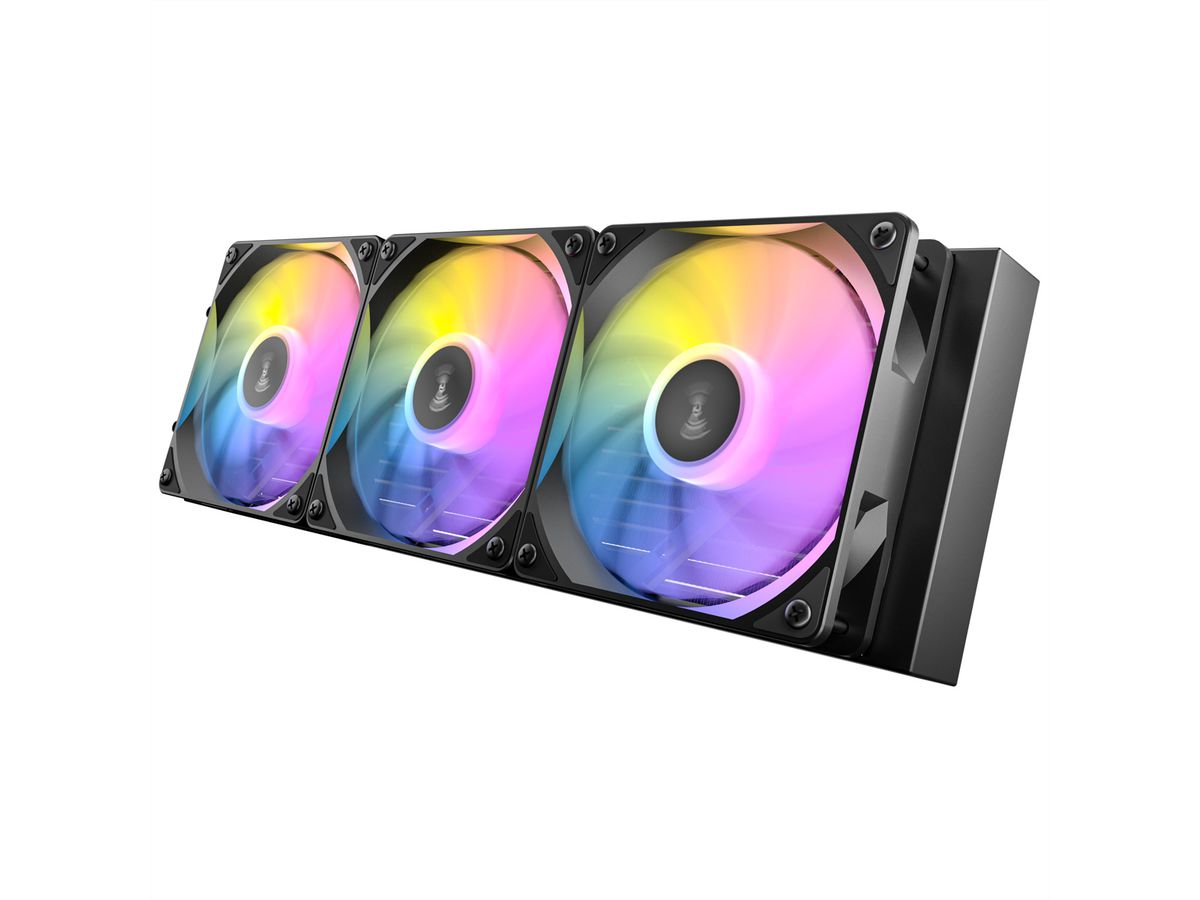

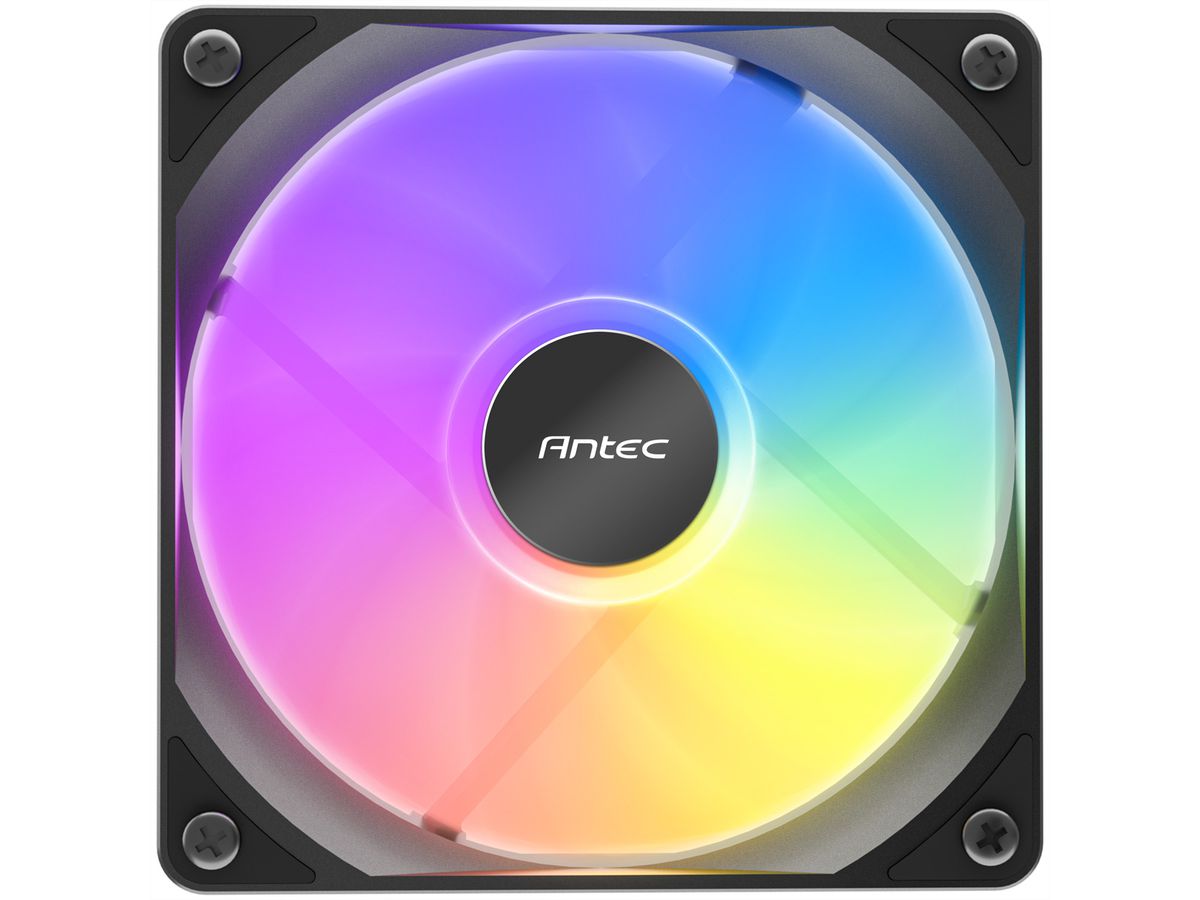

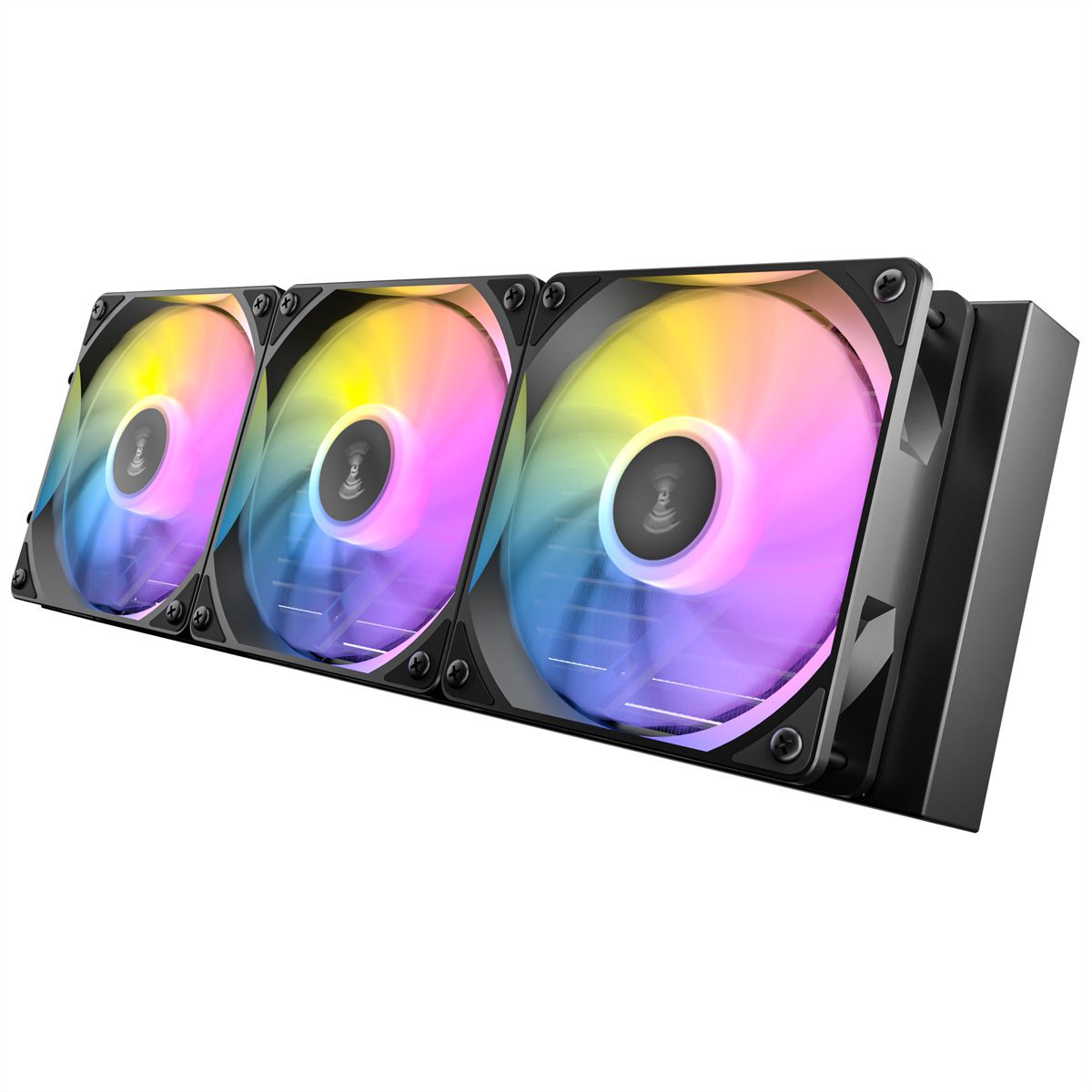

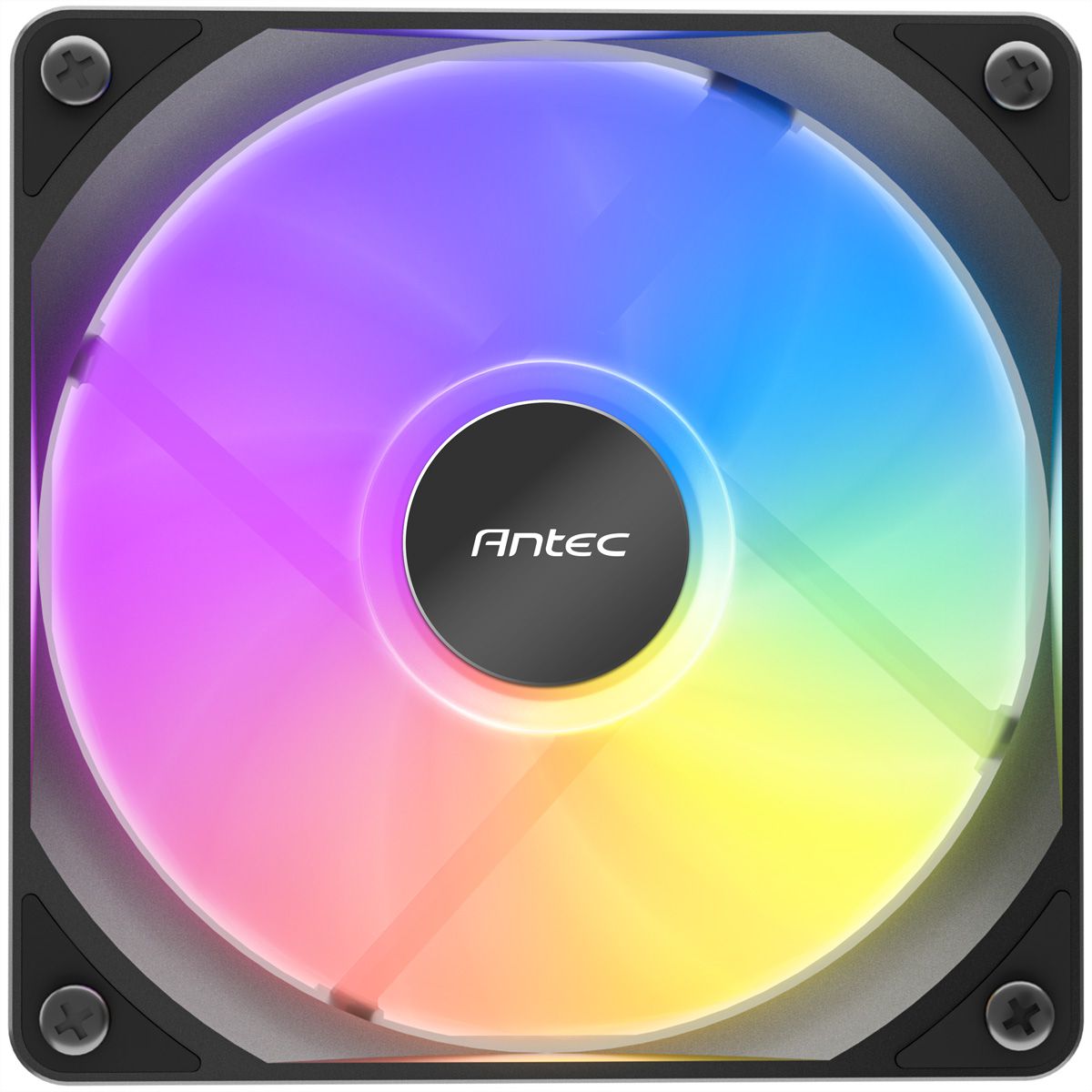

Fan:

• Fan type: PWM fan
• Bearing type: Hydraulic bearing
• LED type: Addressable RGB
• Fan speed: 800±200~1800±10 % rpm
• Airflow: 71.5 CFM (max.)
• Service life: 40,000 hours
• Connection: PH 2.0 7-pin (PWM+ARGB)
• Nominal voltage: FAN: DC 12 V | LED: DC 5 V
• Operating voltage: FAN: DC 10.8–13.2 V | LED: DC 4.5–5.5 V
• Nominal current: FAN: 0.20–0.25 A | LED: 0.32 A

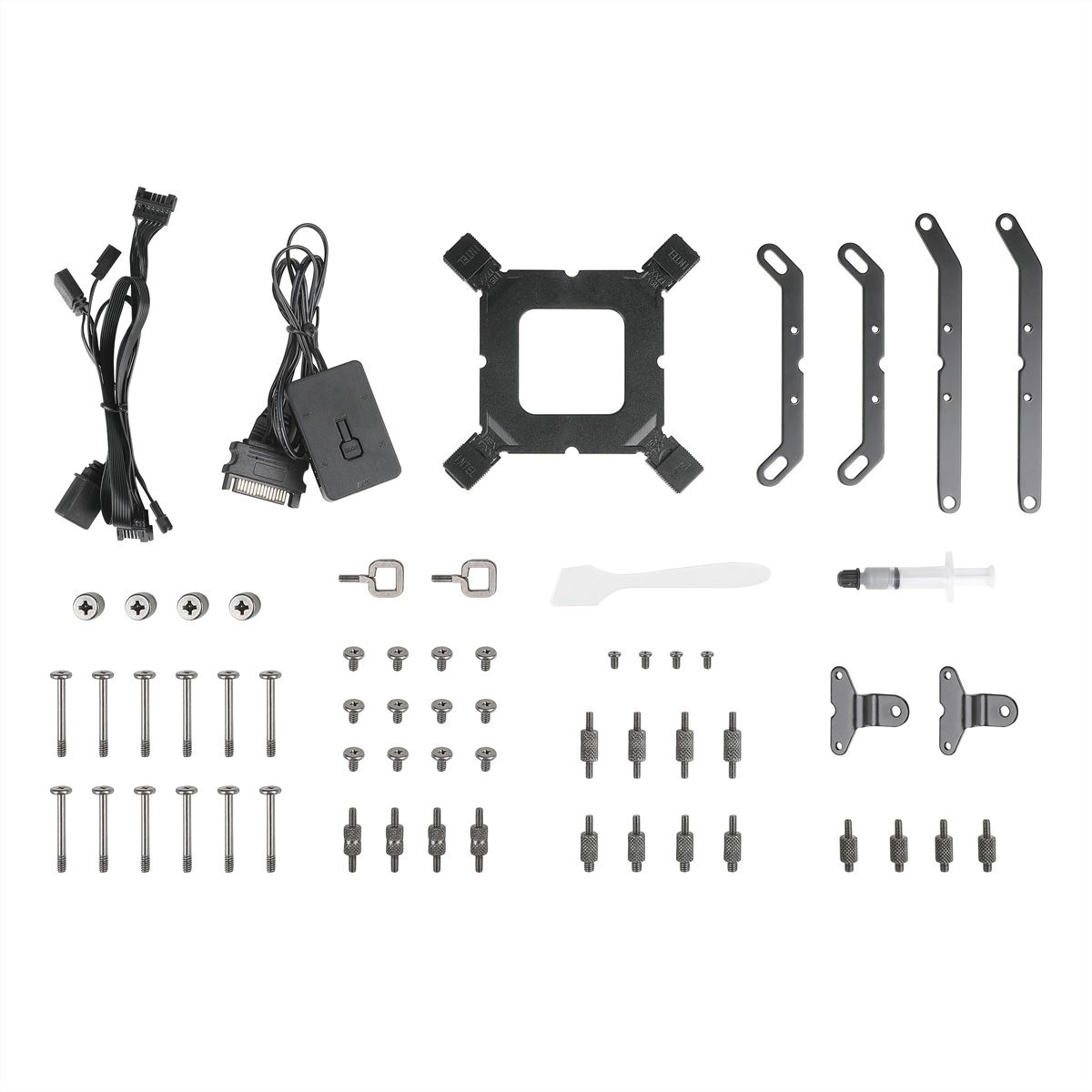

• Socket compatibility CPU Intel: LGA 115X/1200/1700/20XX/1851 - AMD: AM3/AM4/AM5/TR4
• TDP: ≤280 W

Specifications

Manufacturer	ANTEC
Product group	Processor fan
Product type	Water cooling
Colour	black
Scope of delivery	1x fan
Quantity of fans	3
Dimensions (HxWxD)	27 x 120 x 397 mm
Material (fan)	Aluminium
Dimensions (HxWxD) fan	25 x 120 x 120 mm
Fan rotational speed	800±200~1800±10% RPM
Air pressure	2.45 mm H²O
Rated fan current	0.25 A
Noise level spinning (max.)	31 dB
Operating temperature min.	-10 °C
Operating temperature max.	60 °C
Height	27 mm
Width	120 mm
Depth	397 mm
Weight	1.57 kg
Height of packaging (single piece)	0 mm
Width of packaging (single piece)	0 mm
Depth of packaging (single piece)	0 mm
Package weight (single piece)	0 kg

Downloads

Manufacturer data sheet - English (11.7 MB)

Download

User manual - English (68.8 MB)

Download
