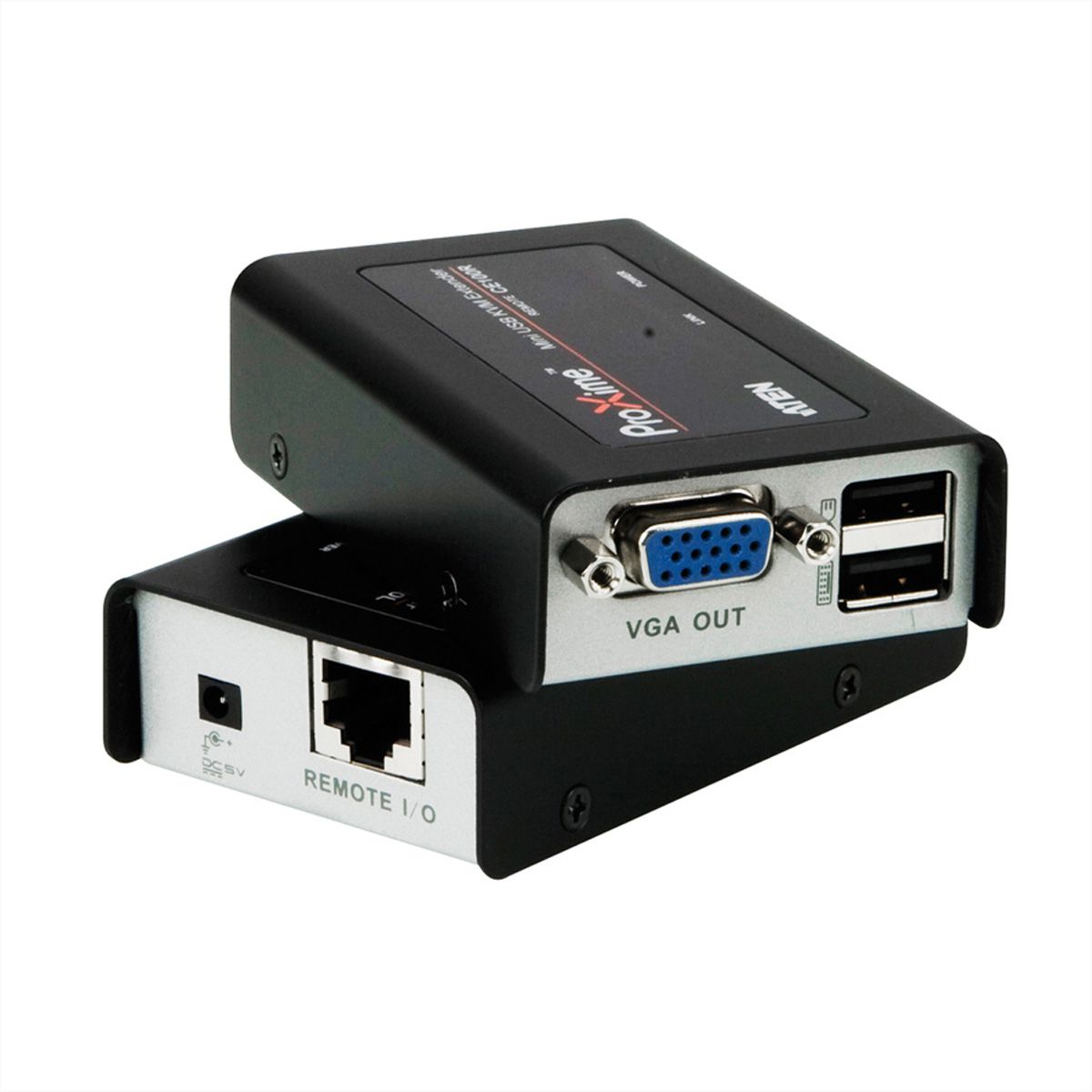

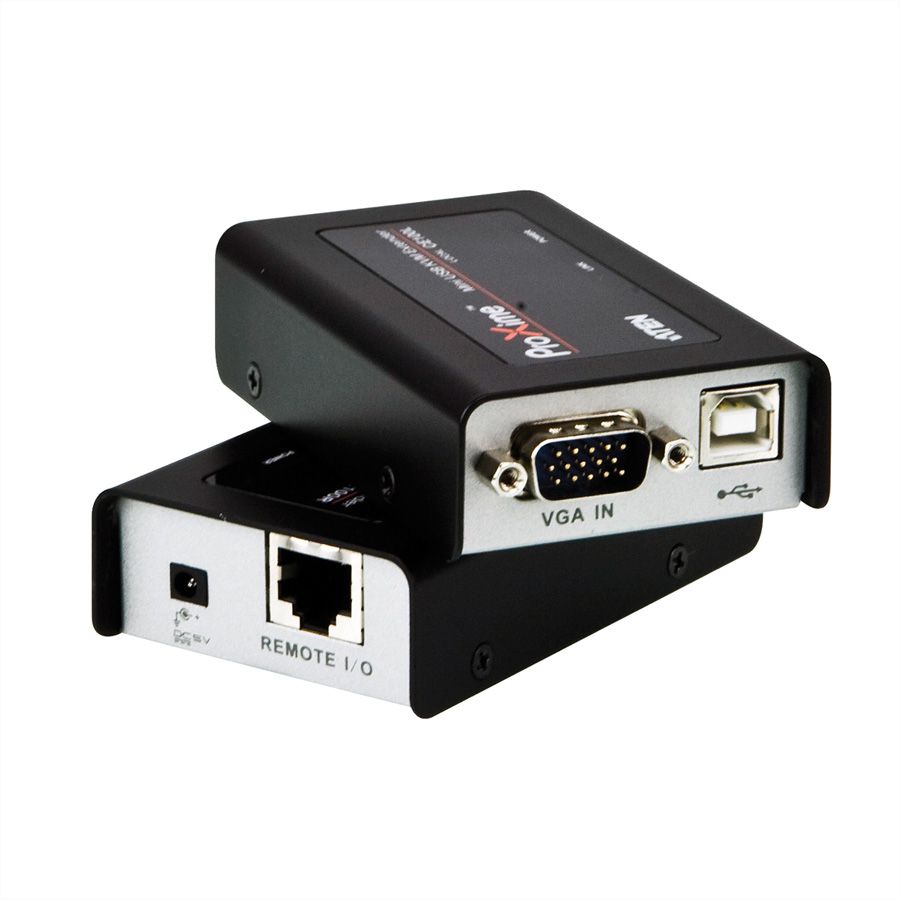

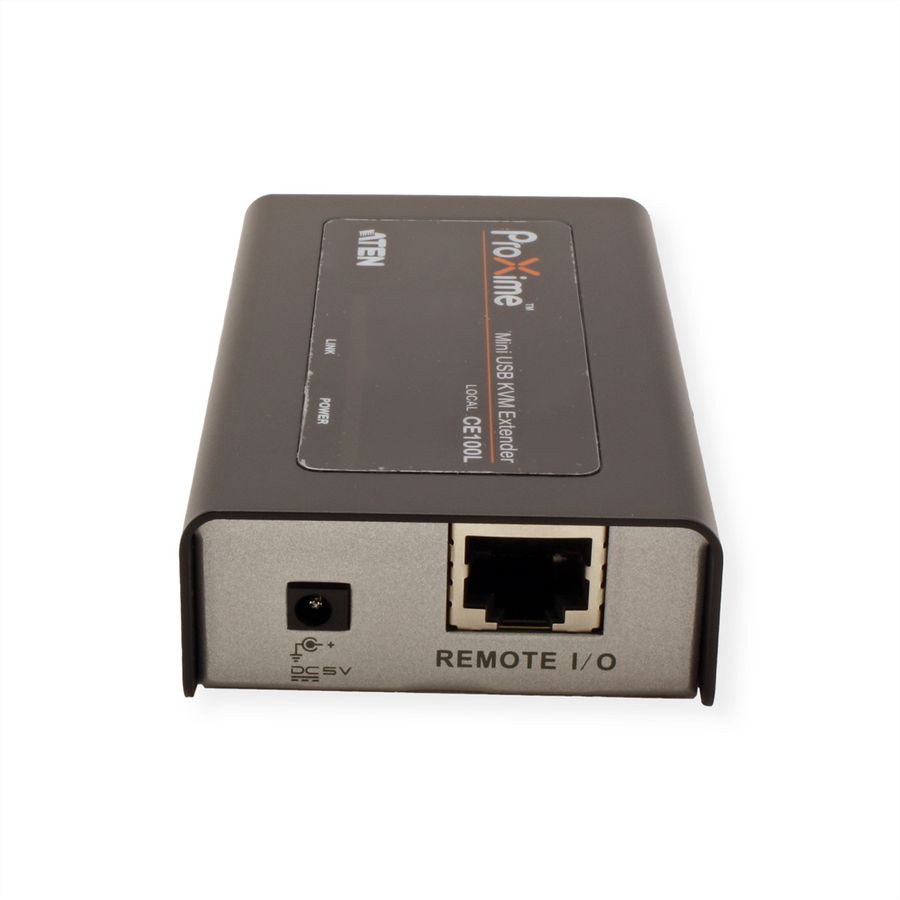

ATEN CE100 KVM Extender VGA, USB, 100m

Item no. 14016372 Brand / Manufacturer ATEN Manuf. item no. CE100 EAN 4710423773462 Item weight 0.73 kg
ATEN
Product recommendations

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

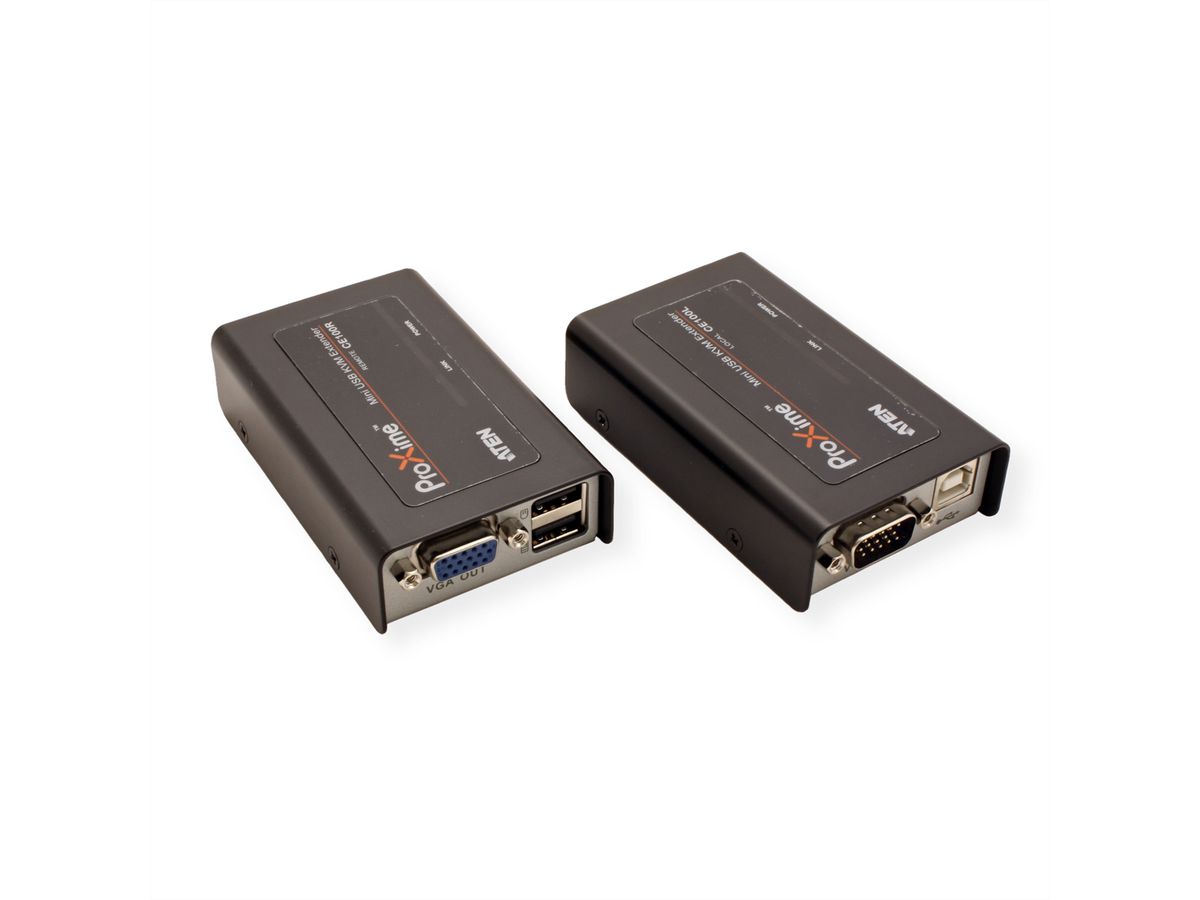

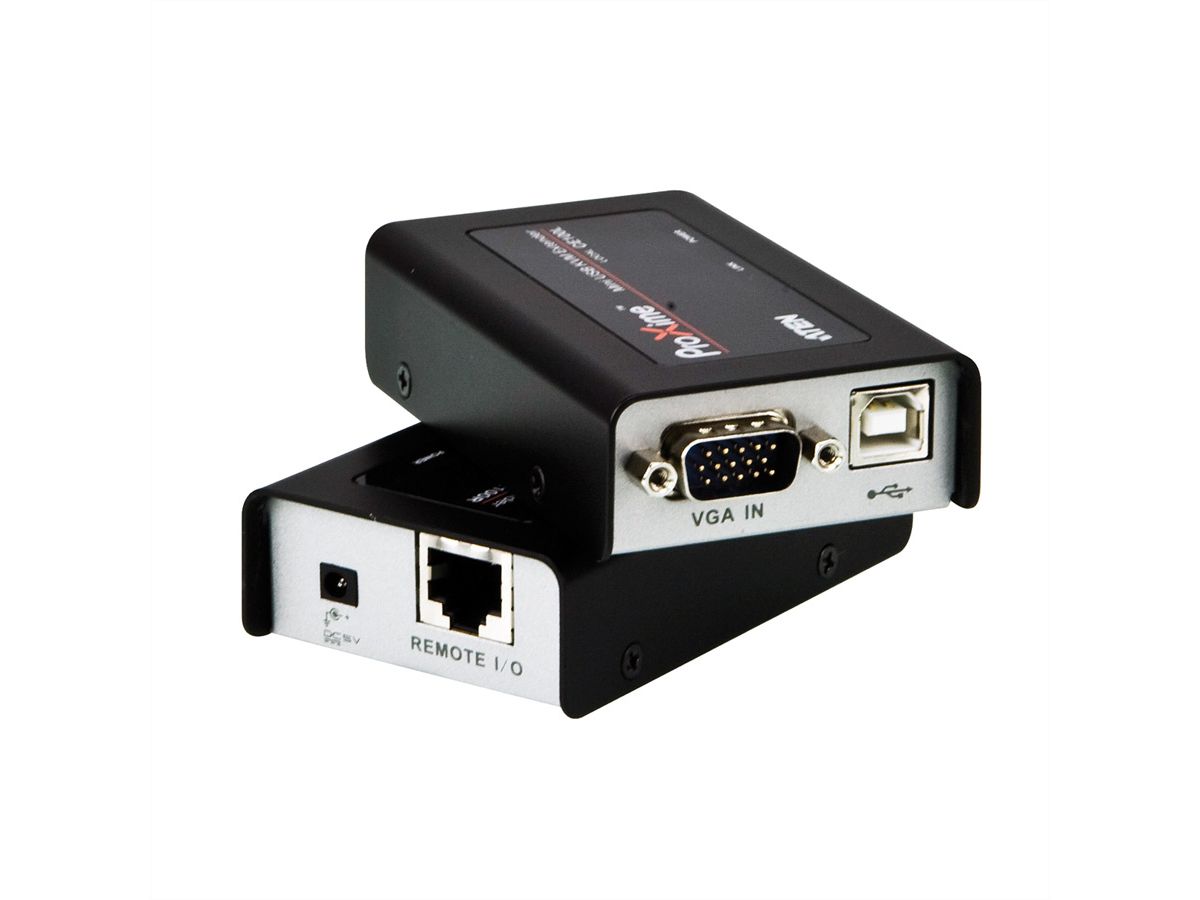

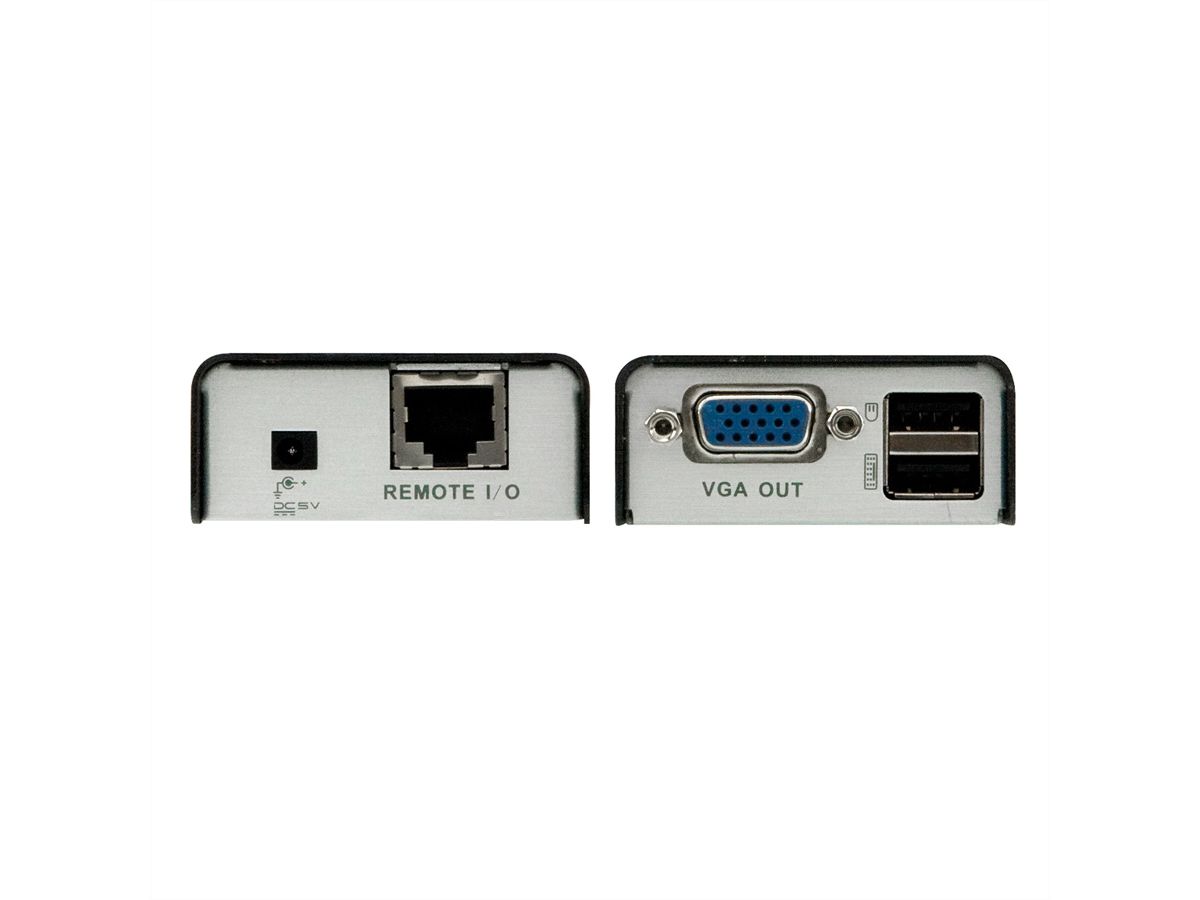

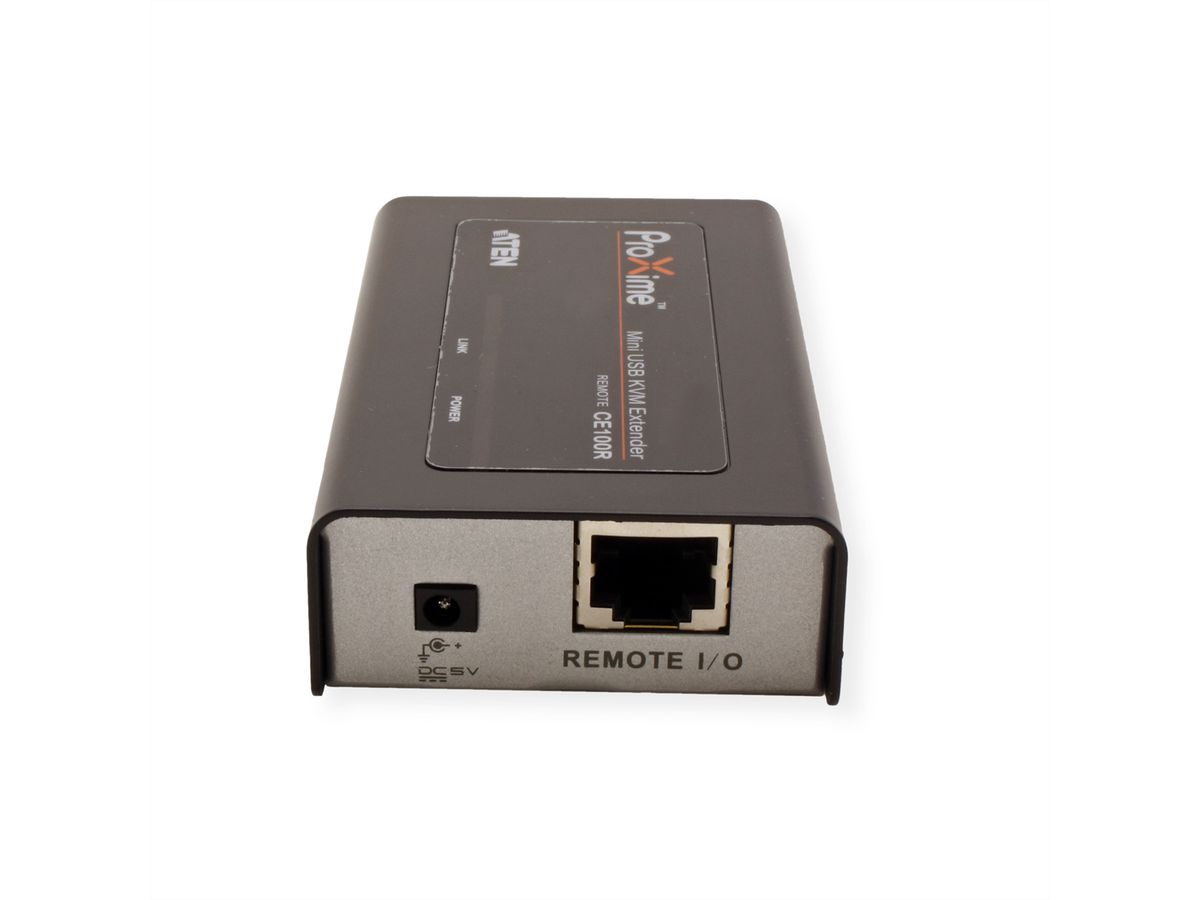

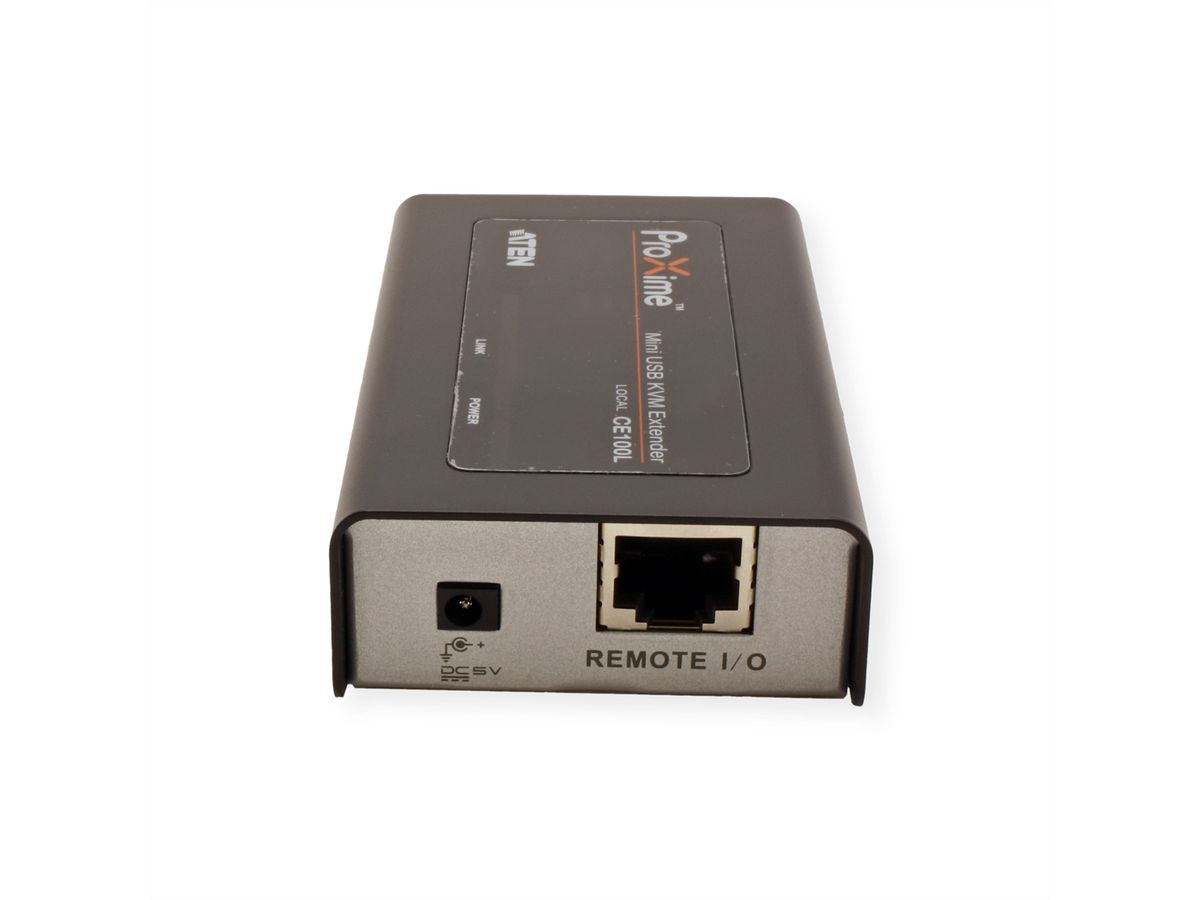

The CE100 USB KVM Extender with superior video quality and built-in ESD protection allows access to a computer system from a remote USB console (USB keyboard, USB mouse, and monitor).

The CE100 USB KVM Extender with superior video quality and built-in ESD protection allows access to a computer system from a remote USB console (USB keyboard, USB mouse, and monitor).

  • Extends local PC VGA/keyboard/Mouse to Remote side

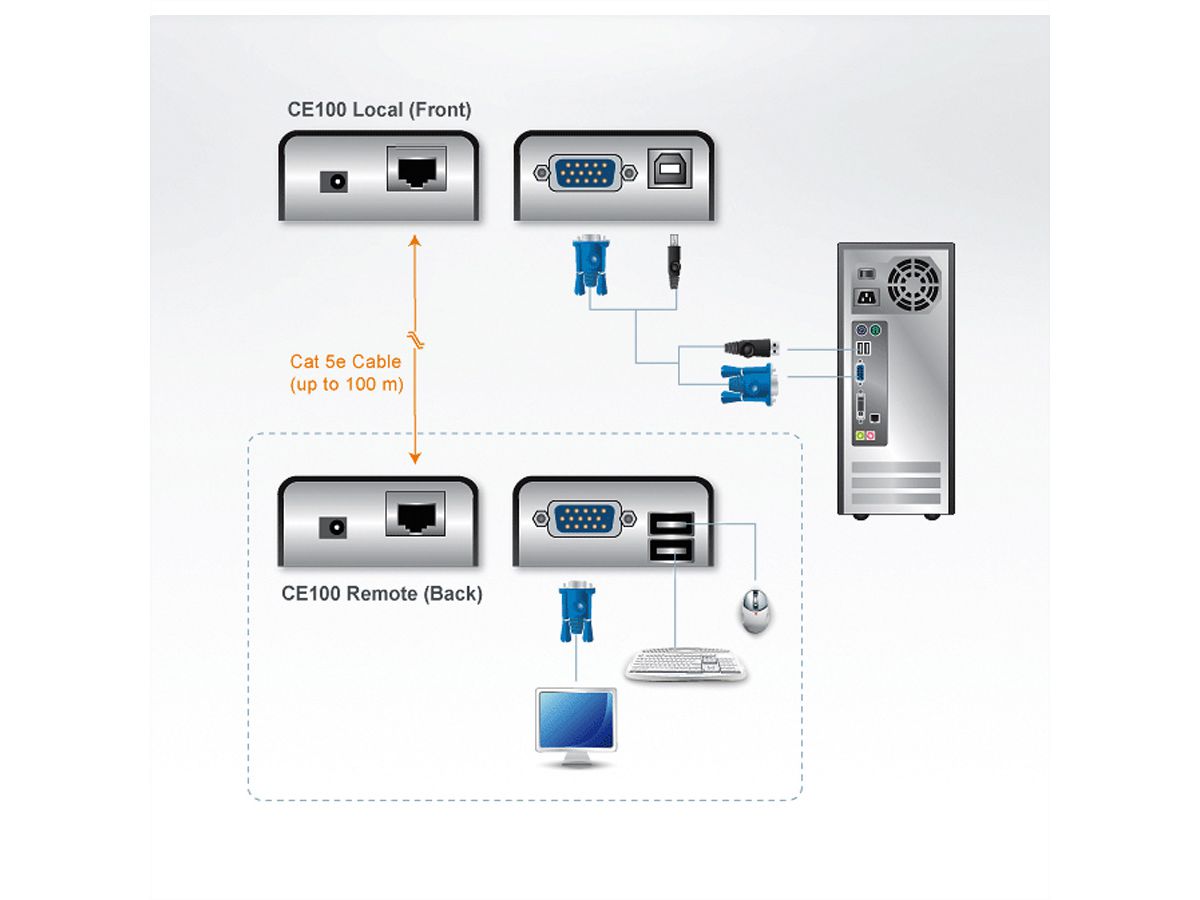

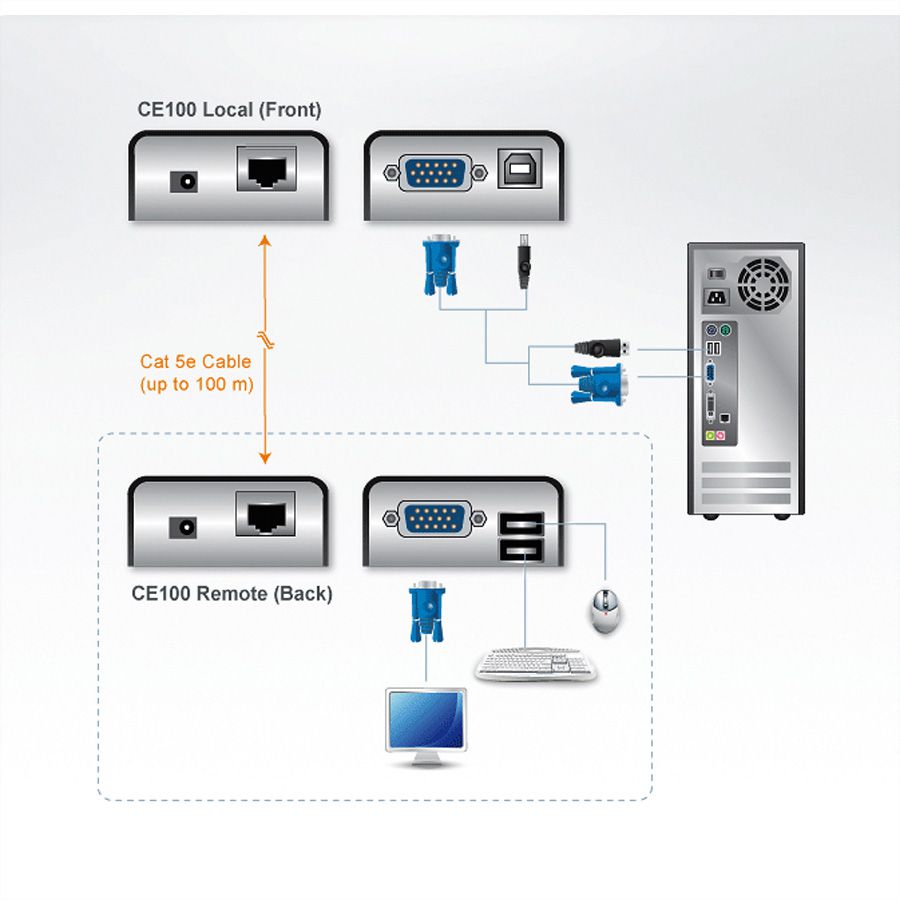

  • Uses Cat 5e cable to connect the local and remote units
  • Easily add or remove computers connected to the installation
  • Supports real time DDC communication
  • Superior video quality - up to 1920 x 1200
  • Allow access to a computer from the remote console up to 100 m distance

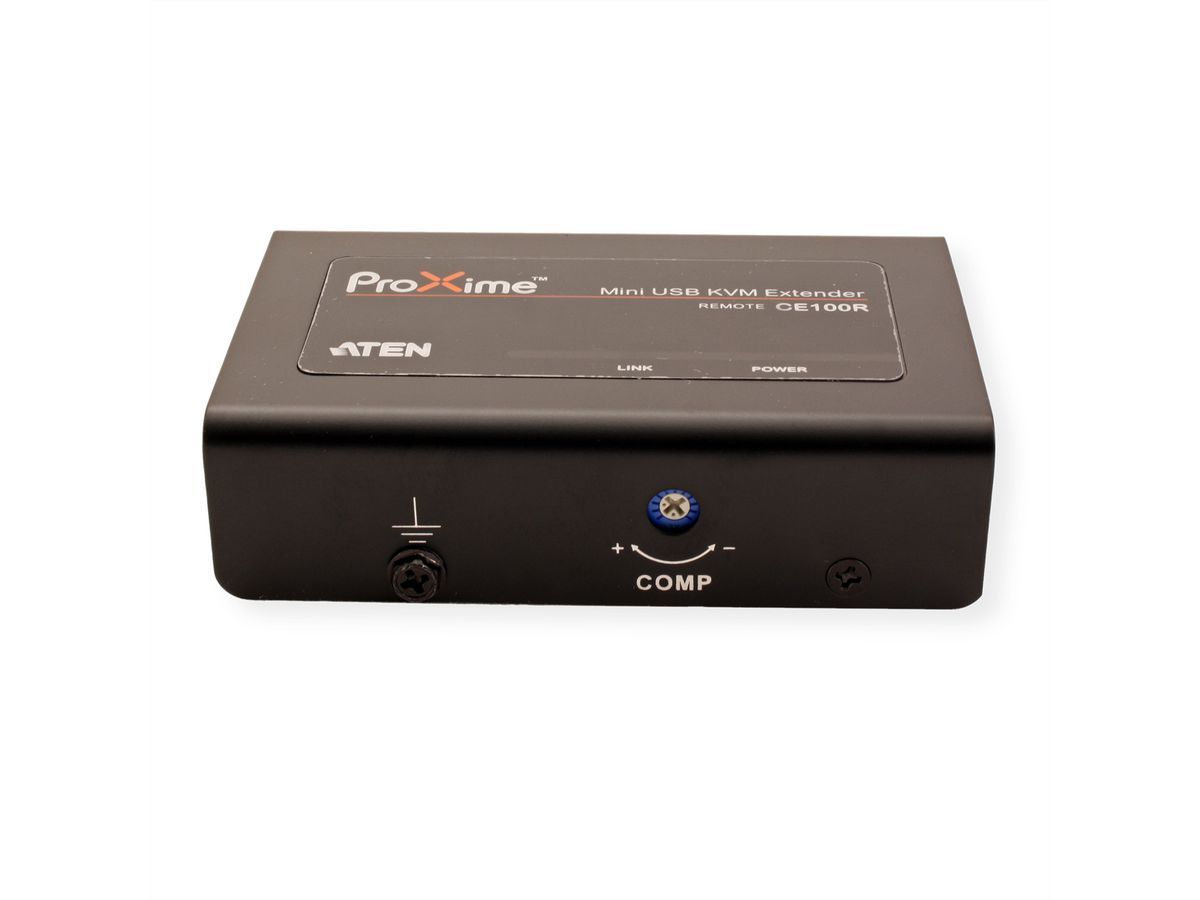

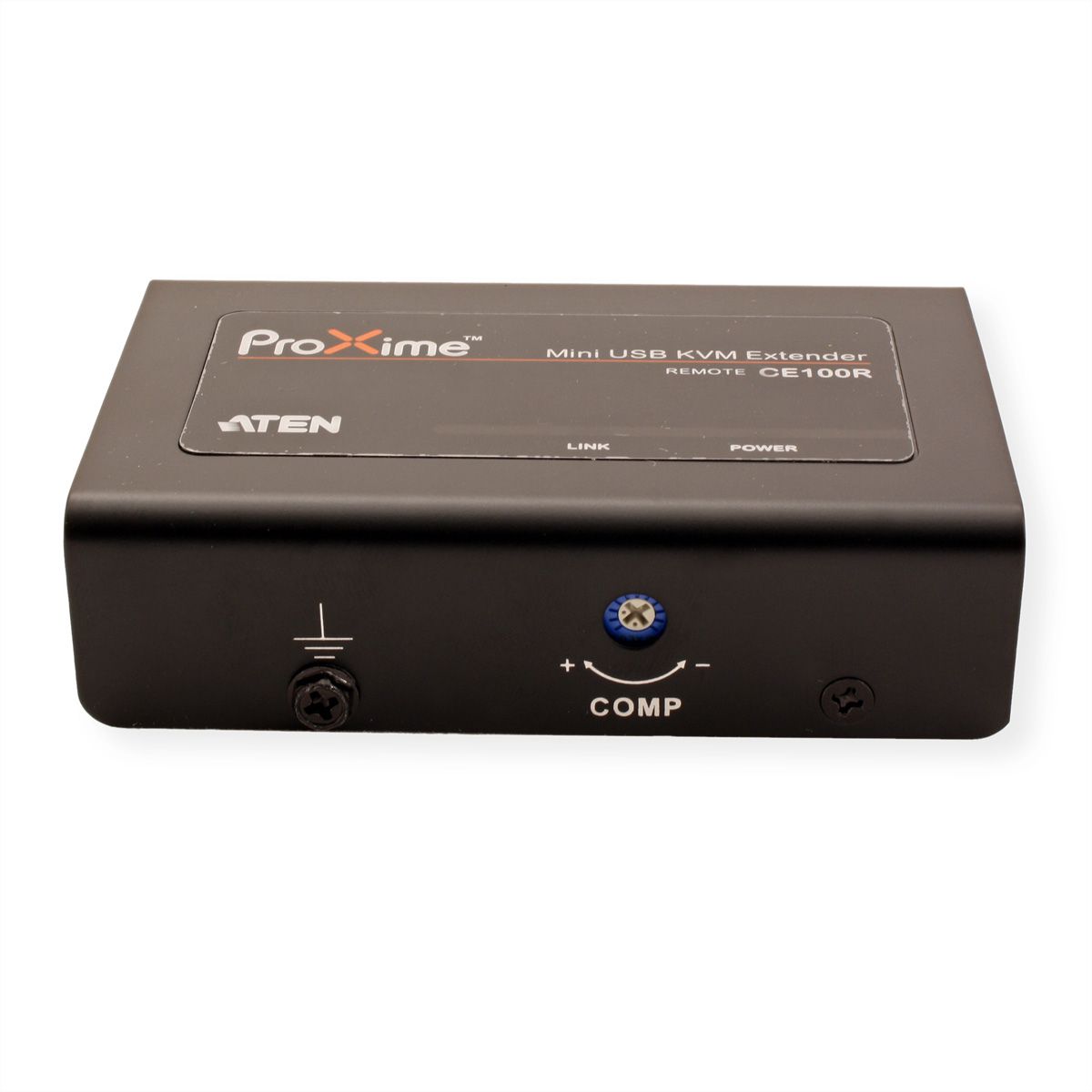

  • Support manual compensation adjustment for better video quality
  • No external power supply needed for local unit
  • Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
  • Wall mountable

Specifications

Manufacturer
ATEN
Product group
KVM (IP) extensions
Product type
KVM-Extender, VGA
Colour
black
Scope of delivery

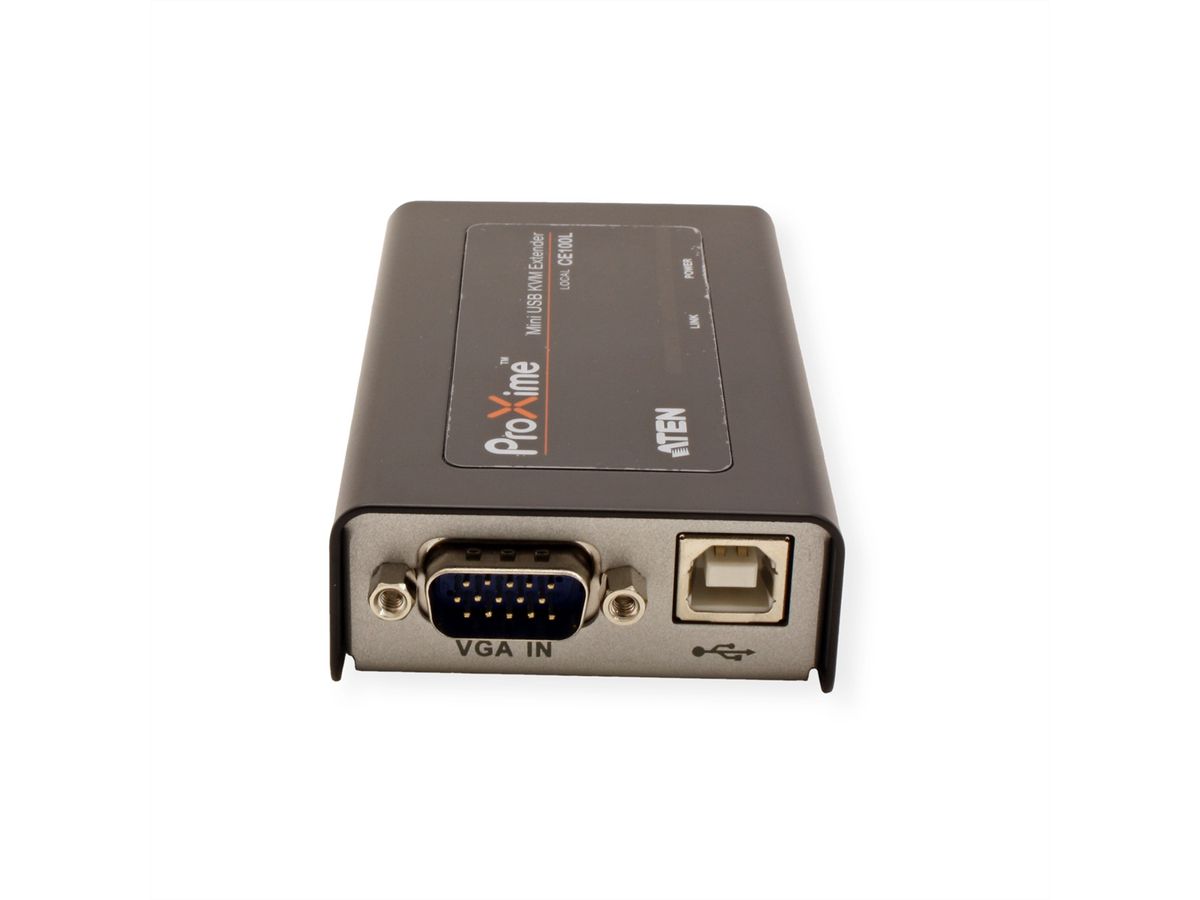

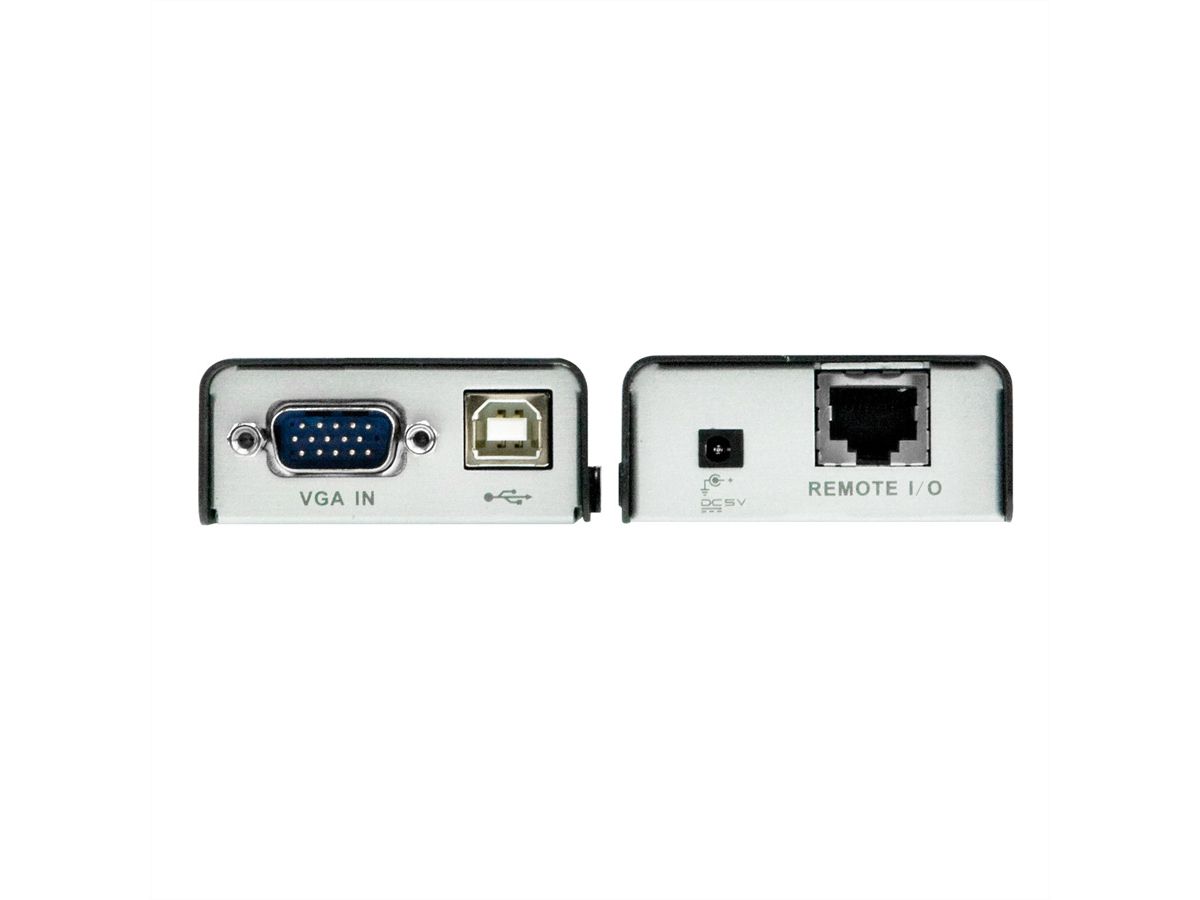

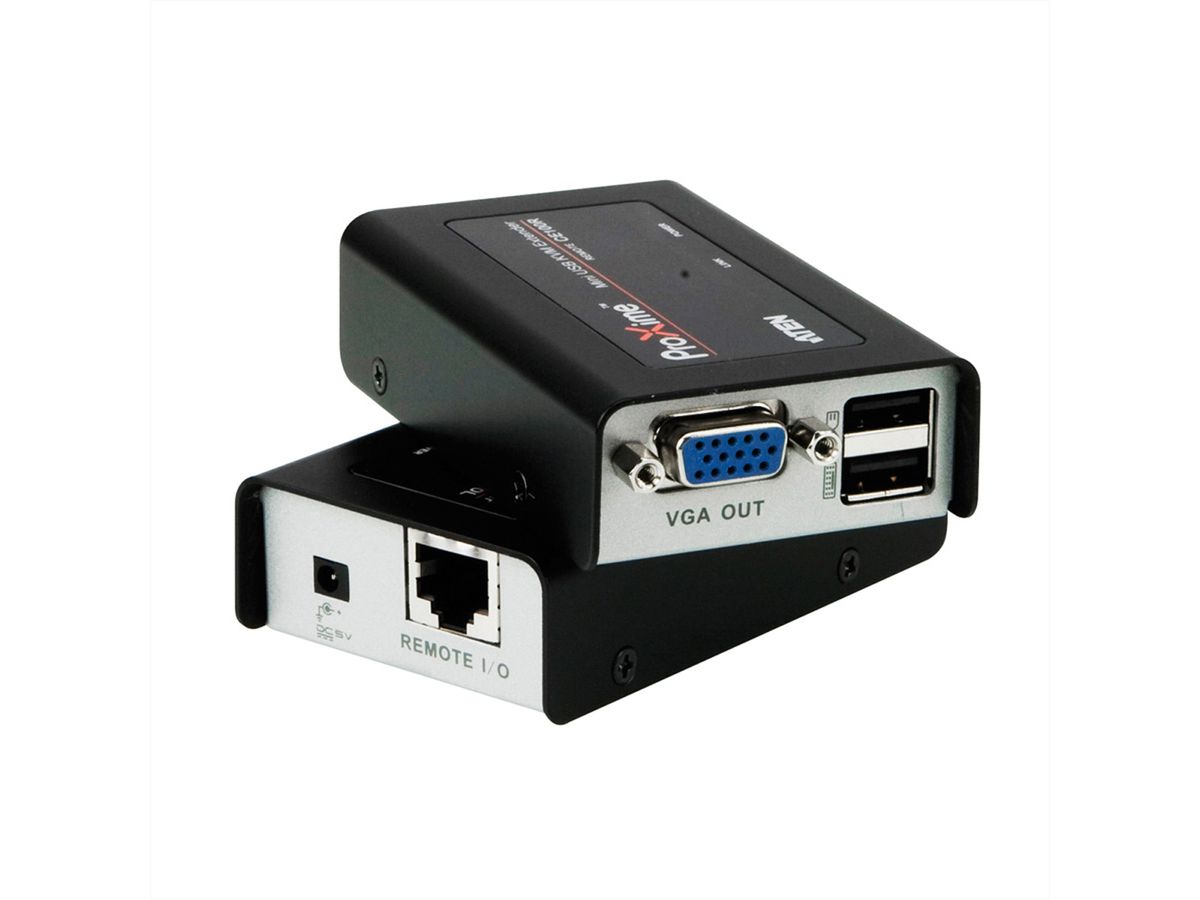

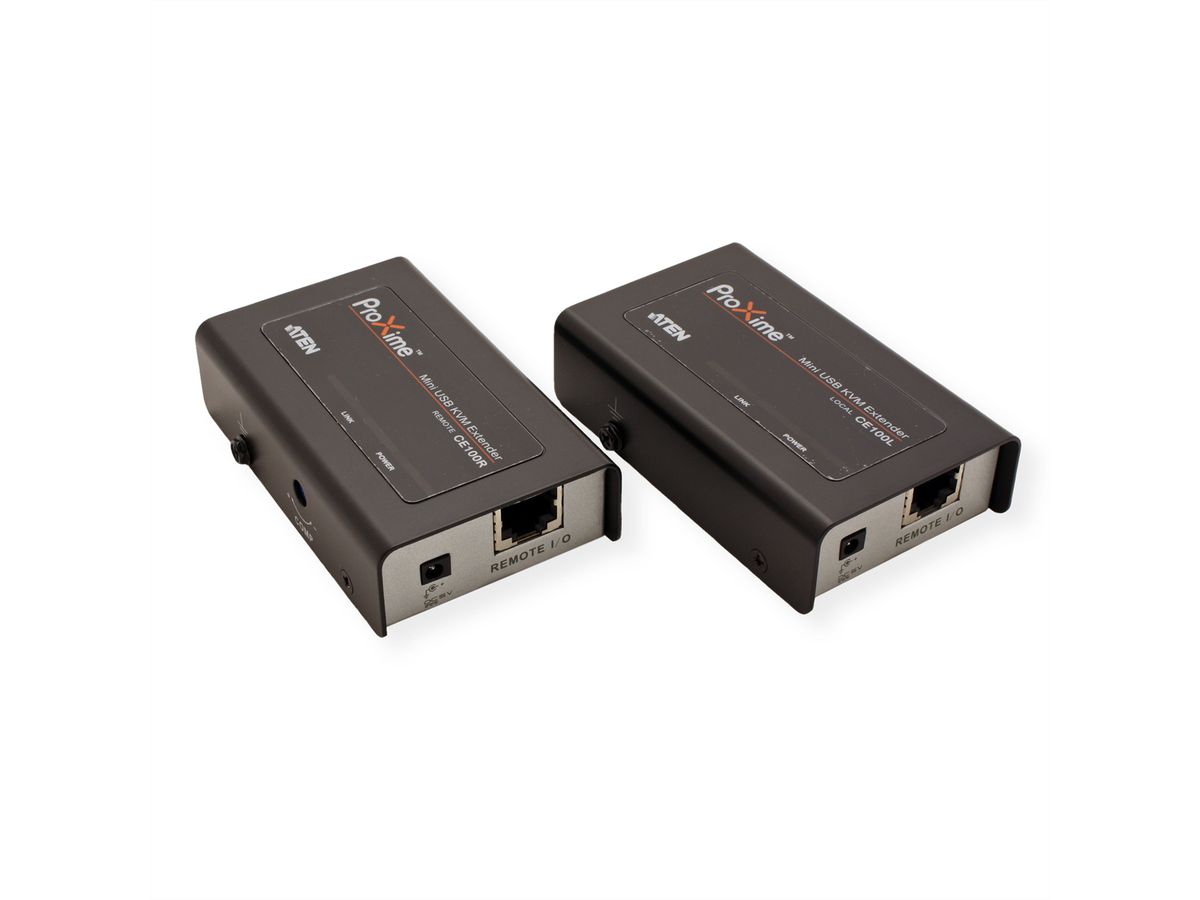

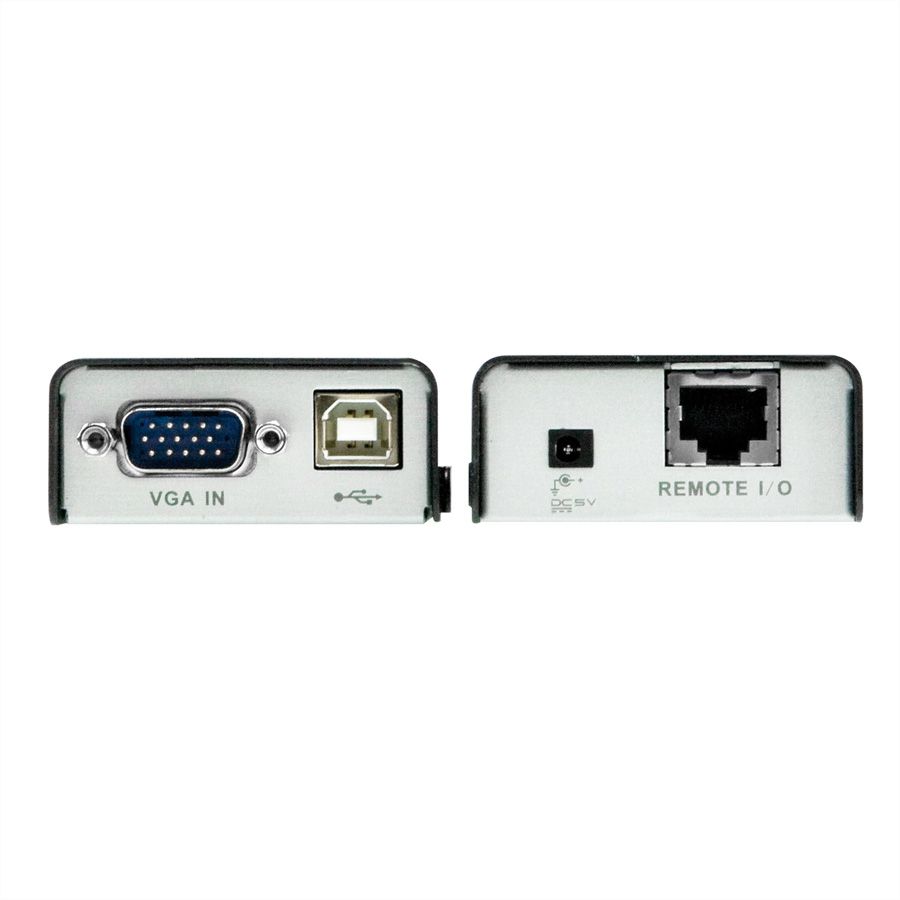

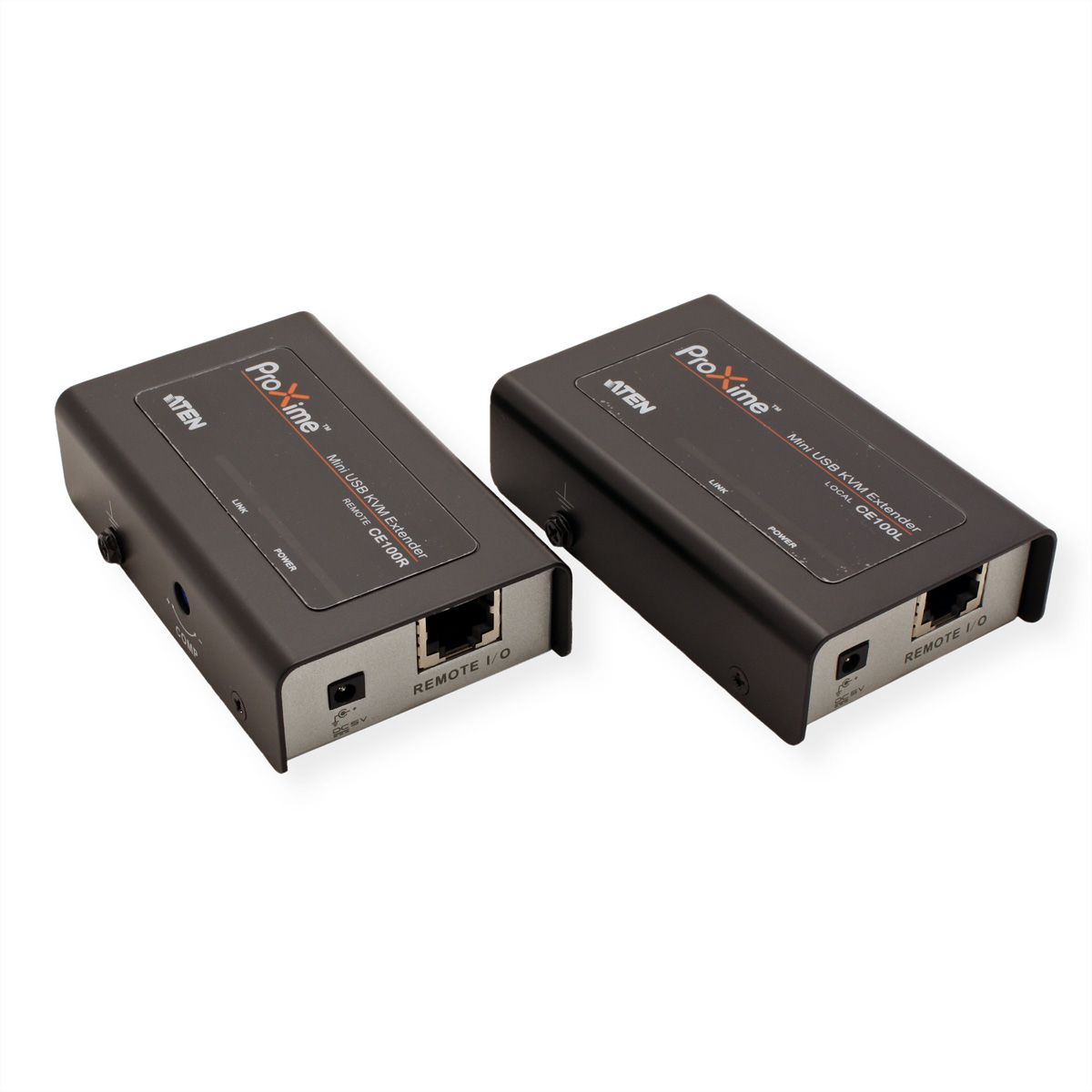

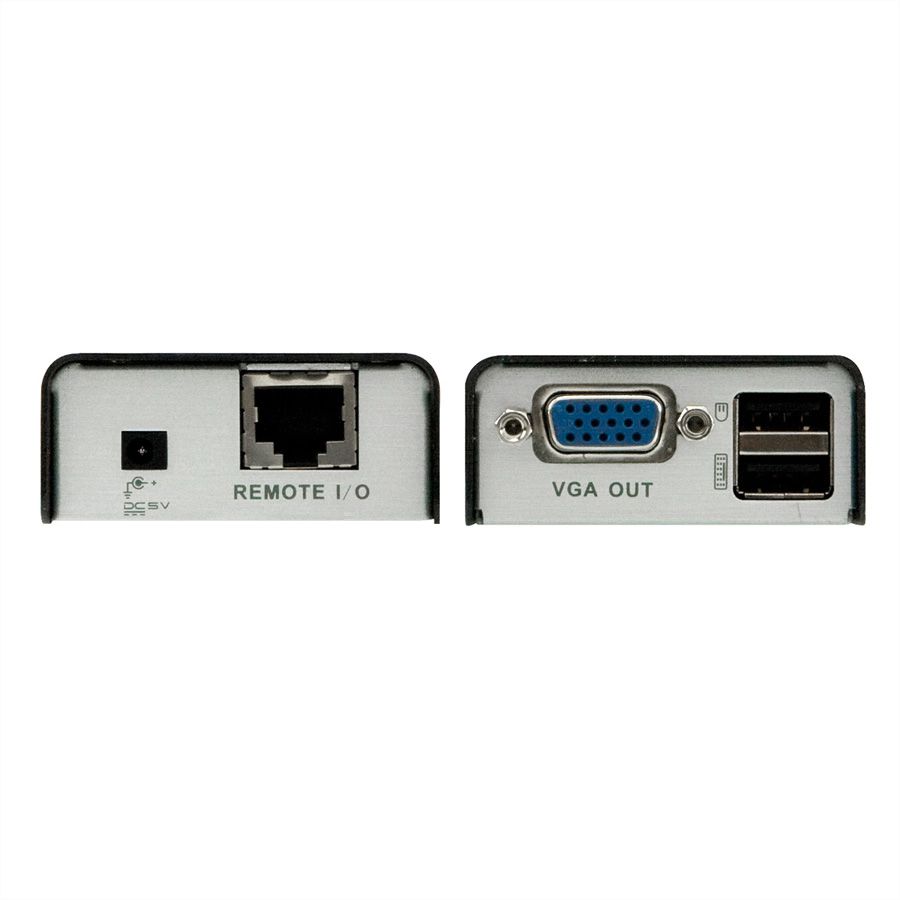

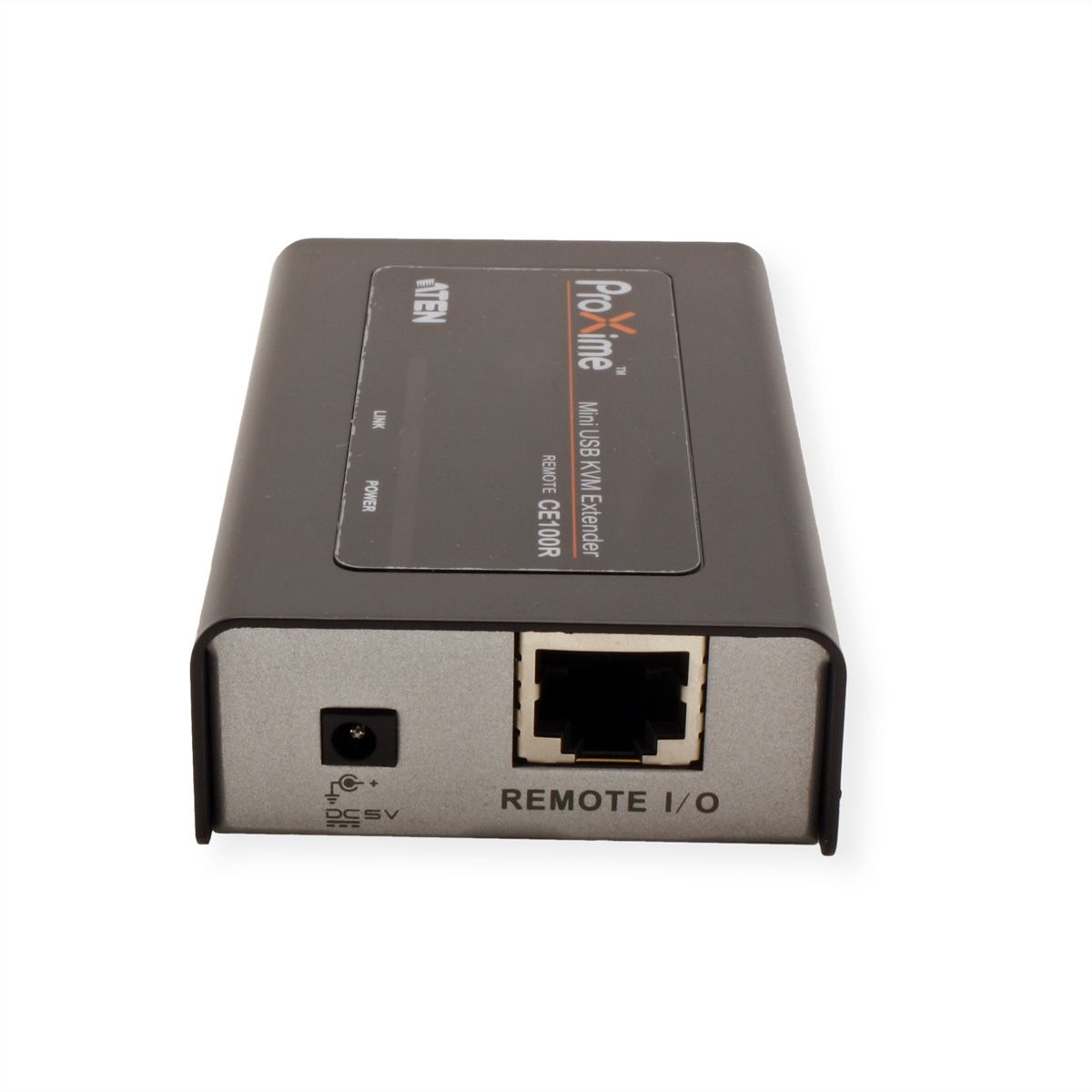

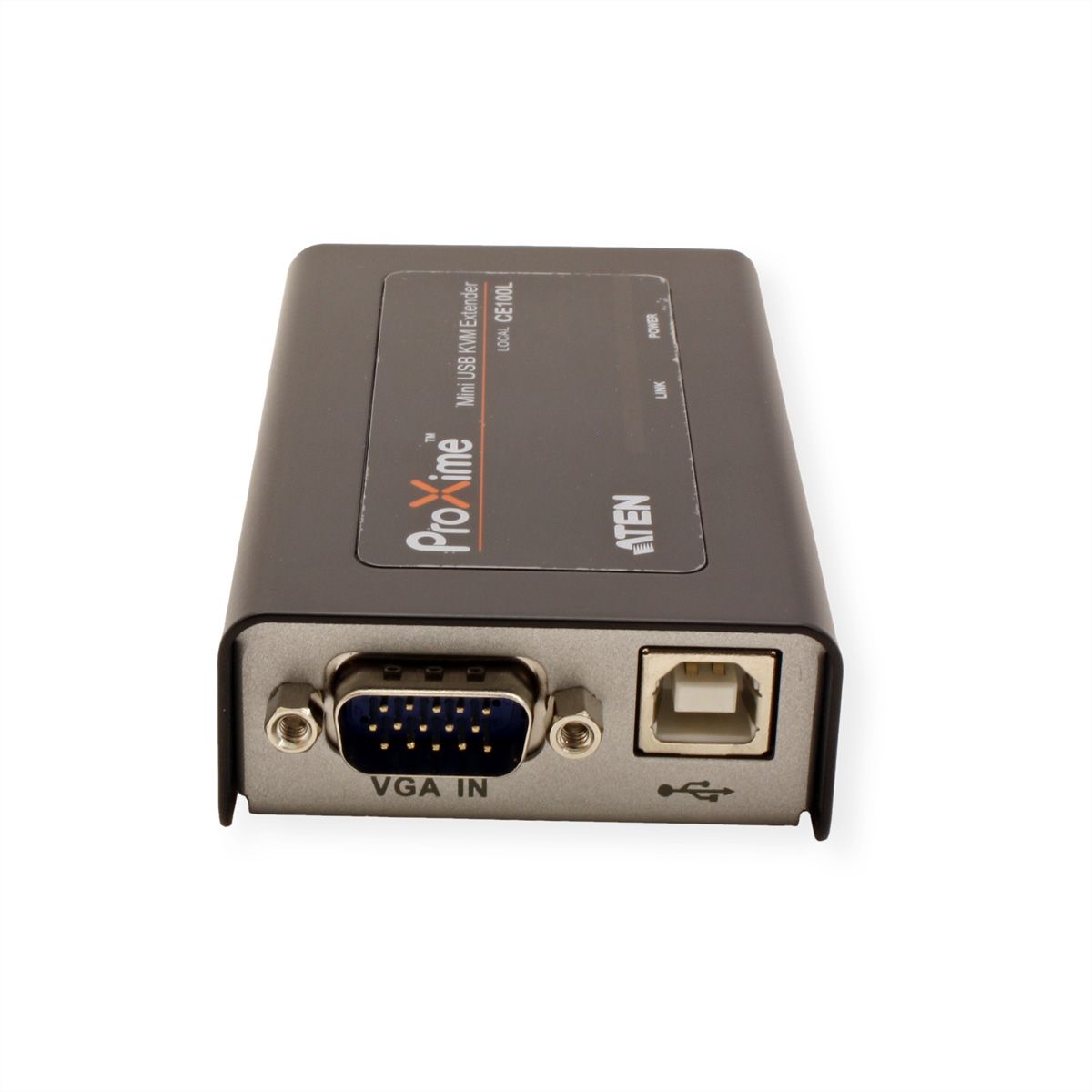

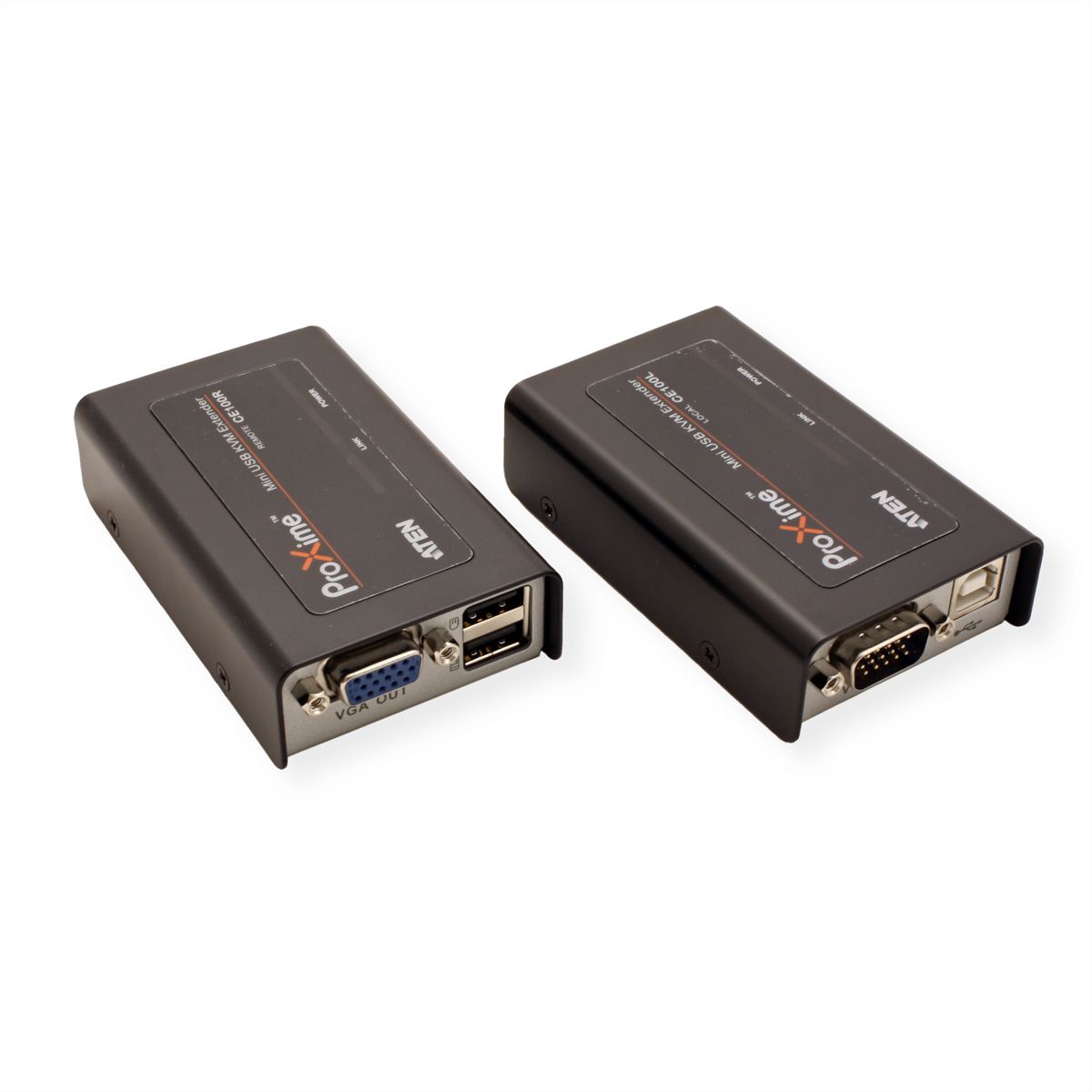

1x CE100L Mini USB KVM Extender (Local Unit), 1x CE100R Mini USB KVM Extender (Remote Unit), 1x KVM Cable (VGA, USB; 1.5m/5ft), 1x Power Adapter (for Remote Unit), 1x Mounting Kit 1x User Instructions
Interface
VGA
Max. distance
100 m
Supported PC-Systems
USB
PC/Switch: monitor connection
1x HD 15-pin M
PC/Switch: mouse/keyboard connection
USB
PC/Switch: connection on moulded cables
no
Local Console connection
yes

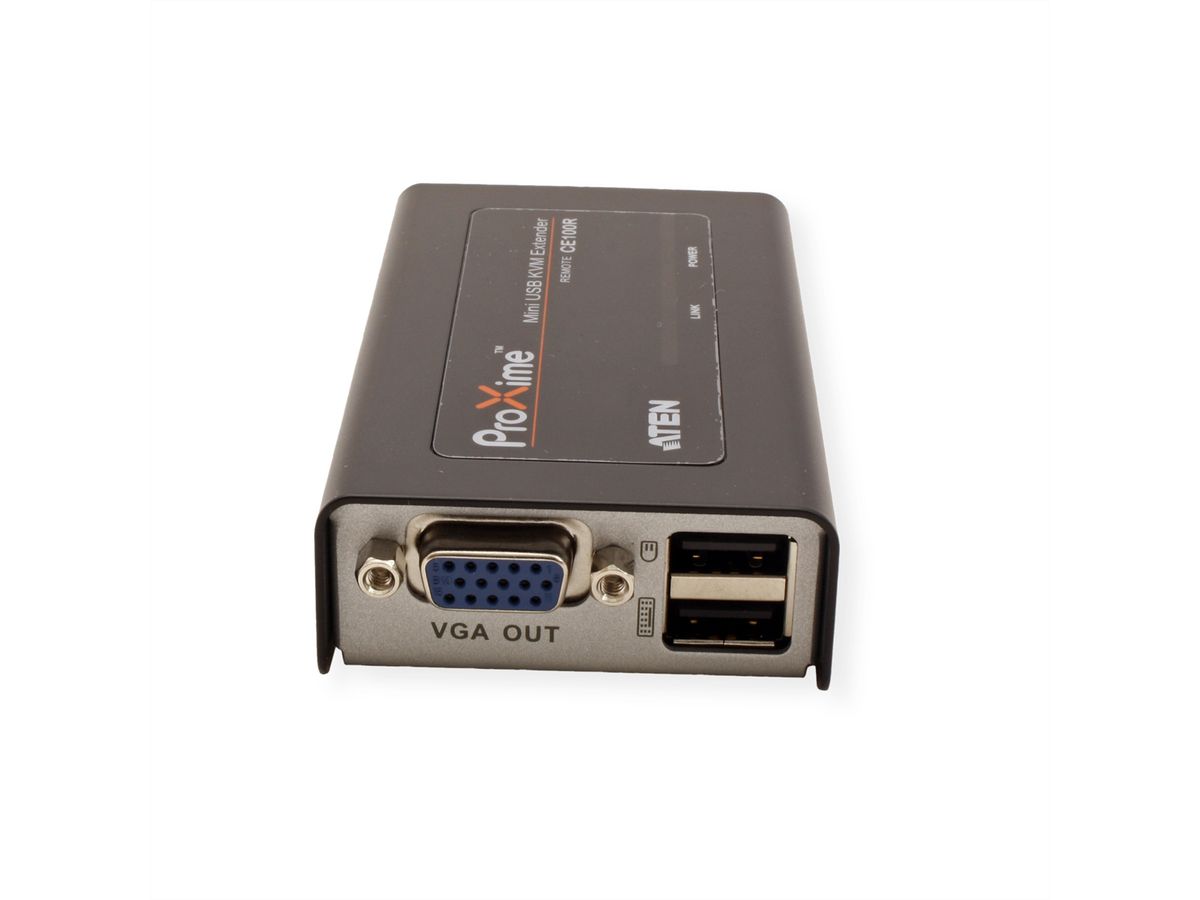

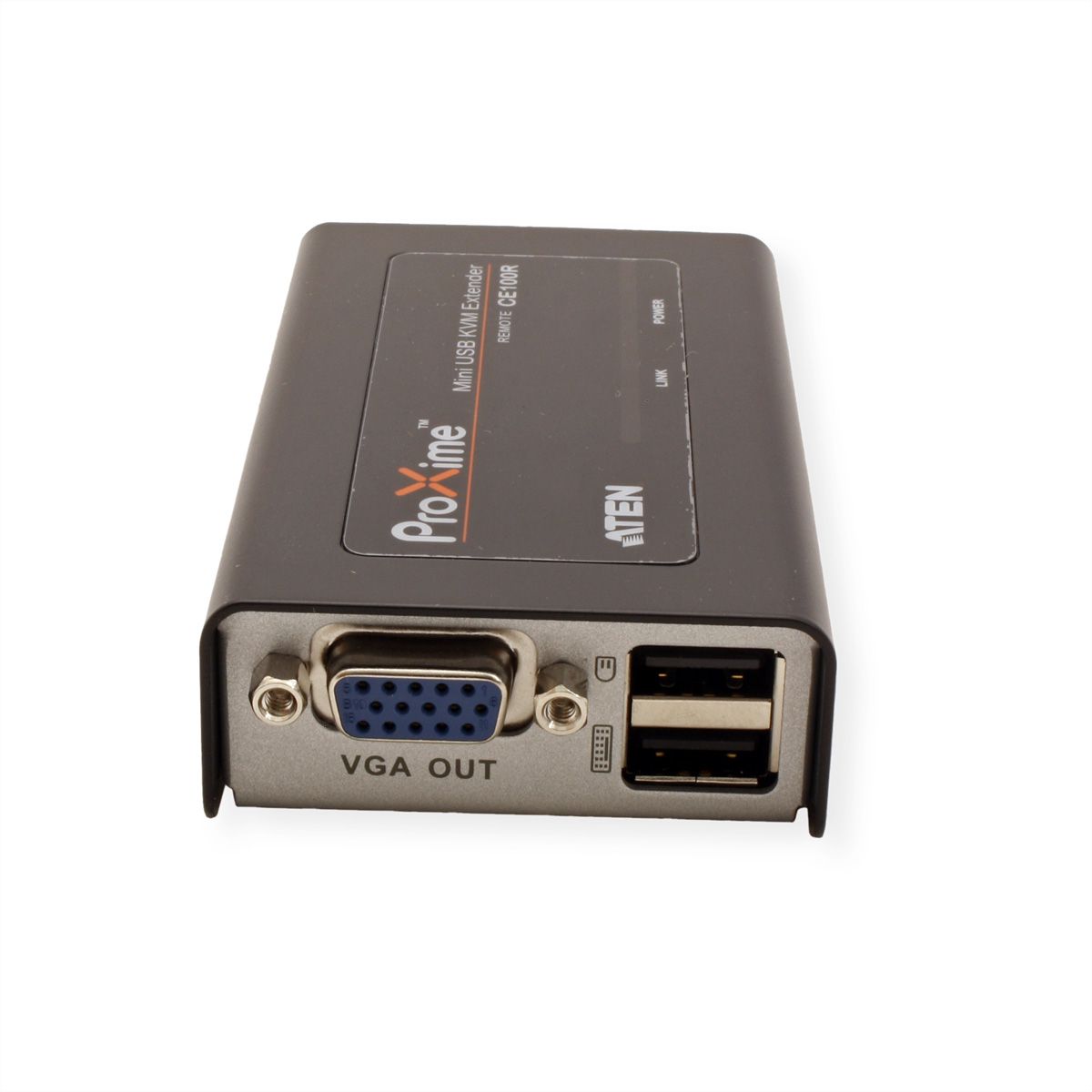

Remote Console: Monitor connection
1x HD 15-pin F
Remote Console: Mouse/Keyboard connection
2x USB
Remote console: Cable connector type
yes

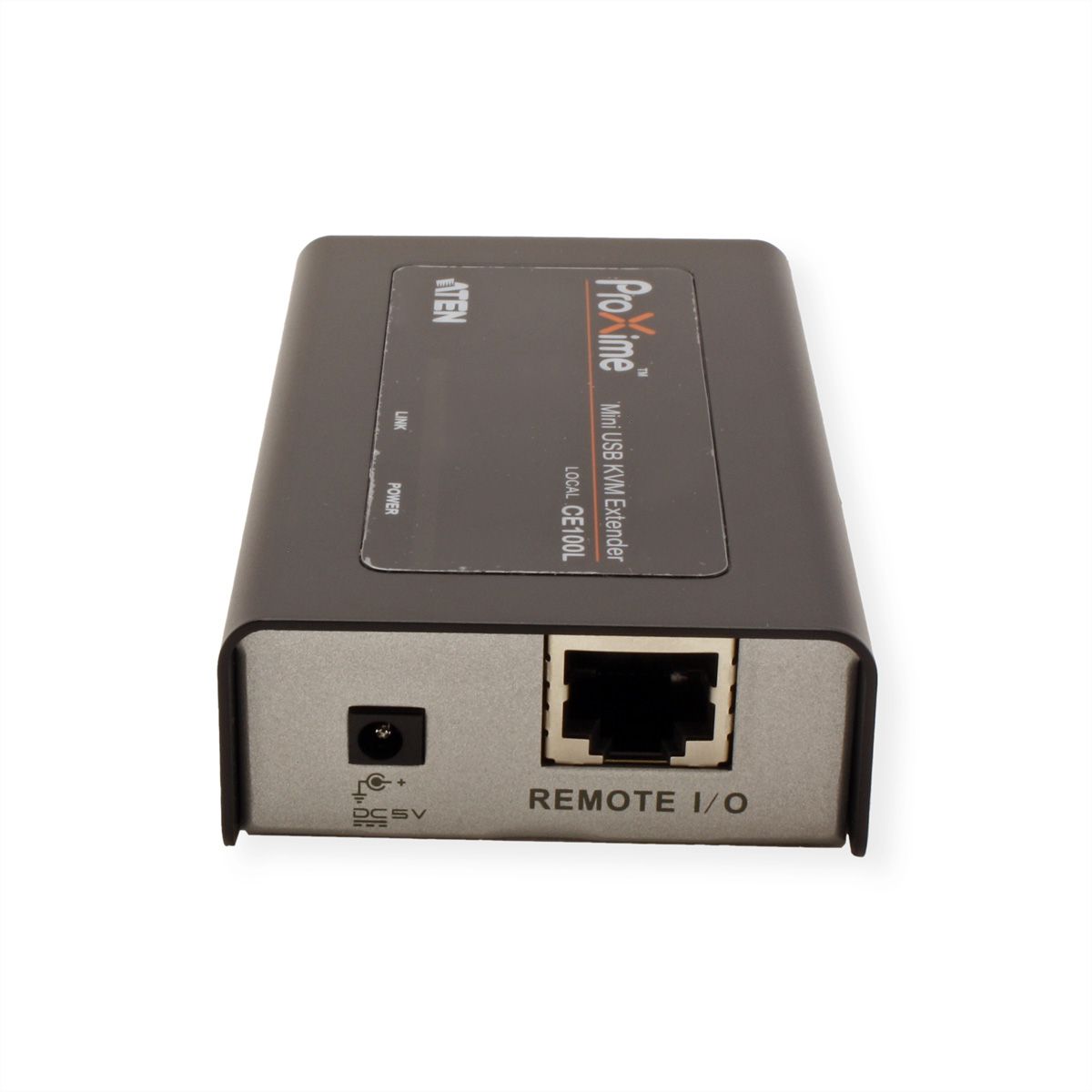

Network connection
RJ45
Max. distance local-remote unit
60 m
Max. resolution (nominal)
1920 x 1200 (30m); 1024 x 768 (60m)
Colour (Design profile)
black
Material (casing)
metal
Dimensions (HxWxD)
25 x 90 x 55 mm
Power supply unit required
yes
Power supply output
each 9V AC, 1.5A
Technical particularity
RS232, Audio
Mains connection
Appliance Europlug, Type-C
Height
25 mm
Width
90 mm
Depth
55 mm
Weight
160 g
Height of packaging (single piece)
70 mm
Width of packaging (single piece)
170 mm
Depth of packaging (single piece)
250 mm
Package weight (single piece)
0.73 kg
Max. distance PC-extension unit (local unit)
3 m

Downloads

Manufacturer data sheet - English (1.2 MB) Quick Installation Guide - English (1.3 MB) Technical drawing - English (27.2 KB) More PDF data - English (28.3 KB)
