ATEN CE700A KVM Extender VGA, USB, 150m

Item no. 14016371 Brand / Manufacturer ATEN Manuf. item no. CE700A EAN 4710423776593 Item weight 1.278 kg
ATEN
Product recommendations

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

USB VGA Cat 5 KVM Extender - Cat 5e cable connects the Local and Remote Units - up to 150m apart

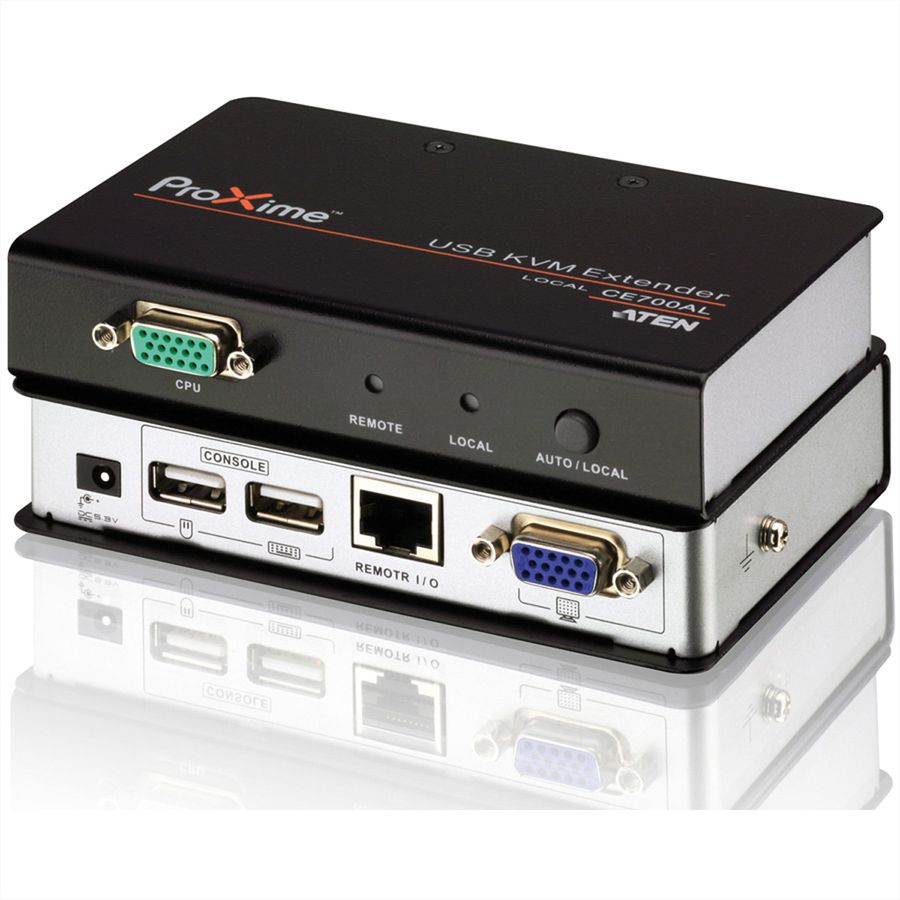

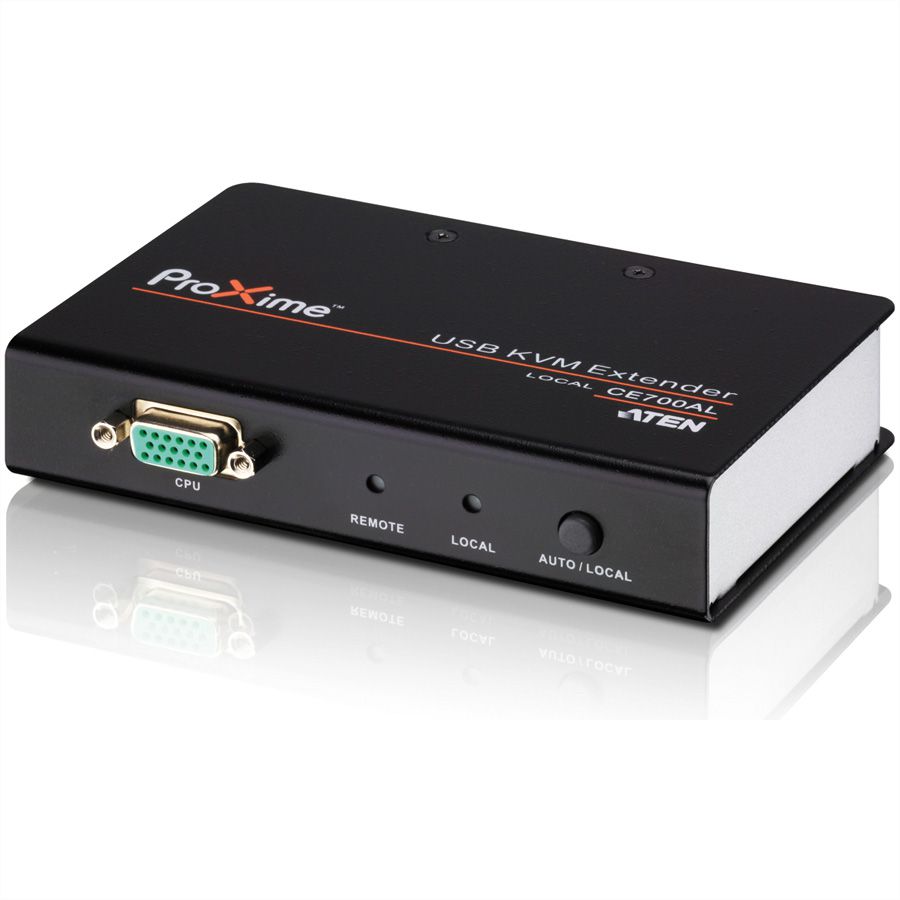

The CE700A is a USB KVM Extender with superior video quality and built-in ESD and surge protection that allows access to a computer system up to 150 meters away from a remote USB console (USB keyboard, monitor, and USB mouse).

The CE700A is a USB KVM Extender with superior video quality and built-in ESD and surge protection that allows access to a computer system up to 150 meters away from a remote USB console (USB keyboard, monitor, and USB mouse).

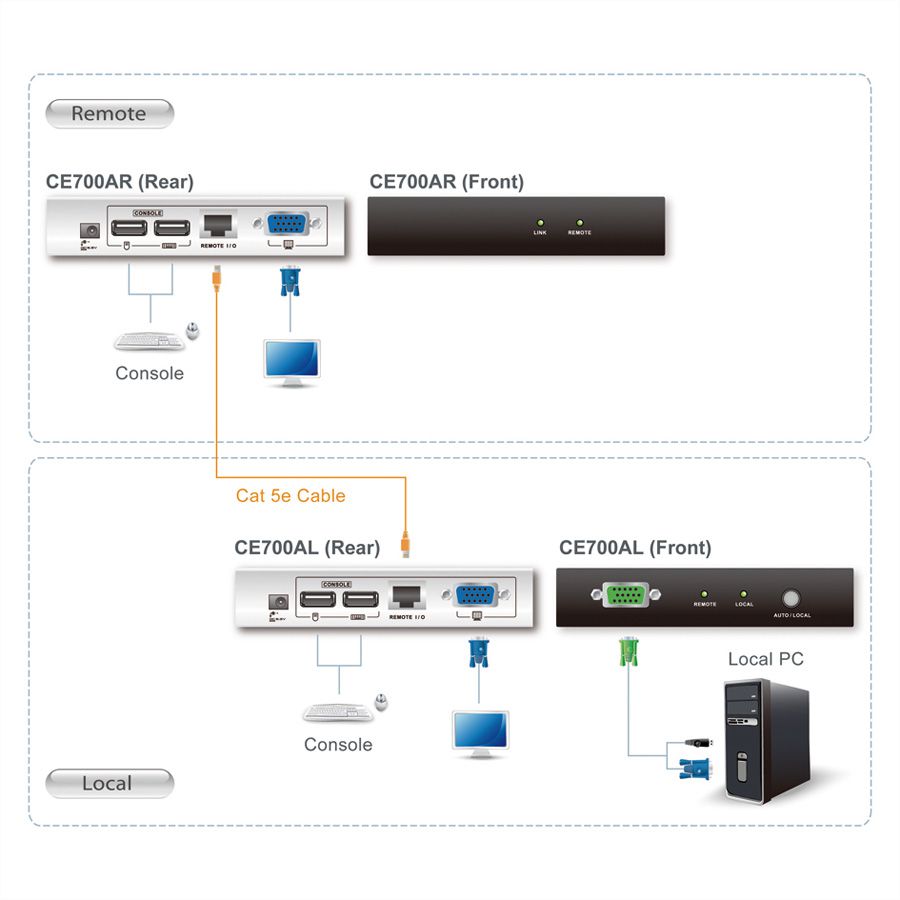

  • Cat 5e cable connects the Local and Remote Units - up to 150m apart
  • Dual console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles
  • Built-in ASIC for greater reliability and compatibility
  • Auto Signal Compensation (ASC)
  • USB Keyboard and USB Mouse Ports
  • USB overcurrent detection and prevention

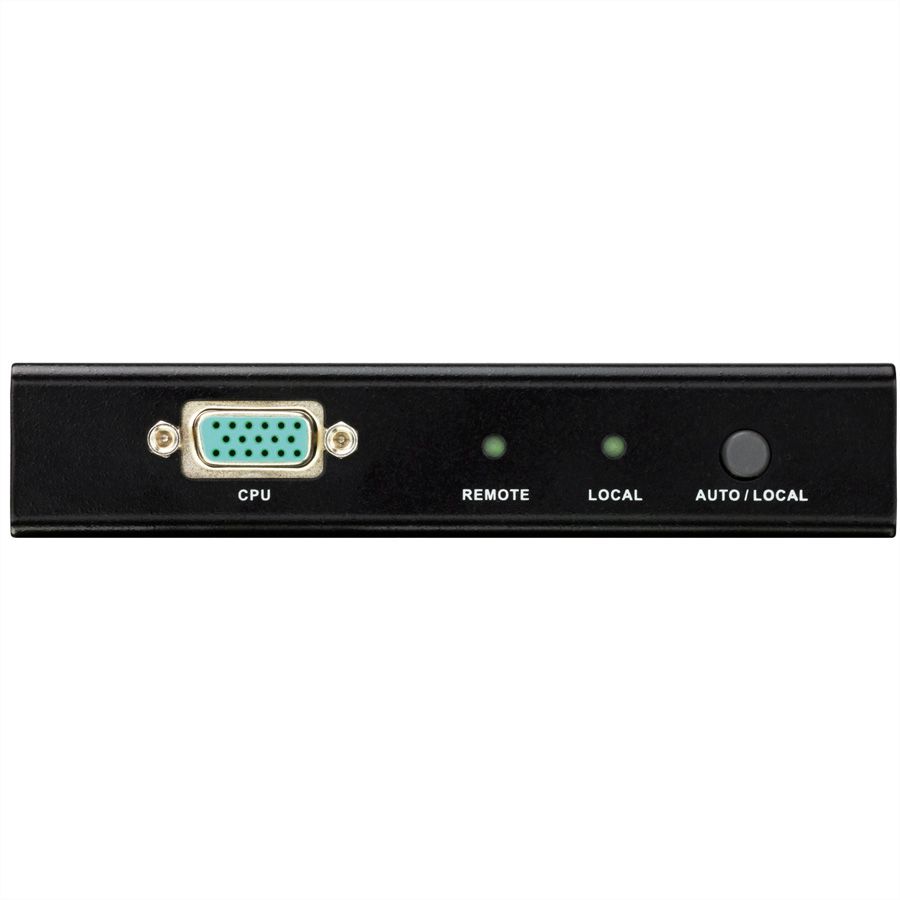

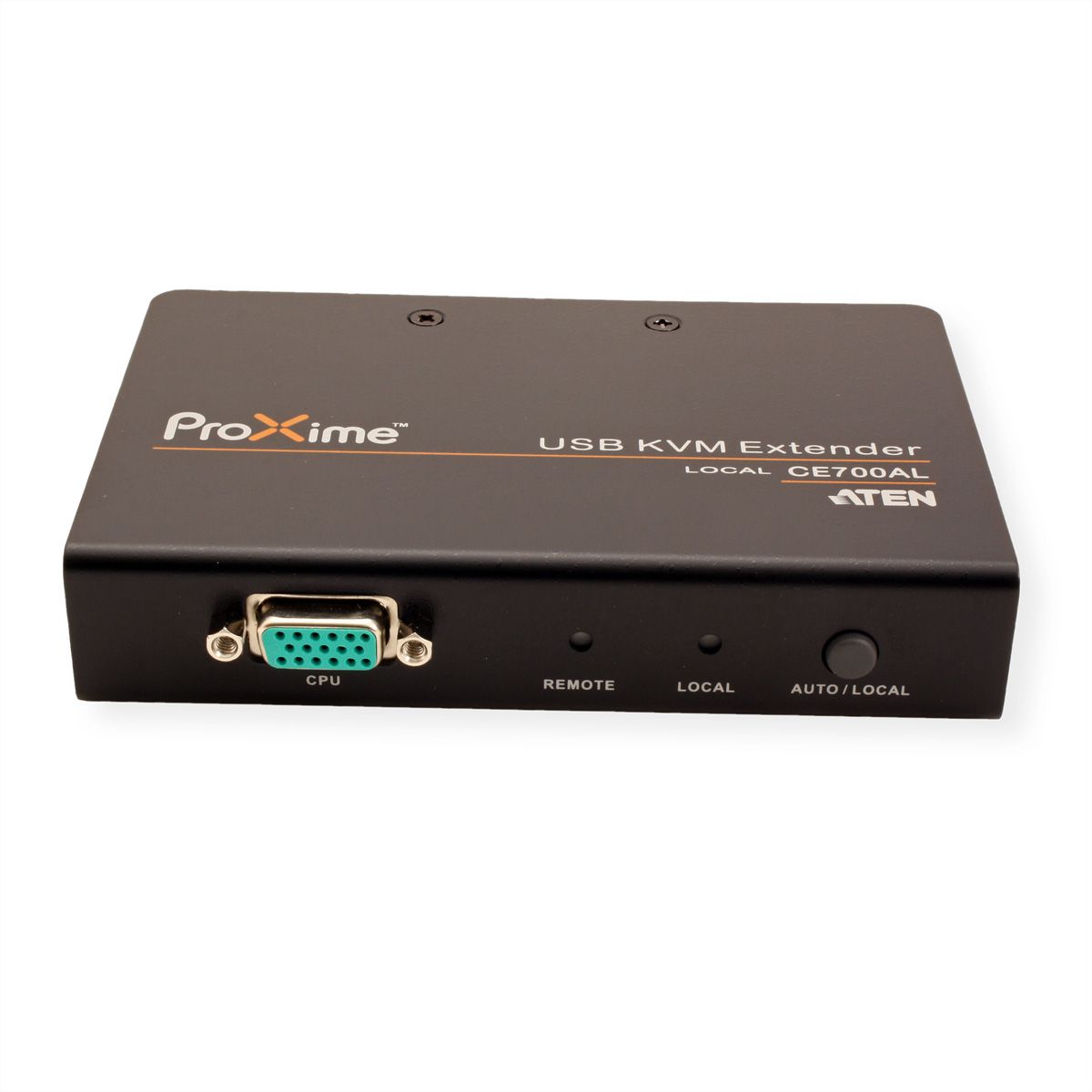

  • Pushbutton operating mode selection (Local Unit only) - select between Local and Auto operating modes.
  • Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) and 2KV surge protection
  • Automatic gain control - adjusts signal strength to compensate for distance
  • High resolution video - up to 1920 x 1200@60Hz (30m ); 1600 x 1200@60Hz (100m); 1280 x 1024@60Hz (150m)
  • Supports VGA

Easy installation – no software required – connecting cables to the devices is all it takes

Specifications

Manufacturer
ATEN
Product group
KVM (IP) extensions
Product type
KVM-Extender, VGA
Colour
black
Scope of delivery

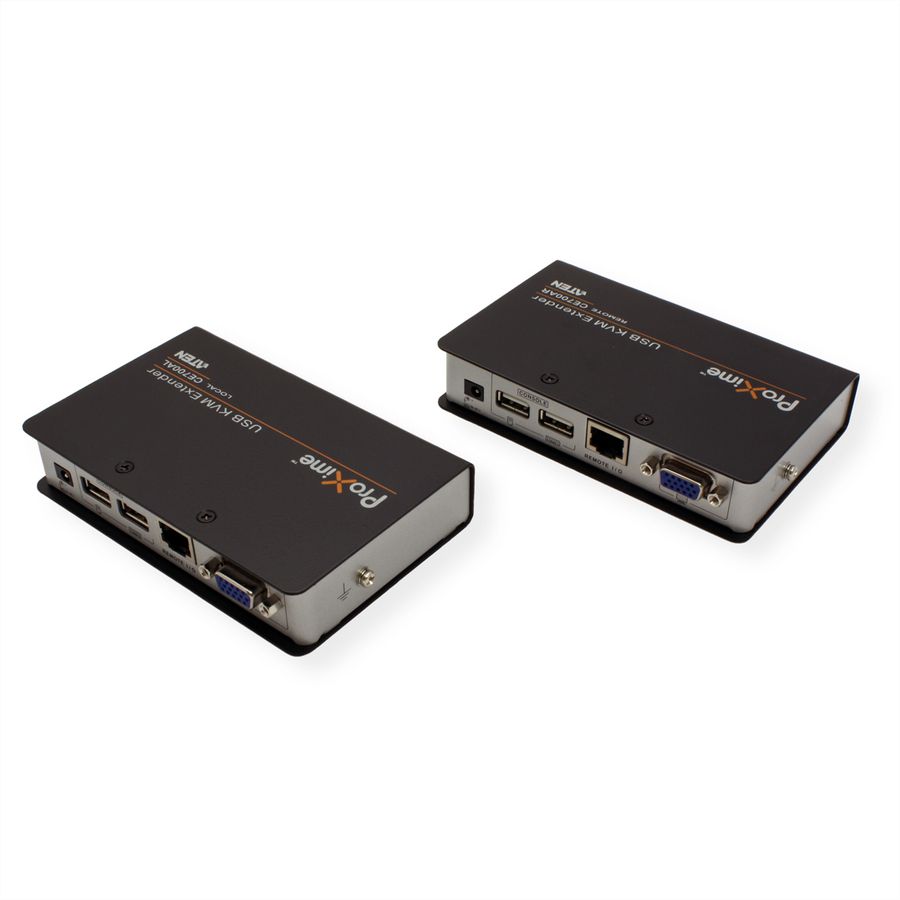

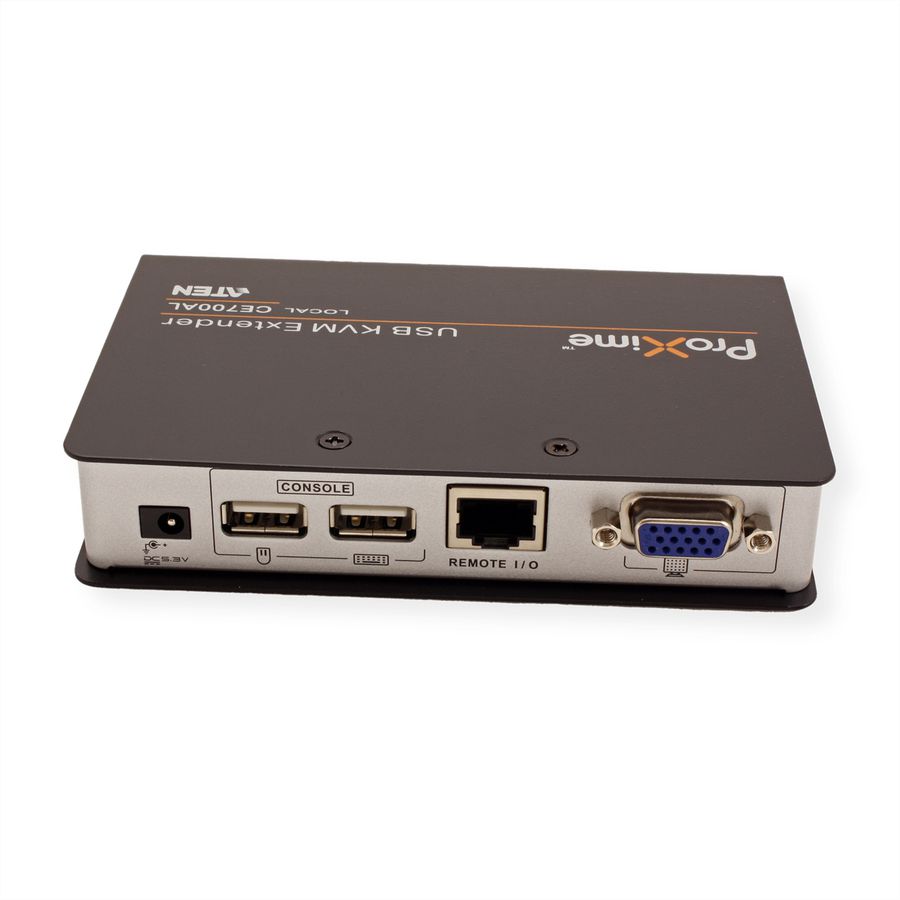

1x CE700AL USB KVM Extender (Local Unit), 1x CE700AR USB KVM Extender (Remote Unit), 2x Power Adapters, 1x Custom KVM Cable (VGA, USB; 1.8m/6ft), 1x Mounting Kit, 1x User Instructions
Interface
VGA
Max. distance
150 m
Supported PC-Systems
USB
PC/Switch: monitor connection
1x HD 15pol. ST
PC/Switch: mouse/keyboard connection
USB
PC/Switch: connection on moulded cables
no

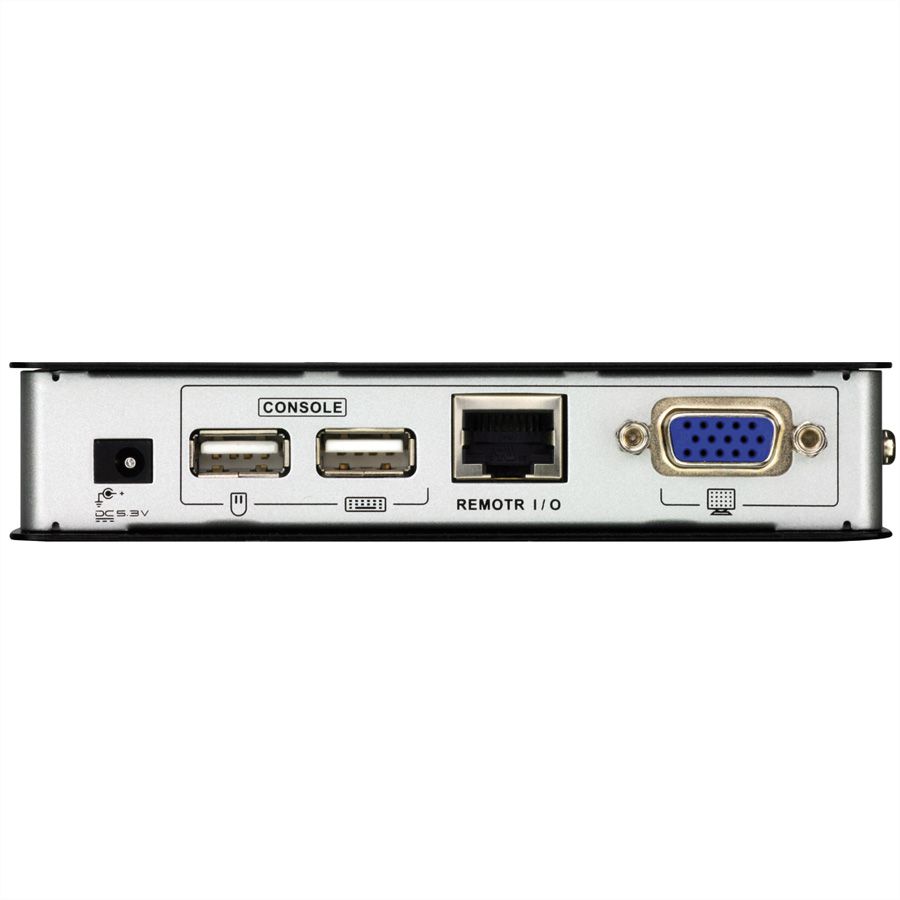

Local Console connection
yes

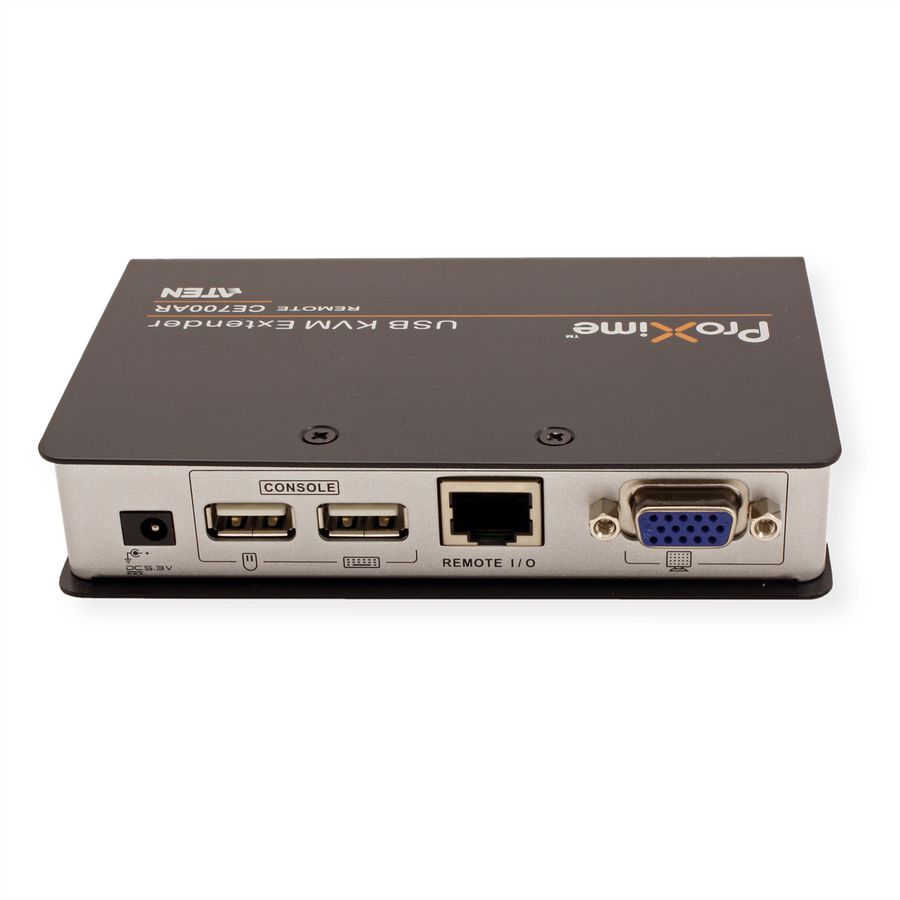

Remote Console: Monitor connection
1x HD 15pol. BU
Remote Console: Mouse/Keyboard connection
2x USB
Remote console: Cable connector type
no
Network connection
RJ45
Max. distance local-remote unit
150m
Max. resolution (nominal)
1920 x 1200 ( max.)
Material (casing)
metal
Dimensions (HxWxD)
26 x 200 x 84 mm / 26 x 200 x 84 mm
Power supply unit required
yes
Power supply output
DC5,3V/2,8W
Mains connection
Appliance Europlug, Type-C
Height
26 mm
Width
200 mm
Depth
84 mm
Weight
320 g
Height of packaging (single piece)
70 mm
Width of packaging (single piece)
190 mm
Depth of packaging (single piece)
300 mm
Package weight (single piece)
1.278 kg

Downloads

Manufacturer data sheet - English (1.4 MB) User manual - English (1,000.4 KB) Quick Installation Guide - English (1.5 MB) Technical drawing - English (49.5 KB) More PDF data - English (46.6 KB)
