ATEN CE820 USB HDMI HDBaseT™ 2.0 KVM Extender

Item no. 14017272 Brand / Manufacturer ATEN Manuf. item no. CE820-ATA-G EAN 4710469341823 Item weight 2.152 kg
ATEN
Product recommendations

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
Deliverable approx. 08/10/2026
Download PDF

Description

The ATEN CE820 USB HDMI HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to deliver 4K HDMI video, stereo audio, USB, Ethernet, and RS-232 signals up to 100 meters using single Cat6 / 2L-2910 Cat 6 cable.

The ATEN CE820 USB HDMI HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to deliver 4K HDMI video, stereo audio, USB, Ethernet*, and RS-232 signals up to 100 meters using single Cat6 / 2L-2910 Cat 6 cable. The HDBaseT™ 2.0 guarantees the most reliable transmission on the market as well as enables the long-reach capability that extends full HD 1080P signals up to 150 meters. With an easy cable installation supporting various signals, the CE820 is ideal for applications where convenient remote access is required – such as transportation control centers, medical facilities, industrial warehouses, and extended workstations.

* Note: The CE820-AT supports Ethernet function and the CE820-ATA does not.

  • Supports HDBaseT™ 2.0 technology
  • Extends video, audio, USB, RS-232, and Ethernet1 signals via a single Cat6 / 6a cable / 2L-2910 Cat 6 cable
  • Enhanced bit error detection and correction to resist signal interference during high-quality video transmissions
  • Status detection and LED indication for HDBaseT™ signal transmission on remote unit
  • EDID Buffer for smooth power-up and the highest quality display
  • HDMI (3D, Deep Color, 1080P, 4K); HDCP 2.2 Compatible
  • Long distance with superior video quality
  • HDBaseT™ Standard mode up to 4K @ 100 m (Cat 6 / 6a / 2L-2910)
  • HDBaseT™ Long-Reach mode up to 1080P @ 150 m
  • Long Reach mode switch – switches between HDBaseT™ • Standard and Long Reach modes in a snap
  • Supports individual 2-channel stereo audio and USB 2.0 full speed ports
  • Supports PC wakeup function via single pushbutton through RS-232 channel2
  • Built-in 8KV / 15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)

Note:
1. The CE820-AT supports Ethernet function, and the CE820-ATA does not.
2. The computer has to support Wake Up Ring for this function to work.

Specifications

Manufacturer
ATEN
Product group
KVM (IP) extensions
Product type
KVM-Extender, HDMI
Colour
black
Length
100 m
Scope of delivery

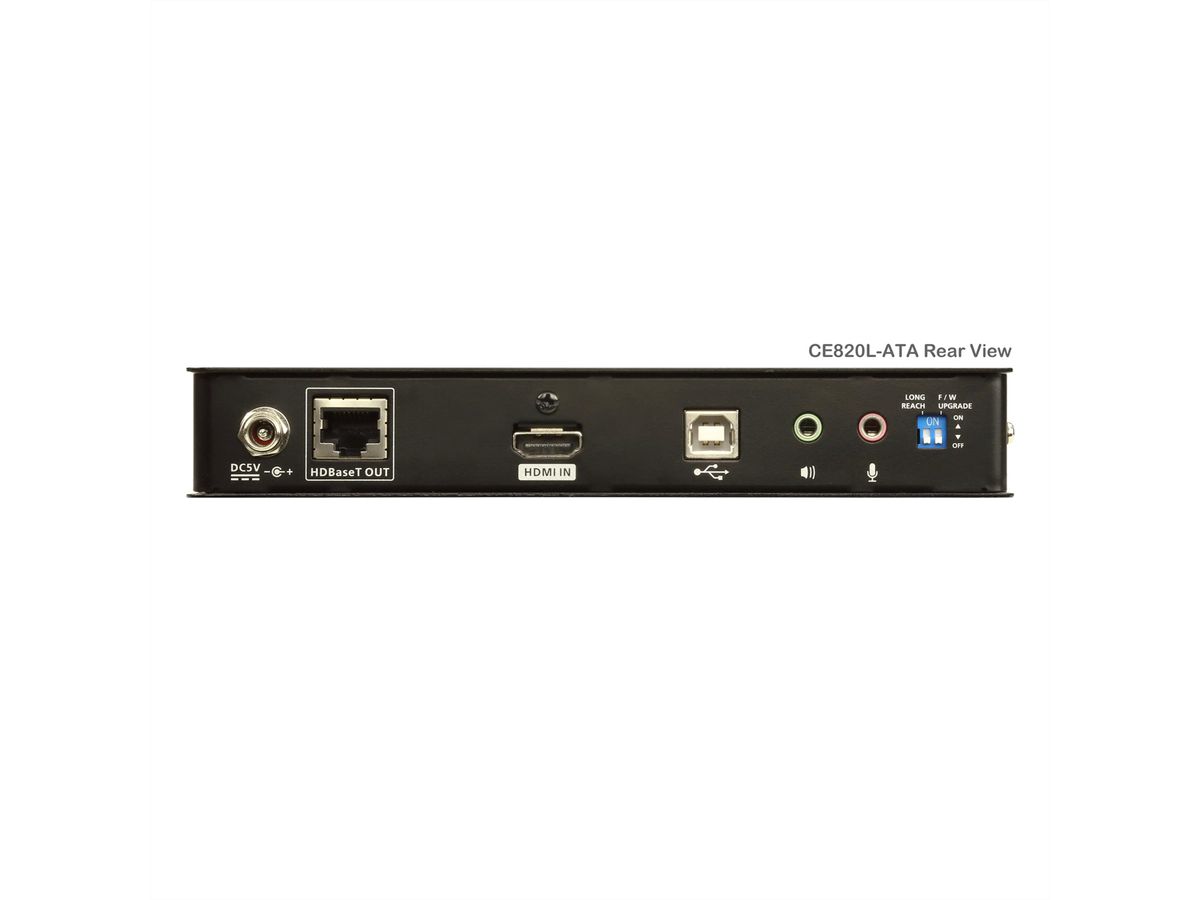

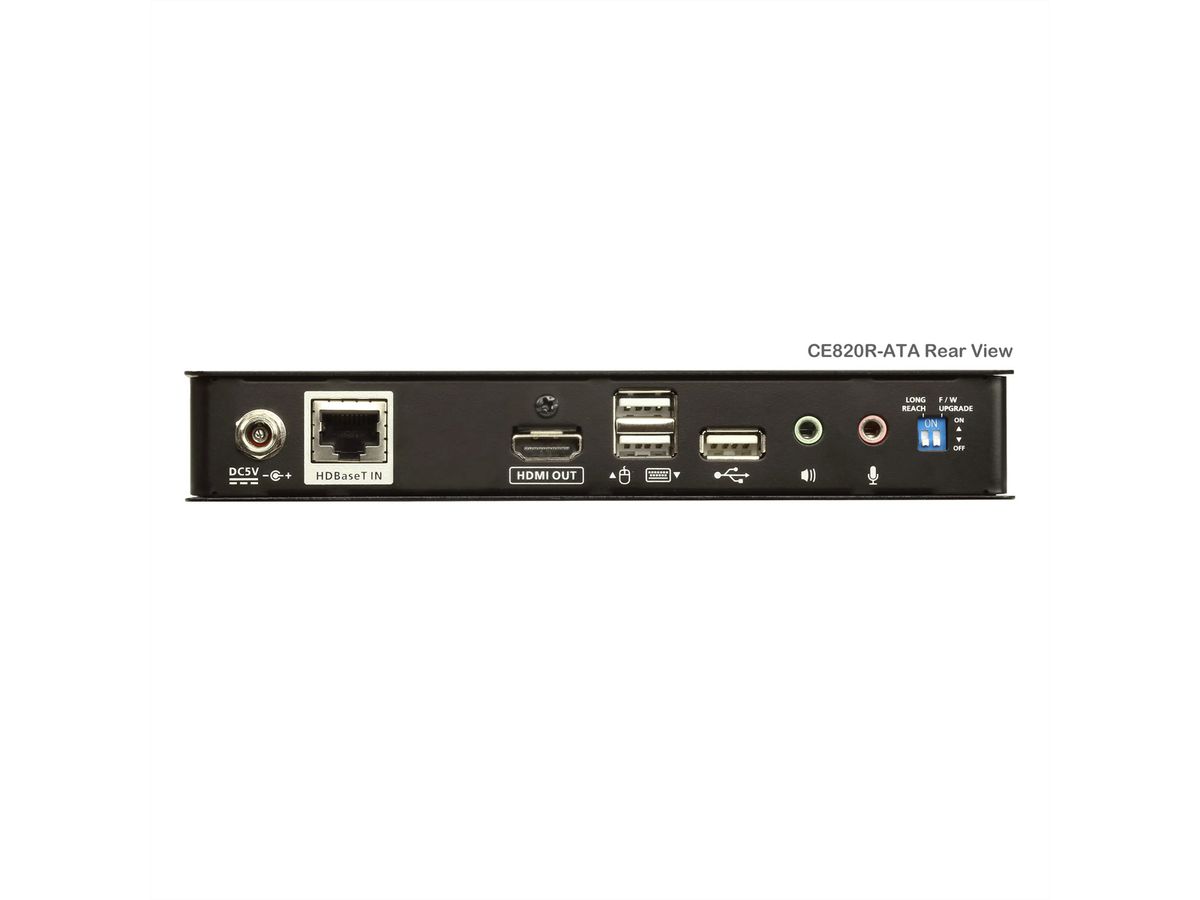

1x CE820L USB HDMI HDBaseT 2.0 KVM Extender (Local Unit), 1x CE820R USB HDMI HDBaseT 2.0 KVM Extender (Remote Unit), 1x HDMI KVM Cable Set (HDMI, USB, Audio; 1.8m/6ft), 2x Power Adapters, 2x Mounting Kits, 1x User Instructions
Interface
HDMI
Mains connection
Appliance Europlug, Type-C
Weight
1960 g
Height of packaging (single piece)
230 mm
Width of packaging (single piece)
100 mm
Depth of packaging (single piece)
340 mm
Package weight (single piece)
2.152 kg

Downloads

Manufacturer data sheet - English (760.7 KB) User manual - English (2.6 MB) Quick Installation Guide - English (1.1 MB) Technical drawing - English (66.0 KB) More PDF data - English (68.0 KB)
