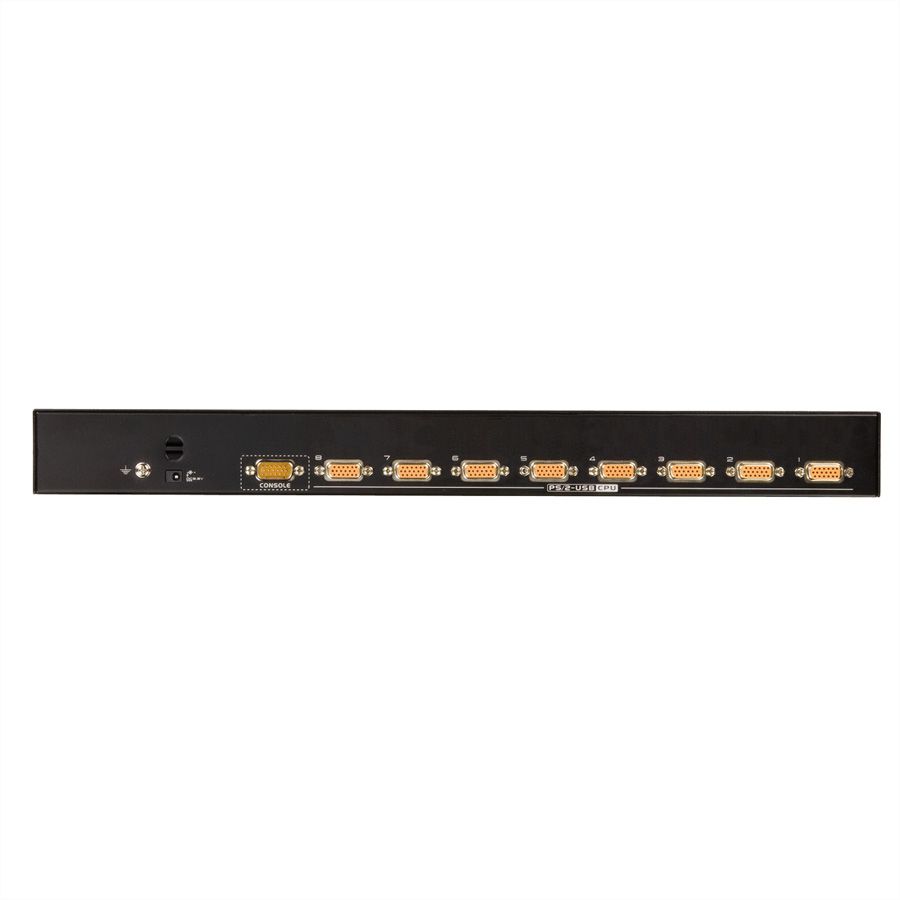

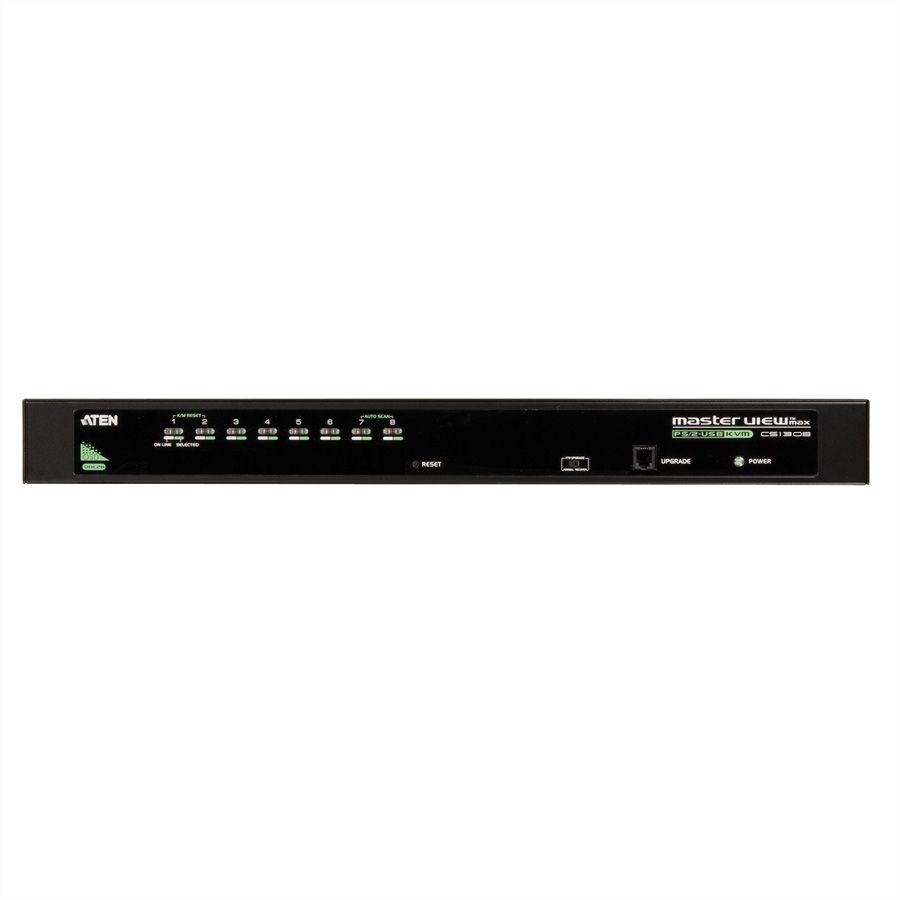

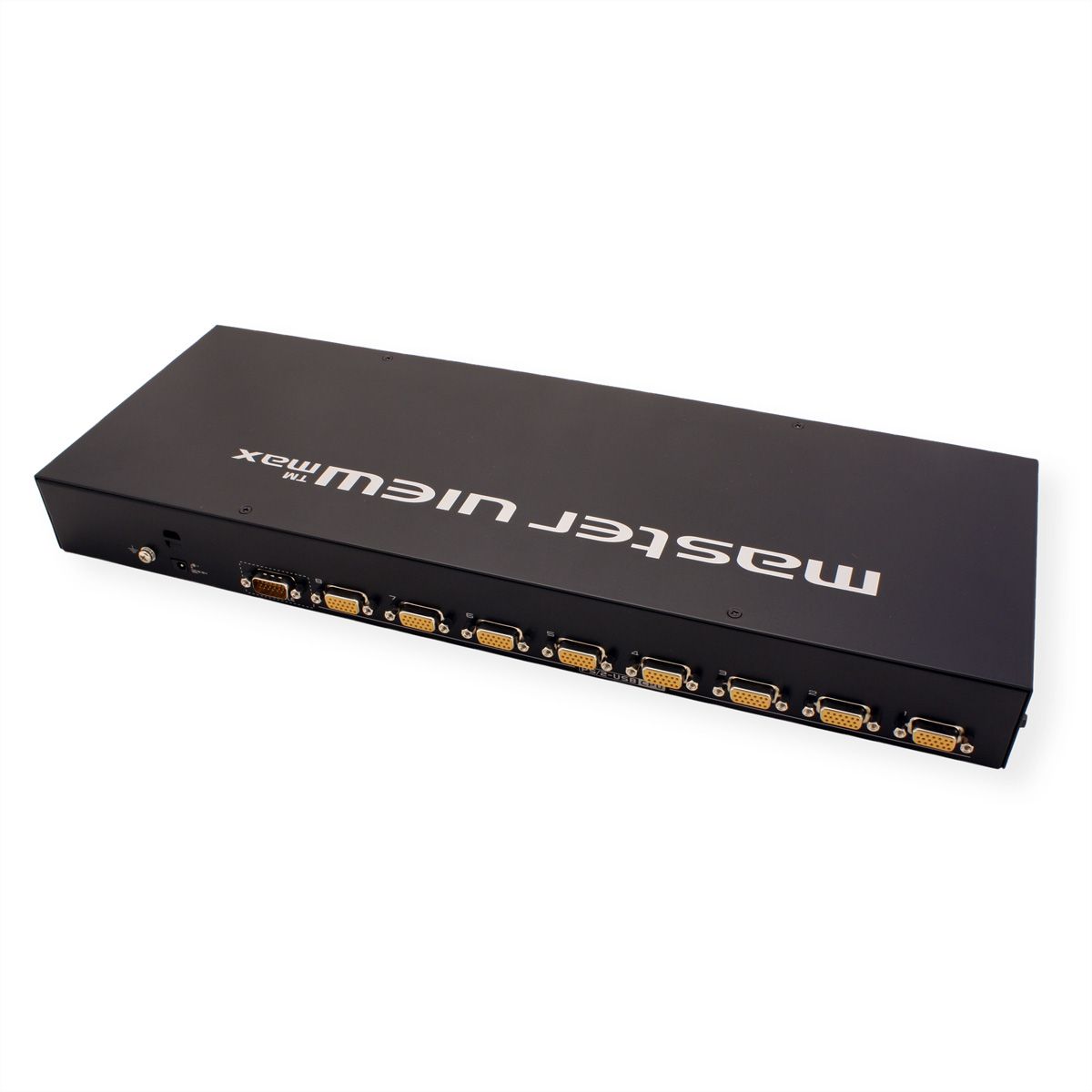

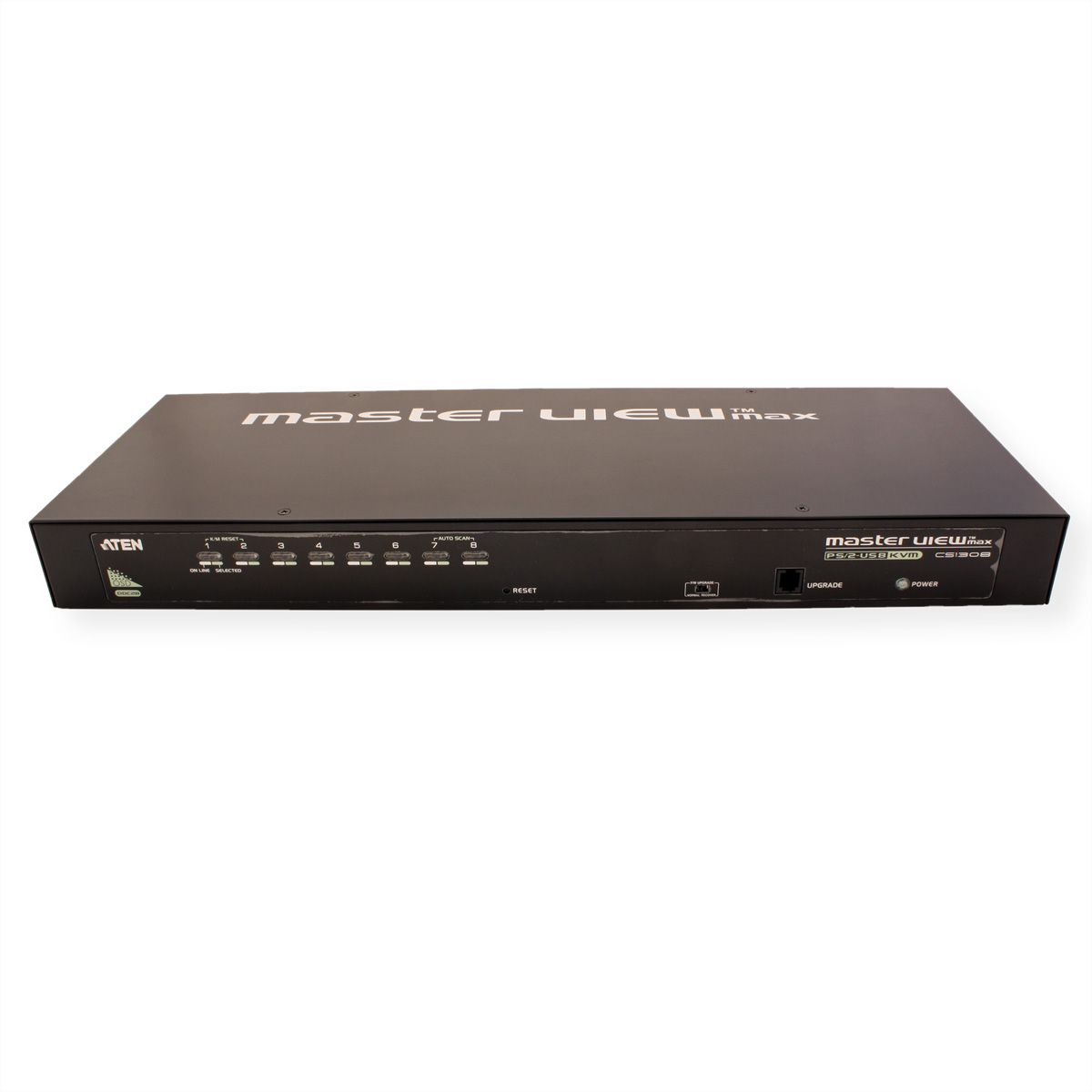

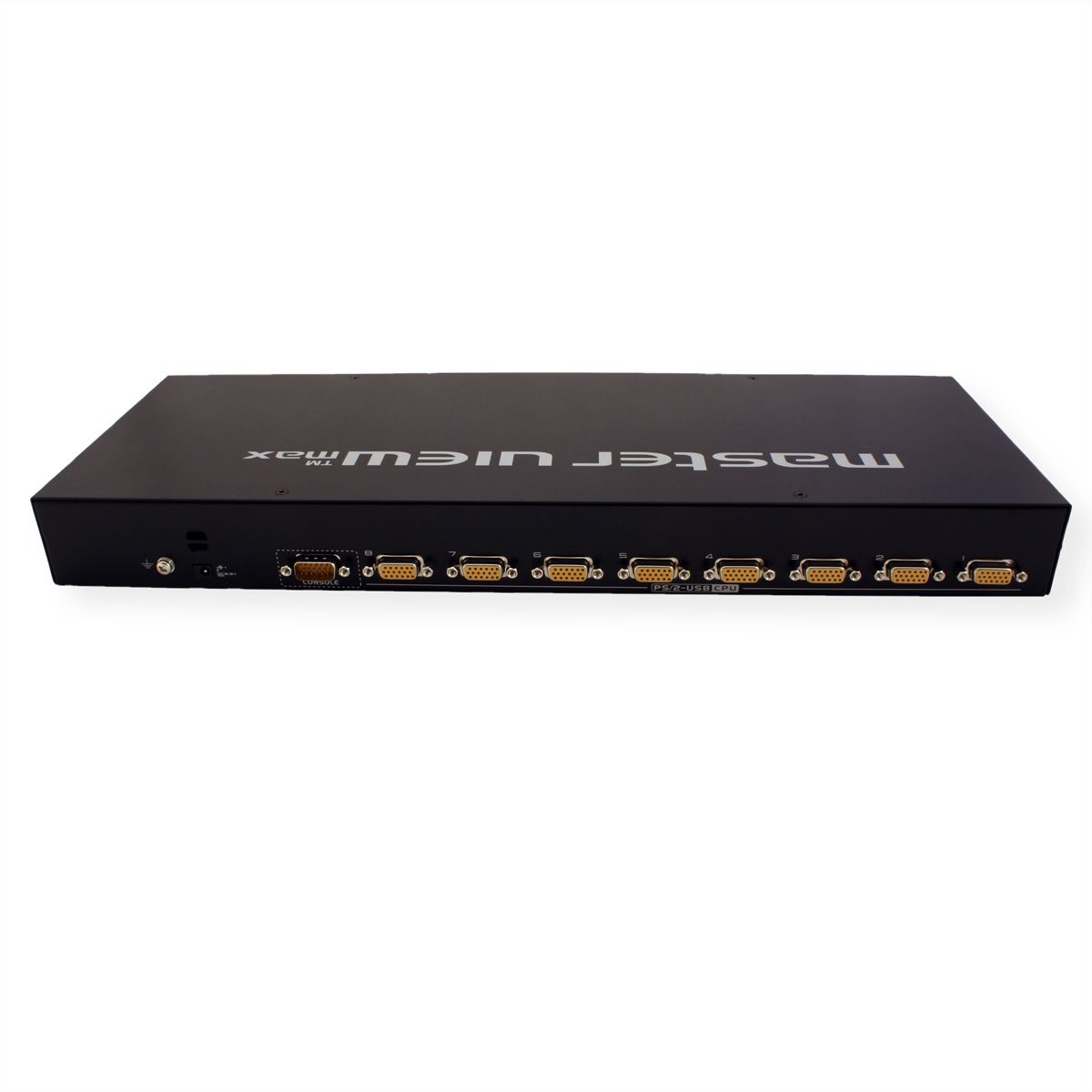

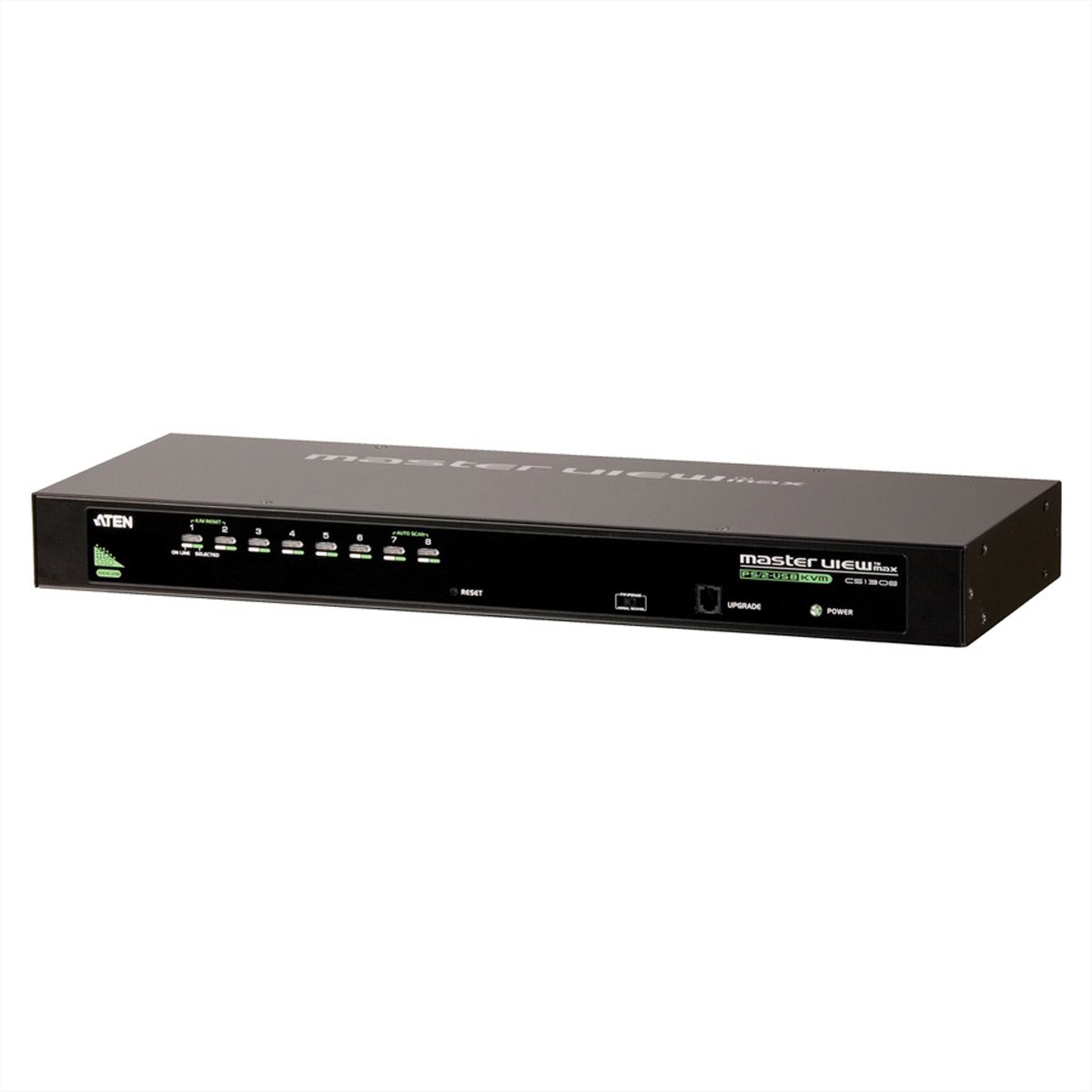

ATEN CS1308 KVM Switch VGA, PS/2-USB, 8 Ports

Item no. 14016345 Brand / Manufacturer ATEN Manuf. item no. CS1308 EAN 4710423775916 Item weight 2.713 kg
ATEN
Product recommendations

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

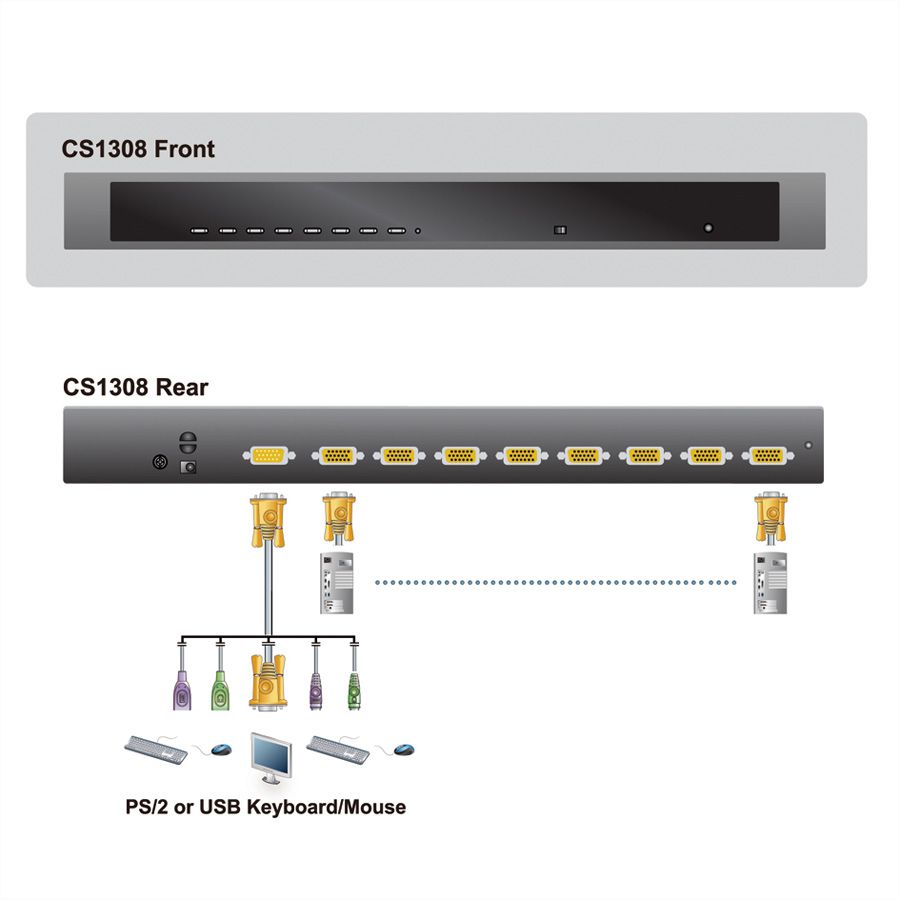

8-Port PS/2-USB VGA KVM Switch - access to up to 8 PCs via one set of keyboard, mouse and monitor, allowing IT staff to productively manage multiple computers all at once via easy switching

The CS1308 KVM switch allows access and control up to 64 computers from a single console (keyboard, mouse, and monitor). As many as 8 additional switches can be cascaded bringing the total number of connected computers to 64 computers that can be controlled from a single KVM console. The switch supports both USB and PS/2 connections for the console and computers.

  • One USB-PS/2 console controls 8 computers
  • Cascade up to 2 levels - control up to 64 computers
  • Dual Interface - supports computers with PS/2 or USB keyboards and mice
  • Multiplatform support - Windows 2000/XP/Vista, Linux, Mac, and Sun
  • Video DynaSync™ - Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
  • Supports USB keyboards for PC, Mac and Sun
  • Auto PS/2 and USB interface detection
  • USB or PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere
  • Superior video quality - up to 2048 x 1536; DDC2B
  • Computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menu
  • Two level password security - only authorized users view and control computers; up to four users and an administrator with a separate profile for each
  • Auto Scan feature for monitoring user-selected computers
  • Hot pluggable - add or remove computers without having to power down the switch
  • Buzzer on/off via hotkey and OSD
  • Firmware upgradeable
  • No software installation required
  • Designed for desktop or rack mount (19" system rack, 1U)

Specifications

Manufacturer
ATEN
Product group
KVM switches / PC shares
Product type
KVM-Switch, VGA
Colour
black
Scope of delivery
1x CS1308 KVM Switch with Rack Mount Kit, 1x Console cable, 1x Firmware Upgrade cable, 1x Foot Pad set (4 pads), 1x Power Adapter, 1x User Instructions
Interface
VGA
Quantity of PCs
8
Supported PC-Systems
PS/2 USB
PC: connection on moulded cables
no
PC: combi connection
8x SPHD 15pin F
Quantity of analogue consoles
1
Analogue Console: Monitor connection
1x HD 15pin F
Analogue Console: Mouse/Keyboard connection
2x USB Type A
Integrated console
no
Switching over Scan Run
yes
Print button on device
yes
Switching over Hot Keys
Keyboard
Switching over OSD
yes
Audio switching
Speakers and microphones
Audio switching separately
no
Integrated Hub
no
Keyboard/mouse emulation
yes
19" compatible
Yes, optional
Cascadable
yes
Hot plug compatible
no
Max. resolution (nominal)
2048x1536
Material (casing)
Metal
Dimensions (HxWxD)
44.5 x 450 x 170
Power supply unit required
yes
Power supply output
5V DC / 2.6A
Technical particularity
LED lampje voor poort status
Mains connection
Appliance Europlug, Type-C
Height
44 mm
Width
430 mm
Depth
160 mm
Weight
1.89 kg
Height of packaging (single piece)
260 mm
Width of packaging (single piece)
130 mm
Depth of packaging (single piece)
530 mm
Package weight (single piece)
2.713 kg
