ATEN CS1644A KVM Switch Dual-View DVI, USB, Audio, USB-Hub, 4 Ports

Item no. 14016323 Brand / Manufacturer ATEN Manuf. item no. CS1644A EAN 4710423779686 Item weight 5.627 kg
ATEN
Product recommendations

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

4-Port USB DVI Dual Link Dual Display/Audio KVMP™ Switch - a multi-application device that integrates a 4-port KVM switch with 2-port USB hub

The CS1644A 4-Port USB DVI Dual View KVMP™ Switch is a multi-application device that integrates a 4-port KVM switch with 2-port USB hub. The newest version now supports Quad-View functionality with two Dual View KVM Switches connected.

The new CS1644A features multi-view capabilities, which allow two switches to be daisy chained for a dual, triple, or quadview display across multi-monitor installations. The CS1644A supports advanced nVidia 3D Vision ready 120Hz 3D displaying,allowing you to manage various 3D visual effects. It allows you to manipulate all connected computers from a single console to save resources and work space. It enables each computer to access connected peripherals on a one-computer-at-a-time basis, making it ideal for users who need delicate visual effects and multi-tasking on several computers. The CS1644A is perfect for graphic designers, banking and financial consultants, gamers and medical professionals- demanding a high quality switch that provides stunning color, clarity and functionality.

  • One dual-screen USB console controls four dual-screen computers and two additional USB devices

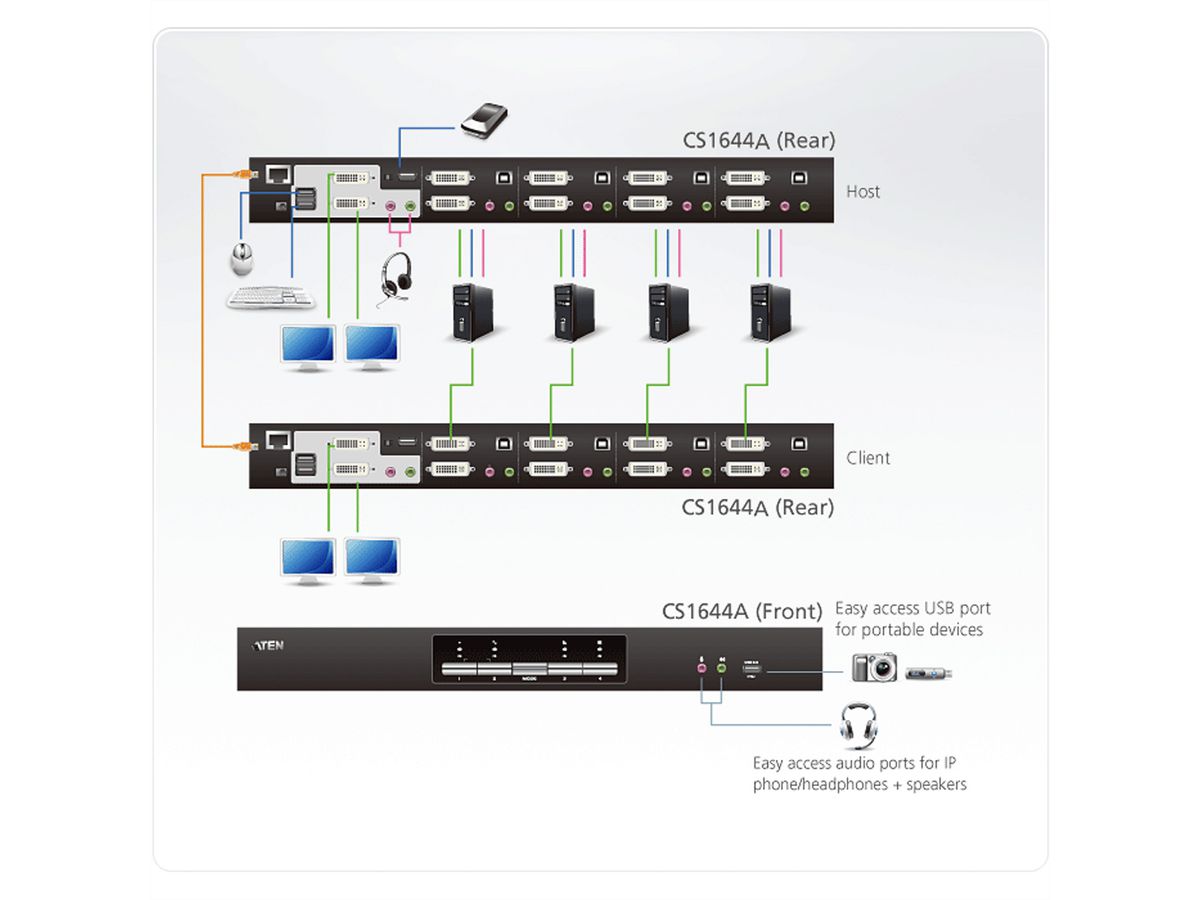

  • Multi-View Display – Easily connect two CS1642A/1644A's units for a second dual-screen setup controlled through a single connection
  • Superior video quality – 2560 x 1600 at 60Hz (DVI Dual link); and 3D displays up to 1920 x 1200 at 120Hz (DVI Single link)
  • Supports widescreen resolutions
  • Independent switching of KVM, USB, and Audio focus
  • DVI digital and analog monitor support – fully compliant with DVI specifications; and HDCP compliant
  • Multiplatform support – Windows 2000/XP/Vista, Linux *, Mac, Sun,and FreeBSD
  • Sun/Mac keyboard support and emulation **
  • Video DynaSync, exclusive ATEN technology, to eliminate boot-up display problems and optimizes resolution when switching between ports

* Supports Linux Kernel 2.6 and higher. The CS1644A has a builtin USB 2.0 hub, so will not support PCs or OS that do not support USB 2.0.
** PC keyboard combinations emulate Mac keyboards.
** Mac keyboards only work with their own computers.

Specifications

Manufacturer
ATEN
Product group
KVM switches / PC shares
Product type
KVM-Switch, DVI
Colour
black
Scope of delivery
1x CS1644A 4-Port USB DVI Dual View KVMP™ Switch, 4x KVM Cable (DVI-D DL, USB, Audio; 1.8m/6ft),4x DVI-D DL Cable (1.8m/6ft), 1x Power Adapter, 1x User Instructions
Interface
DVI
Quantity of PCs
4
Supported PC-Systems
USB
PC: monitor connection
8x 2x DVI M
PC: mouse/keyboard connection
4x USB Type B F
PC: connection on moulded cables
no
Switching over Scan Run
yes
Print button on device
yes
Switching over Hot Keys
Keyboard
Switching over OSD
no
Audio switching
Speakers and microphones
Audio switching separately
yes
Integrated Hub
yes
Quantity of USB-Hub ports
2
USB Hub switching separately
yes
Keyboard/mouse emulation
yes
19" compatible
no
Cascadable
no
Hot plug compatible
no
Max. resolution (nominal)
2560 x 1600
Colour (Design profile)
black
Dimensions (HxWxD)
44 x 145 x 432 mm
Power supply unit required
yes
Power supply output
5,3V 2.3A DC
Mains connection
Appliance Europlug, Type-C
Height
44 mm
Width
145 mm
Depth
432 mm
Weight
0.56 kg
Height of packaging (single piece)
240 mm
Width of packaging (single piece)
570 mm
Depth of packaging (single piece)
220 mm
Package weight (single piece)
5.627 kg
Quantity of digital consoles
2
Material (casing)
metal
Technical particularity
LEDs for easy status monitoring

Downloads

Manufacturer data sheet - Français (490.4 KB) Manufacturer data sheet - English (563.7 KB) User manual - English (1.8 MB) Quick Installation Guide - English (1.9 MB) Technical drawing - English (43.7 KB)
