Description

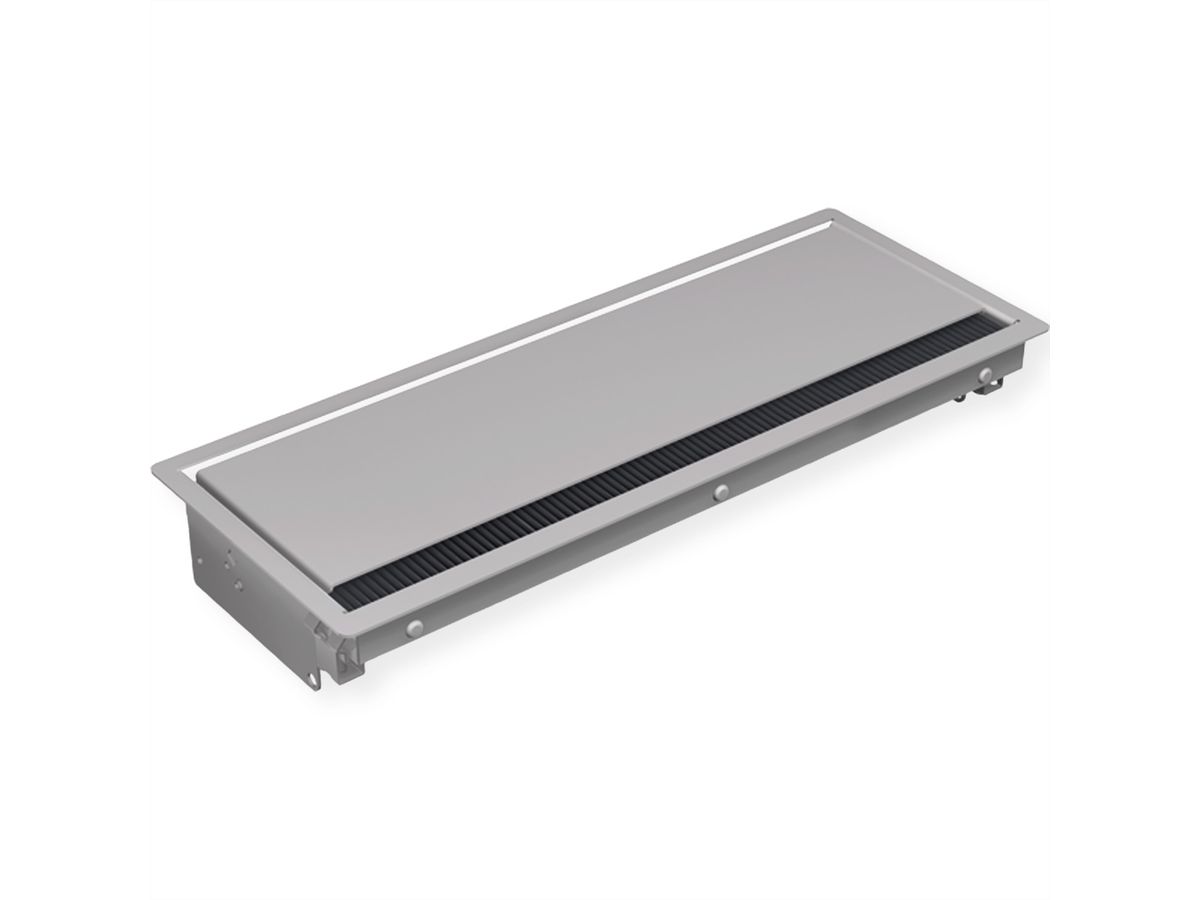

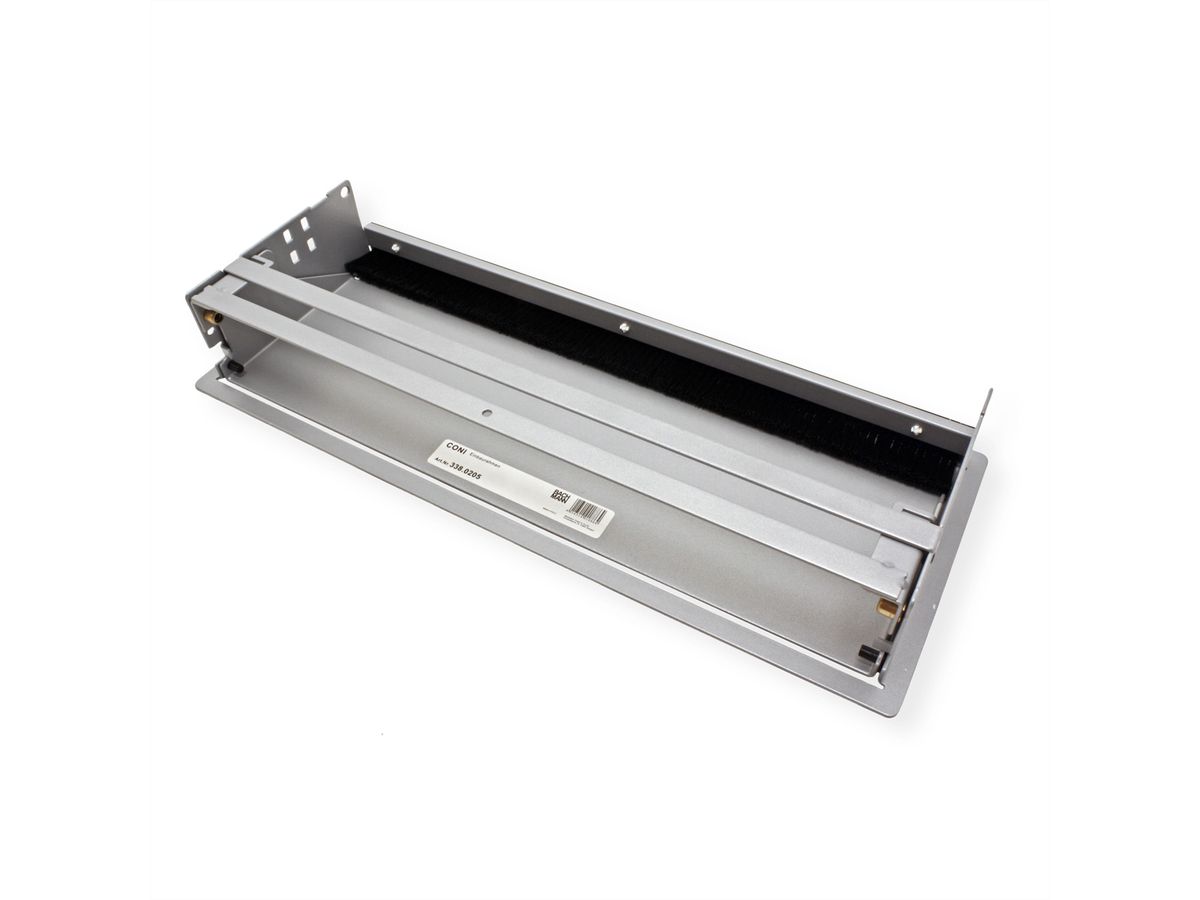

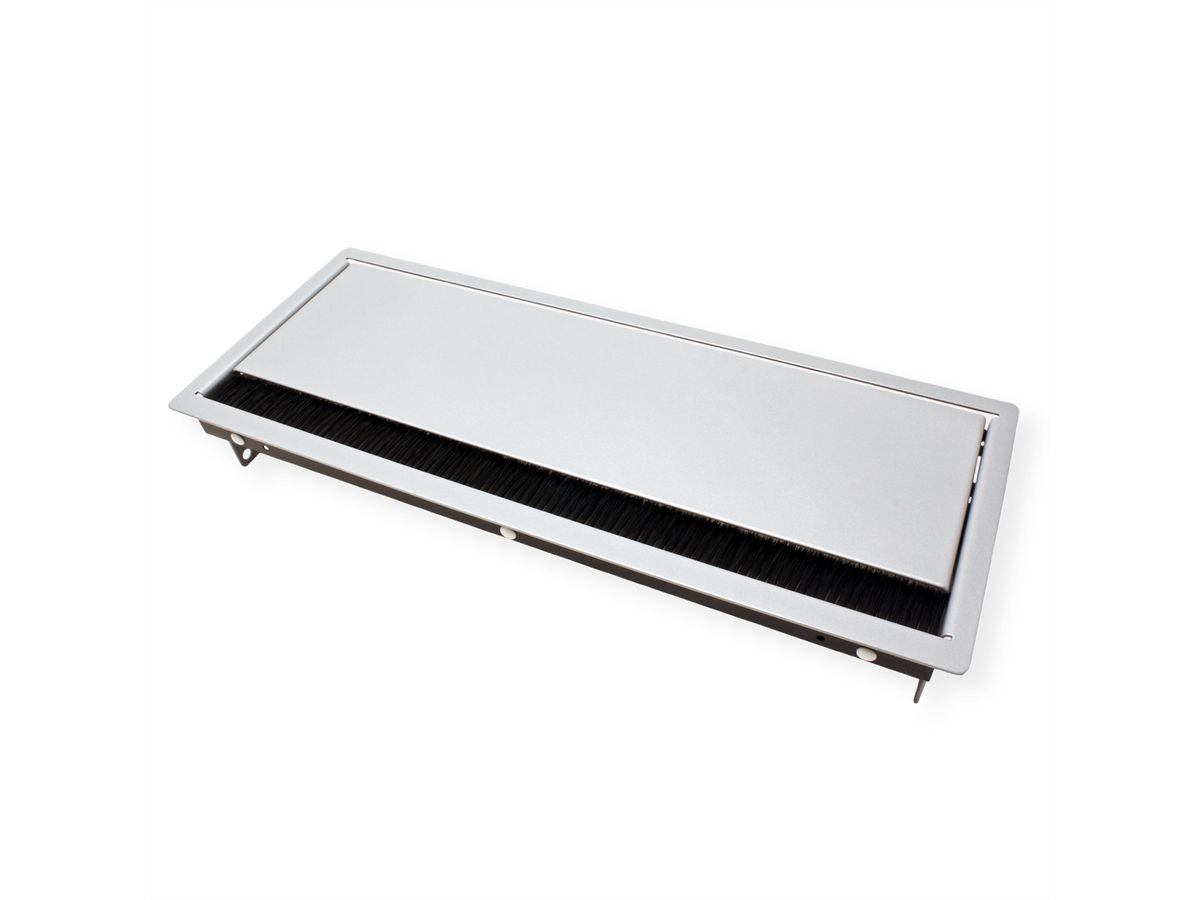

CONI installation frame Large

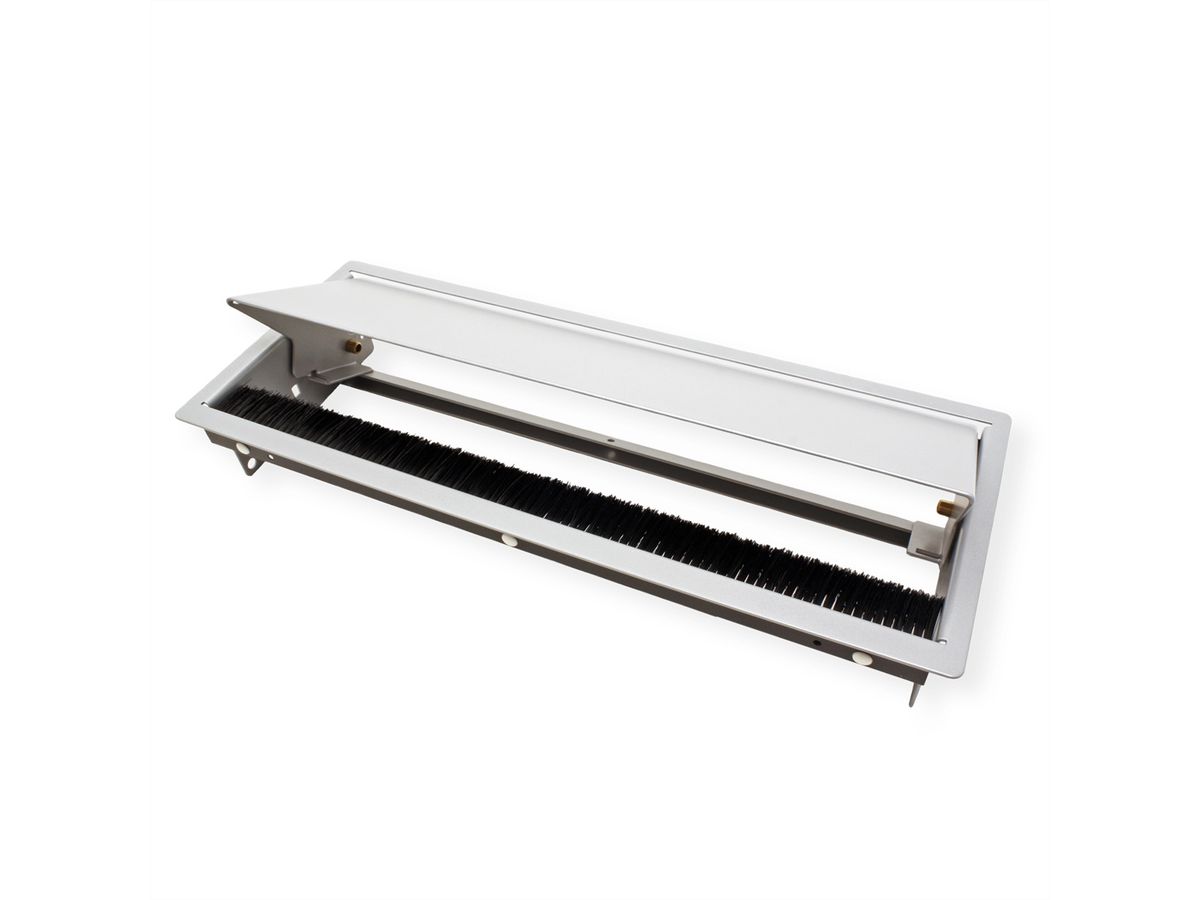

CONI brings flexibility to the work surface, because CONI enables free, customised access to electricity. - Thanks to its minimal installation depth, CONI provides sufficient space, even when installed close to the edge. - Different standard surface designs also ensure design freedom. - When closed, the furniture surface and CONI form a flat surface. If connections - are required, CONI can be opened, the required plugs plugged in and then closed again. The cables are not pinched thanks to the integrated brush insert. - The configuration of the sockets can be freely selected with CONI, as the respective socket outlet unit can be - replaced quickly and without tools.

- Integrated into the furniture surface - Minimal installation depth - robust frame design - Integrated brush insert for closing when cables are plugged in - Quick replacement of the power strip - Retrofitting possible

Specifications

Manufacturer	BACHMANN
Product group	Power Bars
Product type	Integrated unit CONI
Colour	grey
Regional use	Without restriction
Height	59 mm
Width	387 mm
Depth	151 mm
Weight	1481 g
Height of packaging (single piece)	110 mm
Width of packaging (single piece)	220 mm
Depth of packaging (single piece)	470 mm
Package weight (single piece)	1.476 kg
