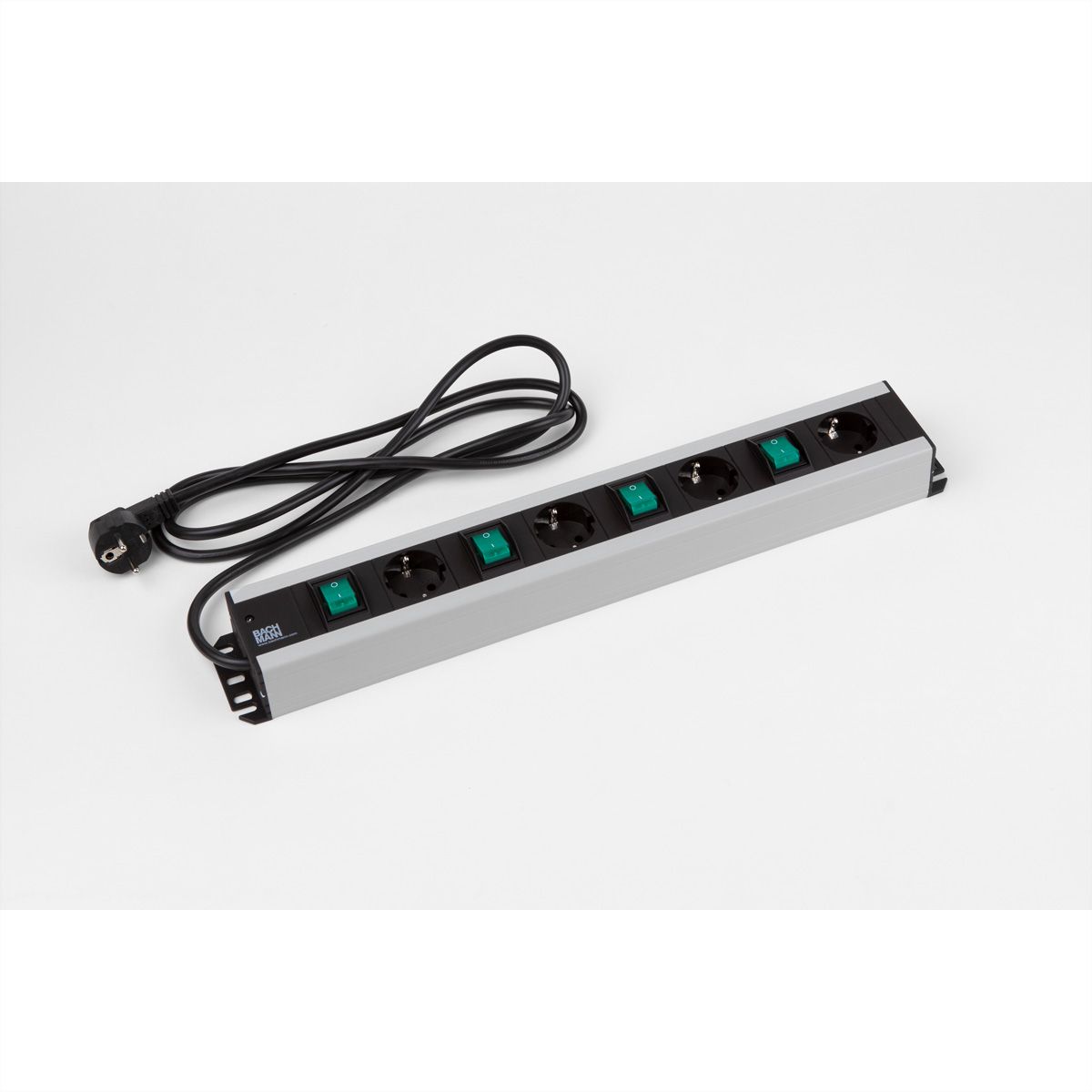

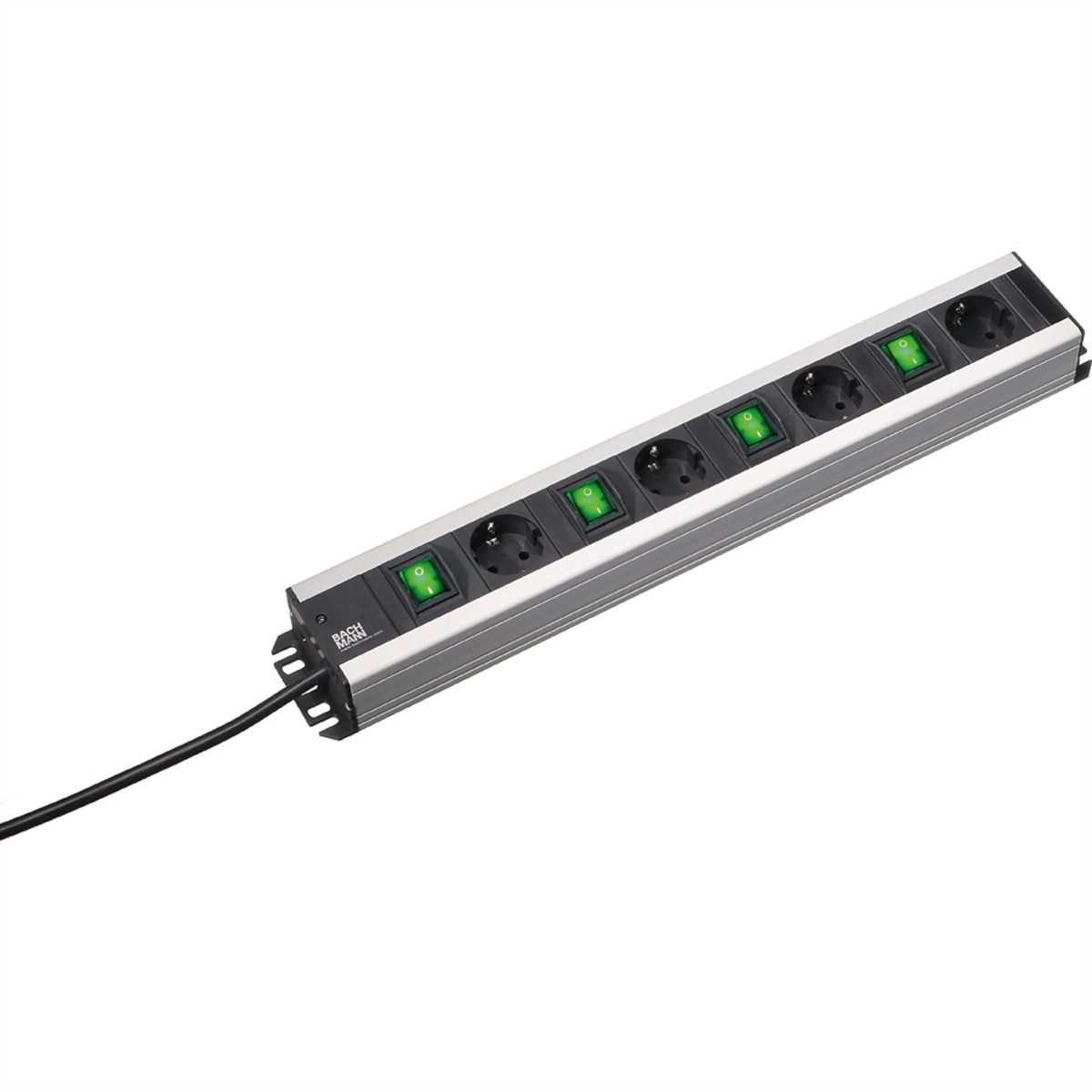

BACHMANN craftsman socket strip 4x earthing contact, 4x switch, 2 m

Item no. 19071323 Brand / Manufacturer BACHMANN Manuf. item no. 300.049 EAN 4016514069750 Item weight 0.976 kg
BACHMANN

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

Robust. Practical. High quality. - HAND-CRAFTED socket strip with 90° rotated protective contact inserts and integrated reconnection terminal for power cable.

Craftsman socket strip 4-fold protective contact - 16A/3680W, AC250V, IP20 - Protective contact inserts: Colour black, rotated by 90° - Socket outlet spacing: 15mm (between inserts) - 2-pole illuminated rocker switch 16 A - Each protective contact socket can be switched individually - Connection: - Screwed and reconnectable - Integrated reconnection terminal for power cable and additional output for separate earth conductor - Additional earth conductor connection, possible without opening the housing - Cable 2.0m H05VV-F 3G1.5mm² with angled earthing contact plug - Profile: - Profile colour silver - CSO, PVC, glow wire resistant 850°C Colour RAL 7035 -

Specifications

Manufacturer
BACHMANN
Product group
Power Bars
Product type
Power strip
Colour
black / gray
Length
2 m
Function
6 fach Steckdosenleiste
Mounting form
Wall / table socket
Max. capacitance
3600W
Max. voltage
230V AC
ON/OFF Switch
yes
Number of socket pots
4
Quantity of outputs/angles
6 / 90 °
Output alignment
Reihe
Socket type
3P. German, CEE 7/3, Type-F
Material (casing)
Kunststoff
Colour (Design profile)
black / gray
Connection cable
HO5VV-F3G, 2m, schwarz
Connector plug
Schuko
Plug type
3P. German, CEE 7/7, Type-E/F
Protection class (IP Code)
IP20
Regional use
Germany, Austria, Netherlands
Technical particularity
Elk stopcontact is afzonderlijk schakelbaar
Mains connection
Protective contact plug, Type-E/F
Height
45 mm
Width
453 mm
Depth
74 mm
Weight
905 g
Height of packaging (single piece)
40 mm
Width of packaging (single piece)
80 mm
Depth of packaging (single piece)
480 mm
Package weight (single piece)
0.976 kg

Downloads

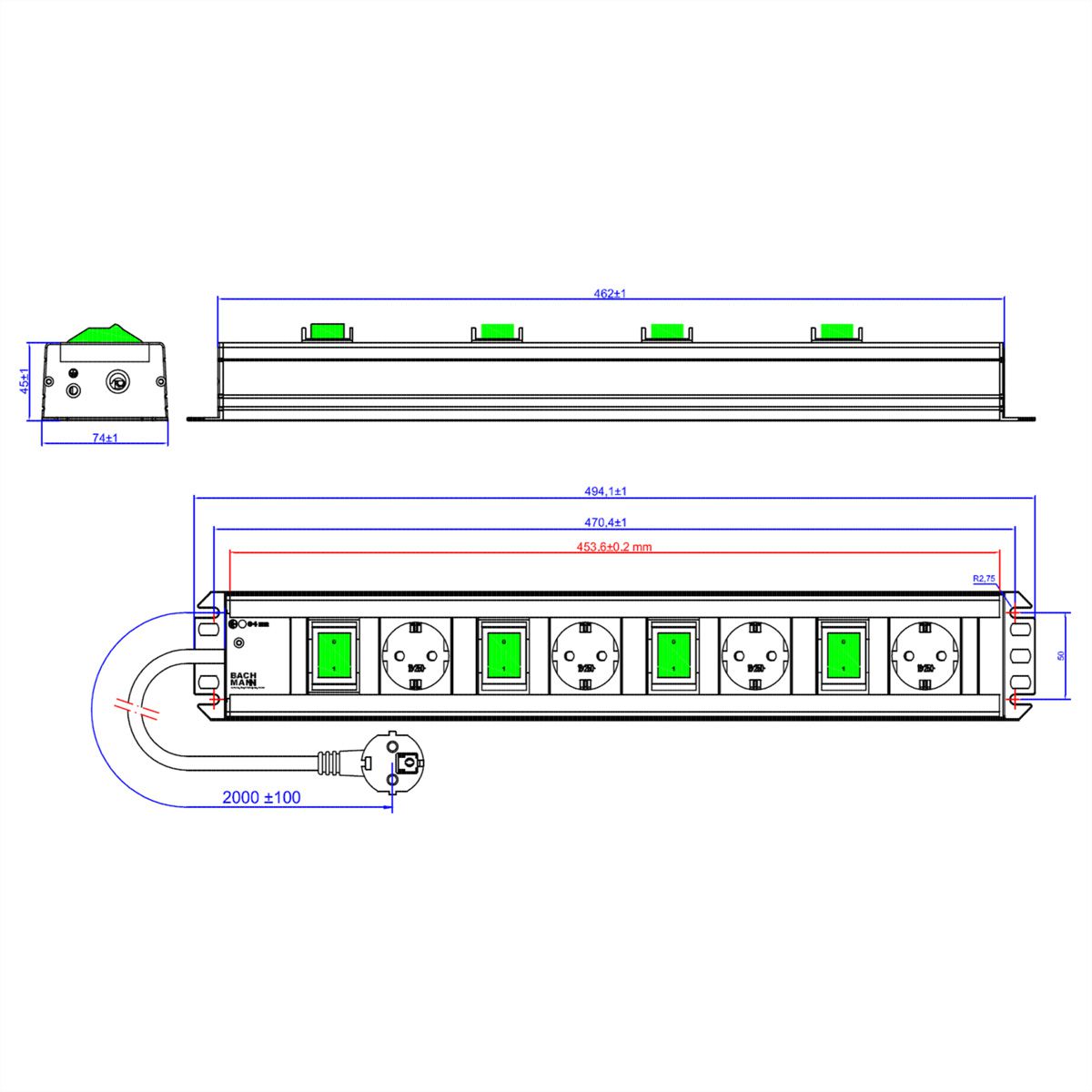

Manufacturer data sheet - English (772.4 KB) Technical drawing - English (475.2 KB) Safety instructions - Deutsch - English - Français - Italiano - Español (467.0 KB)
