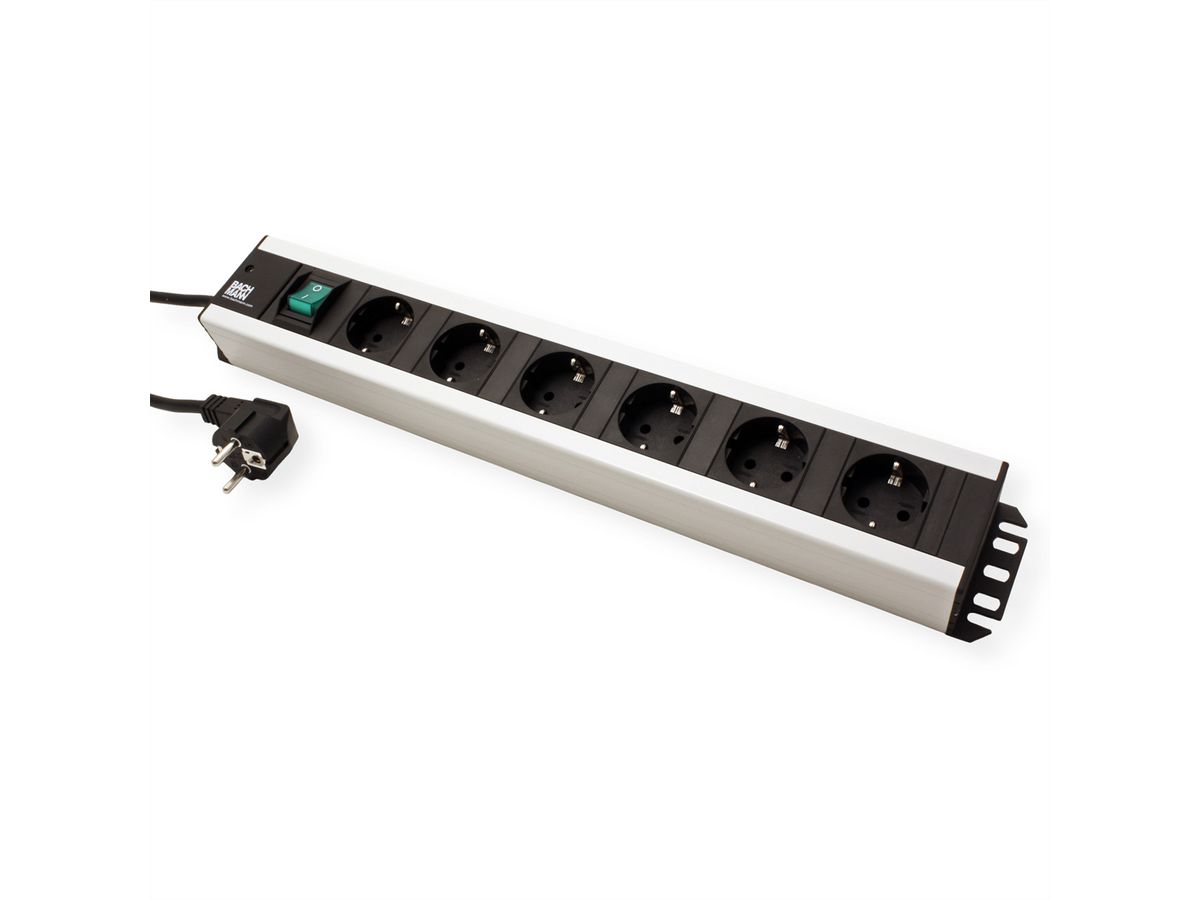

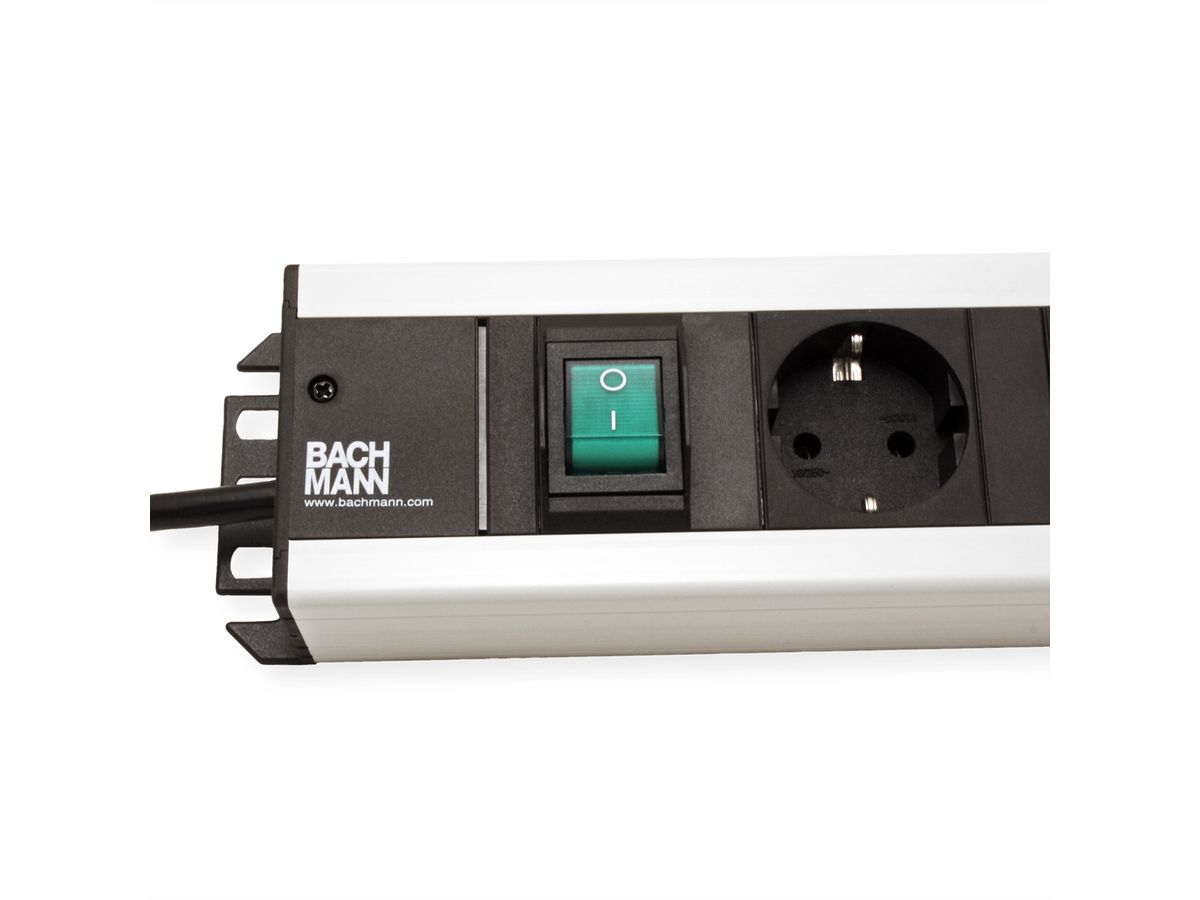

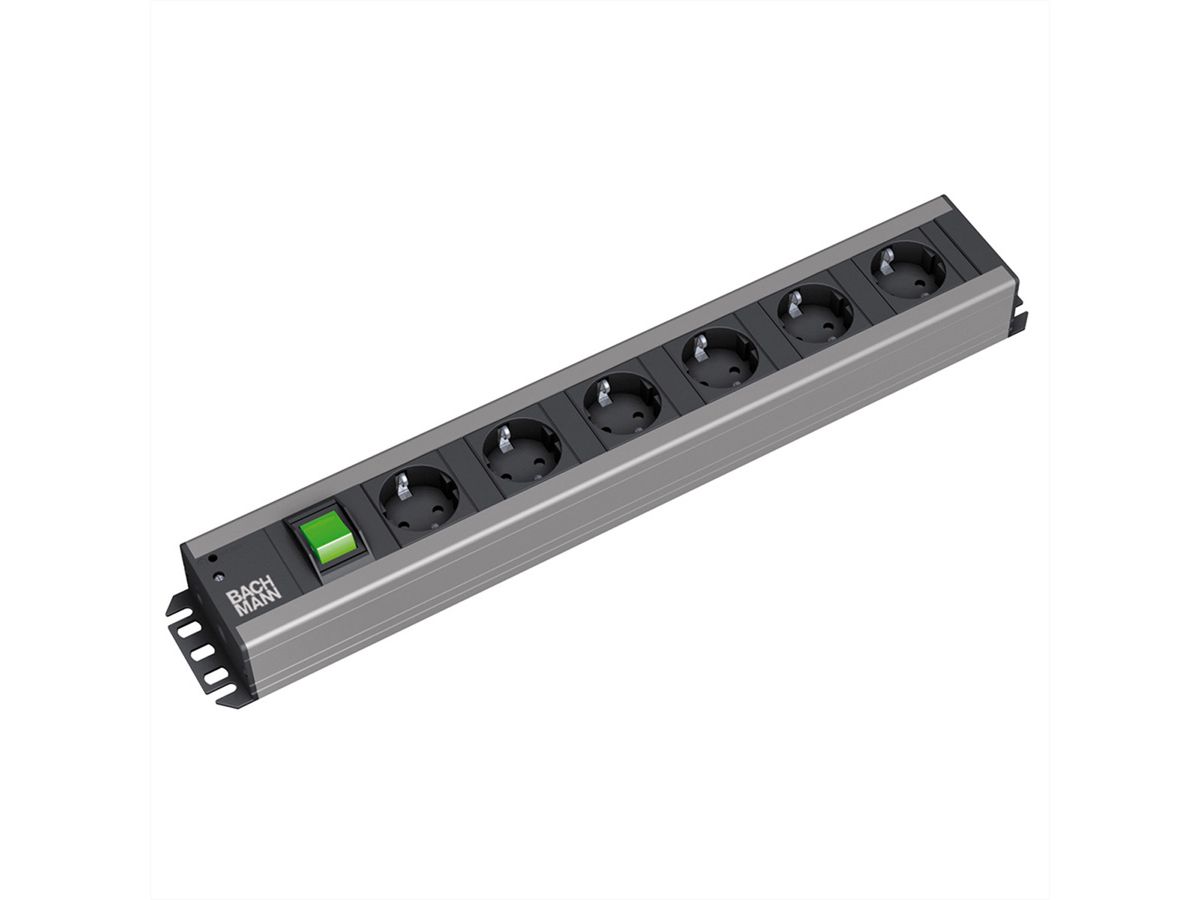

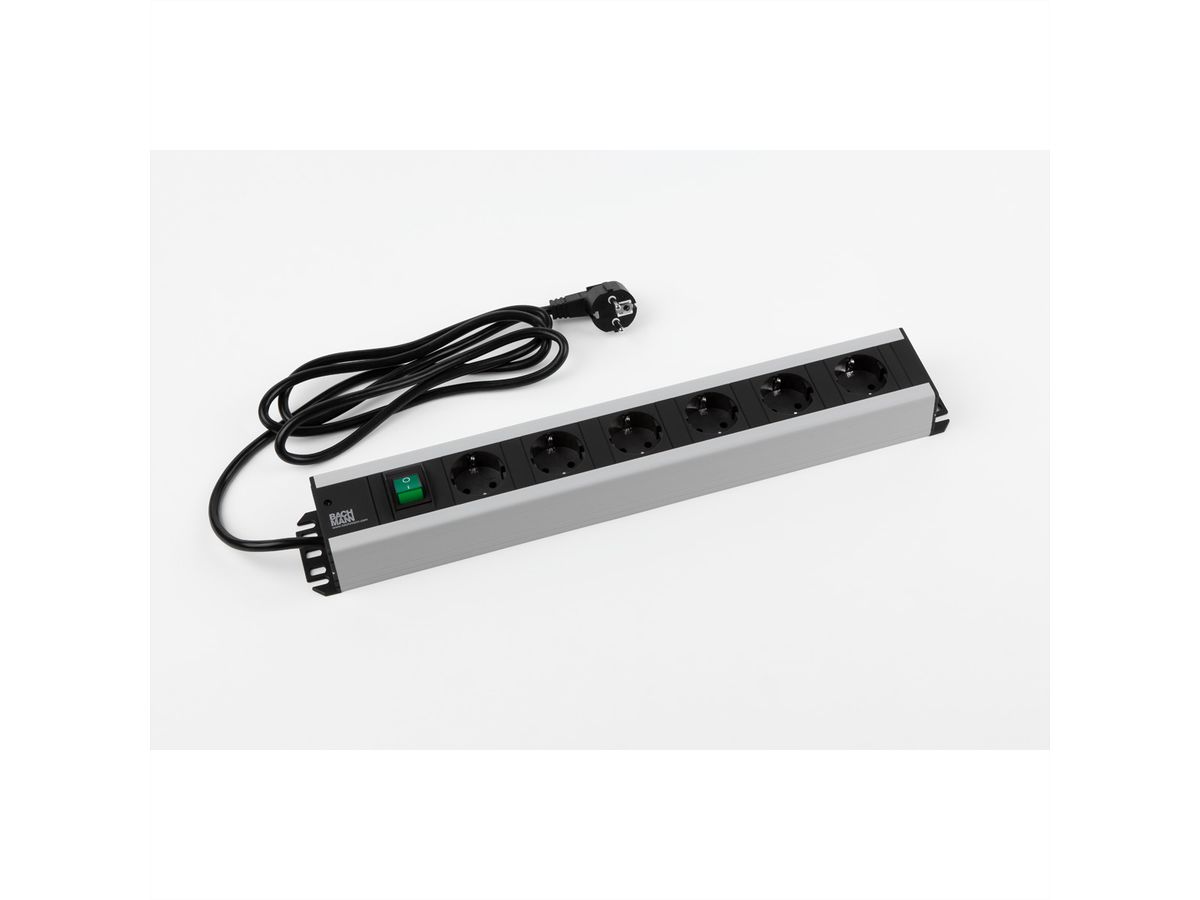

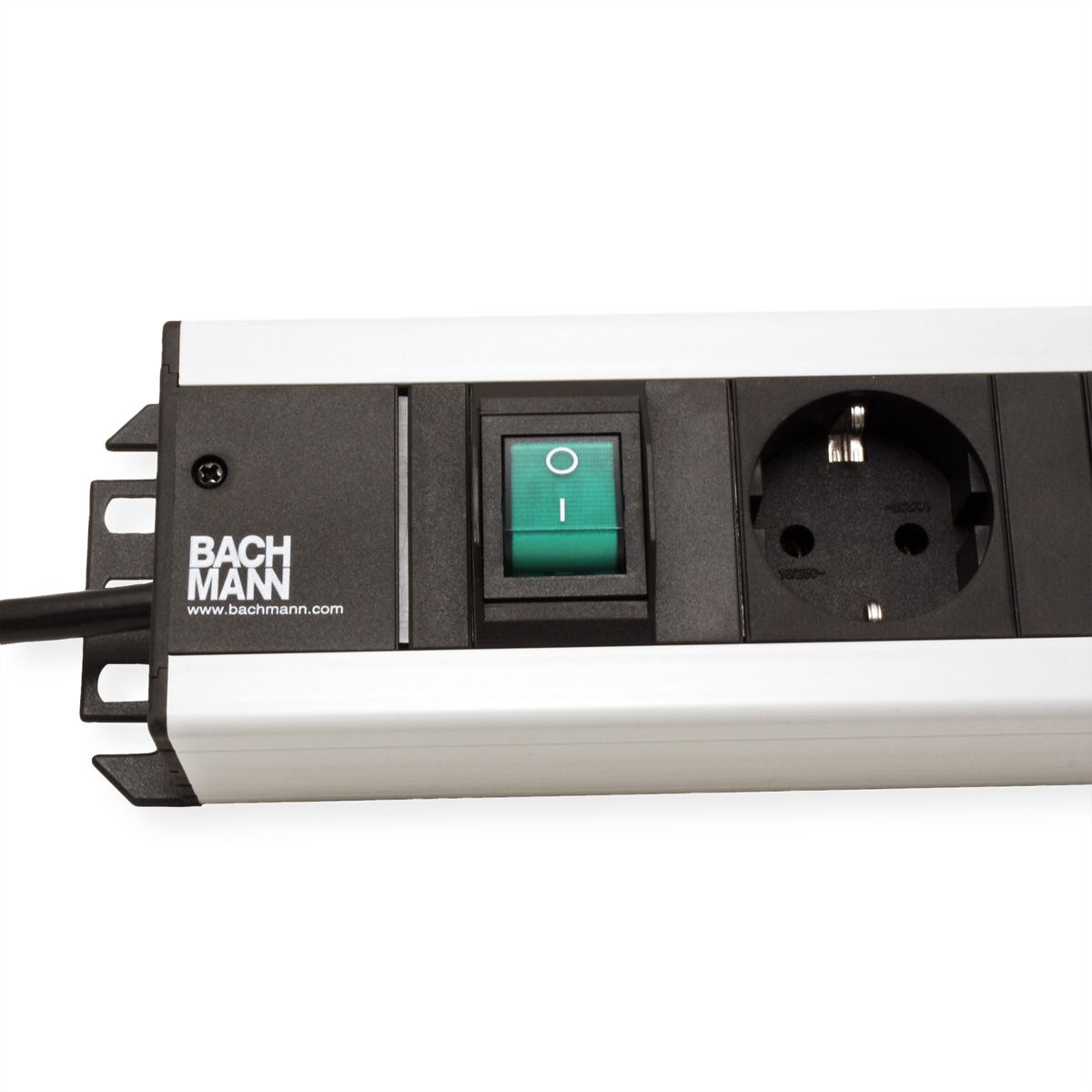

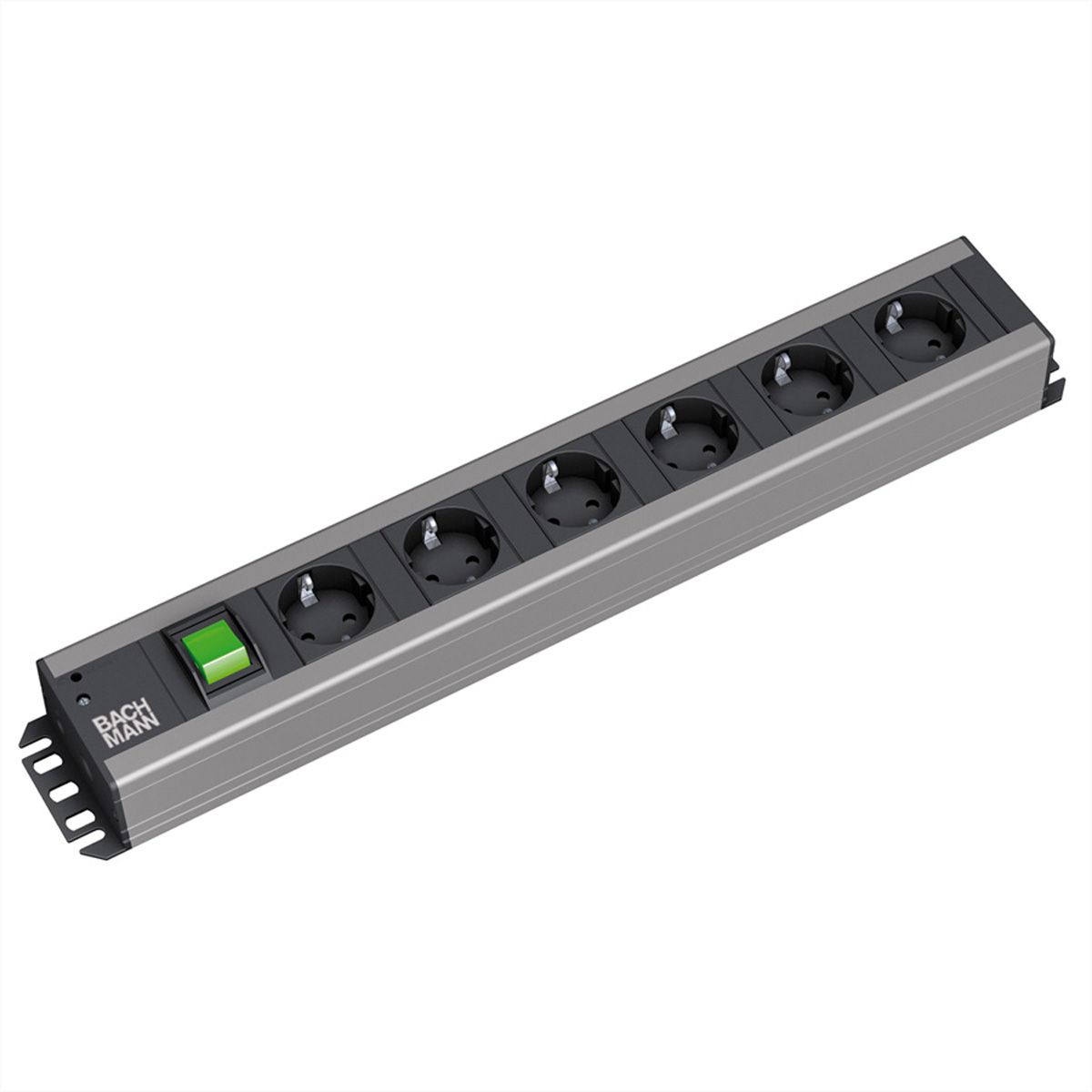

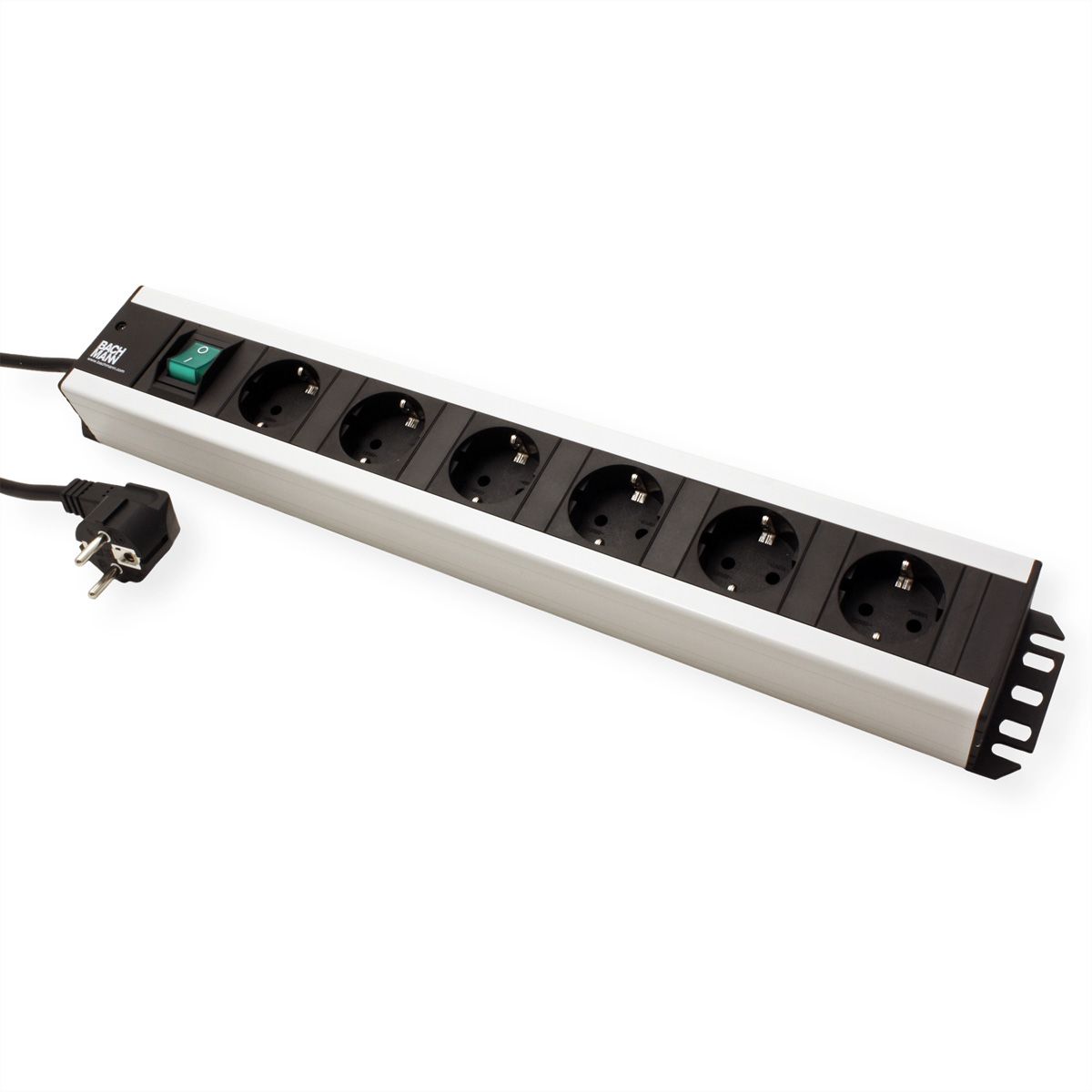

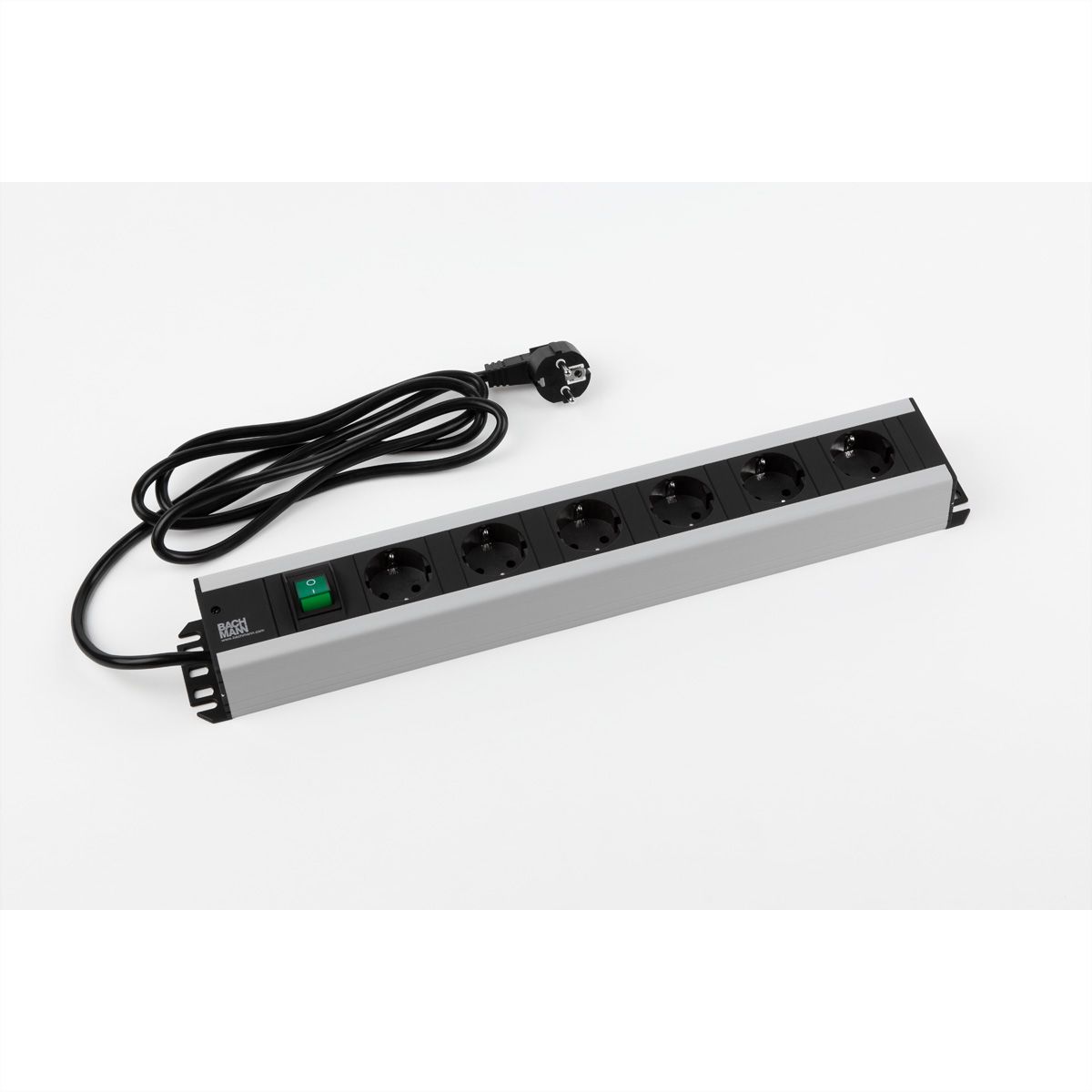

BACHMANN Craftsman socket strip 6x earthing contact, switch, 19-inch rack compatible, 2 m

Item no. 19071691 Brand / Manufacturer BACHMANN Manuf. item no. 300.003 EAN 4016514017263 Item weight 0.865 kg

BACHMANN Craftsman socket strip 6x earthing contact, switch, 19-inch rack compatible, 2 m

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

Download PDF

Description

Robust. Practical. High quality. - HANDWERKERLEISTE multiple socket outlet with 90° rotated protective contact inserts and integrated reconnection terminal for power cable.

Craftsman socket strip 6-fold protective contact - 16A/3680W, AC250V, IP20 - Protective contact inserts: Colour black, rotated by 90° - Socket outlet spacing: 15mm (between the inserts) - 2-pole illuminated rocker switch 16 A - Connection: - Screwed and reconnectable - Integrated reconnection terminal for power cable and additional output for separate earth conductor - Additional earth conductor connection, possible without opening the housing - Cable 2.0m H05VV-F 3G1.5mm² with protective contact angle plug - Profile: - Profile colour silver - CSO, PVC, glow-wire resistant 850°C colour RAL 7035 - Also suitable for 19" cabinet mounting - 19" mounting bracket integrated in the end caps

Specifications

Manufacturer: BACHMANN
Product group: Power Bars
Product type: Power strip
Colour: black / gray
Length: 2 m
Function: 6 fach Steckdosenleiste
Mounting form: Wall / table socket
Max. capacitance: 3600W
Max. voltage: 230V AC
ON/OFF Switch: yes
Number of socket pots: 6
Quantity of outputs/angles: 6 / 90 °
Output alignment: Reihe
Socket type: 3P. German, CEE 7/3, Type-F
Material (casing): Kunststoff
Colour (Design profile): black / gray
Connection cable: HO5VV-F3G, 2m, schwarz
Connector plug: Schuko
Plug type: 3P. German, CEE 7/7, Type-E/F
Protection class (IP Code): IP20
Regional use: Germany, Austria, Netherlands
Technical particularity: Opnieuw aan te sluiten
Mains connection: Protective contact plug, Type-E/F
Height: 45 mm
Width: 445 mm
Depth: 74 mm
Weight: 842 g
Height of packaging (single piece): 70 mm
Width of packaging (single piece): 120 mm
Depth of packaging (single piece): 490 mm
Package weight (single piece): 0.865 kg

Downloads

Manufacturer data sheet - English (262.0 KB) Technical drawing - English (811.7 KB) Safety instructions - Deutsch - English - Français - Italiano - Español (467.0 KB)

The BACHMANN brand stands for customer-oriented electrotechnical components and systems.

In the development and manufacture of the products, emphasis is also placed on future topics such as energy management and energy efficiency for data centers and industry as well as building installation systems. The company benefits from almost 70 years of experience in the electronics industry.
