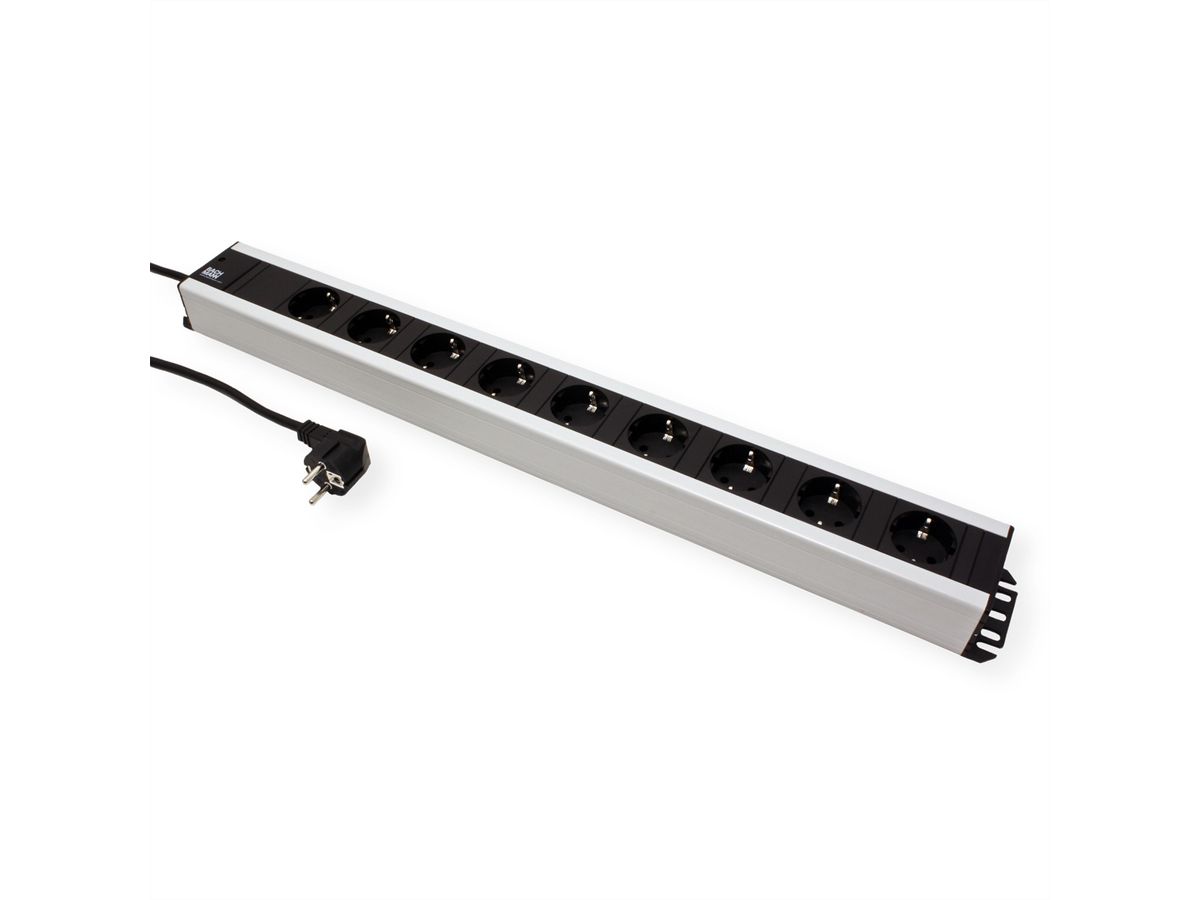

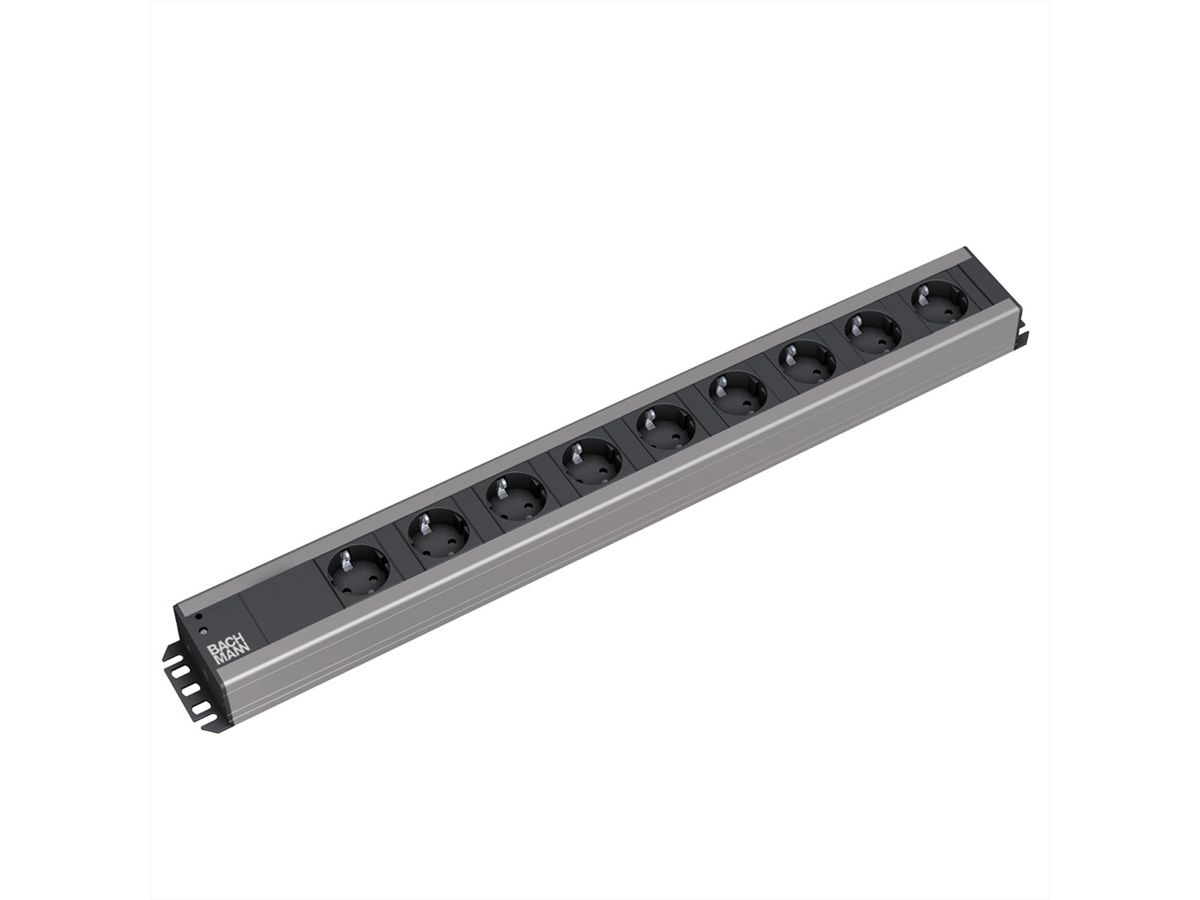

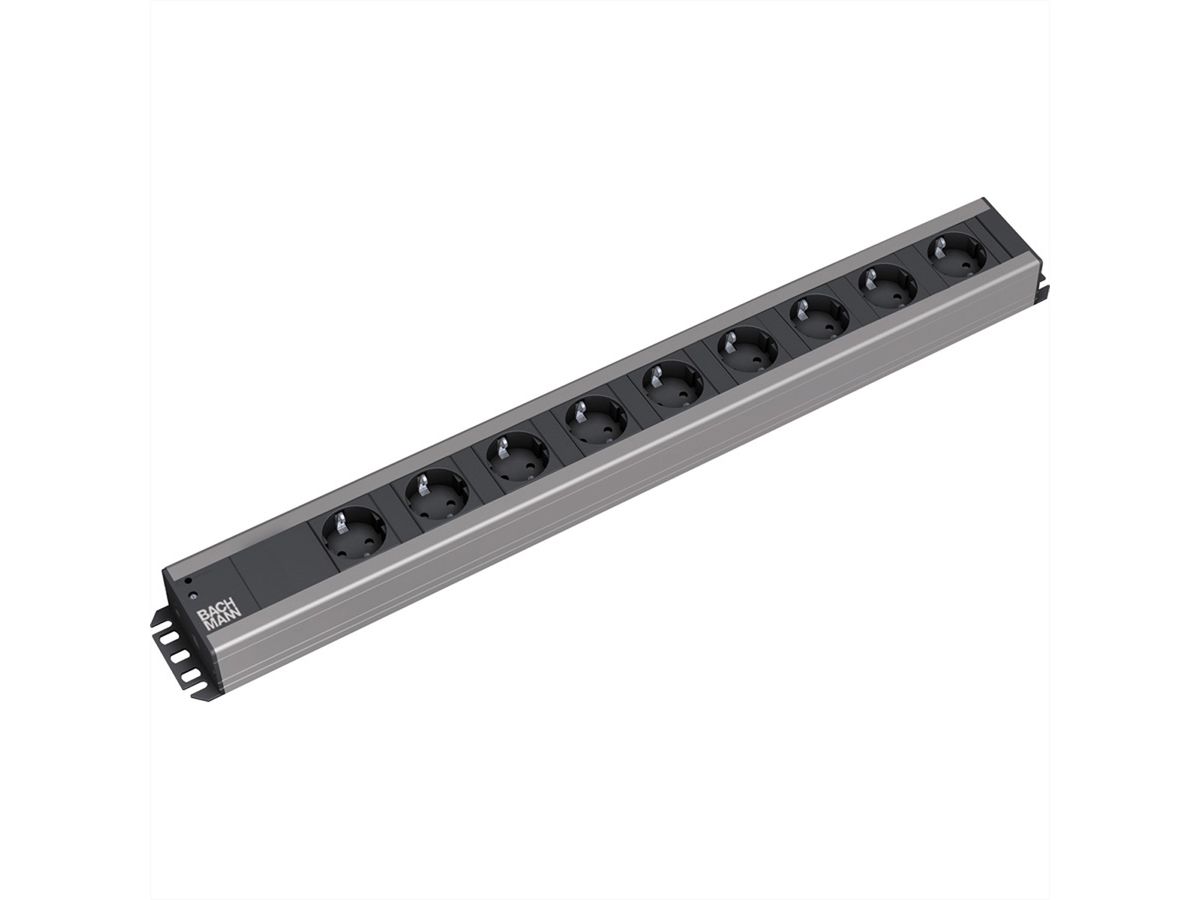

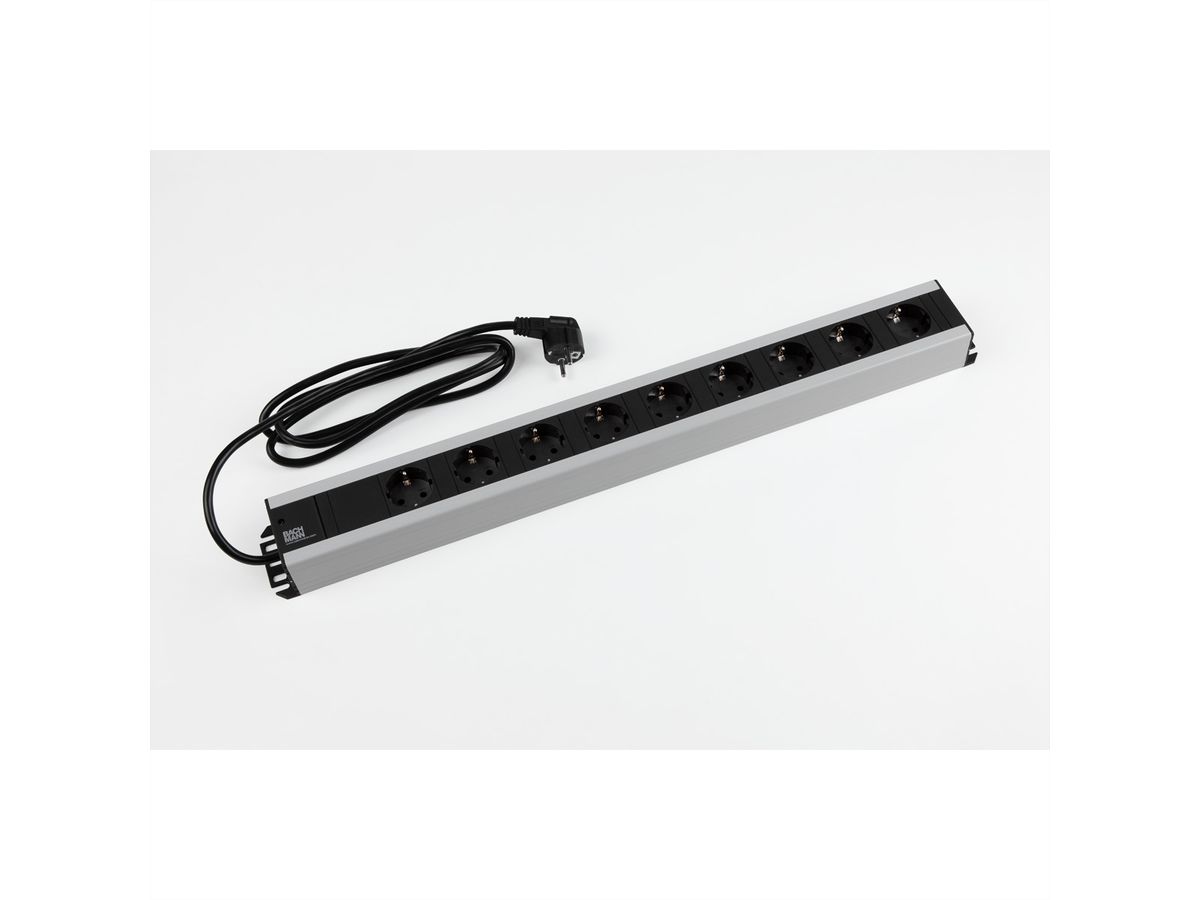

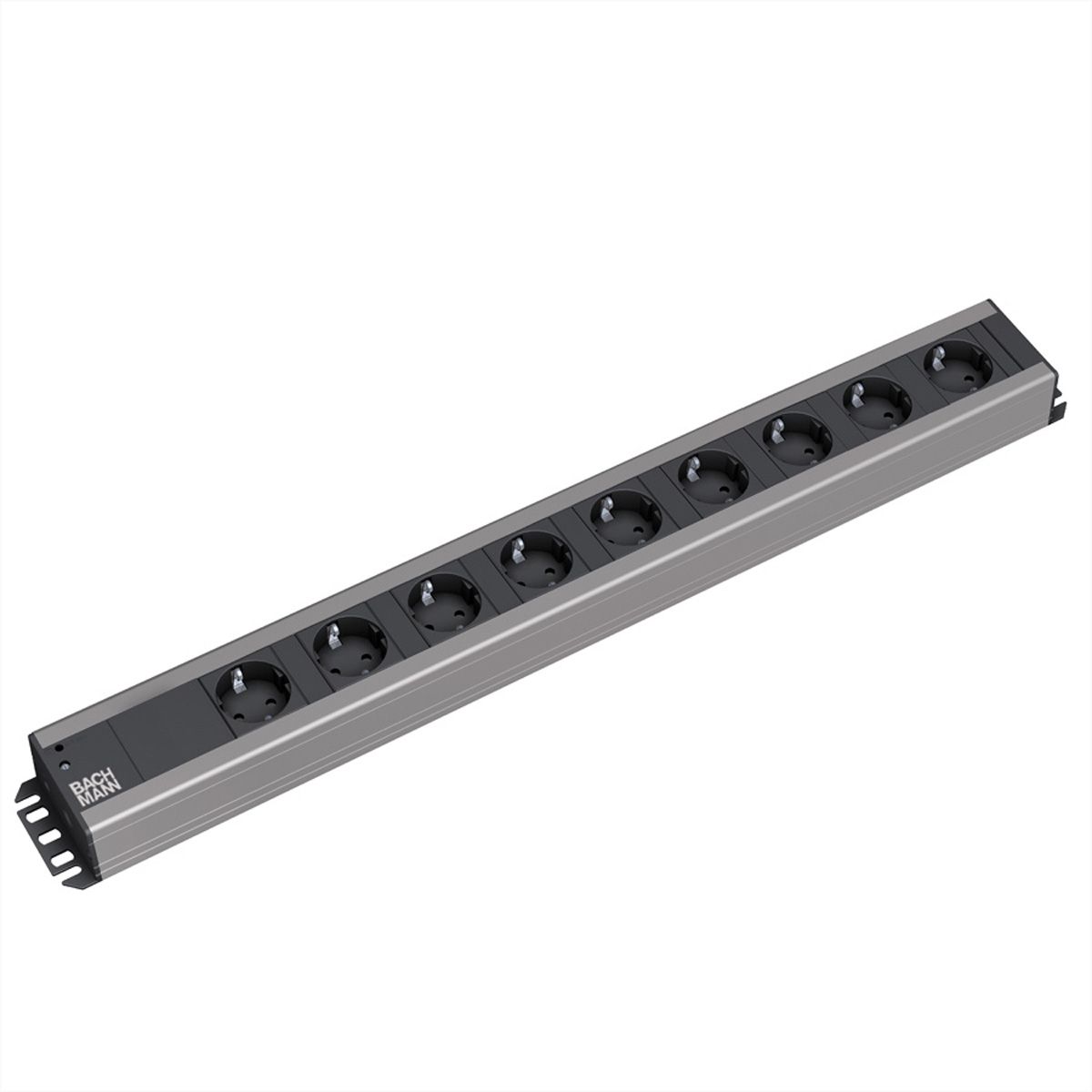

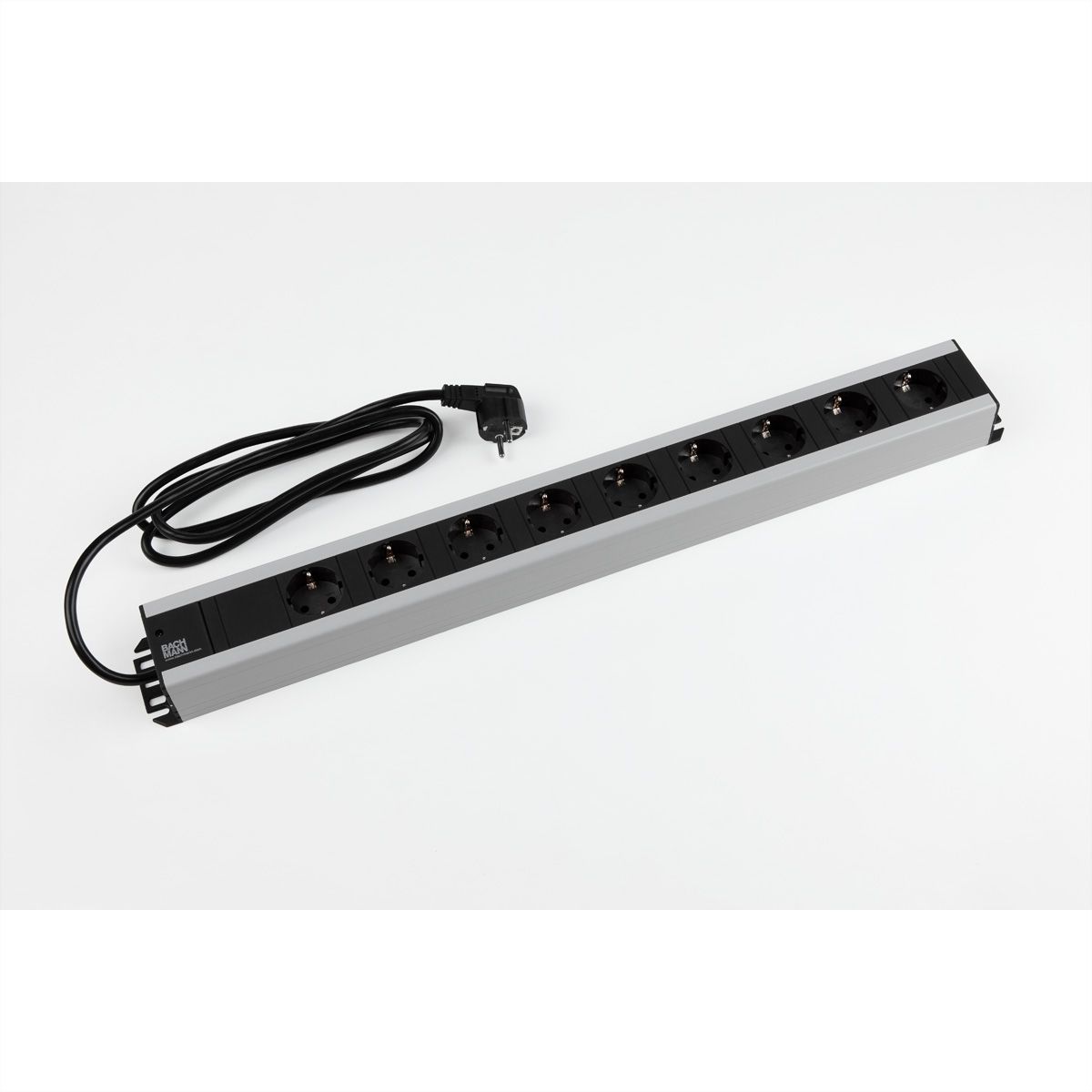

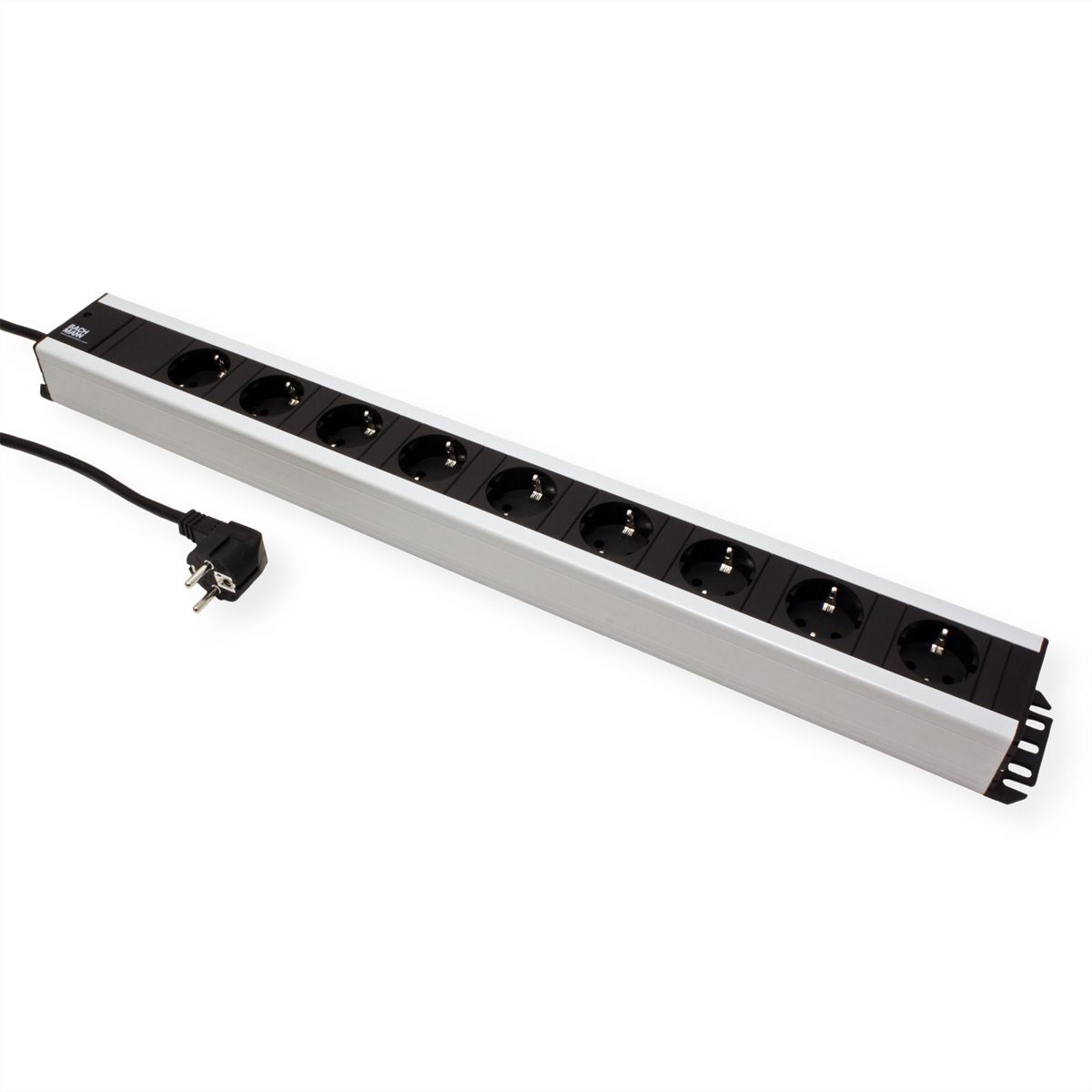

BACHMANN Craftsman socket strip 9x earthing contact, 2 m

Item no. 19071990 Brand / Manufacturer BACHMANN Manuf. item no. 300.001 EAN 4016514017249 Item weight 1.044 kg
BACHMANN

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

Robust. Practical. High quality. - HANDWERKERLEISTE multiple socket outlet with 90° rotated protective contact inserts and integrated reconnection terminal for power cable.

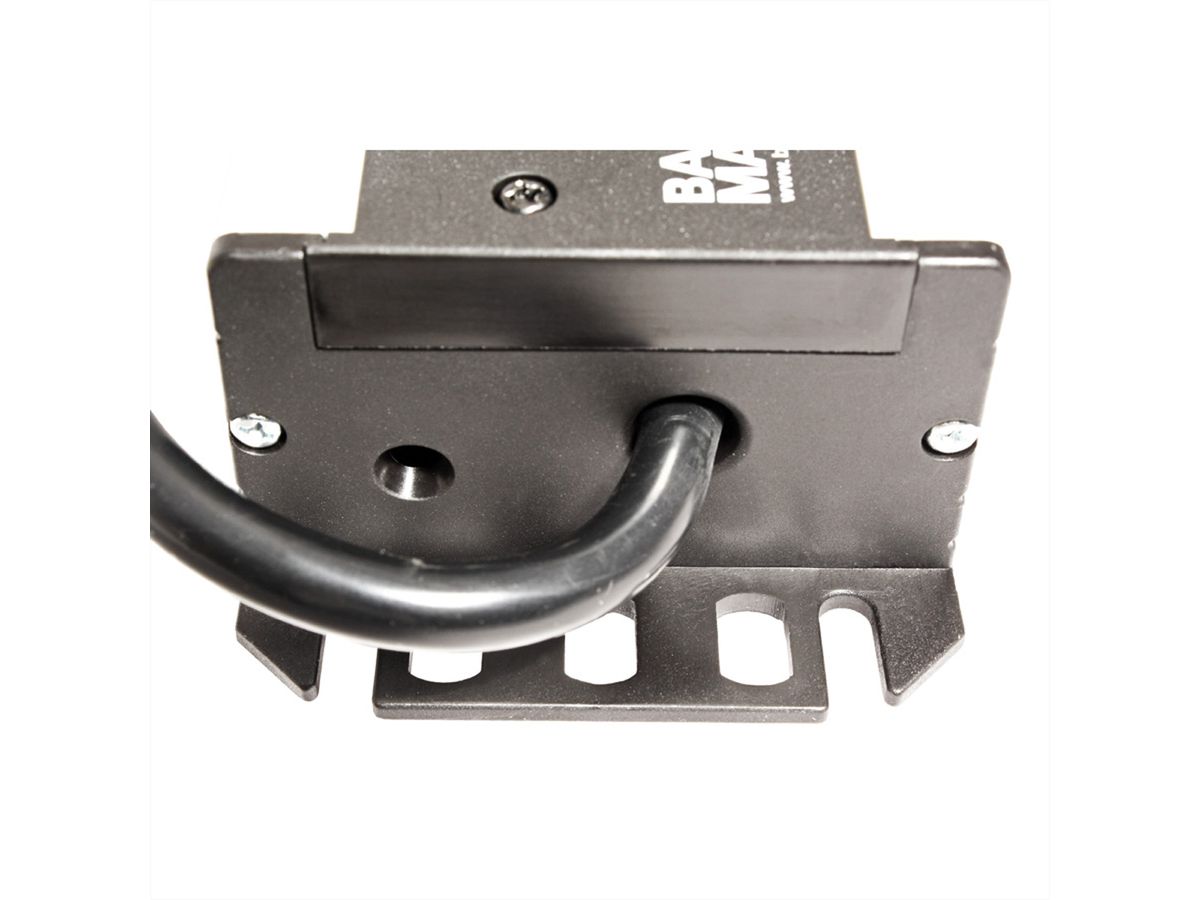

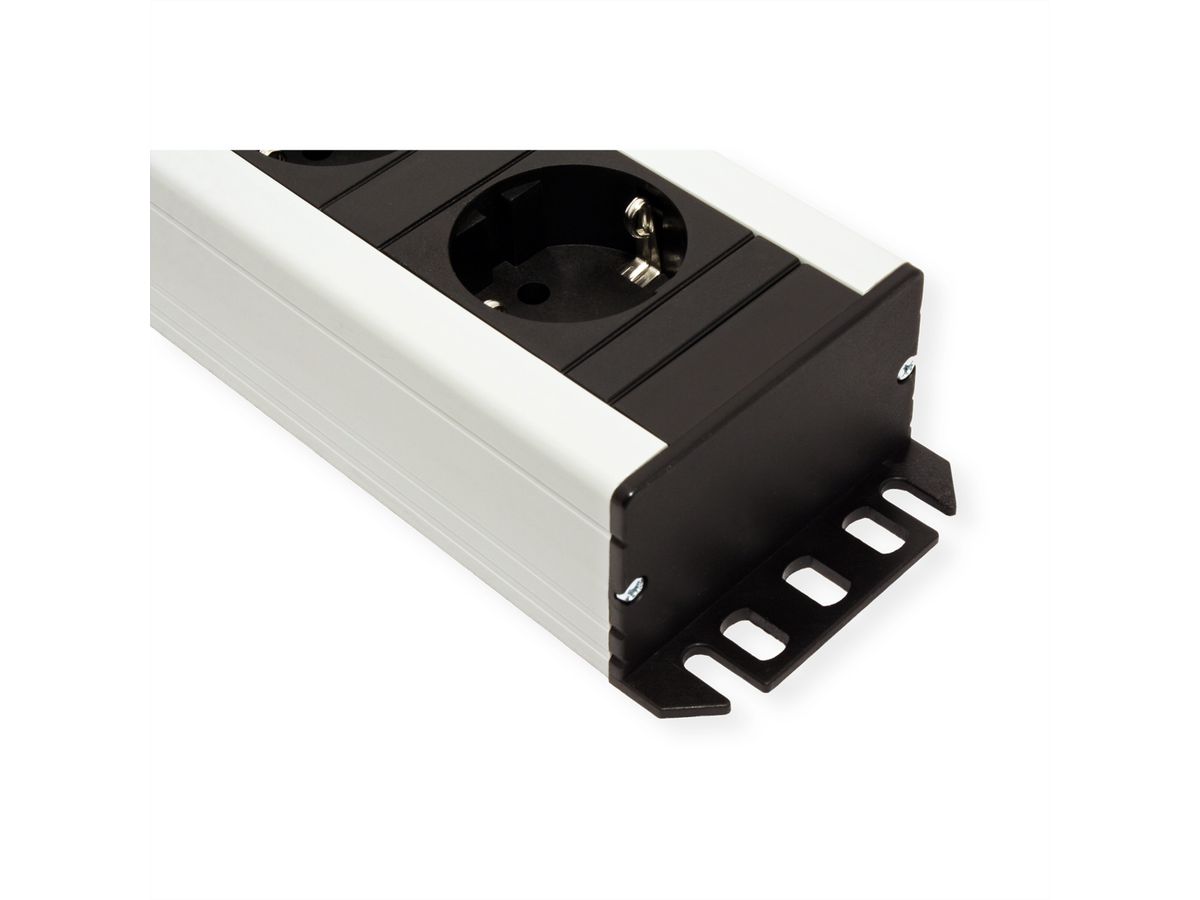

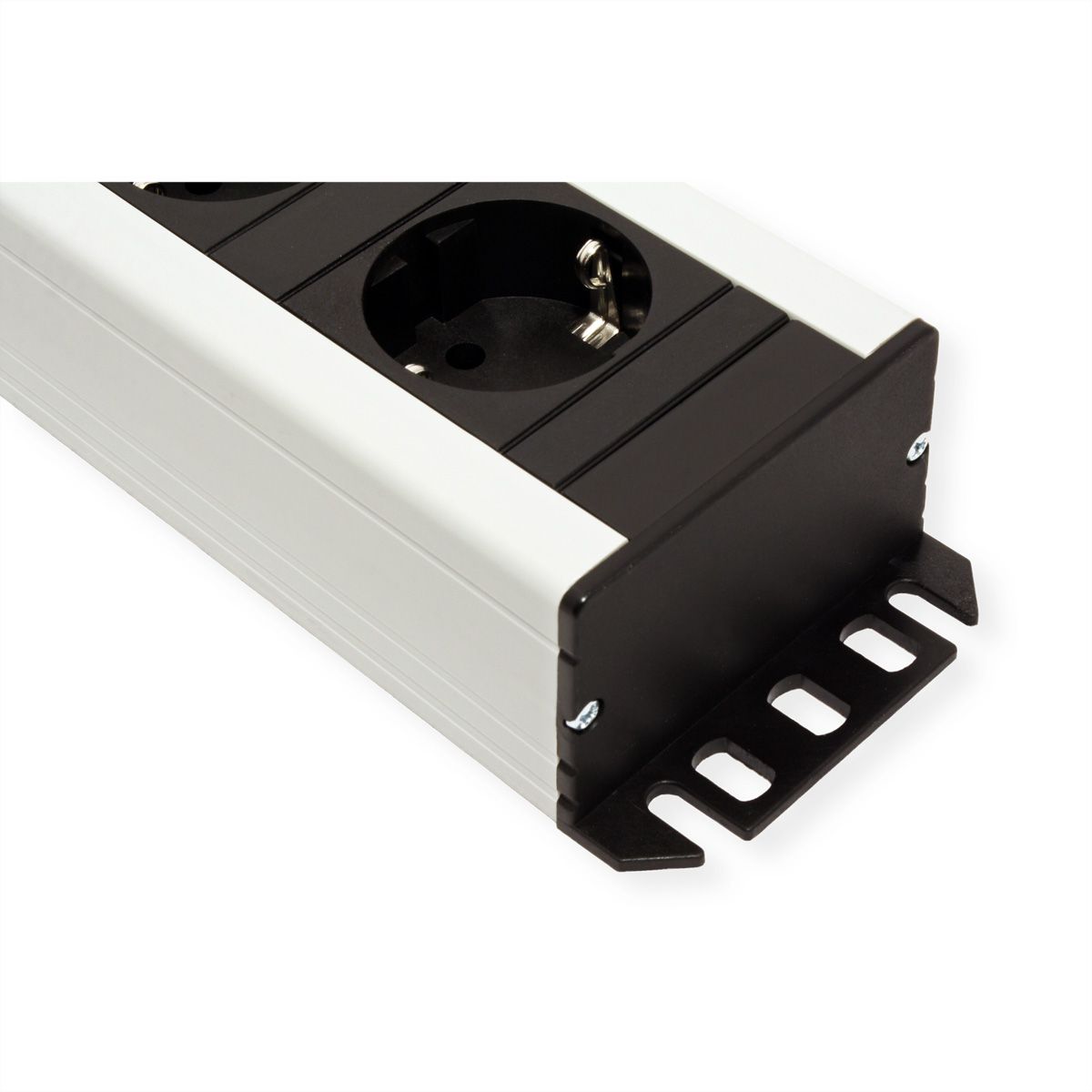

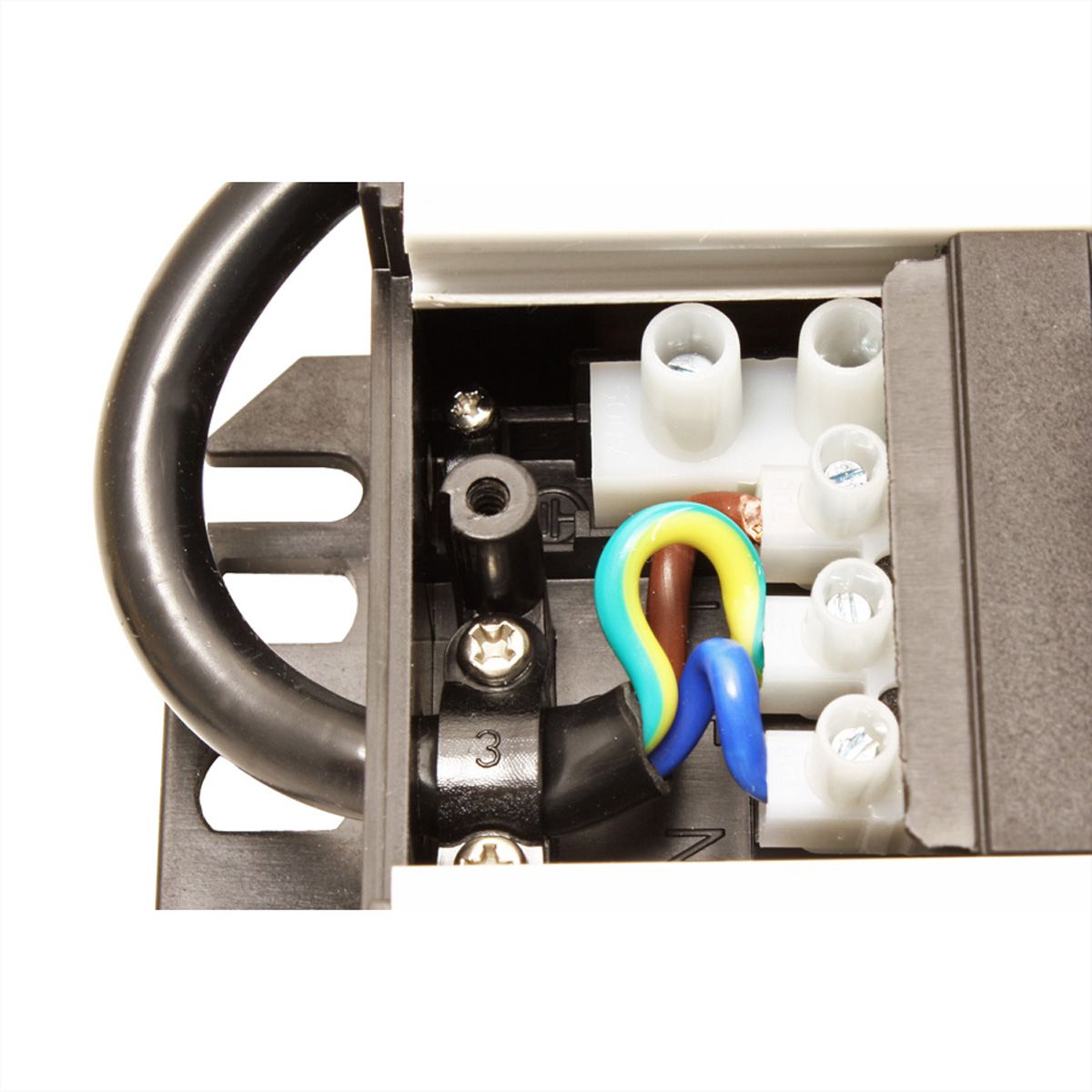

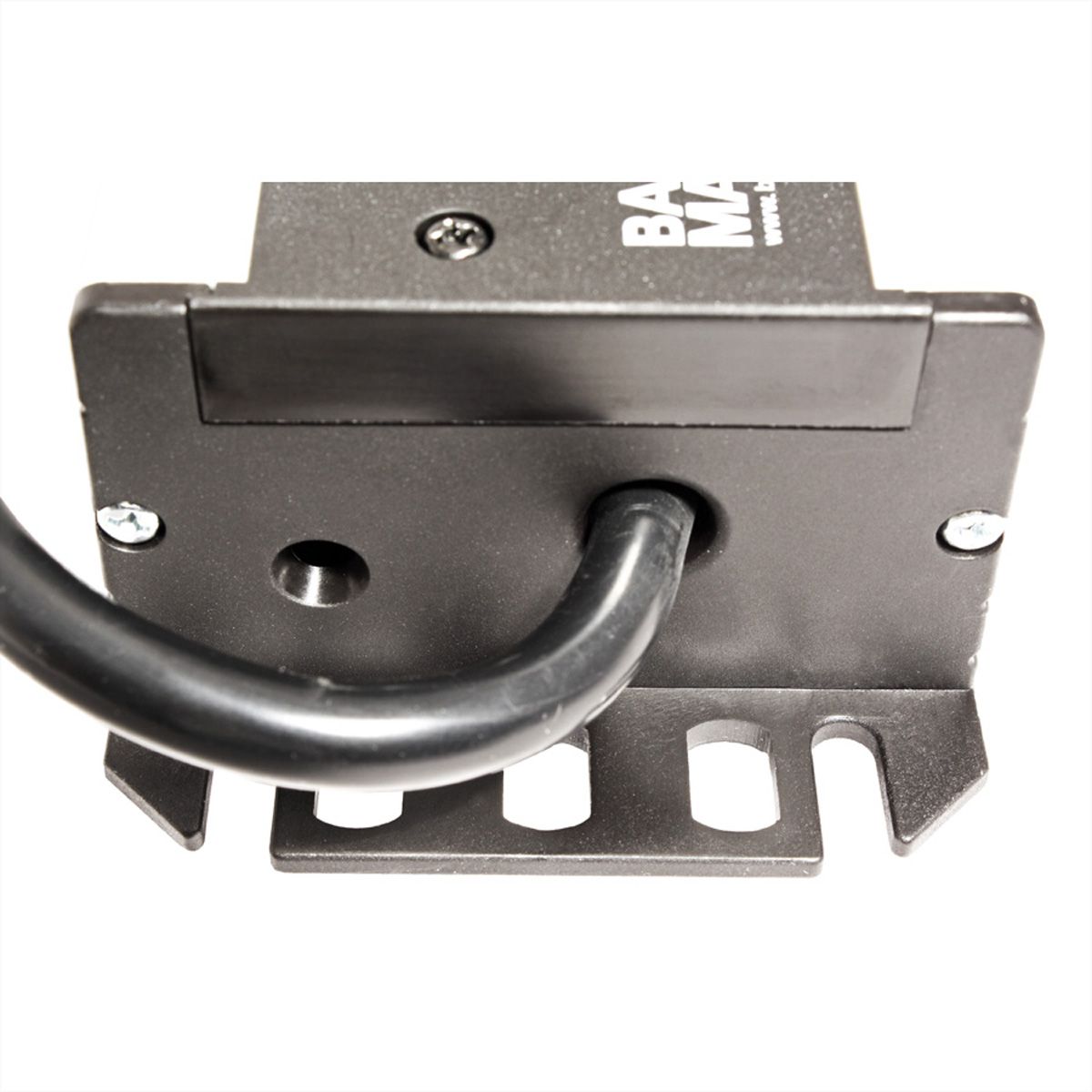

Craftsman socket strip 9-fold protective contact - 16A/3680W, AC250V, IP20 - Protective contact inserts: Colour black, rotated by 90° - Socket outlet spacing: 15mm (between inserts) - Connection: - Screwed and reconnectable - Integrated reconnection terminal for power cable and additional outlet for separate earth conductor - Additional earth conductor connection, possible without opening the housing - Cable 2.0m H05VV-F 3G1.5mm² with angled earthing contact plug - Profile: - Profile colour silver - CSO, PVC, glow wire resistant 850°C colour RAL 7035 - Also suitable for 19" cabinet mounting - 19" mounting bracket integrated in the end caps

Specifications

Manufacturer
BACHMANN
Product group
Power Bars
Product type
Power strip
Colour
black / gray
Length
2 m
Function
6 fach Steckdosenleiste
Mounting form
Wall / table socket
Max. capacitance
3600W
Max. voltage
230V AC
ON/OFF Switch
yes
Number of socket pots
9
Quantity of outputs/angles
9 / 90 °
Output alignment
Reihe
Socket type
3P. German, CEE 7/3, Type-F
Material (casing)
Kunststoff
Colour (Design profile)
black / gray
Connection cable
HO5VV-F3G, 2m, schwarz
Connector plug
Schuko
Plug type
3P. German, CEE 7/7, Type-E/F
Protection class (IP Code)
IP20
Regional use
Germany, Austria, Netherlands
Technical particularity
Opnieuw aan te sluiten
Mains connection
Protective contact plug, Type-E/F
Height
45 mm
Width
617 mm
Depth
74 mm
Weight
1044 g
Height of packaging (single piece)
50 mm
Width of packaging (single piece)
90 mm
Depth of packaging (single piece)
630 mm
Package weight (single piece)
1.044 kg

Downloads

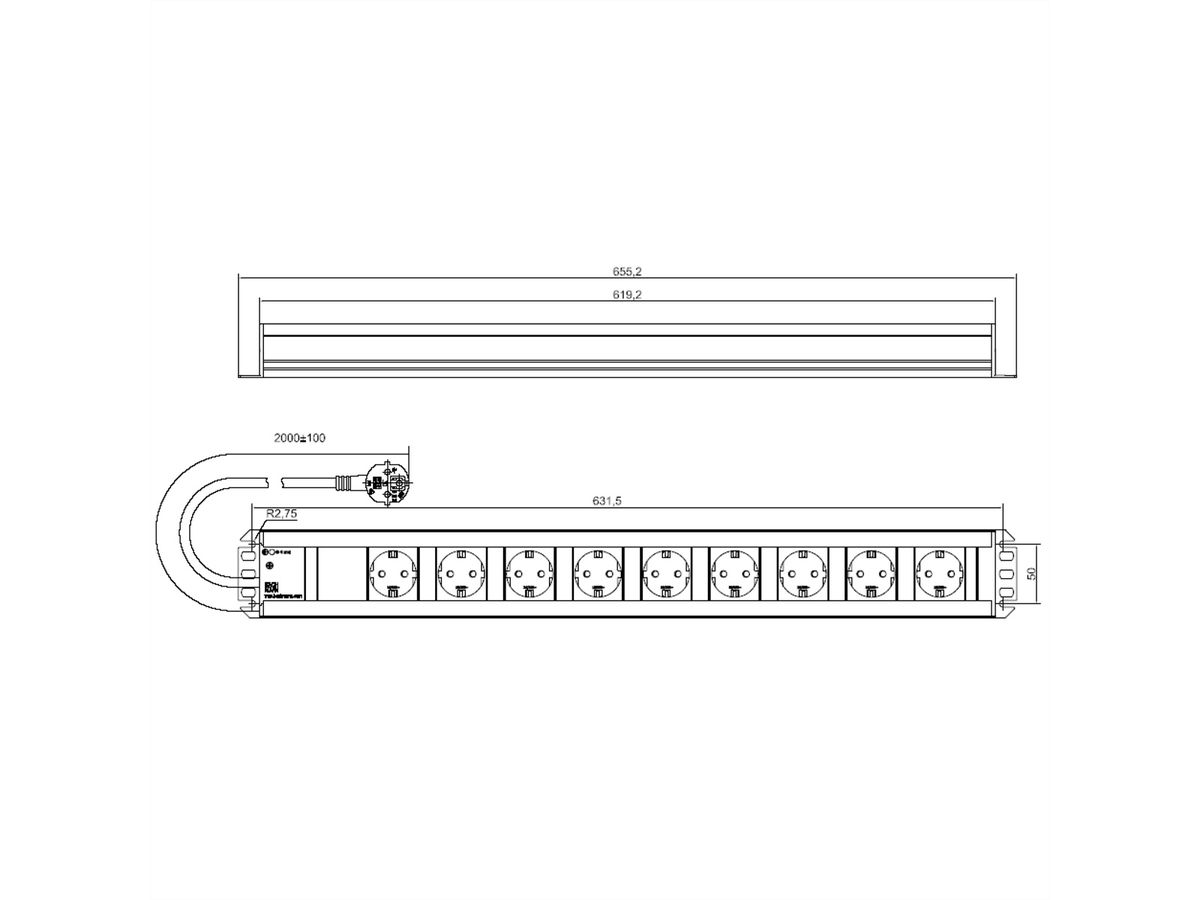

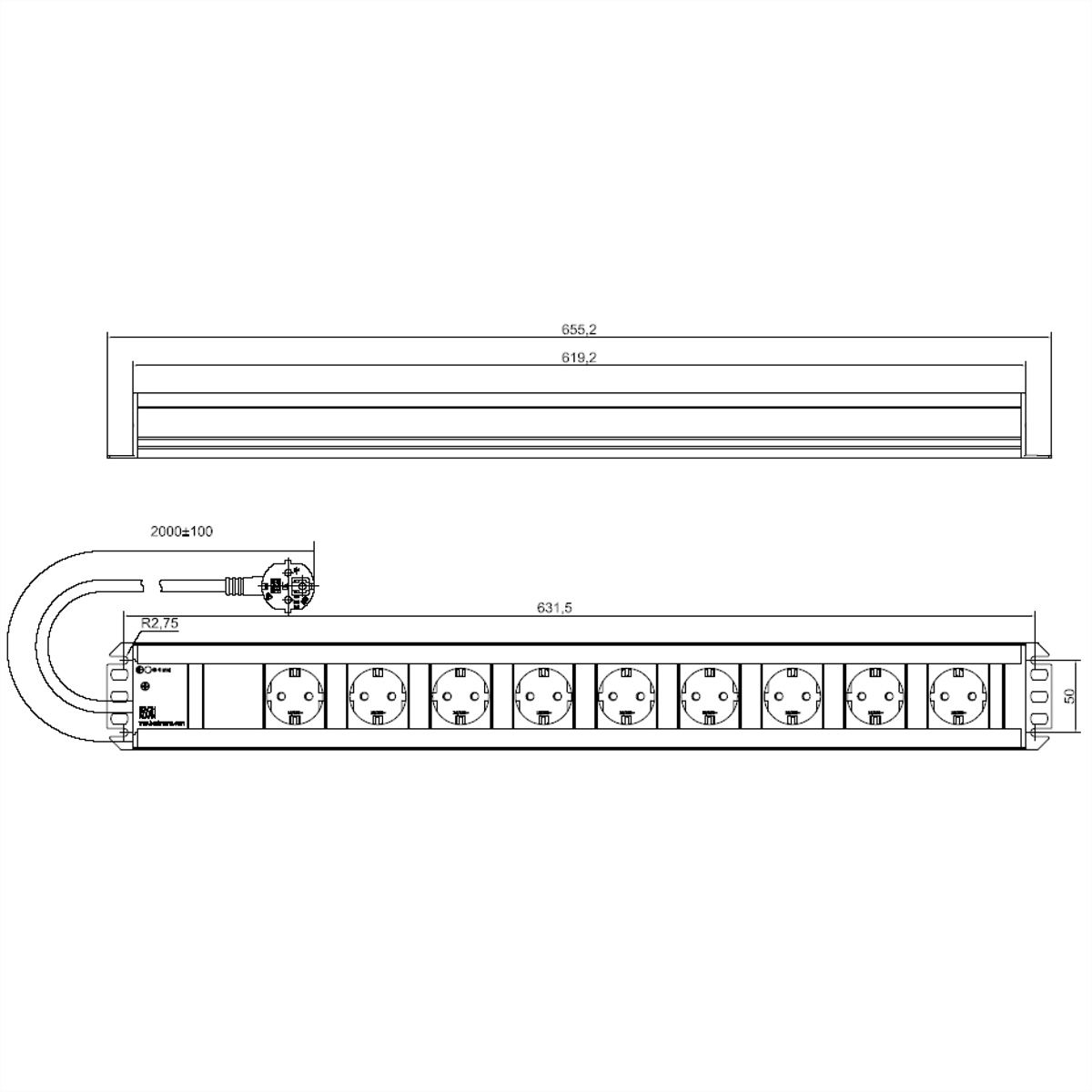

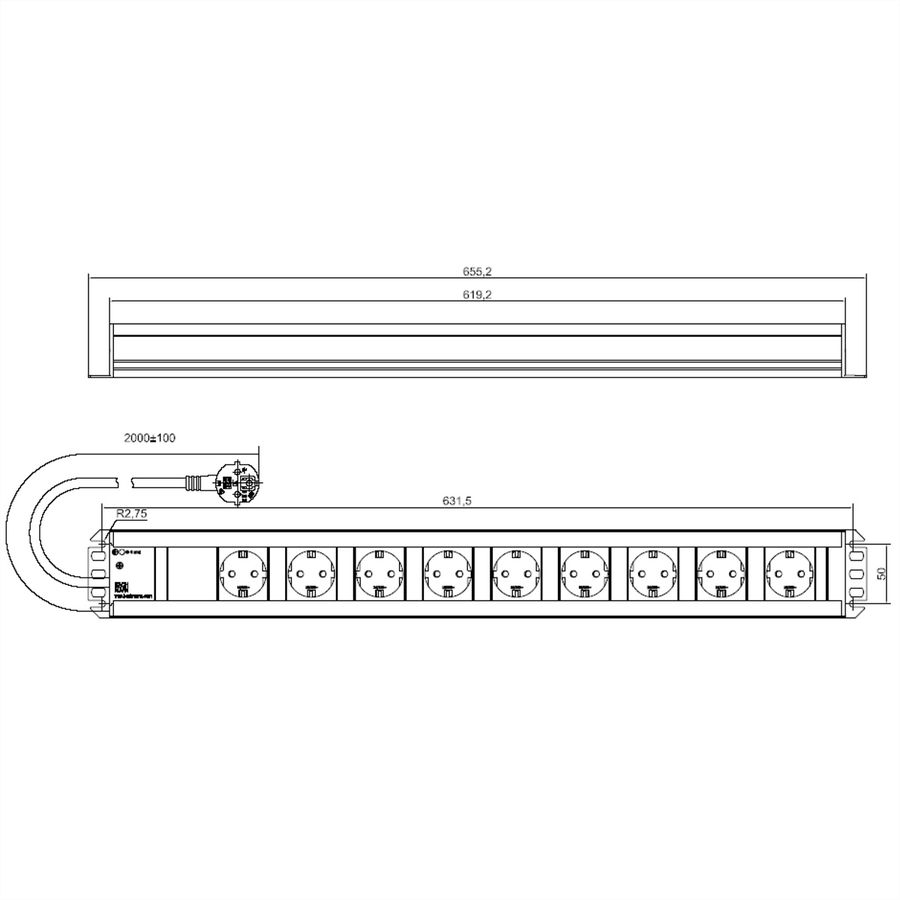

Manufacturer data sheet - English (134.0 KB) Technical drawing - English (371.0 KB) Safety instructions - Deutsch - English - Français - Italiano - Español (467.0 KB)
