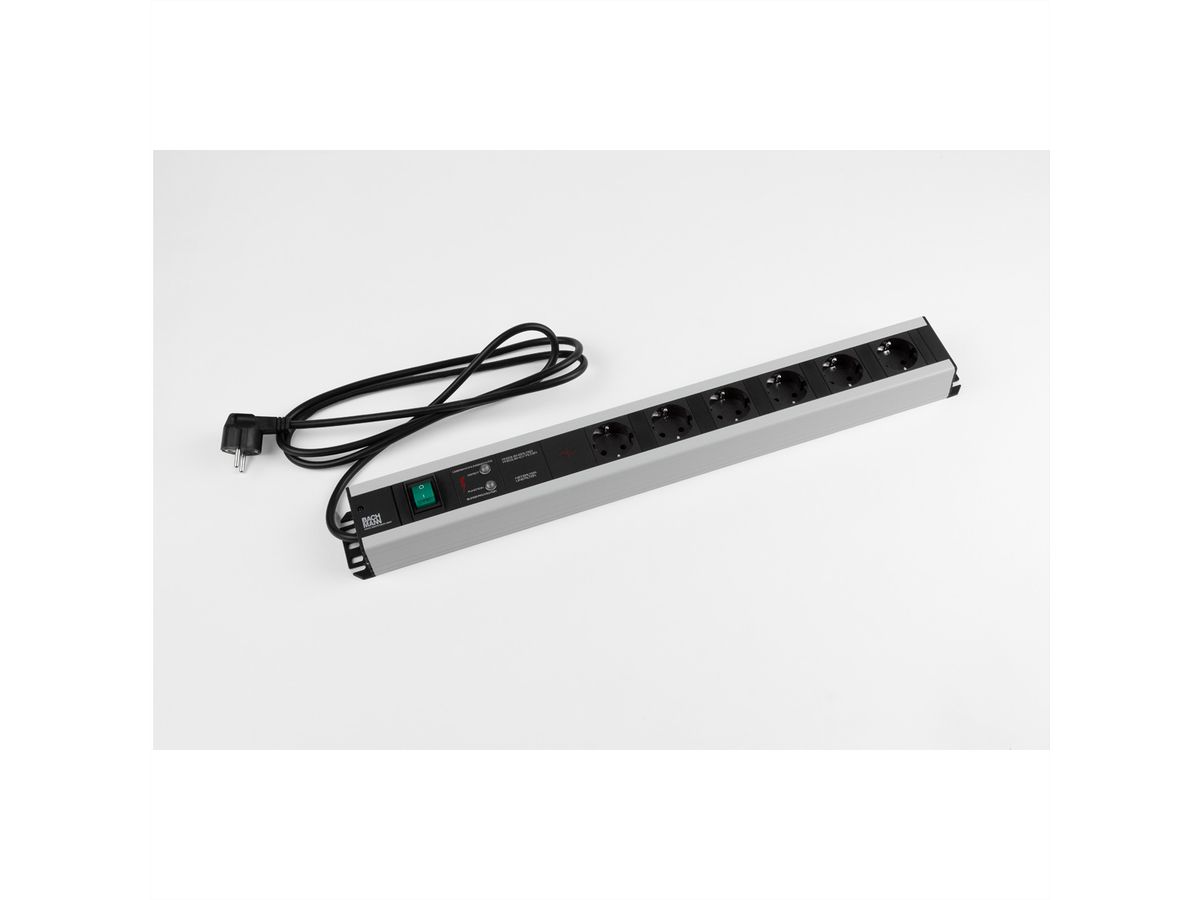

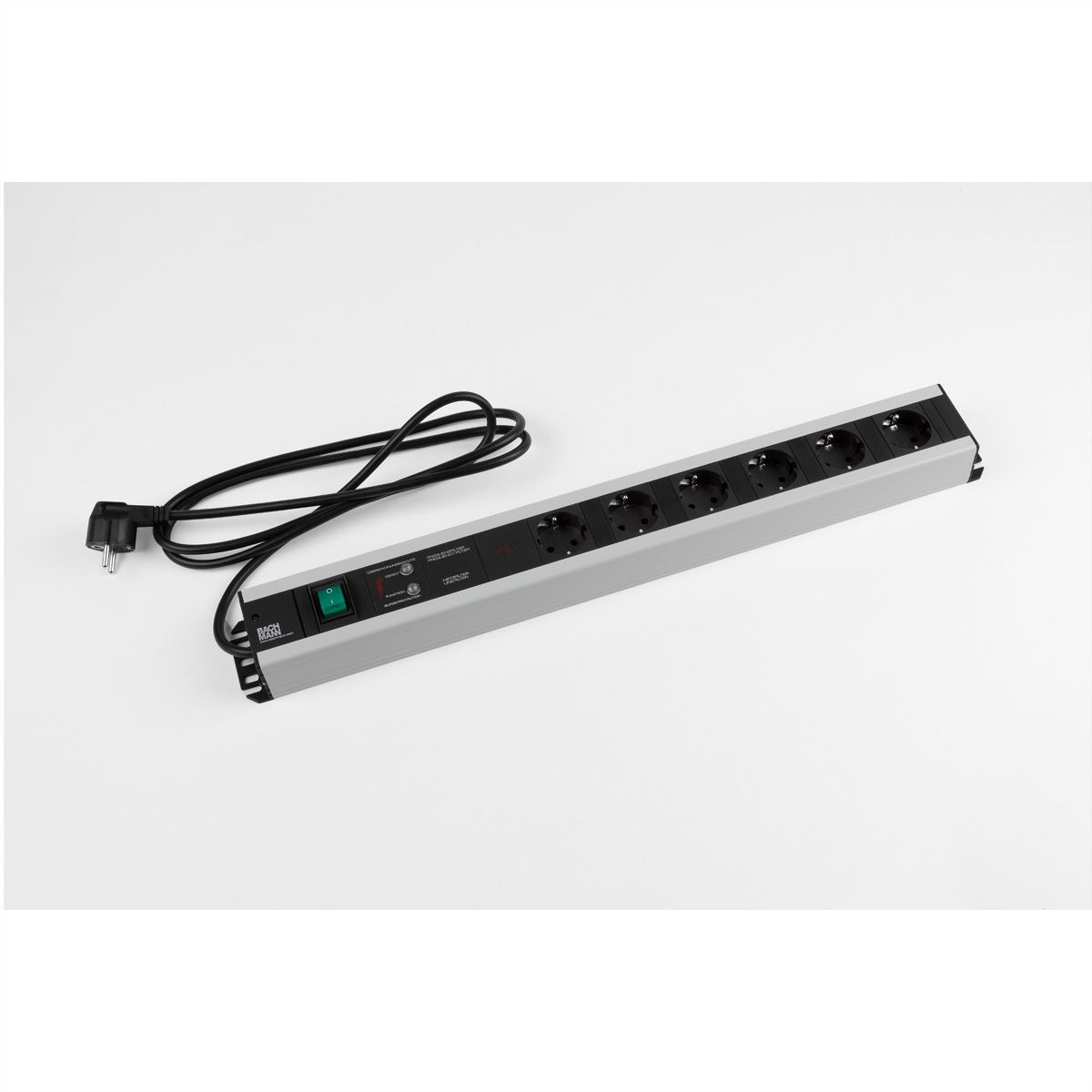

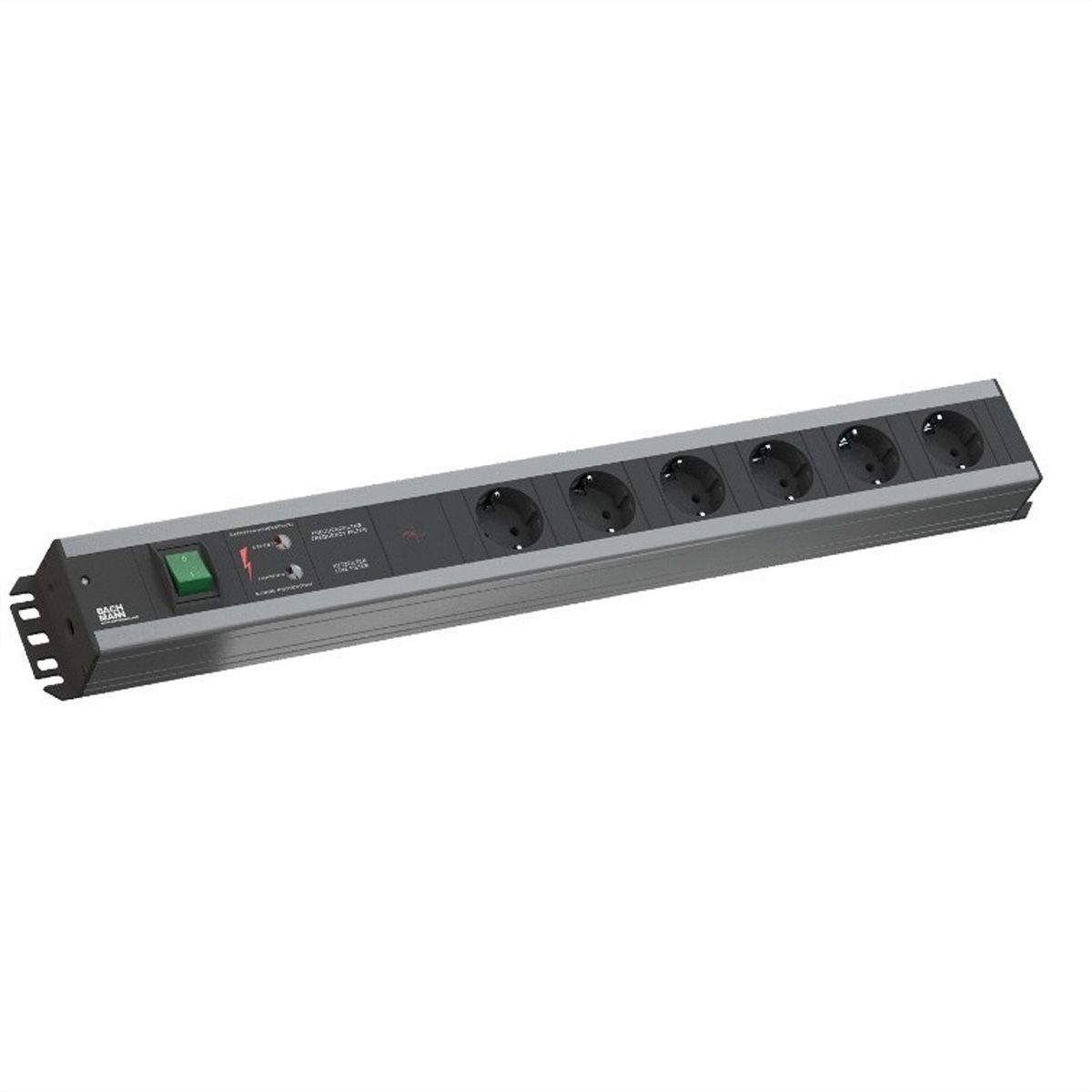

BACHMANN craftsman's strip 6x earthing contact, full device protection, switch, 2 m

Item no. 19071994 Brand / Manufacturer BACHMANN Manuf. item no. 300.012 EAN 4016514034284 Item weight 1.102 kg
BACHMANN

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day

Description

Robust. Practical. High quality. - HANDWERKERLEISTE multiple socket outlet with 90° rotated protective contact inserts and integrated reconnection terminal for power cable.

Craftsman socket strip 9-way protective contact with full device protection - 16A/3600W, AC250V, IP20 - Protective contact inserts: Colour black, rotated by 90° - Socket outlet spacing: 15mm (between the inserts) - 2-pole illuminated rocker switch 16 A - Suitable for 16 A, with varistors, thermal fuse, gas discharge tube, visual function and failure indicator - ÜS: Overvoltage protection acc. VDE 0675 Part 6, 1989-11. Part A1, 1996-10, requirement class D - GVS: Mains and frequency filter in accordance with VDE 0565-3:05-2006 for voltage peaks up to 30 MHz - Connection: - Screwed and reconnectable - Integrated reconnection terminal for power cable and additional output for separate earth conductor - Additional earth conductor connection, possible without opening the housing - Cable 2.0m H05VV-F 3G1.5mm² with earthing contact angle plug - Profile: - Profile colour silver - CSO, PVC, glow-wire resistant 850°C colour RAL 7035 - Also suitable for 19" cabinet mounting - 19" mounting bracket integrated in the end caps

Specifications

Manufacturer
BACHMANN
Product group
Power Bars
Product type
Power strip
Colour
black / gray
Length
2 m
Function
6 fach Steckdosenleiste
Mounting form
Wall / table socket
Max. capacitance
3600W
Max. voltage
230V AC
ON/OFF Switch
yes
Number of socket pots
6
Quantity of outputs/angles
6 / 90 °
Output alignment
Reihe
Socket type
3P. German, CEE 7/3, Type-F
Material (casing)
Kunststoff
Colour (Design profile)
black / gray
Connection cable
HO5VV-F3G, 2m, schwarz
Connector plug
Schuko
Plug type
3P. German, CEE 7/7, Type-E/F
Protection class (IP Code)
IP20
Mains filter
yes
Over voltage-/surge protection
yes
Regional use
Germany, Austria, Netherlands
Technical particularity
Opnieuw aan te sluiten, volledige apparaatbescherming
Mains connection
Protective contact plug, Type-E/F

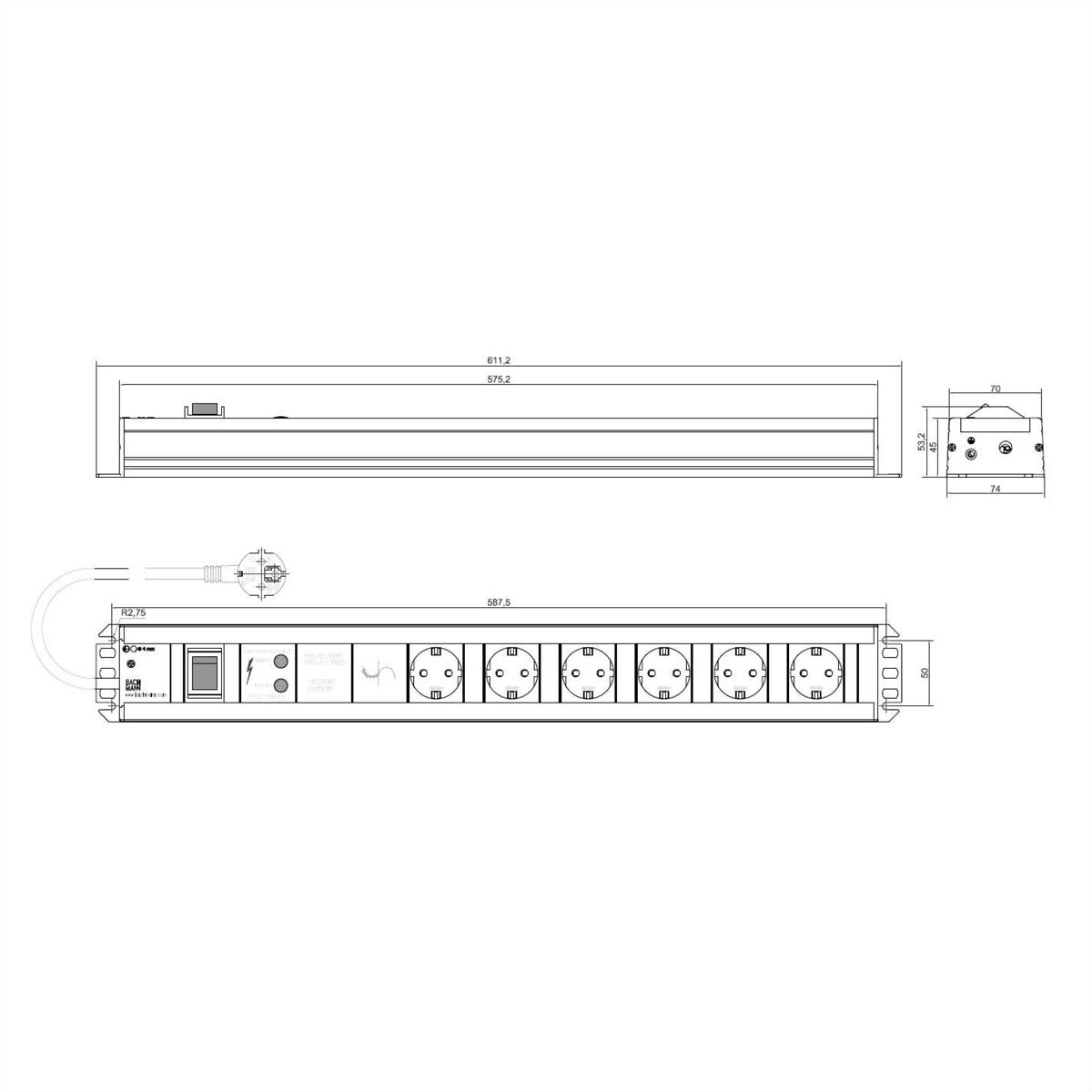

Height
575 mm
Width
74 mm
Depth
45 mm
Weight
1082 g
Height of packaging (single piece)
90 mm
Width of packaging (single piece)
150 mm
Depth of packaging (single piece)
630 mm
Package weight (single piece)
1.102 kg

The BACHMANN brand stands for customer-oriented electrotechnical components and systems.

In the development and manufacture of the products, emphasis is also placed on future topics such as energy management and energy efficiency for data centers and industry as well as building installation systems. The company benefits from almost 70 years of experience in the electronics industry.

Product security

Information in accordance with the EU Product Safety Regulation, (GPSR):


Bachmann GmbH
Ernsthaldenstr. 33, 70565 Stuttgart, Germany
