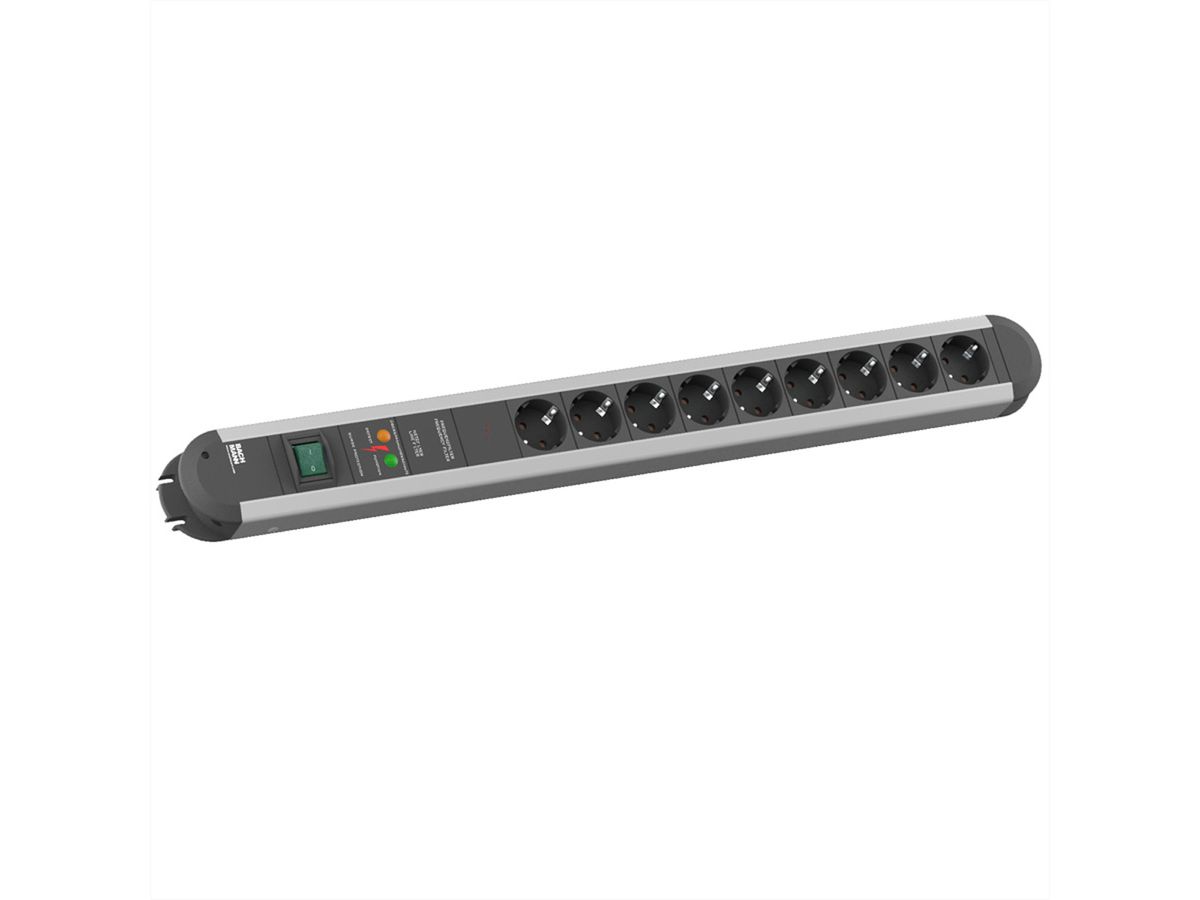

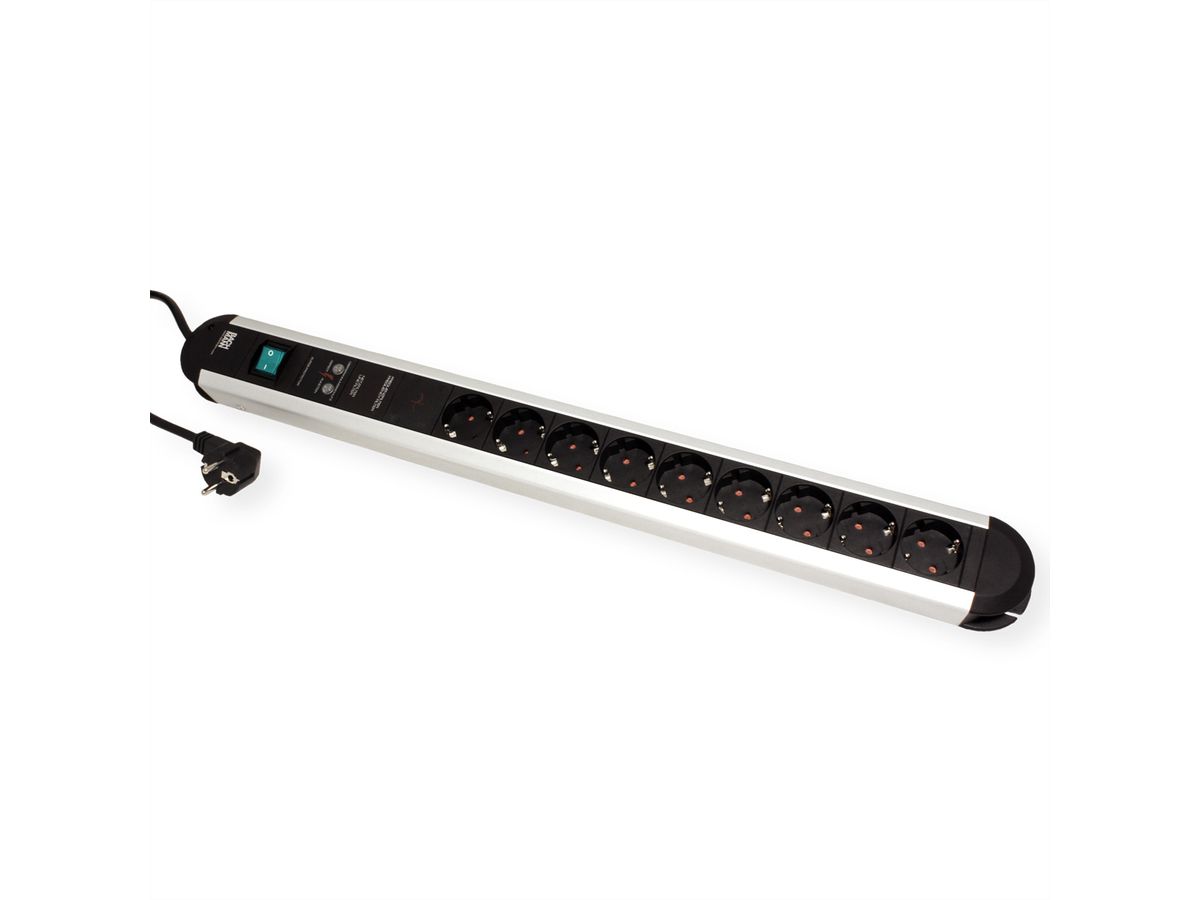

BACHMANN Primo 9-way socket strip with full appliance protection and switch, 1.75 m

Item no. 19071695 Brand / Manufacturer BACHMANN Manuf. item no. 331.072 EAN 4016514006175 Item weight 1.21 kg
BACHMANN

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
Deliverable approx. 08/26/2026
Download PDF

Description

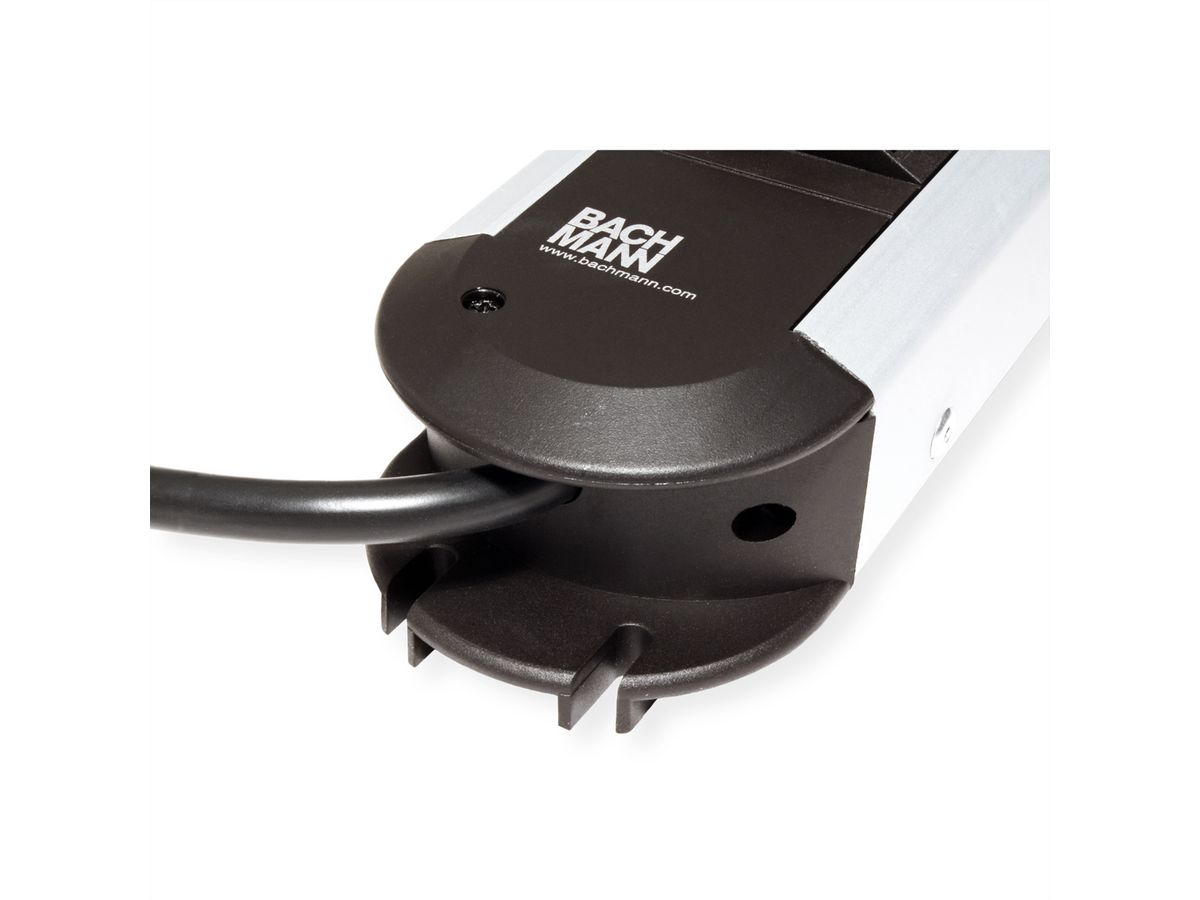

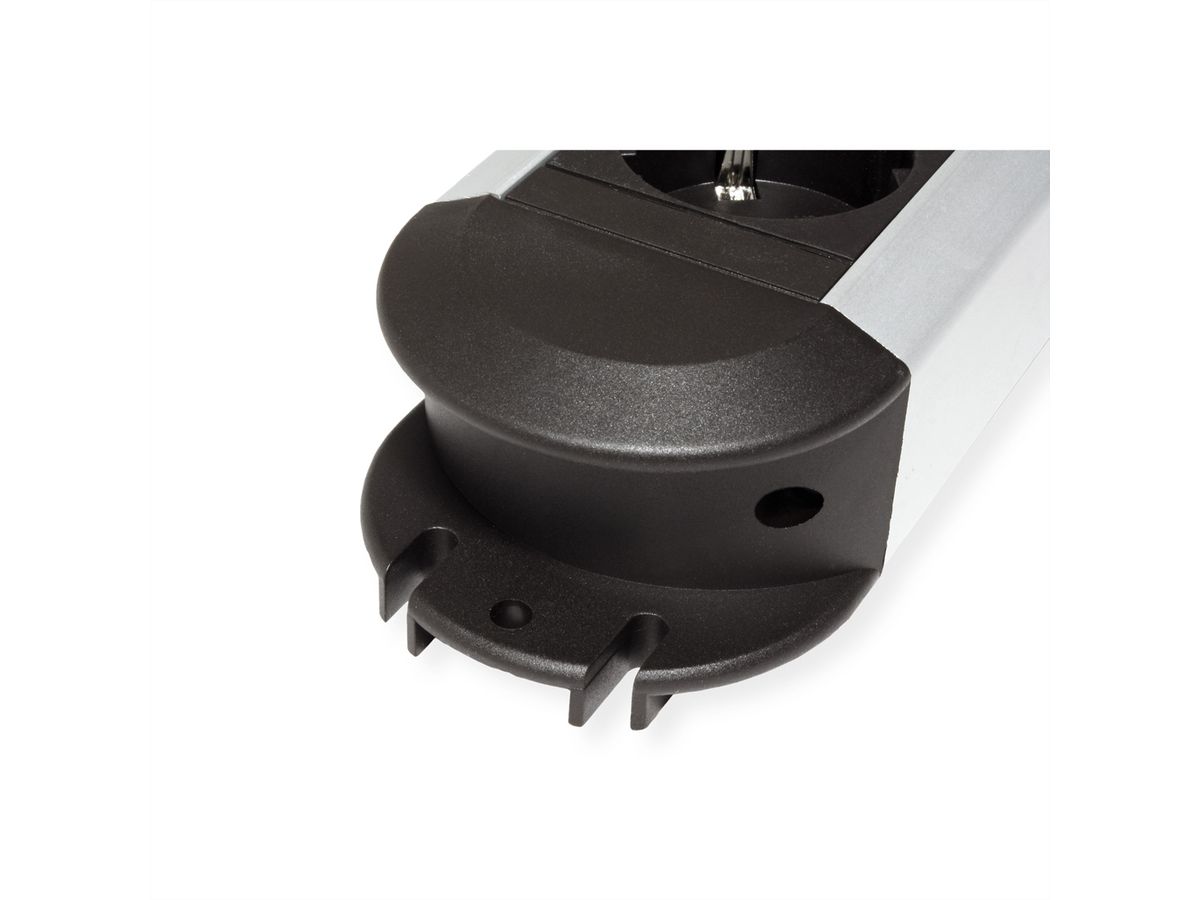

PRIMO socket strip with protective contact inserts rotated by 35° and rounded end pieces with practical cable winder and screw-on eyelets.

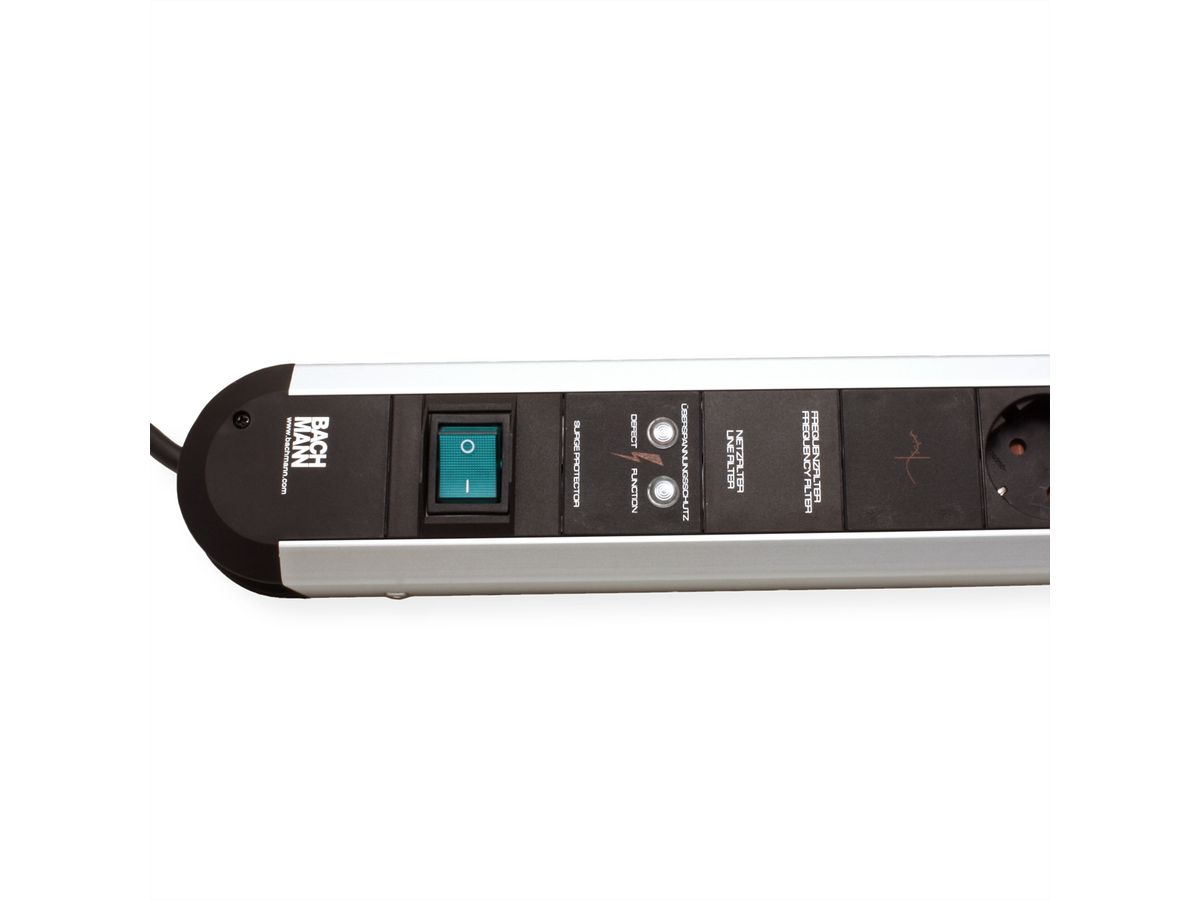

9-socket power strip made of plastic - Screwed, with switch and integrated touch protection - 35° arrangement of the sockets -

Specifications

Manufacturer
BACHMANN
Product group
Power Bars
Product type
Power strip
Colour
various
Length
1.75 m
Function
9 fach Steckdosenleiste
Mounting form
Desktop
Max. capacitance
3600W
Max. voltage
230V AC
ON/OFF Switch
yes
Switch type
2 pol., beleuchtet
Number of socket pots
9
Quantity of outputs/angles
9 / 35°
Output alignment
Reihe
Socket type
3P. German, CEE 7/3, Type-F
Material (casing)
Kunststoff
Colour (Design profile)
black / silver
Connection cable
HO5VV-F3G, 2m, schwarz
Connector plug
Schuko
Plug type
3P. German, CEE 7/7, Type-E/F
With enhanced contact protection
yes
Regional use
Germany, Austria, Netherlands
Mains connection
Protective contact plug, Type-E/F

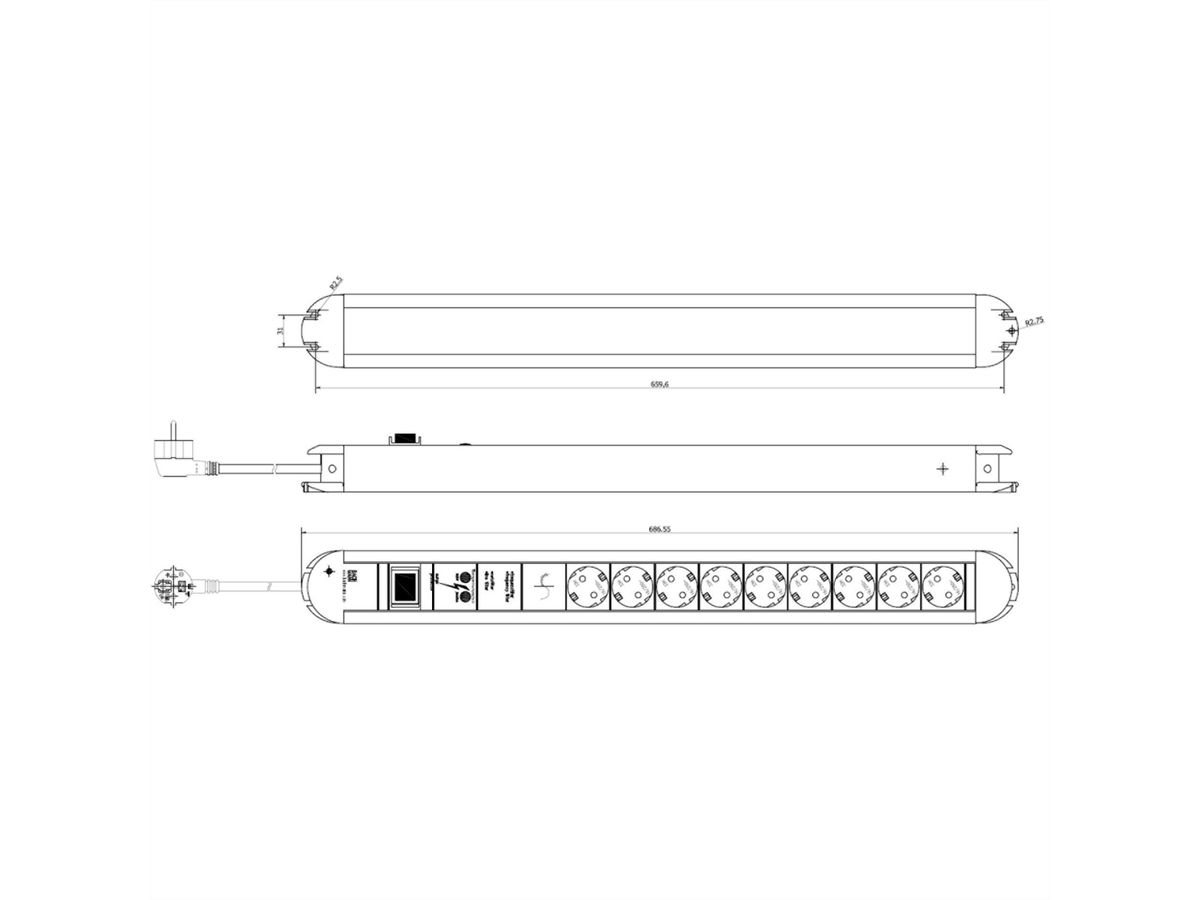

Height
45 mm
Width
570 mm
Depth
70 mm
Weight
0.78 kg
Height of packaging (single piece)
70 mm
Width of packaging (single piece)
130 mm
Depth of packaging (single piece)
630 mm
Package weight (single piece)
1.21 kg

Downloads

Manufacturer data sheet - English (123.3 KB) Safety instructions - Deutsch - English - Français - Italiano - Español (467.0 KB)
