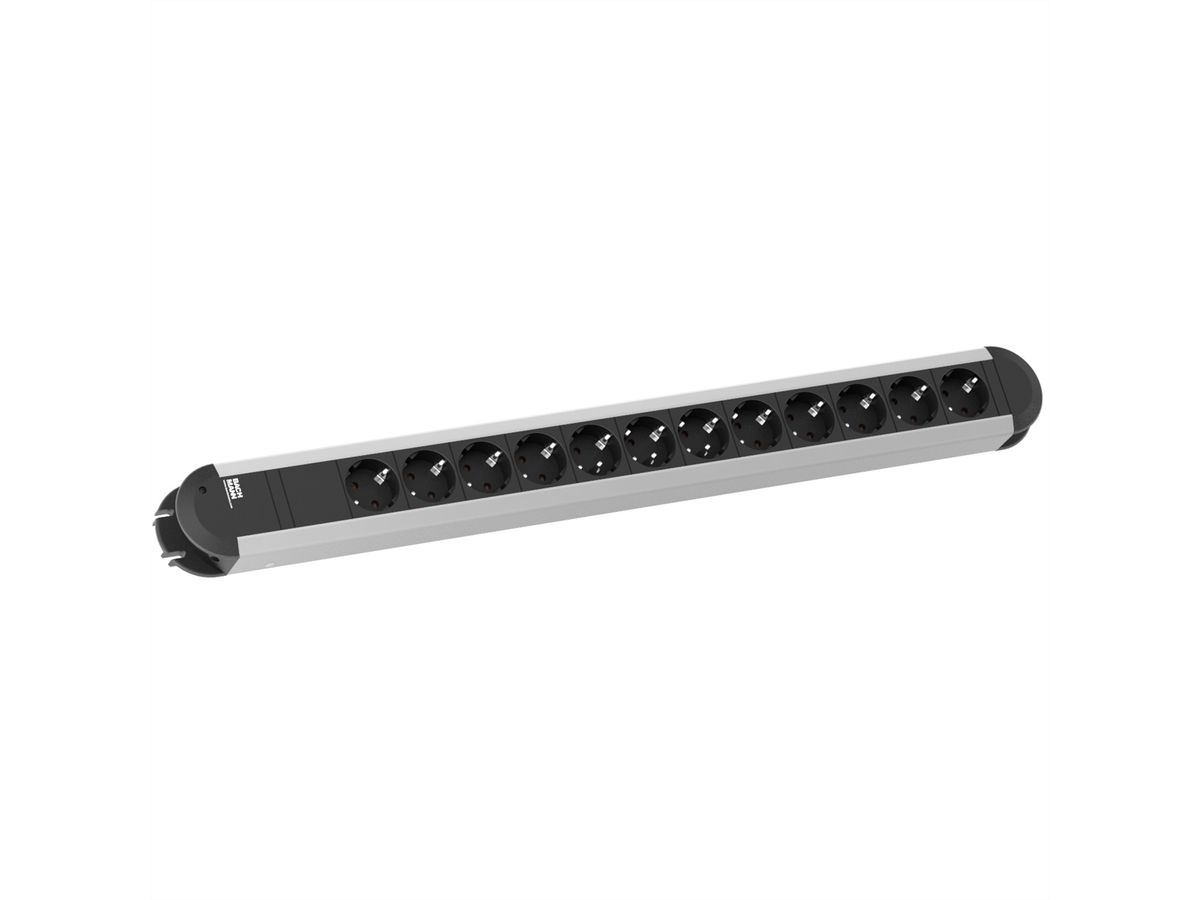

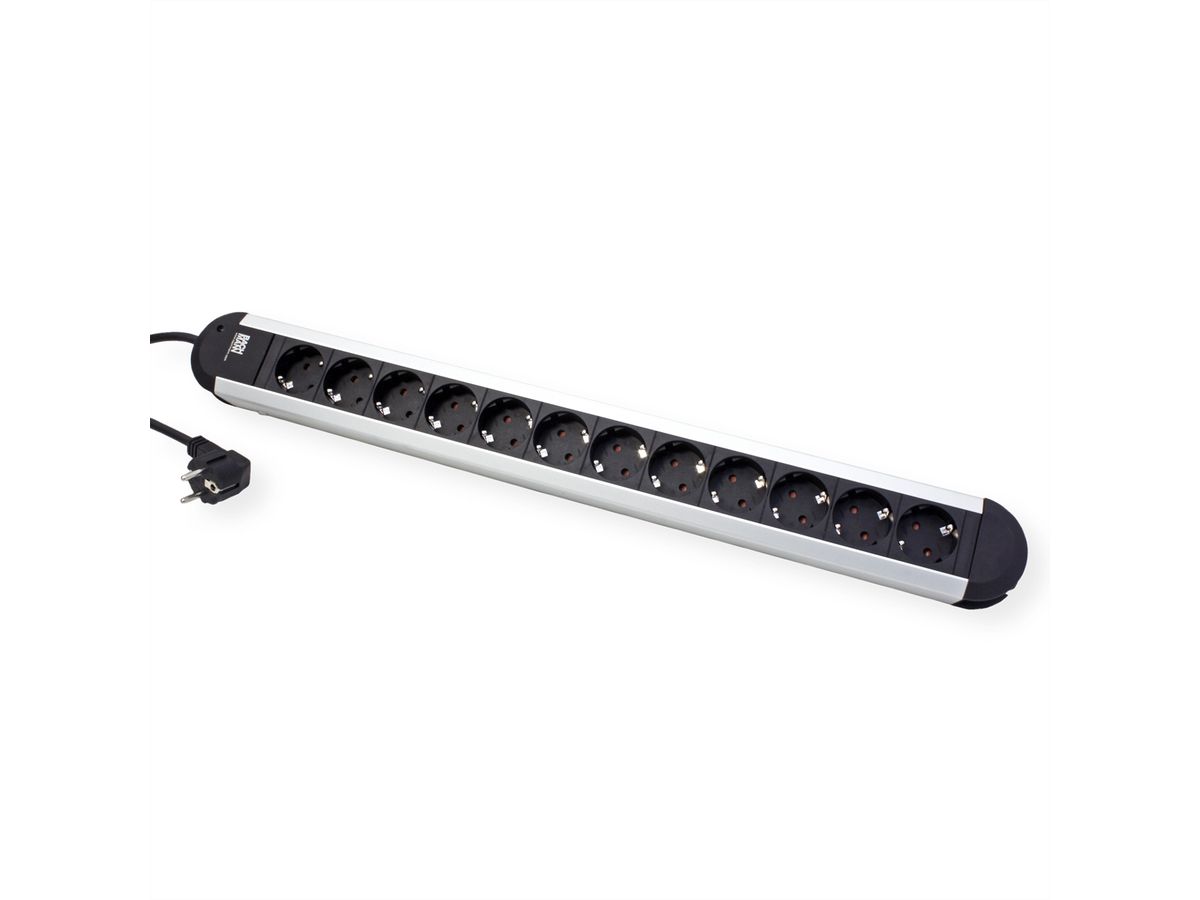

BACHMANN PRIMO socket strip 12x earthing contact, aluminium, 1.75 m

Item no. 19071101 Brand / Manufacturer BACHMANN Manuf. item no. 331.012 EAN 4016514013111 Item weight 1.186 kg
BACHMANN

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

PRIMO socket strip with protective contact inserts rotated by 35° and rounded end pieces with practical cable winder and screw-on eyelets.

- 12-socket power strip - Supply cable: H05VV-F 3G 1.50 mm², length 1.75m - Total power max. 16 A / 3. 680 W - Protective contact socket outlets rotated by 35°, with nickel-plated protective contacts and integrated touch protection - Halogen and PVC-free socket outlets - Torsion-resistant profile made of high-quality, anodised aluminium - Moulded angled protective contact plug - Rounded end pieces with practical cable winder and screw-on eyelets

Specifications

Manufacturer
BACHMANN
Product group
Power Bars
Product type
Power strip
Colour
various
Length
1.75 m
Function
6 fach Steckdosenleiste
Mounting form
Desktop
Max. capacitance
3600W
Max. voltage
230V AC
ON/OFF Switch
no
Number of socket pots
12
Quantity of outputs/angles
12 / 45 °
Output alignment
Reihe
Socket type
3P. German, CEE 7/3, Type-F
Material (casing)
Kunststoff / Aluminum
Colour (Design profile)
black / silver
Connection cable
HO5VV-F3G, 2m, schwarz
Colour (Cable)
black
Connector plug
Schuko
Plug type
3P. German, CEE 7/7, Type-E/F
With enhanced contact protection
yes
Regional use
Germany, Austria, Netherlands
Mains connection
Protective contact plug, Type-E/F
Height
46 mm
Width
690 mm
Depth
71 mm
Weight
1116 g
Height of packaging (single piece)
70 mm
Width of packaging (single piece)
150 mm
Depth of packaging (single piece)
630 mm
Package weight (single piece)
1.186 kg

Downloads

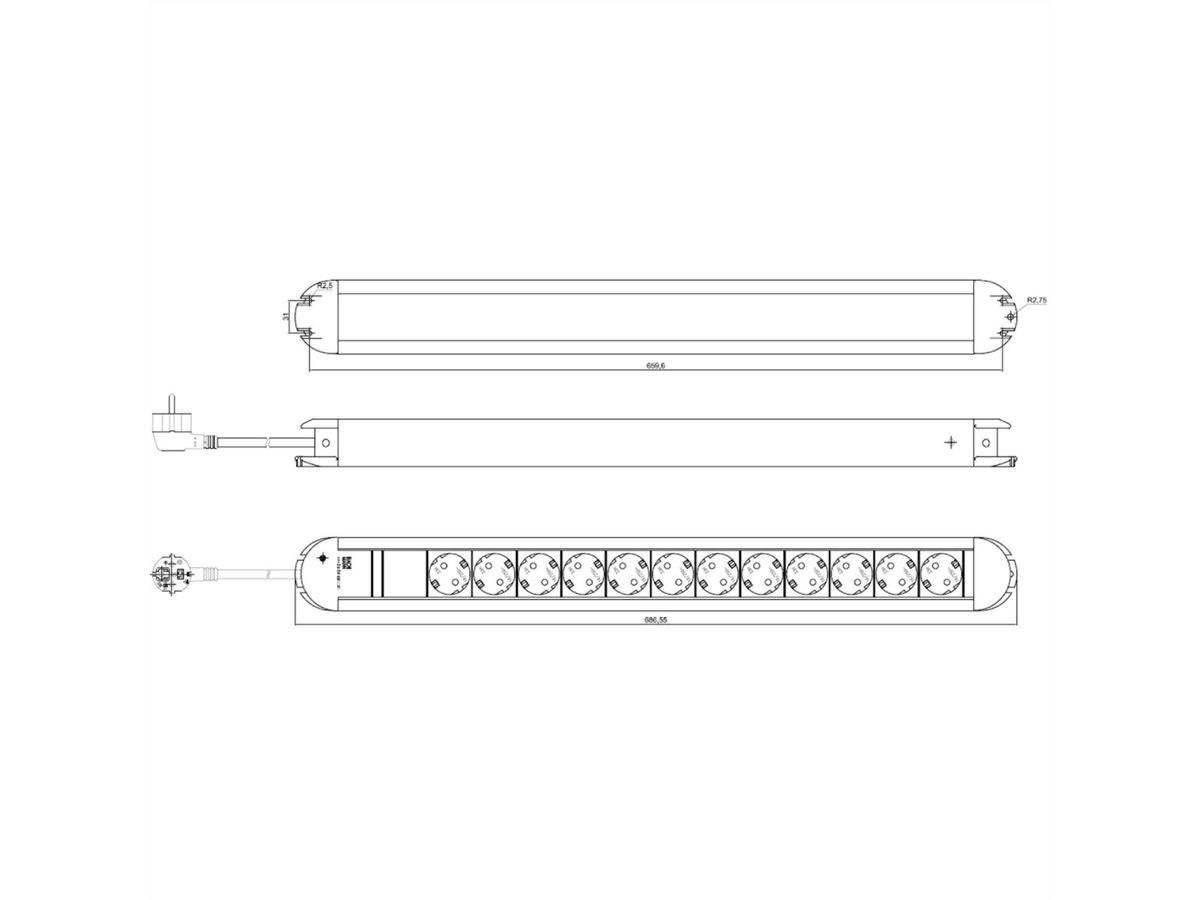

Manufacturer data sheet - English (69.4 KB) Technical drawing - English (325.4 KB) Safety instructions - Deutsch - English - Français - Italiano - Español (467.0 KB)
