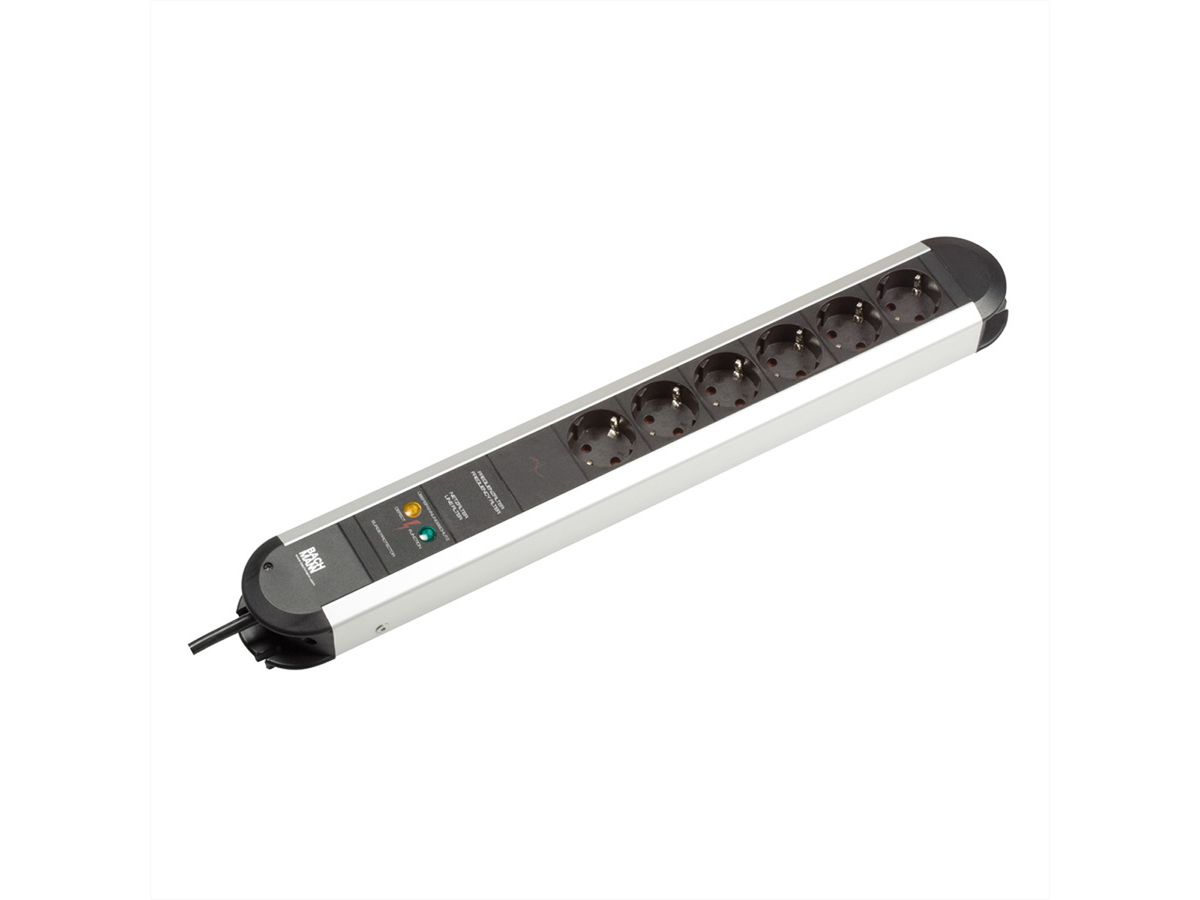

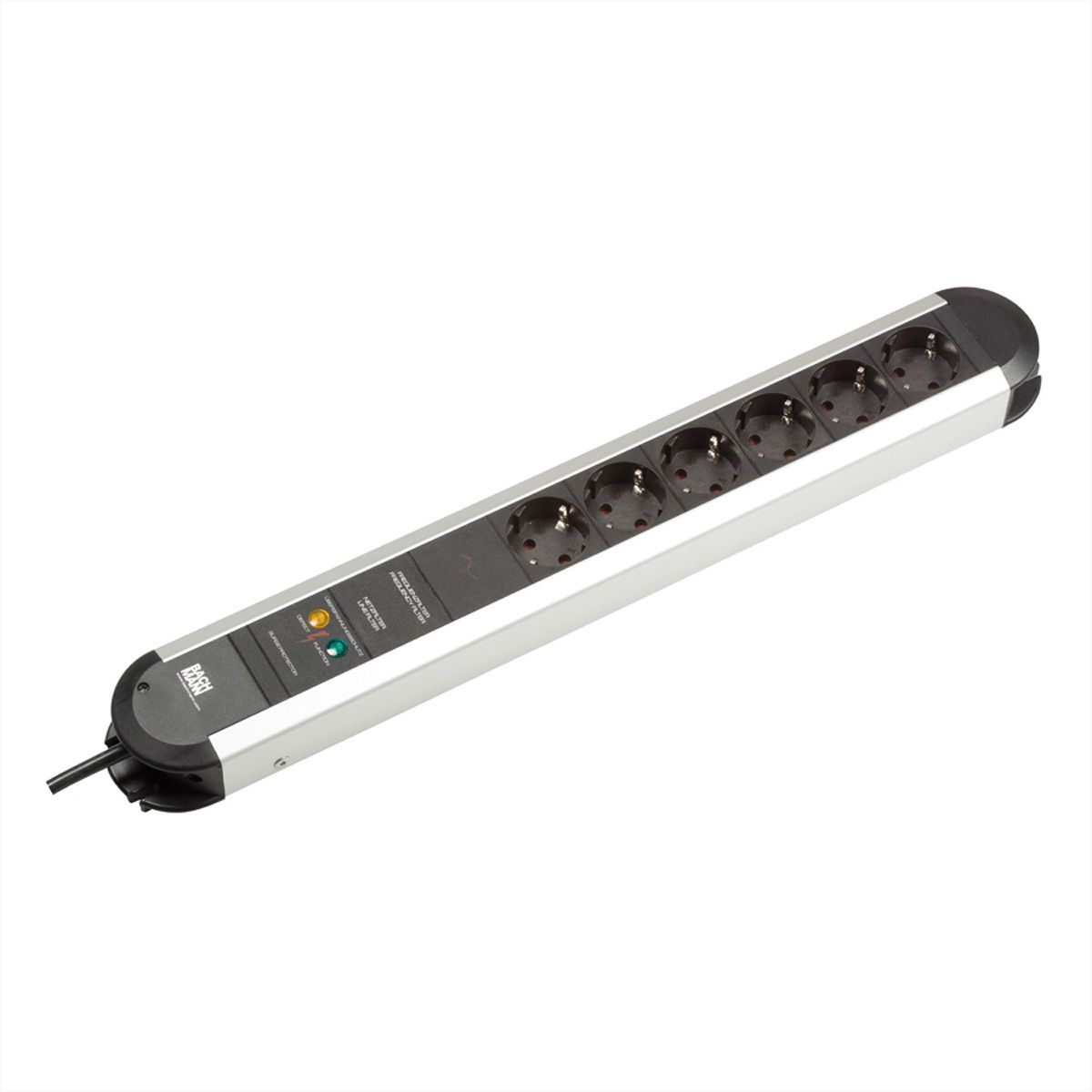

BACHMANN PRIMO socket strip 6x earthing contact aluminium full device protection, 1.75 m

Item no. 19071692 Brand / Manufacturer BACHMANN Manuf. item no. 331.006 EAN 4016514010943 Item weight 1.001 kg
BACHMANN

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

PRIMO socket strip with protective contact inserts rotated by 35° and rounded end pieces with practical cable winder and screw-on eyelets.

6-way socket strip made of aluminium - Cable: H05VV-F 3G 1.50 mm², length 1.75m - Total power max. 16 A / 3,680 W - Integrated touch protection - Socket outlet arrangement: 35° - Aluminium profile - Suitable for 16 A, with varistors, thermal fuse, gas discharge tube, visual function and failure indicator - ÜS: Overvoltage protection acc. VDE 0675 Part 6, 1989-11. Part A1, 1996-10, requirement class D - GVS: Full appliance protection with additional mains and frequency filter in accordance with EN 133200: 1994 -

Specifications

Manufacturer
BACHMANN
Product group
Power Bars
Product type
Power strip
Colour
various
Length
1.75 m
Function
5 fach Steckdosenleiste
Mounting form
Desktop
Max. capacitance
3600W
Max. voltage
230V AC
ON/OFF Switch
yes
Switch type
2 pol., beleuchtet
Number of socket pots
6
Quantity of outputs/angles
6 / 45 °
Output alignment
Reihe
Socket type
3P. German, CEE 7/3, Type-F
Material (casing)
Aluminium
Colour (Design profile)
black / silver
Connection cable
HO5VV-F3G, 2m, schwarz
Colour (Cable)
black
Connector plug
Schuko
Plug type
3P. German, CEE 7/7, Type-E/F
With enhanced contact protection
yes
Mains filter
yes
Over voltage-/surge protection
yes
Regional use
Germany, Austria, Netherlands
Technical particularity
Überspannungsschutz n. VDE 0675 Teil 6, 1989-11. Teil A1, 1996-10, Anforderungs-klasse D mit Netzund Frequenzfilter nach EN 133200: 1994
Mains connection
Protective contact plug, Type-E/F
Height
472 mm
Width
70 mm
Depth
45 mm
Weight
0.86 kg
Height of packaging (single piece)
70 mm
Width of packaging (single piece)
520 mm
Depth of packaging (single piece)
110 mm
Package weight (single piece)
1.001 kg

Downloads

Manufacturer data sheet - English (110.0 KB) Safety instructions - Deutsch - English - Français - Italiano - Español (467.0 KB)

The BACHMANN brand stands for customer-oriented electrotechnical components and systems.

In the development and manufacture of the products, emphasis is also placed on future topics such as energy management and energy efficiency for data centers and industry as well as building installation systems. The company benefits from almost 70 years of experience in the electronics industry.
