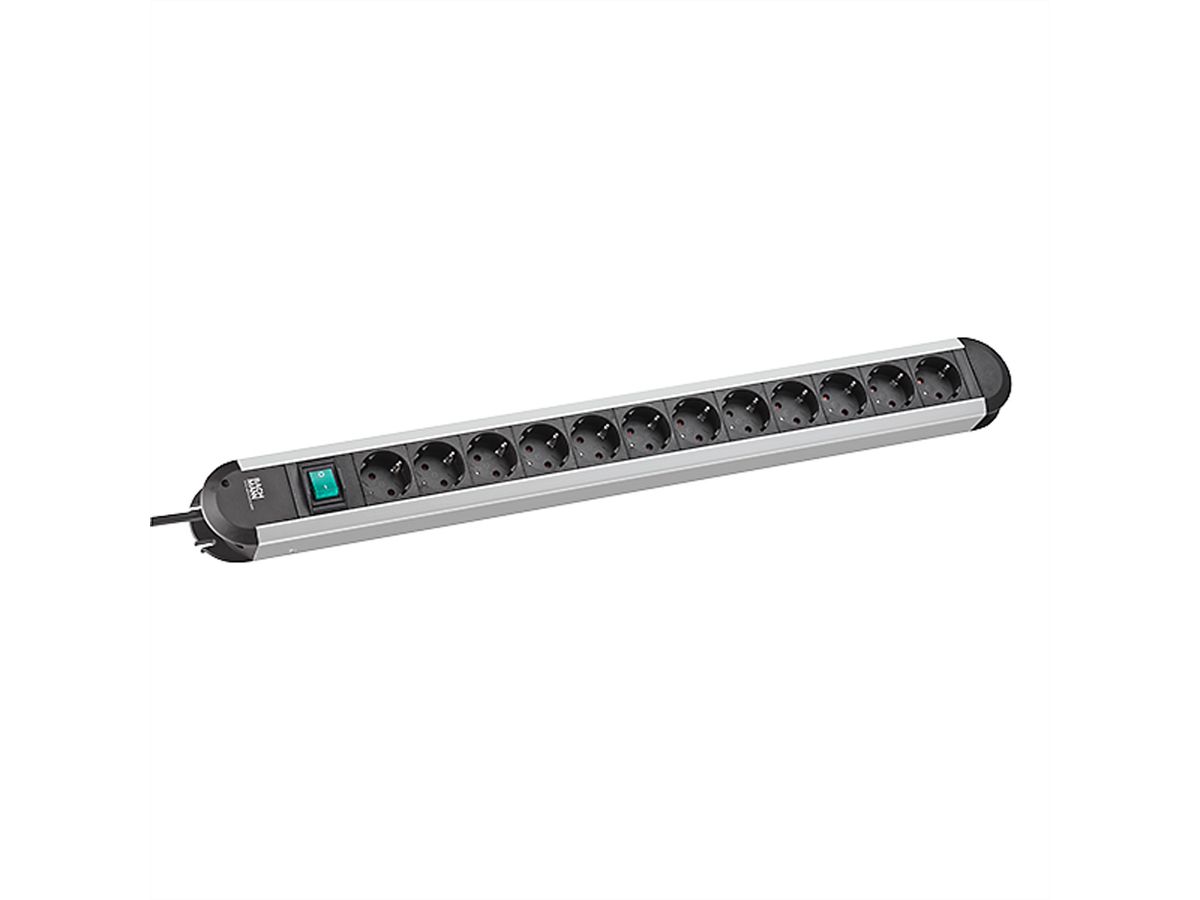

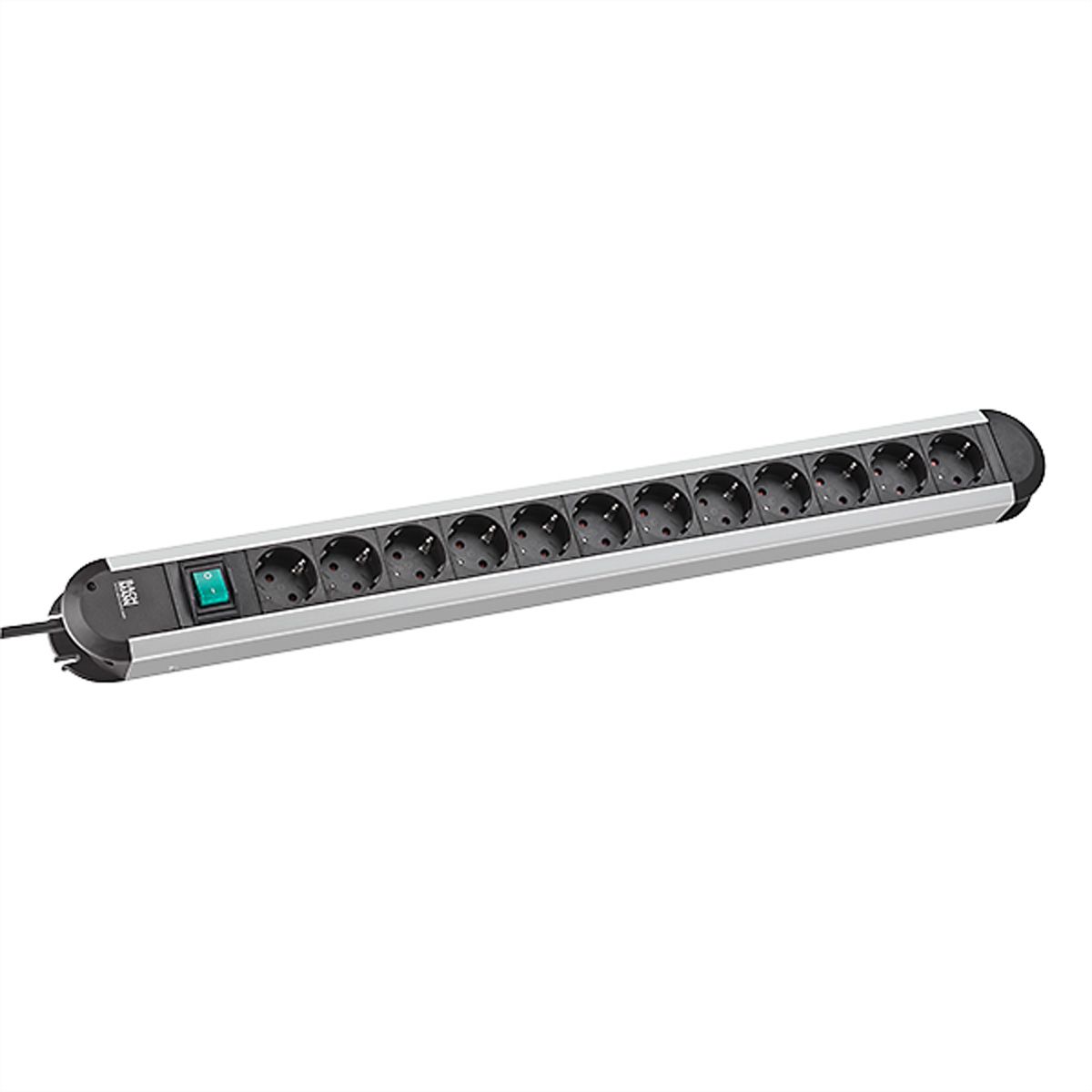

BACHMANN socket strip ALU 12-way, 45°, with switch, 1,75m

Item no. 19071122 Brand / Manufacturer BACHMANN Manuf. item no. 330.073 EAN 4016514000685 Item weight 1.246 kg
BACHMANN

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

PRIMO socket strip with protective contact inserts rotated by 35° and rounded end pieces with practical cable winder and screw-on eyelets.

- 12-way socket strip made of aluminium - Screwed, with integrated touch protection, with switch - 45° arrangement of the sockets - Aluminium profile

Specifications

Manufacturer
BACHMANN
Product group
Power Bars
Product type
Power strip
Colour
various
Length
1.75 m
Function
6 fach Steckdosenleiste
Mounting form
Desktop
Max. capacitance
3600W
Max. voltage
230V AC
ON/OFF Switch
no
Number of socket pots
12
Quantity of outputs/angles
12 / 45°
Output alignment
Reihe
Socket type
3P. German, CEE 7/3, Type-F
Material (casing)
Kunststoff / Aluminum
Colour (Design profile)
black / silver
Connection cable
HO5VV-F3G, 2m, schwarz
Connector plug
Schuko
Plug type
3P. German, CEE 7/7, Type-E/F
With enhanced contact protection
yes
Regional use
Germany, Austria, Netherlands
Mains connection
Protective contact plug, Type-E/F
Height
46 mm
Width
690 mm
Depth
71 mm
Weight
1226 g
Height of packaging (single piece)
70 mm
Width of packaging (single piece)
120 mm
Depth of packaging (single piece)
630 mm
Package weight (single piece)
1.246 kg

Downloads

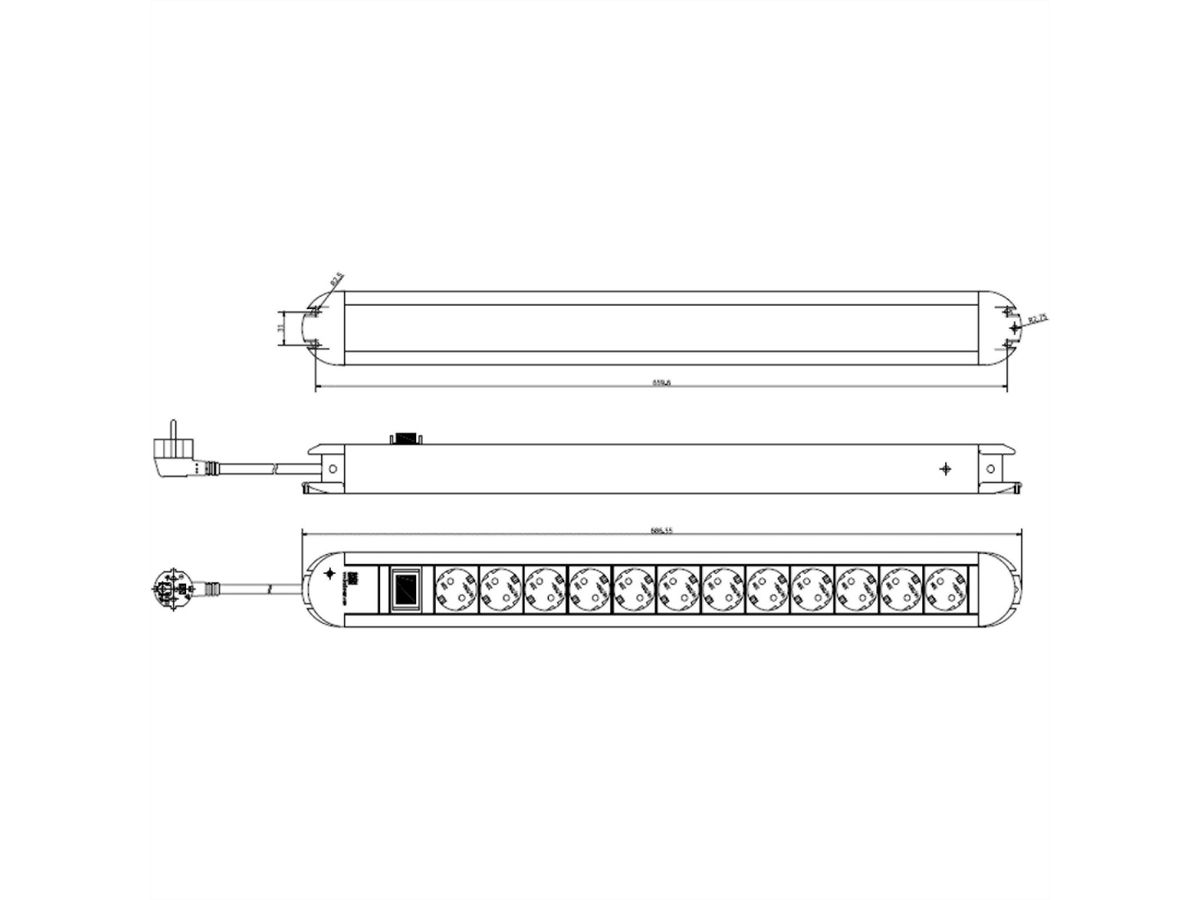

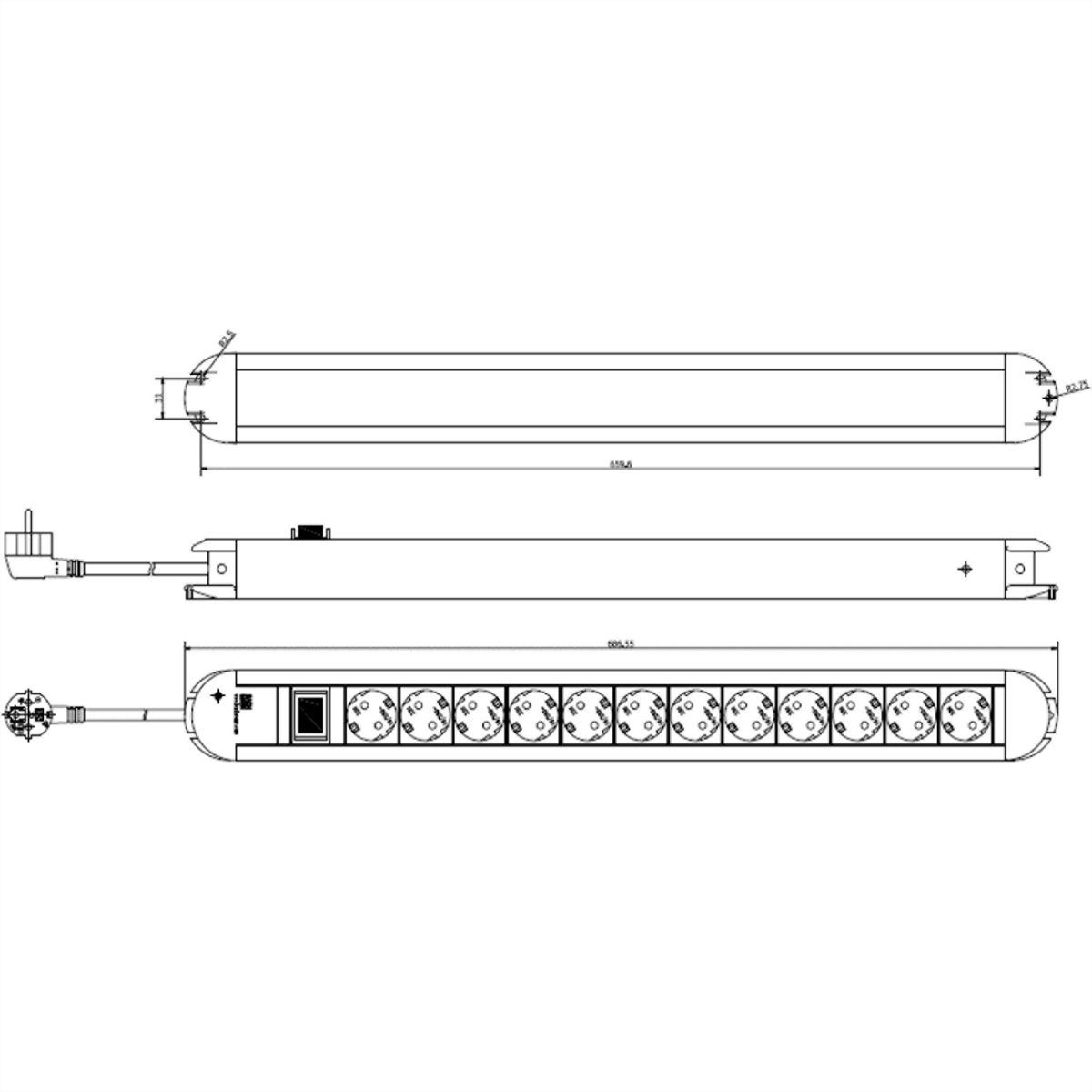

Manufacturer data sheet - English (123.3 KB) Technical drawing - English (328.4 KB) Safety instructions - Deutsch - English - Français - Italiano - Español (467.0 KB)

The BACHMANN brand stands for customer-oriented electrotechnical components and systems.

In the development and manufacture of the products, emphasis is also placed on future topics such as energy management and energy efficiency for data centers and industry as well as building installation systems. The company benefits from almost 70 years of experience in the electronics industry.
