BACHMANN TOP FRAME Medium grey/black, Table-top version with frame

Item no. 19072848 Brand / Manufacturer BACHMANN Manuf. item no. 925.500 EAN 4016514036349 Item weight 2.53 kg
BACHMANN

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
Deliverable approx. 09/14/2026

Description

TOP FRAME Table-top version Asymmetrical Medium

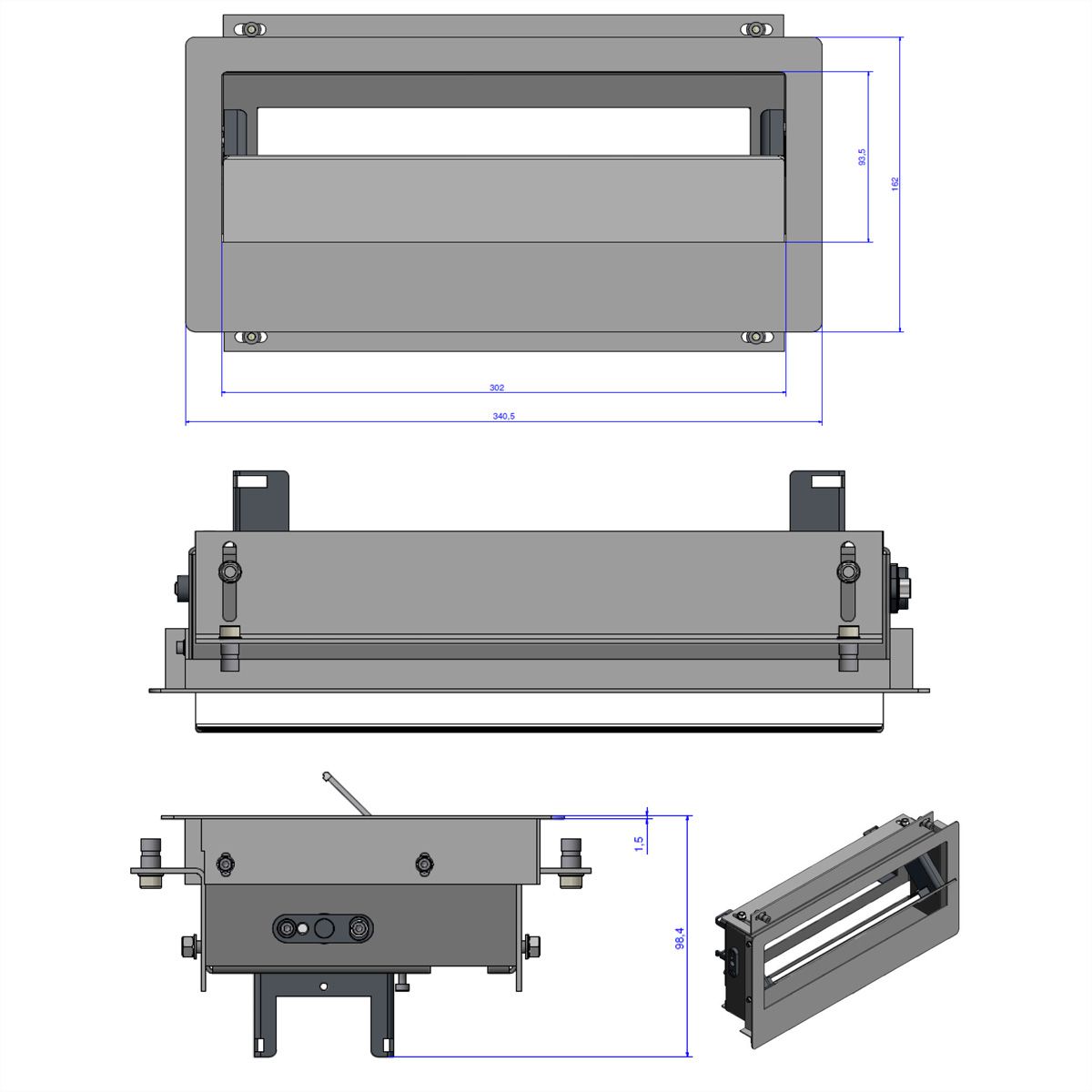

Housing: - Sheet steel powder-coated in black similar to RAL9005 - Frame and flap: - Aluminium powder-coated in metallic grey similar to RAL9006 - Table top thickness: - 12-40mm - Installation depth: - 96mm, - Incl. socket strip 108mm

Specifications

Manufacturer
BACHMANN
Product group
Power Bars
Product type
Facility systems
Colour
grey
Scope of delivery
1x TOP FRAME table-top version with medium frame
Regional use
Without restriction
Height
0.14 m
Width
0.16 m
Depth
0.34 m
Weight
2.52 kg
Height of packaging (single piece)
150 mm
Width of packaging (single piece)
240 mm
Depth of packaging (single piece)
380 mm
Package weight (single piece)
2.53 kg

Downloads

Manufacturer data sheet - English (207.3 KB) Technical drawing - English (350.4 KB)

The BACHMANN brand stands for customer-oriented electrotechnical components and systems.

In the development and manufacture of the products, emphasis is also placed on future topics such as energy management and energy efficiency for data centers and industry as well as building installation systems. The company benefits from almost 70 years of experience in the electronics industry.
