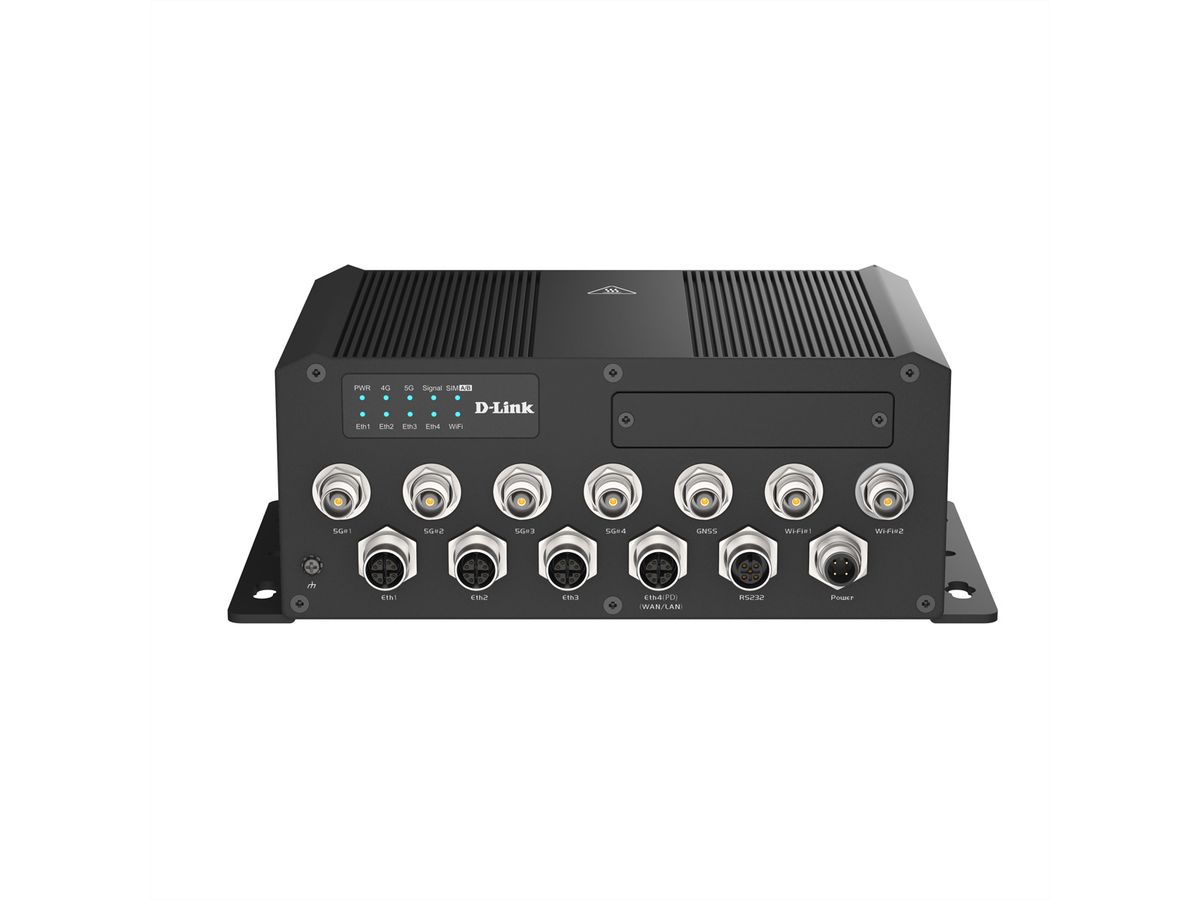

D-Link DTM-570-GS 5G-Transit-Gateway

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Deliverable approx. 11/03/2025

Item no.	21182385
Brand / Manufacturer	D-LINK
Manuf. item no.	DTM-570-GS
EAN	790069480713

Description

The DTM-570-GS 5G Transit Gateway provides robust 5G NR and LTE cellular connectivity for wireless uplink and downlink, featuring four Gigabit Ethernet M12/X-coded ports to connect local devices. This solution seamlessly integrates service providers, passengers, vehicles, and ground systems into a unified network. With high-speed, high-capacity Wi-Fi 6 AX1800 wireless connectivity, it facilitates real-time travel data exchange.

Rugged M12 connectors
Power Input: DC 18-75V or through PoE
1x Gigabit Ethernet WAN/LAN port
3x Gigabit Ethernet LAN port
Dual 3FF Micro-SIM slots
1x USB port for logs
5G NSA: 3.4 Gbps (DL) / 550 Mbps (UL)
5G SA: 2.4 Gbps (DL) / 900 Mbps (UL)
LTE: 1.6 Gbps (DL) / 200 Mbps (UL)
Cellular/Ether‐WAN failover
GPS / GLONASS
1x RS-232
802.11a/b/g/n/ac/ax Wi-Fi 6, up to 574 Mbps on the 2.4 GHz and 1201 Mbps on the 5 GHz bands
WPA2-PSK (AES), WPA2, WPA-PSK/WPA2-PSK(AES,TKIP/AES), WPA/WPA2, WPA3-SAE(AES), WPA2-PSK/WPA3-SAE(AES), WPA3-Enterprise, 802.1x
Routing: Static, Dynamic RIPv1/v2, OSPF, BGP
IGMP, IPv4/v6
VPN Tunnel: IPSec, OpenVPN, PPTP,L2TP,GRE, WireGuard
Firewall: SPI Firewall with Stealth Mode, IPS, Block WAN Ping
Configuration: Web UI, CLI, Command Script
Management: SNMPv1/2/3, D-Link D-ECS, RESTful API
Wide Operating Temperature Range (-30 to +70°C)
Rail Related Certification: EN45545, EN50155, EN50121-3-2

Specifications

Manufacturer	D-LINK
Product group	Network Components
Product type	Router
Colour	black
Radio standard 4G	yes
Radio standard 5G	yes
WAN interface	RJ-45
LAN connectors	3x Gigabit-Ethernet
WiFi standard	WiFi 6 (IEEE 802.11ax)
Wi-Fi frequency band	Dual-Band
Maximum data transfer rate	1800 Mbit/s
2.4 GHz data transfer rate	574 Mbit/s
5 GHz data transfer rate	1201 Mbit/s
WLAN WEP encryption	yes
WLAN WPA encryption	yes
WLAN WPA2 encryption	yes
WLAN WPA3 encryption	yes
Operating temperature min.	-30 °C
Operating temperature max.	70 °C
Storage temperature min.	-40 °C
Storage temperature max.	85 °C
Height	86 mm
Width	207.4 mm
Depth	135 mm
Height of packaging (single piece)	0 mm
Width of packaging (single piece)	0 mm
Depth of packaging (single piece)	0 mm
Package weight (single piece)	0 kg

Downloads

Manufacturer data sheet - English (529.1 KB)

Download

For 30 years, the D-LINK brand has stood for high-quality network and monitoring technology as well as tailor-made complete solutions.

D-LINK's product portfolio not only offers technical solutions, but also consistently delivers practice-oriented innovations. Products and solutions are offered from a single source: wireless, switching and video surveillance. Starting with a simple WLAN router to complex network accessories, the D-LINK offers just about everything.

D-LINK products are suitable for private use as well as for professional use in industry and commerce.
