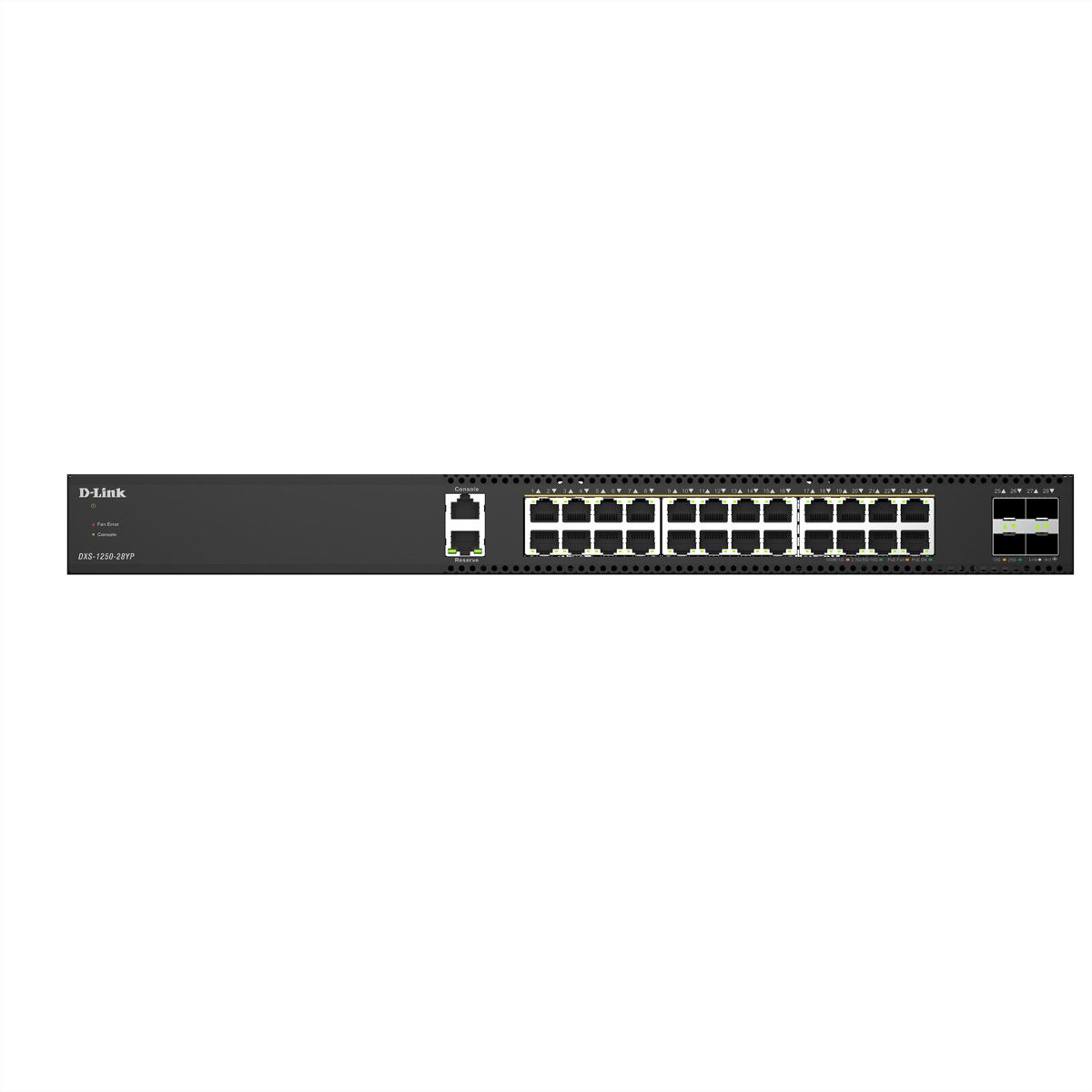

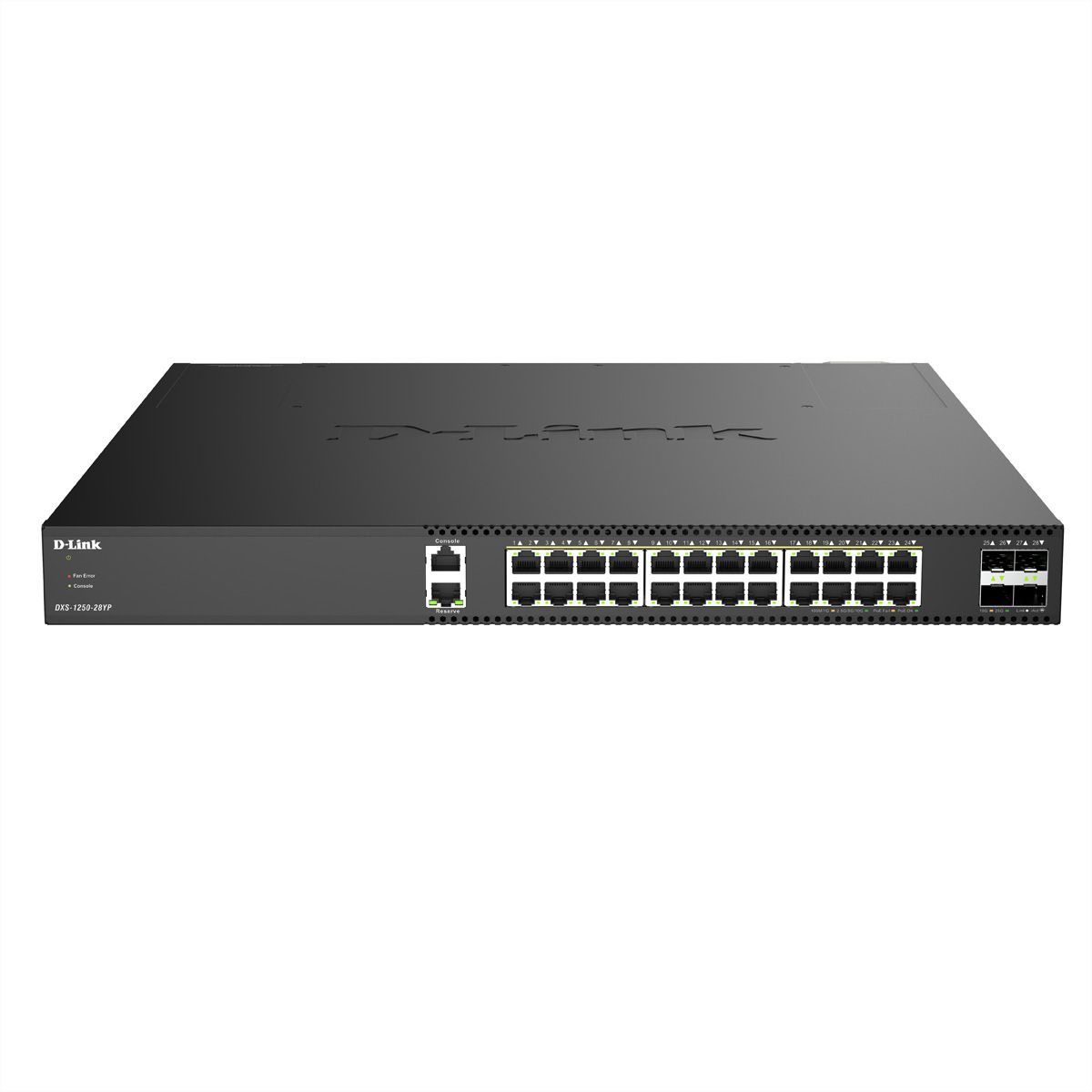

D-Link DXS-1250-28YP/E 28-Port Switch

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Deliverable approx. 11/17/2025

Item no.	21182392
Brand / Manufacturer	D-LINK
Manuf. item no.	DXS-1250-28YP/E
EAN	790069478598

Description

28-Port 10G Multi-Gigabit PoE++ Smart Managed Switch with 4x 25G SFP28 Ports

24x 100M/1G/2.5G/5G/10GBASE-T 60W PoE++ ports
4x 10/25G SFP28 ports
Switching Capacity 680 Gbps
Ports 1 to 24 compliant with both IEEE 802.3af/at/bt
PoE power budget of 470W
Support Perpetual PoE, Fast PoE, Time-based PoE. PD Alive and Auto PoE PD Discovery
5-speed smart fan design automatically adjusts according to device operating temperature
Layer 3 Features: IPv4 ARP Entries 4096 (256 Static ARP), IPv6 ND Entries:1024 (128 Static ND Entries), IP Interface (Supports 128 interfaces), Gratuitous ARP, Static Route, IP Helper
Layer 2 Features: IGMP Snooping, MLD Snooping, Flow Control, Port Mirroring, 802.1AX/802.3ad Link Aggregation (Max. 32 groups per device, 8 ports per group), Loopback Detection, Spanning Tree Protocol: 802.1D STP, 802.1w RSTP, 802.1s MSTP, Ethernet Ring Protection Switching (ERPS), 32K MAC address table and Jumbo Frame up to 12KB
Quality of Service (QoS) – Bandwidth Control, Queue Handling, 8 queues per port, 802.1p Priority Queue
Management: Web-based GUI (IPv4/IPv6), Full Command Line Interface (CLI) through Telnet, SSH and the console port
Access Control List (ACL)

Security: Broadcast/Multicast/Unicast Storm Control, D-Link Safeguard Engine, DHCP Server Screening, Port Security, Duplicate Address Detection (DAD), SSL (Supports TLS 1.0/1.1/1.2 and IPv4/IPv6 access), DoS Attack Prevention
VLAN Asymmetric VLAN, Auto surveillance VLAN, Voice VLAN, 4K VLAN Groups
Access Control, Authentication for management access (local/RADIUS)
Energy-Efficient Ethernet (EEE), Power saving by link status/LED shut-off/port shut-off/system hibernation/Time-based PoE
IEEE 802.3ah Ethernet Link OAM
IEEE 802.1ag/ITU-T Y.1731 Service OAM

Specifications

Manufacturer	D-LINK
Product group	Network Switches
Product type	Gigabit Ethernet Switch
Colour	black
Network standard	10 Gigabit Ethernet
LAN (Mbps)	10/100/1000/2500/10000
Quantity of ports	28
10 Gigabit Ethernet Ports RJ-45	24
Free slots for SFPs	4
Power over Ethernet (PoE)	PoE++ (IEEE 802.3bt)
Quantity of PoE ports	24
Max. PoE output power per port	60 W
Max. PoE output power (total)	470 W
Mounting form	19" Rackmount
Management	Layer2
Operating temperature min.	0 °C
Operating temperature max.	50 °C
Storage temperature min.	-40 °C
Storage temperature max.	70 °C
Height	44 mm
Width	440 mm
Depth	470 mm
Weight	6.5 kg
Height of packaging (single piece)	0 mm
Width of packaging (single piece)	0 mm
Depth of packaging (single piece)	0 mm
Package weight (single piece)	0 kg

Downloads

Manufacturer data sheet - English (220.5 KB)

Download
