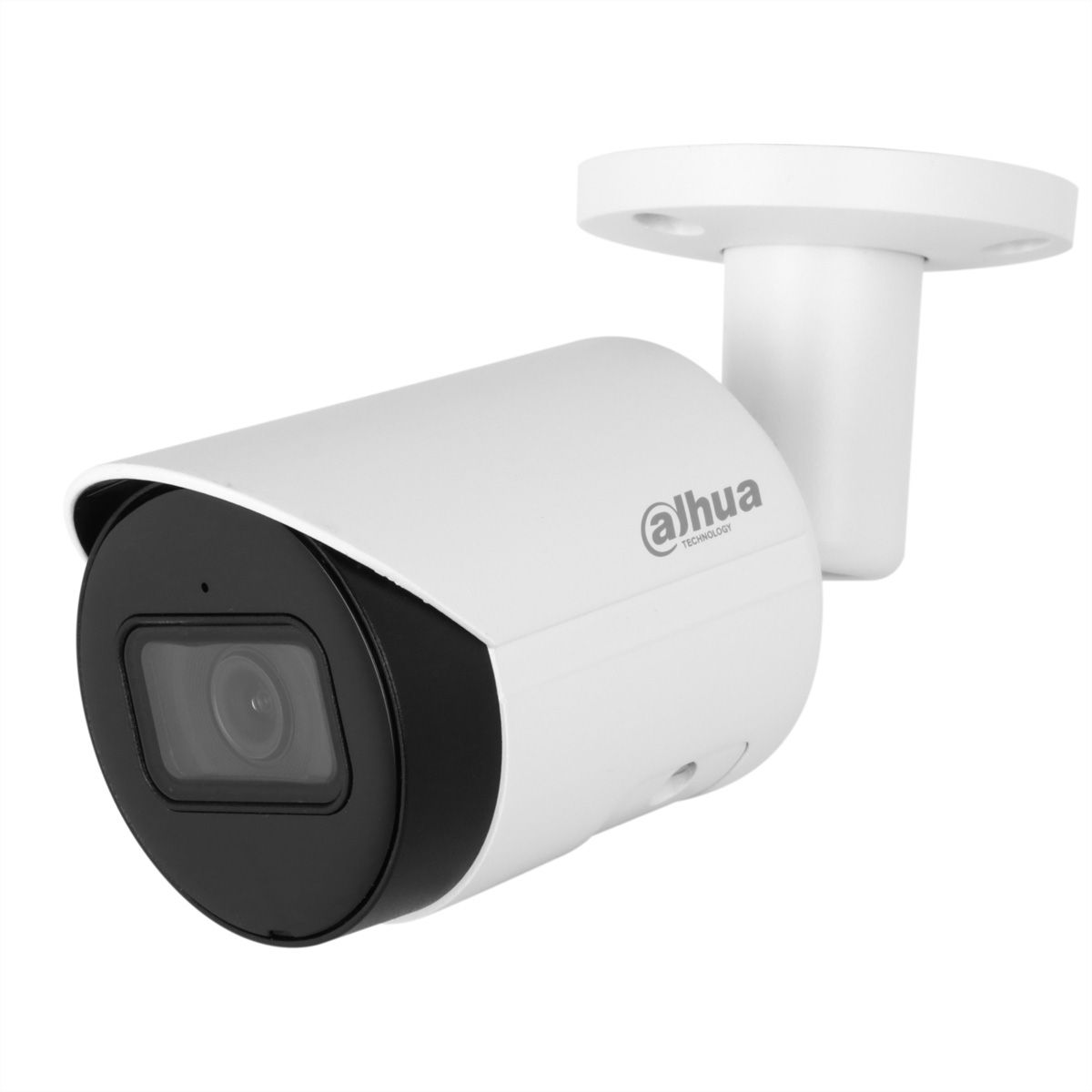

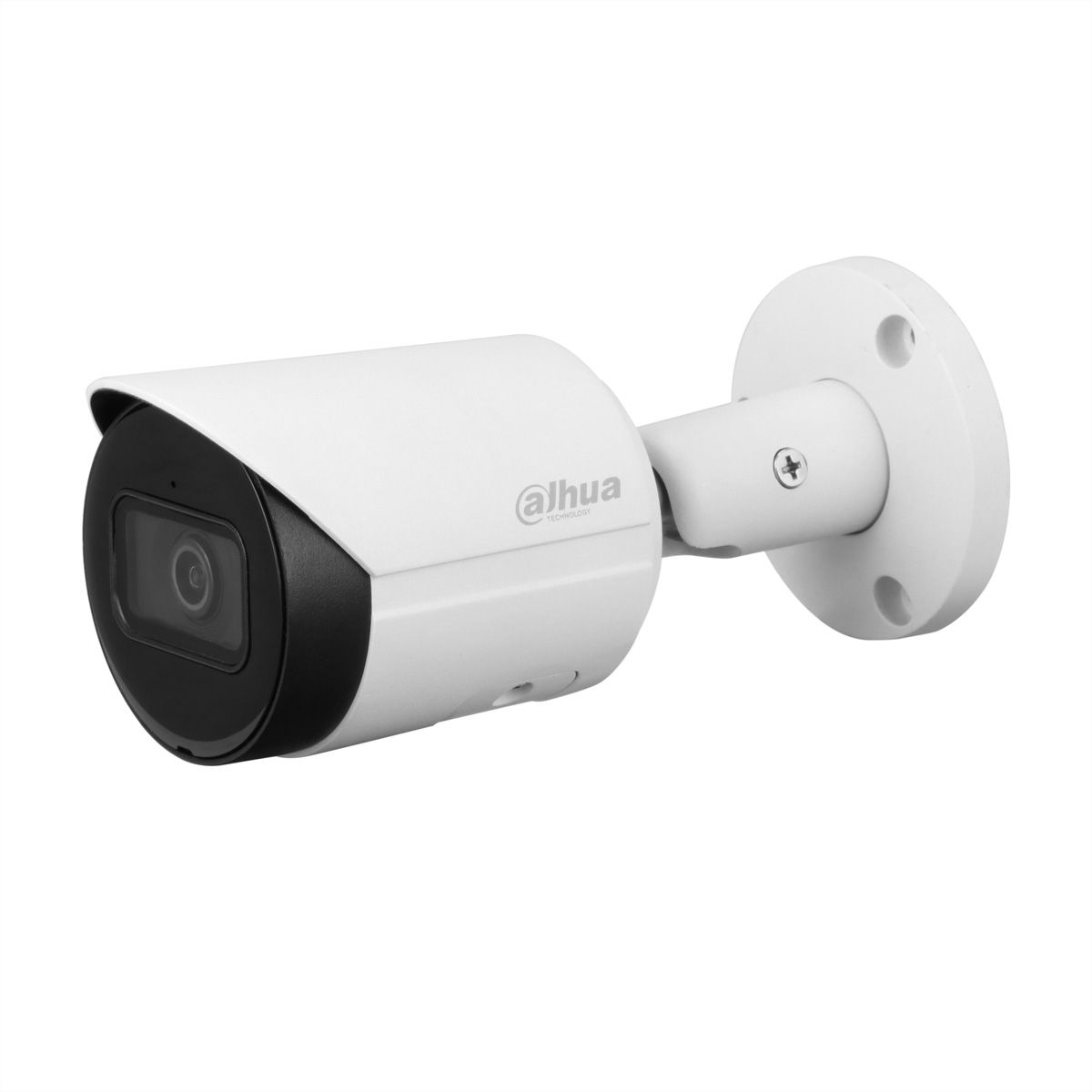

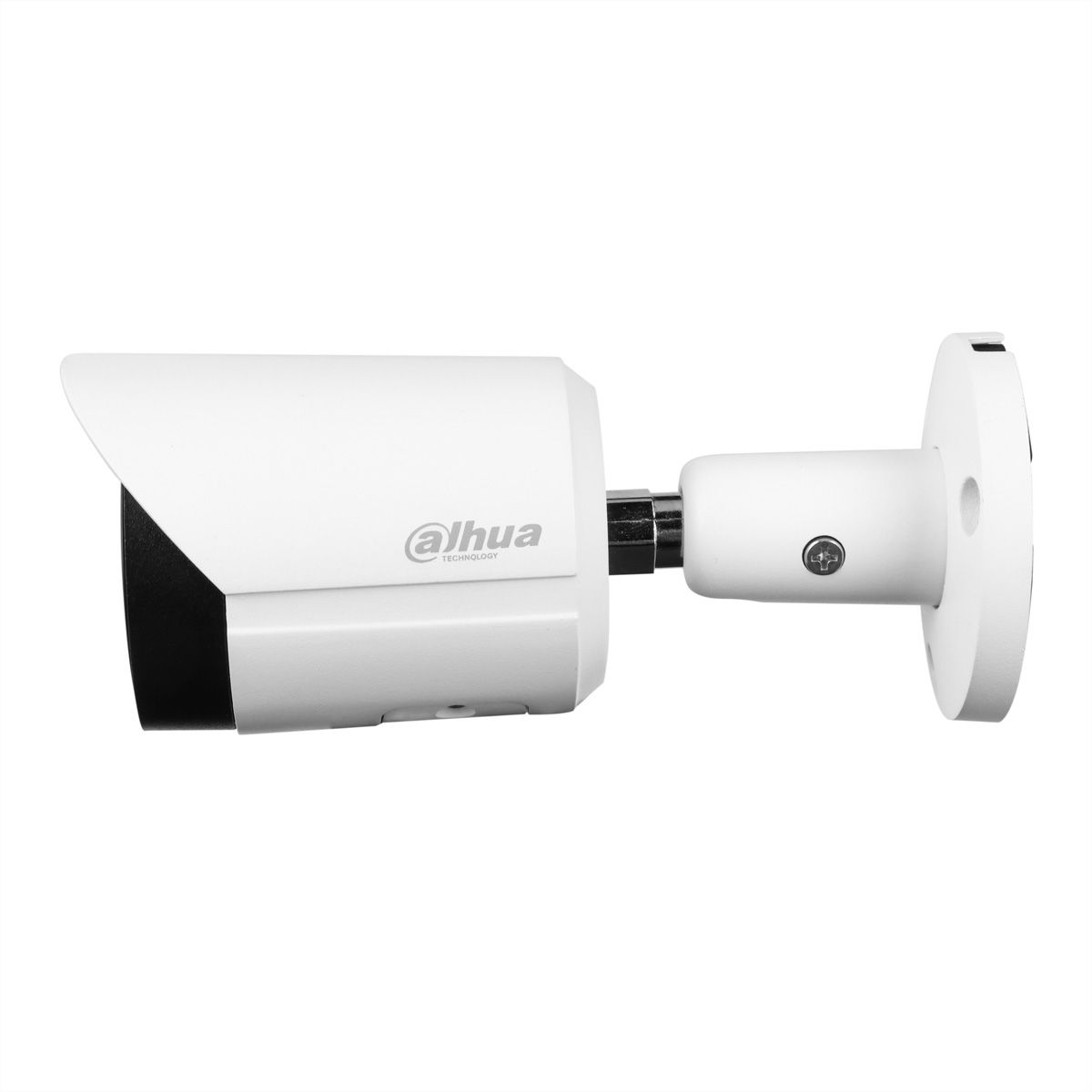

DAHUA DH-IPC-HFW2441SP-S-0280B 4MP Bullet Camera 4 MP, 95°, IR-LED 30m

Item no. 21210378 Brand / Manufacturer DAHUA Manuf. item no. DH-IPC-HFW2441SP-S-0280B EAN 6923172539830 Item weight 0.604 kg
DAHUA

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
Deliverable approx. 08/25/2026
Download PDF

Description

4MP IR Fixed-focal Bullet WizSense Network Camera

  • 4-MP 1/2.9" CMOS image sensor, low luminance, and high definition image
  • Outputs max. 4 MP (2688 × 1520)@20 fps, and supports 2560 × 1440@25/30 fps
  • H.265 codec, high compression rate, ultra-low bit rate
  • Built-in IR LED, and the max. illumination distance is 30 m
  • ROI, SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments
  • Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
  • Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
  • Supports max. 256 G Micro SD card; built in MIC
  • 12 VDC/PoE power supply
  • IP67 protection
  • SMD Plus

Specifications

Manufacturer
DAHUA
Product group
Network Camera
Product type
Bullet Network Camera
Colour
white
Mounting form
Bullet
Interface
LAN
ONVIF
yes
Image Sensor Type
1/2.9" CMOS
Resolution
4 MPx
Maximum Resolution (Dots)
2688 (H) × 1520 (V)
Video Compression
H.264H; H.265; H.264; H.264B
Lens Type
Fixed Lens
Focal Length
2.8mm
Field of View
H: 95°; V: 52°; D: 114°
Horizontal viewing angle
95 °
Viewing angle vertical
52 °
Diagonal viewing angle
114 °
Day/Night Mode
yes
IR LED
yes
IR range (max.)
30 m
WDR
WDR
Pan Area
0° - 360°
Tilt Area
0° - 90°
Motion Detection
yes
Memory Card Slot
yes
Power over Ethernet (PoE)
yes
Protection class (IP Code)
IP67
Suitable for Outdoor Use
yes
Mains connection
Power over Ethernet (PoE)
Operating temperature min.
-40 °C
Operating temperature max.
60 °C
Height
70 mm
Width
166.2 mm
Depth
70 mm
Weight
485 g
Height of packaging (single piece)
110 mm
Width of packaging (single piece)
110 mm
Depth of packaging (single piece)
210 mm
Package weight (single piece)
0.604 kg

Downloads

Manufacturer data sheet - English (509.3 KB) User manual - English (1.6 MB) Quick Installation Guide - English (567.8 KB)
