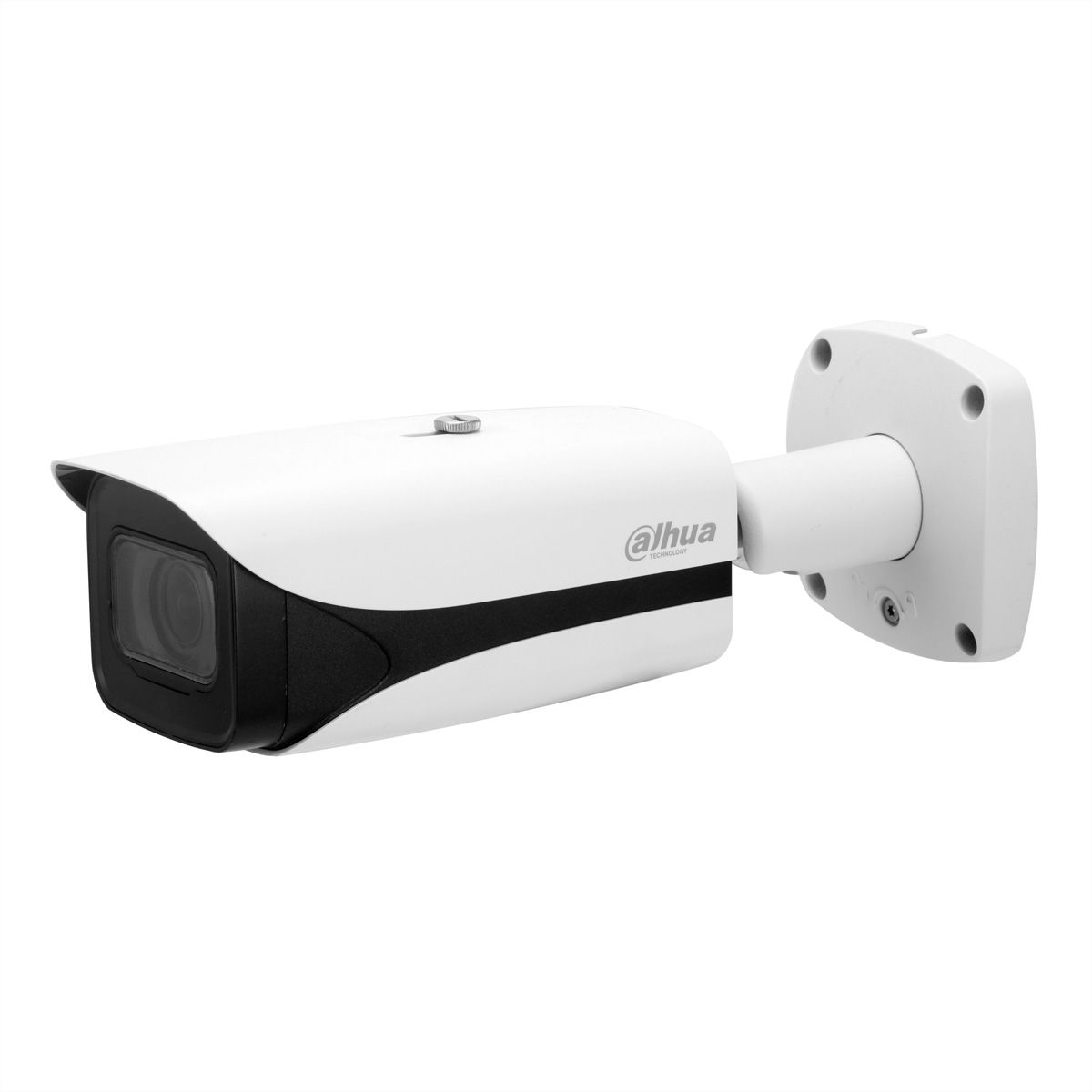

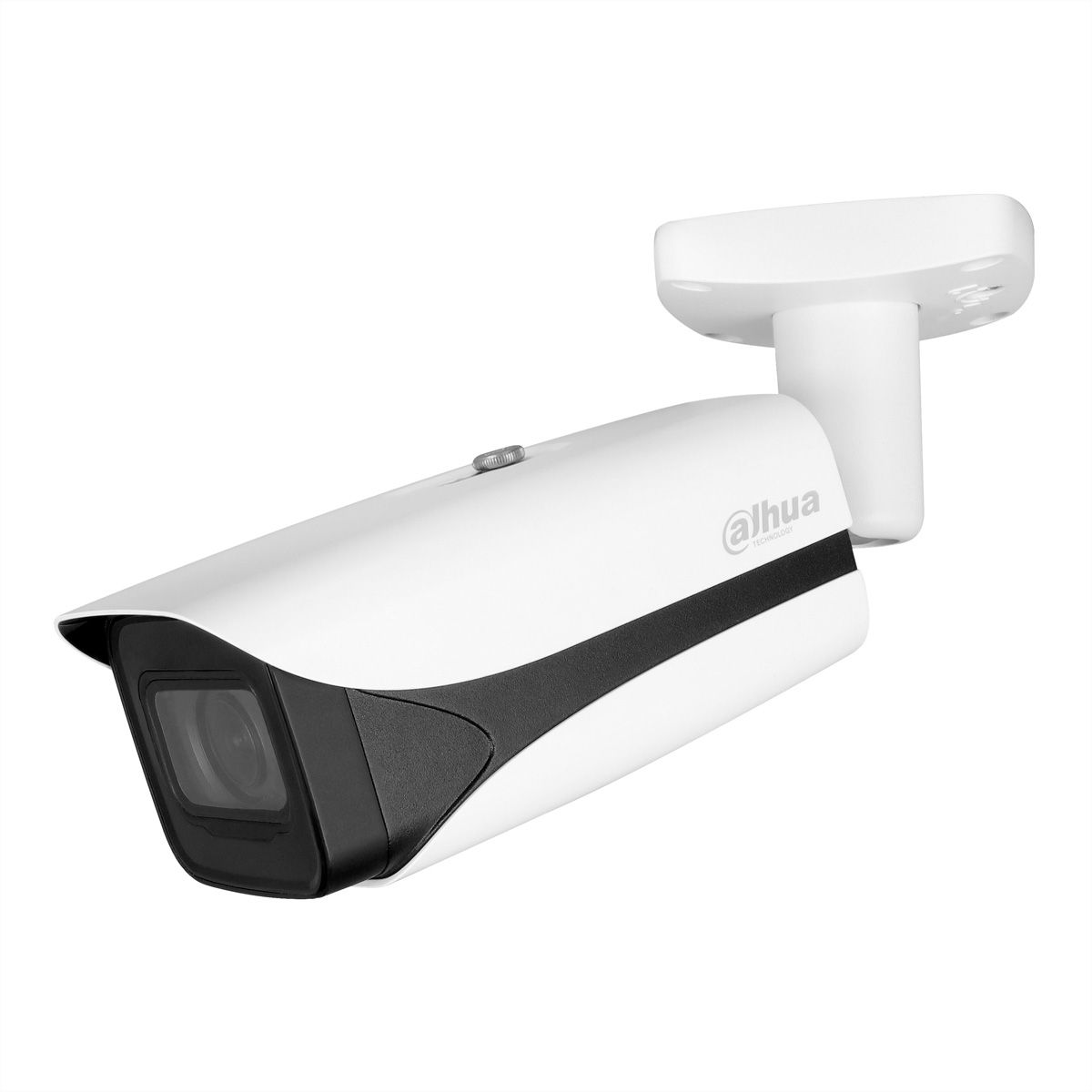

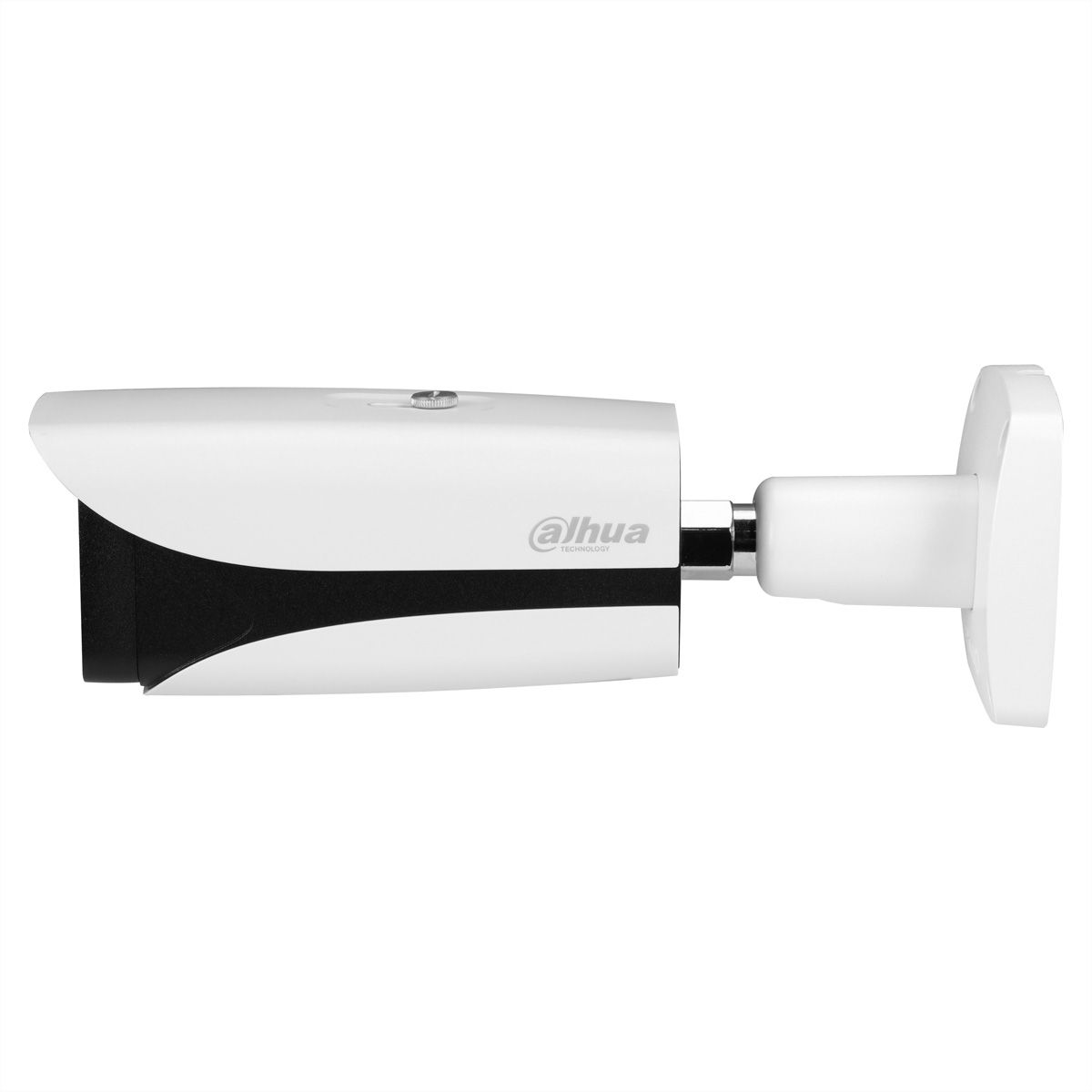

DAHUA IPC-HFW5442EP-ZHE-2712-ATC-S3 Bullet 4MP IR Vari-focal WizMind Kamera

Item no. 21210320 Brand / Manufacturer DAHUA TECHNOLOGY Manuf. item no. IPC-HFW5442EP-ZHE-27 EAN 6923172541888
DAHUA TECHNOLOGY

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
Deliverable approx. 08/25/2026
Download PDF

Description

4-Megapixel-IR-Bullet-Kamera mit variabler Brennweite

  • 4-MP 1/1,8-Zoll-CMOS-Bildsensor, geringe Leuchtdichte und hochauflösendes Bild.
  • Ausgabe mit max. 4 MP (2688 × 1520) bei 25/30 fps.
  • Integrierte IR-LED, maximale Leuchtweite 60 m.
  • ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, Codierung nach Filter, flexible Codierung, geeignet für verschiedene Bandbreiten- und Speicherumgebungen.
  • Rotationsmodus, WDR, 3D NR, HLC, BLC, digitale Wasserzeichen, anwendbar für verschiedene Überwachungsszenarien.
  • Mit Deep-Learning-Algorithmus, unterstützt: Video-Metadaten, intelligente Geräuscherkennung, IVS, Gesichtserkennung, intelligente Objekterkennung und Personenzählung usw.
  • Alarm: 2 Eingänge, 1 Ausgang; Audio: 1 Eingang, 1 Ausgang; unterstützt max. 1 TB Micro-SD-Karte, integriertes Mikrofon.
  • 12 VDC/PoE-Stromversorgung; ePoE.
  • Schutzart IP67 und IK10,
  • SMD 3.0

Specifications

Manufacturer
DAHUA TECHNOLOGY
Product group
IP Überwachung
Product type
Bullet-Netzwerkkamera
Colour
white
Mounting form
Bullet
Interface
LAN
Resolution
4 MPx
Lens Type
Motorzoomobjektiv
IR LED
ja
IR range (max.)
60 m
Power over Ethernet (PoE)
ja
Protection class (IP Code)
  • IK10
  • IP67
Mains connection
Power over Ethernet (PoE)
Operating temperature min.
-40 °C
Operating temperature max.
60 °C
Storage temperature min.
-40 °C
Storage temperature max.
60 °C
Height
95 mm
Width
95 mm
Depth
274 mm
Weight
1120 g
Height of packaging (single piece)
0 mm
Width of packaging (single piece)
0 mm
Depth of packaging (single piece)
0 mm
Package weight (single piece)
0 kg

Downloads

Manufacturer data sheet - English (654.6 KB)
