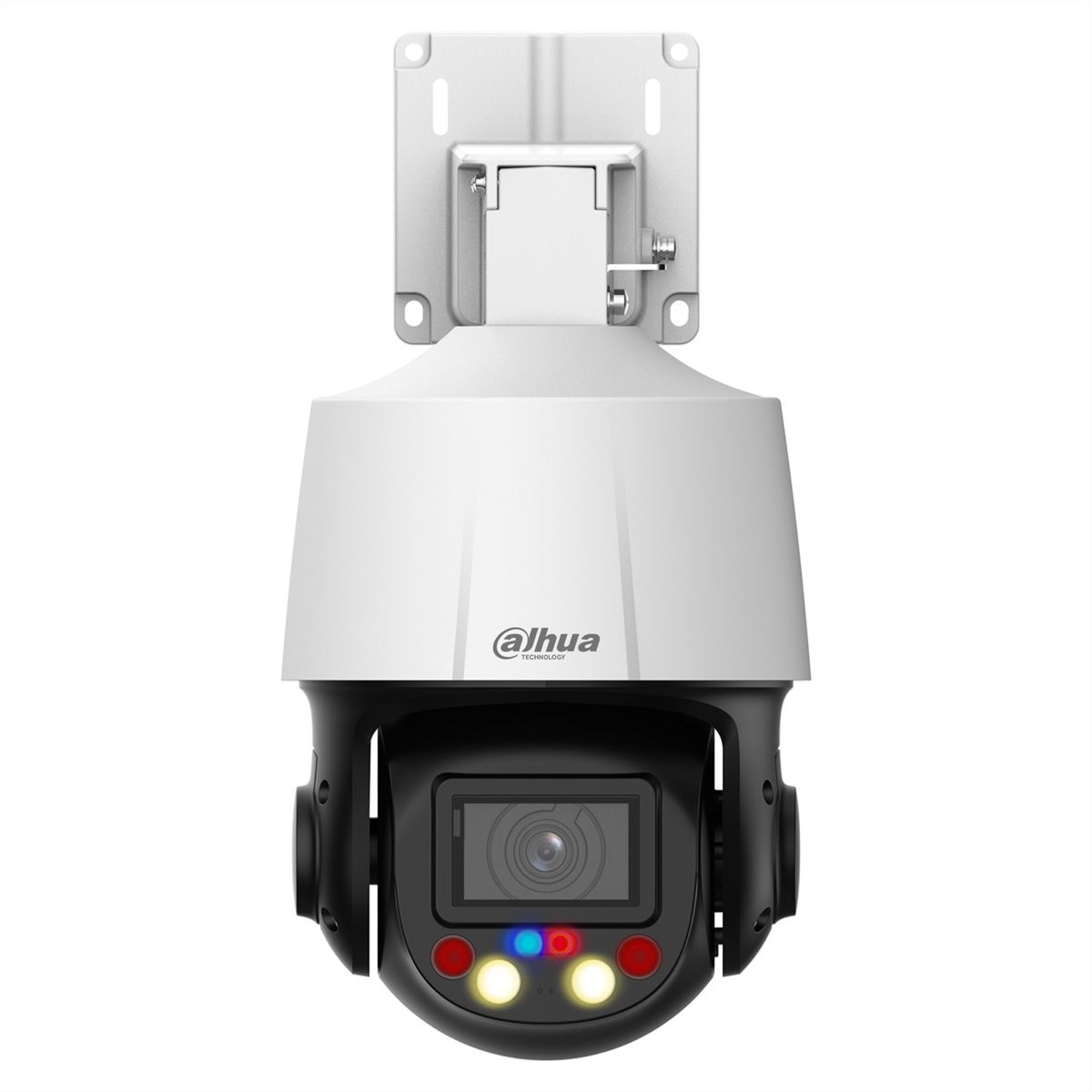

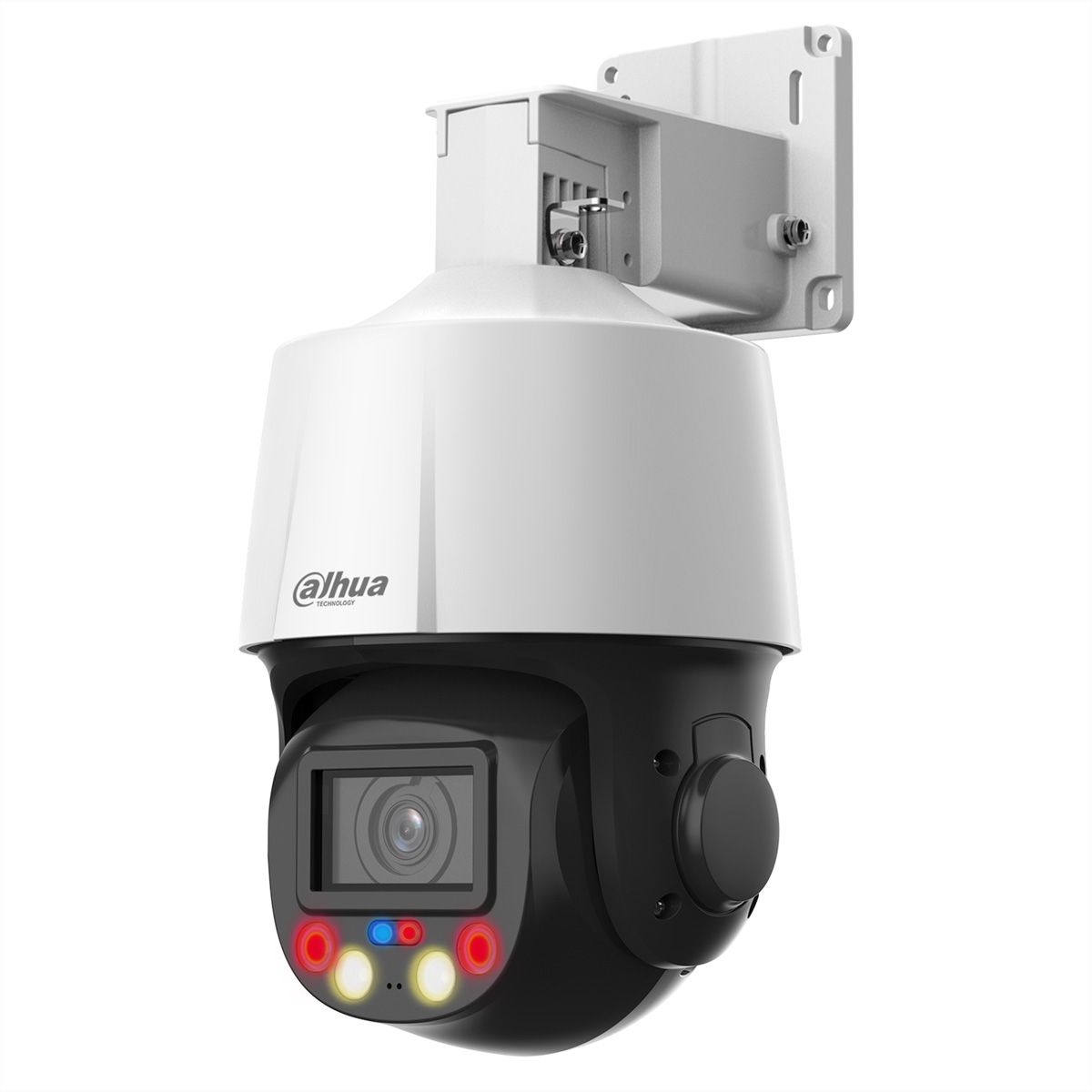

DAHUA SD3E405DB-GNY-A-PV1 PTZ 4MP 5x Smart Dual Light Kamera

Item no. 21210328 Brand / Manufacturer DAHUA TECHNOLOGY Manuf. item no. SD3E405DB-GNY-A-PV1 EAN 6923172548184 Item weight 2.038 kg
DAHUA TECHNOLOGY

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
Deliverable approx. 08/25/2026
Download PDF

Description

4MP 5x TiOC WizSense Netzwerk PTZ Kamera

  • 1/2,8“ 4Megapixel CMOS.
  • 5-facher optischer Zoom.
  • Max. 25/30fps@4M.
  • IR-Entfernung bis zu 50 m.
  • Warmlicht-Beleuchtungsabstand bis zu 30 m.
  • SMD 3.0.
  • Perimeterschutz.
  • Gesichtserkennung.
  • Alarm: 1 Eingang, 1 Ausgang; Audio: 1 Eingang, 1 Ausgang.
  • Eingebautes Mikrofon und Lautsprecher für Zwei-Wege-Gespräche.
  • 12 VDC/PoE-Stromversorgung.
  • IP66.
  • Ton- und Lichtalarm (rotes und blaues Licht).

Specifications

Manufacturer
DAHUA TECHNOLOGY
Product group
IP Überwachung
Product type
PTZ (Pan/Tilt/Zoom)-Netzwerkkamera
Colour
white
Mounting form
PTZ (Pan/Tilt/Zoom)
Interface
LAN
ONVIF
ja
Resolution
4 MPx
Lens Type
Motorzoomobjektiv
Removable IR Cut Filter
ja
Day/Night Mode
ja
IR LED
ja
IR range (max.)
50 m
Power over Ethernet (PoE)
ja
Protection class (IP Code)
IP66
Mains connection
Power over Ethernet (PoE)
Operating temperature min.
-30 °C
Operating temperature max.
60 °C
Storage temperature min.
-30 °C
Storage temperature max.
60 °C
Height
237 mm
Width
143 mm
Depth
140 mm
Weight
1600 g
Height of packaging (single piece)
320 mm
Width of packaging (single piece)
200 mm
Depth of packaging (single piece)
250 mm
Package weight (single piece)
2.038 kg

Downloads

Manufacturer data sheet - English (945.2 KB)
