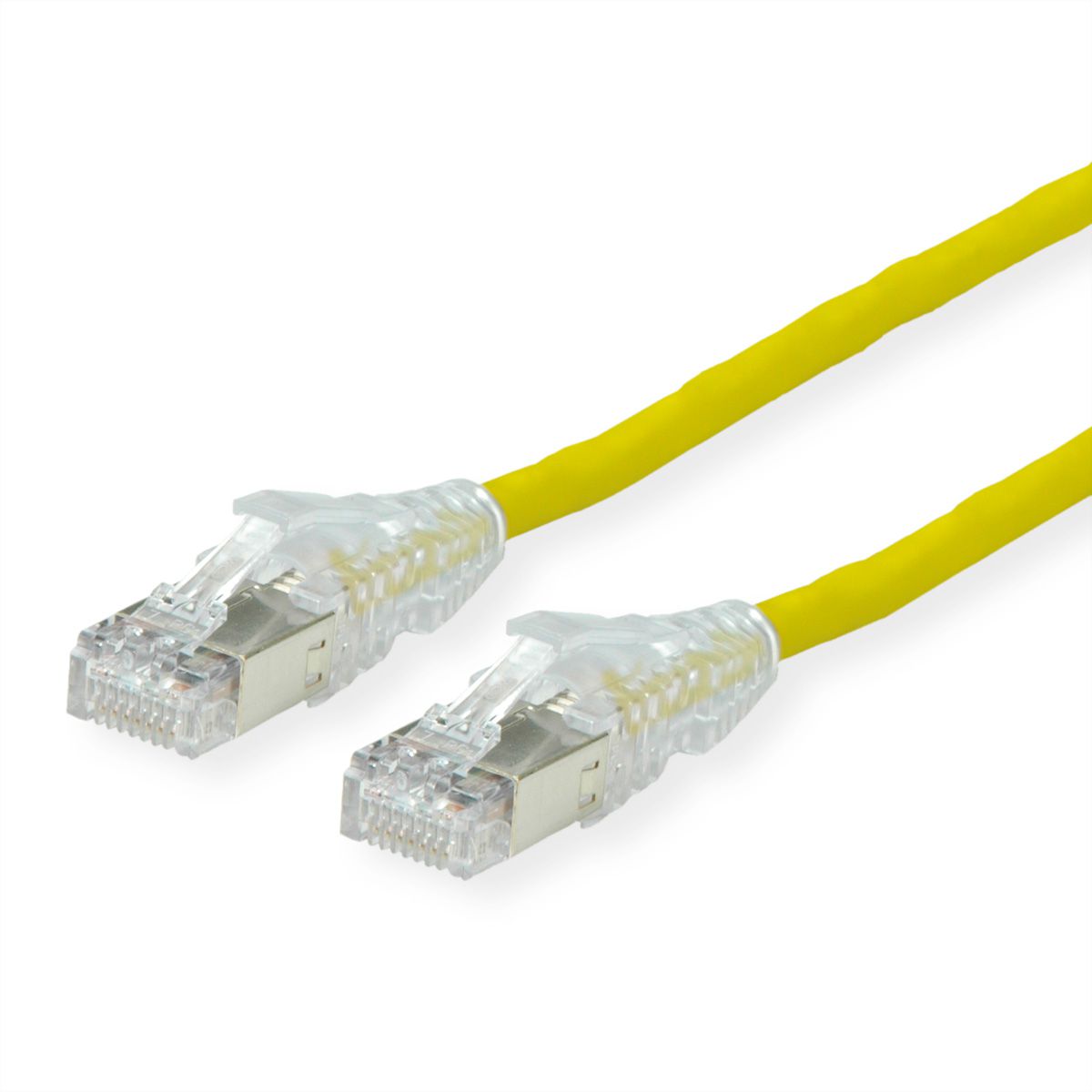

DÄTWYLER Cat.6A (Class EA) S/FTP patch cable, CU 7702 flex LSOH, AMP v2, yellow, 5 m
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 21050552 |
|---|---|
| Brand / Manufacturer | SECOMP |
| Manuf. item no. | 21.05.0552 |
| EAN | 7611990758357 |
| Item weight | 0.189 kg |
:strip_icc():strip_exif()/bilder/icons/icon_rj45_cat6a.png){kind=icon}
:strip_icc():strip_exif()/bilder/icons/icon_rj45_sftp.png){kind=icon}
:strip_icc():strip_exif()/bilder/icons/icon_lsoh.png){kind=icon}
|
|
| Colour | |
| Length | |
:strip_icc():strip_exif()/logos/secomp.png "SECOMP")
Description
DÄTWYLER data cable CU 7702 flex LS0H, assembled on both sides with AMP v2 connectors for use in 10 Gigabit Ethernet networks, Cat.6A, 1.2 GHz. Halogen-free, flame-retardant, low-smoke.
- High-quality flexible patch cable with pair and overall shielding based on DÄTWYLER CU 7702 (Cat.7)
- Assembled on both sides with Cat.6A connectors (AMP EMT connectors)
- Kink protection and protective tab for locking pin
- 8-wire TP copper stranded wire, pair shielding: laminated aluminium foil, overall shielding: tinned copper braid
- Cable sheath: flame-retardant, low-smoke, halogen-free polyolefin (FRNC/LSOH)
- Outer diameter 6.0 mm (approximate)
- Cat.6A Class EA according to ANSI / TIA
- Pin assignment 8 wires 1:1 according to EIA/TIA 568A
Specifications
| Manufacturer | SECOMP |
|---|---|
| Product group | Twisted Pair Cable |
| Product type | S/FTP patch cord (PiMF) |
| Colour | yellow |
| Length | 5 m |
| Shield type | S/FTP (PiMF) |
| Transfer quality | Cat6A / Class EA |
| Impedance | 100 Ohm |
| Quantity of wires | 8 |
| Conductor cross section (AWG) | AWG 26 |
| Conductor type | Stranded |
| Crossed | no |
| Assignment | EIA/TIA 568A |
| Locking lever | yes |
| Anti-kink sleeve | Put-on |
| Colour (Spout) | transparent |
| Cable LSOH | yes |
| Side 1 Connector Type | RJ-45 |
| Side 1 Connector Gender | Male |
| Side 2 Connector Type | RJ-45 |
| Side 2 Connector Gender | Male |
| Connector Type RJ45 | AMP v2 |
| Height of packaging (single piece) | 30 mm |
| Width of packaging (single piece) | 170 mm |
| Depth of packaging (single piece) | 220 mm |
| Package weight (single piece) | 0.189 kg |
