Item no.:21152208Herst.-Art.-Nr.:CPZLWLA1
Deliverable approx. 08/24/2026
EasyLan DualBoot® LED Detector Pro
Item no.
21152298
Brand / Manufacturer
EasyLan
Manuf. item no.
CPZLWLA2
EAN
4055516084095
Item weight
0.122 kg
:strip_icc():strip_exif()/logos/easylan.png "EasyLan")
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login
Deliverable approx. 10/19/2026
Description

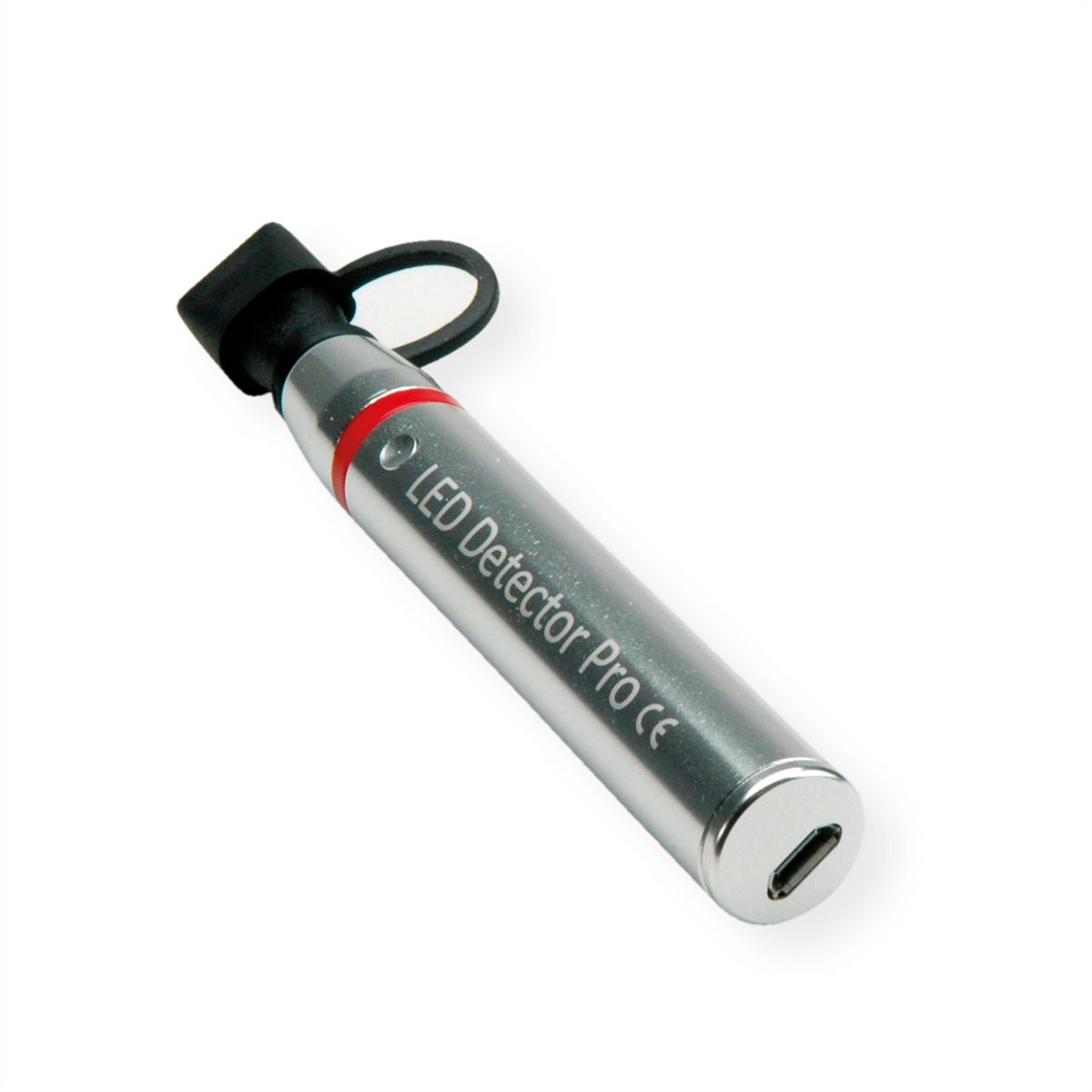

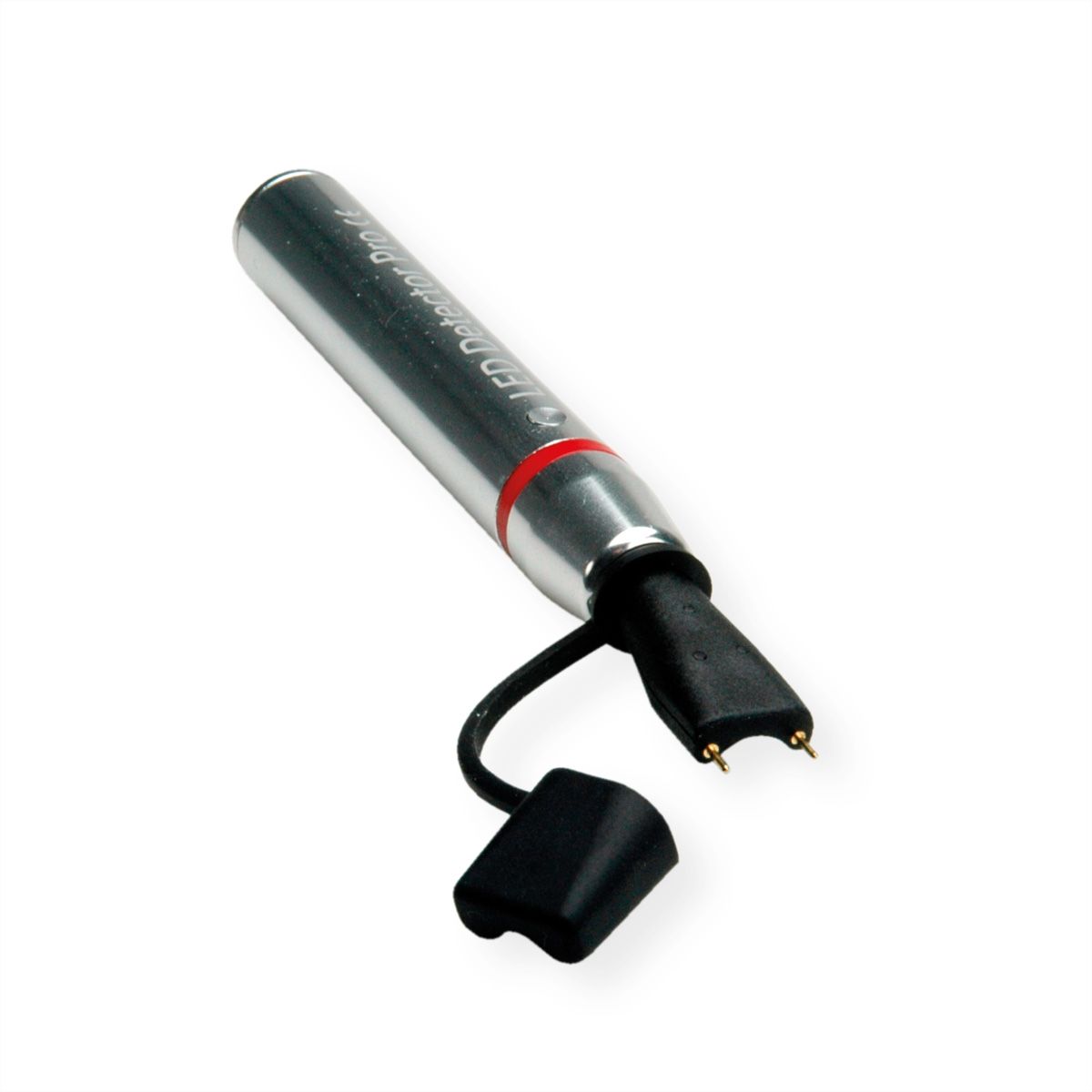

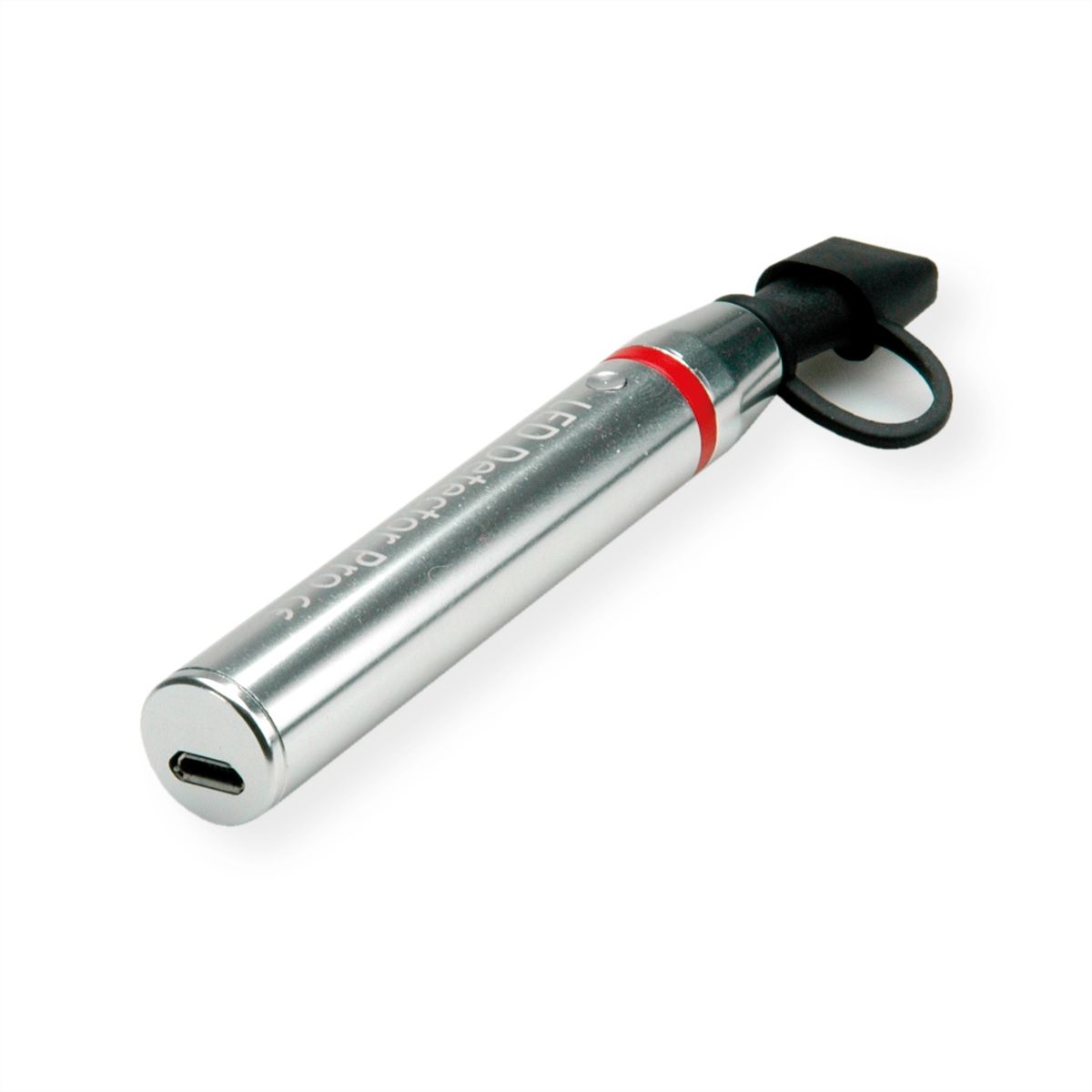

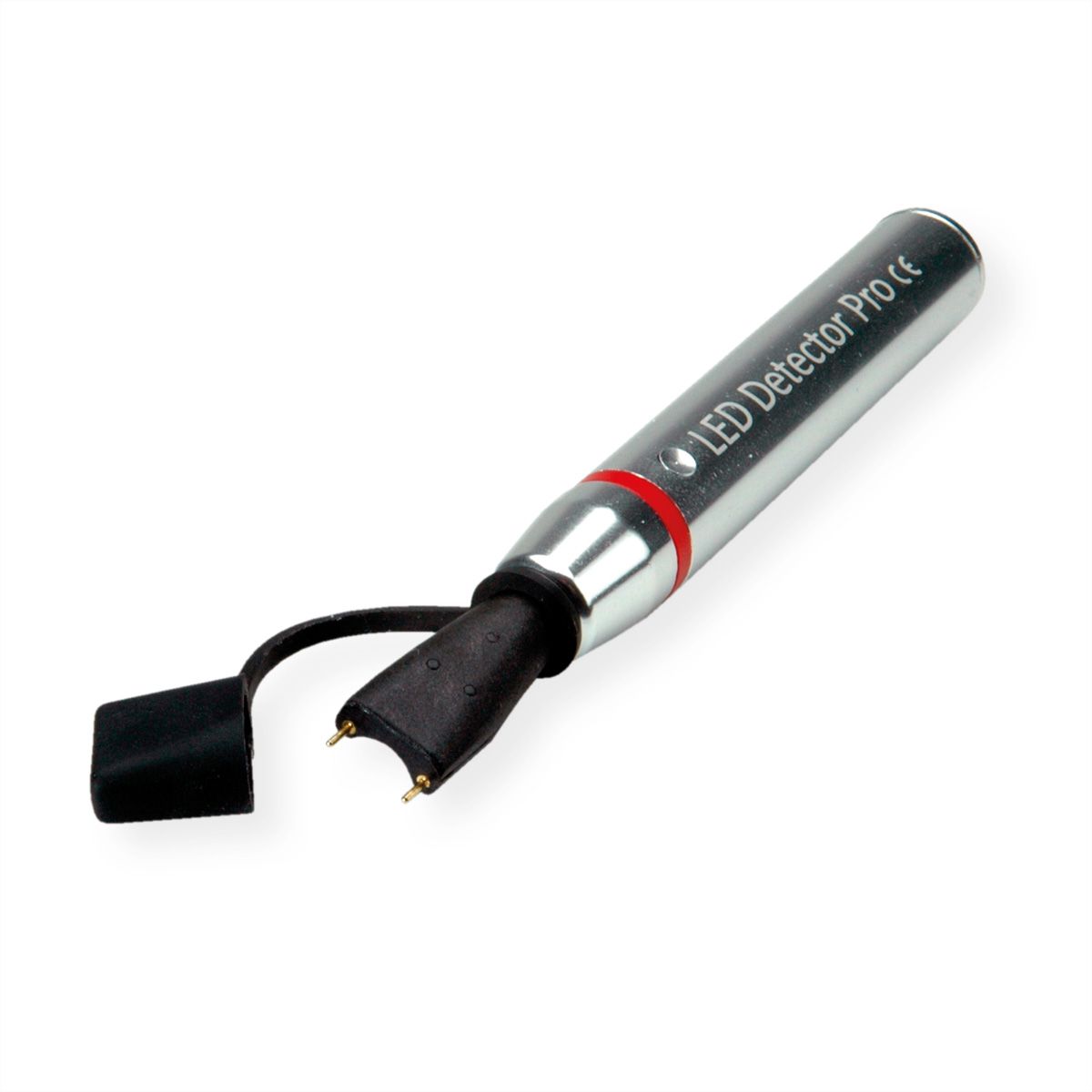

DualBoot® LED Detector Pro

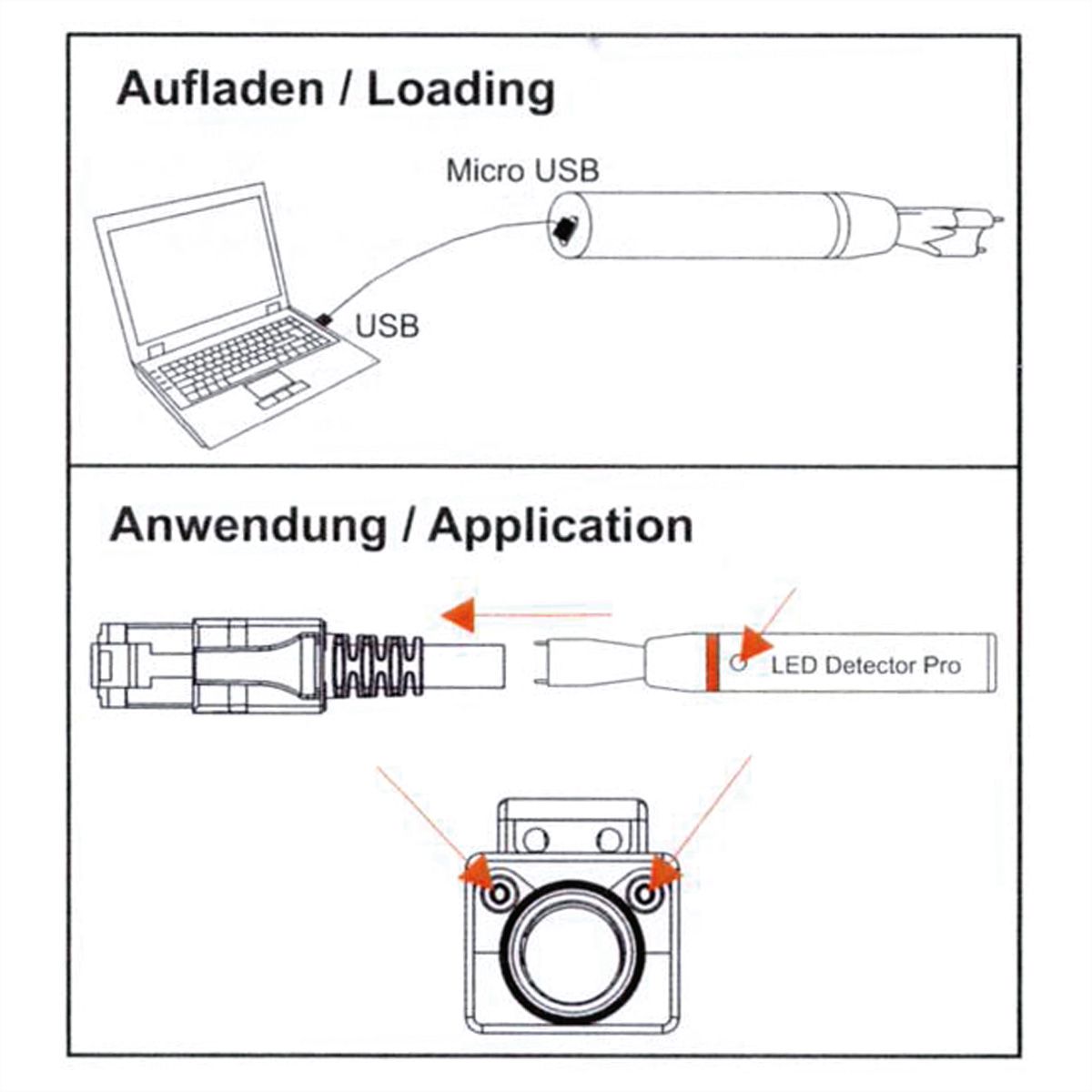

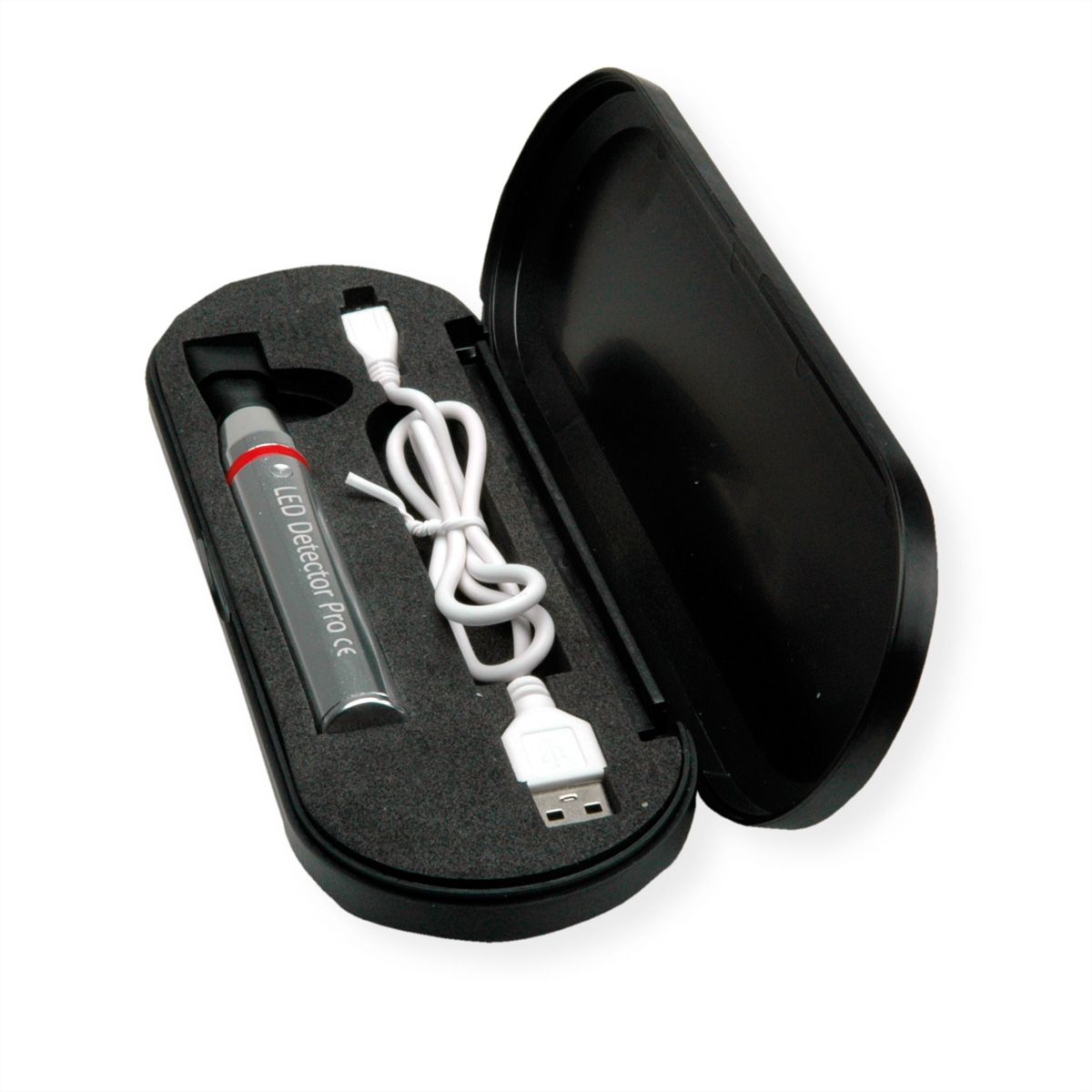

Detector for the feed into the DualBoot® LED patch cables and FO-LED patch cables for the identification of the plug ends. The detector will be plugged into the intended contact pairs at the RJ45 plug and the button will be actuated to activate the light at the patch cable. The selection of four operating modes is possible by repeated actuation. To charge the battery, the detector will be plugged into to a USB interface using the accompanying USB micro cable.
Specifications
- Manufacturer
- EasyLan
- Product group
- Twisted Pair Cable
- Product type
- PoE-Injector
- Colour
- silver
- Operating temperature min.
- -40 °C
- Operating temperature max.
- 60 °C
- Height
- 13 mm
- Width
- 20 mm
- Depth
- 90 mm
- Weight
- 114.78 g
- Height of packaging (single piece)
- 40 mm
- Width of packaging (single piece)
- 60 mm
- Depth of packaging (single piece)
- 220 mm
- Package weight (single piece)
- 0.122 kg
