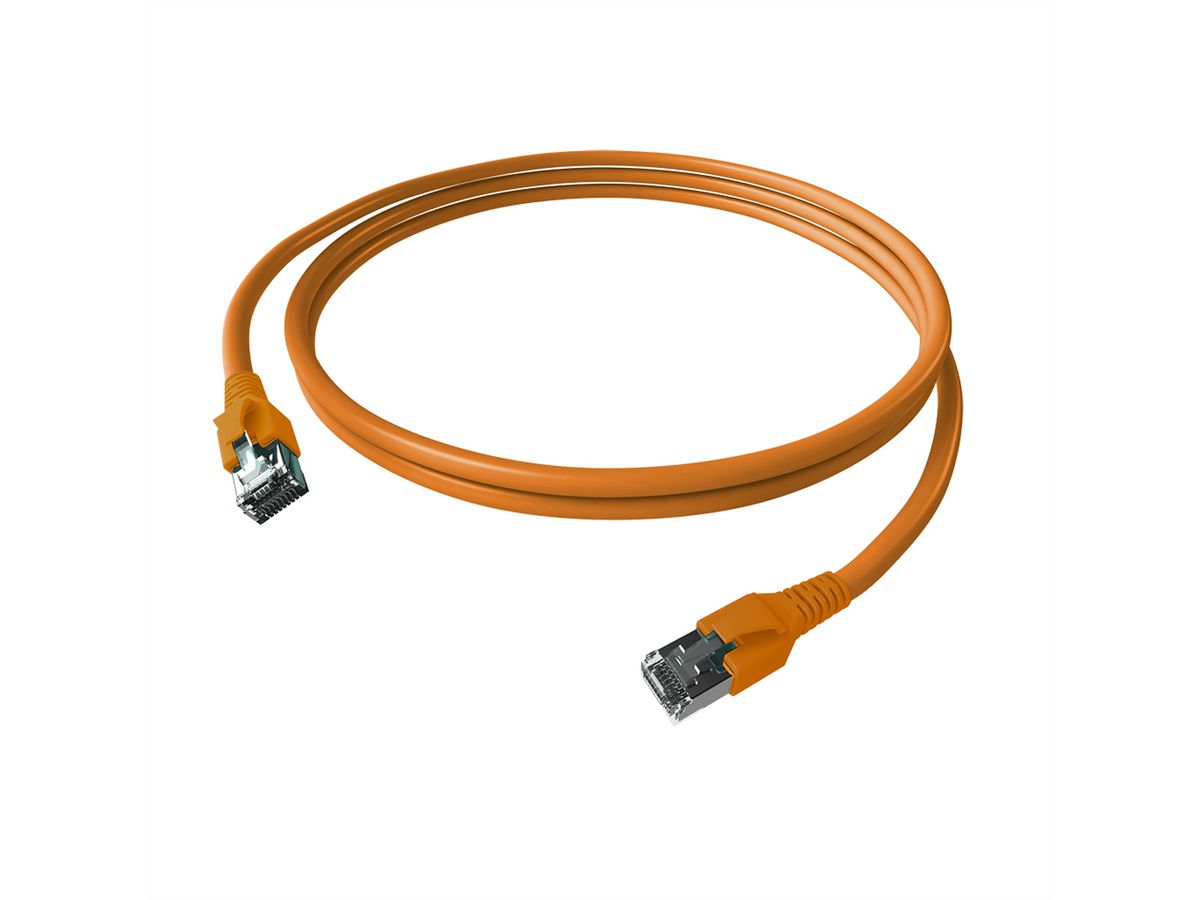

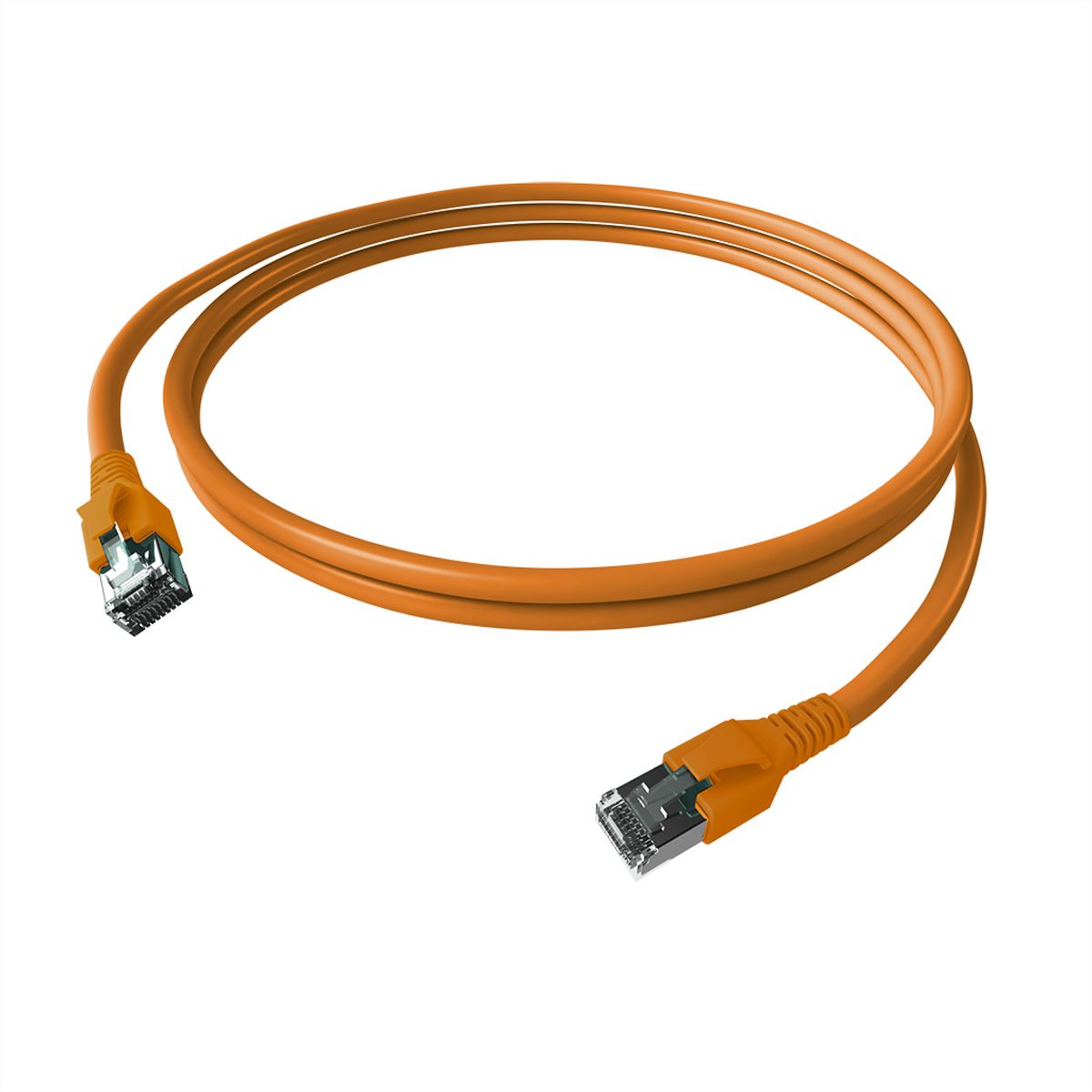

EasyLan FlexBoot Patch Cable Cat.6A, S/FTP, orange, 1 m

Item no. 21151891 Brand / Manufacturer EasyLan Manuf. item no. CP1KOBOBO0010 EAN 4055516090003 Item weight 0.055 kg

Colour:

Length:

EasyLan FlexBoot Patch Cable Cat.6A, S/FTP, orange, 1 m

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

Download PDF

Description

Patch Cable RJ45 FlexBoot Cat. 6A ISO / IEC, shielded

Connection cable RJ45/RJ45, shielded 1:1 pinout with saCon® connector and FlexBoot boot. This patch cable is suitable for installations in offices and data centers. Service mapping may also be effected at a later point in time via the application of color coding (special accessory).

Specifications

Manufacturer: EasyLan
Product group: Twisted Pair Cable
Product type: S/FTP patch cord (PiMF)
Colour: orange
Length: 1 m
Shield type: S/FTP (PiMF)
Transfer quality: Cat6A / Class EA
Impedance: 100 Ohm
Conductor cross section (AWG): AWG 26
Power over Ethernet (PoE): yes
Assignment: 1:1
Locking lever: yes
Cable LSOH: yes
Side 1 Connector Type: RJ-45
Side 1 Connector Gender: Male
Side 2 Connector Type: RJ-45
Side 2 Connector Gender: Male
Connector Type RJ45: saCon®
Operating temperature min.: -25 °C
Operating temperature max.: 60 °C
Height: 14 mm
Width: 13 mm
Depth: 1000 mm
Weight: 52.21 g
Height of packaging (single piece): 40 mm
Width of packaging (single piece): 220 mm
Depth of packaging (single piece): 250 mm
Package weight (single piece): 0.055 kg

Downloads

Manufacturer data sheet - Français (927.6 KB) Manufacturer data sheet - English (236.3 KB)

With EASYLAN products, you can keep track of the network jungle. These include the DualBoot® LED S/FTP and fiber optic LED patch cables with light identification, the injectors for feeding energy into the patch cables and the marking clips. But also the DualBoot IP20 patch cables with PushPull locking instead of the usual jack release.
