EasyLan VarioBoot Patch cable Cat.6A, S/FTP, blue, 2 m

Item no. 21152273 Brand / Manufacturer EasyLan Manuf. item no. CP1OBMSMS0020 EAN 4055516099907 Item weight 0.098 kg
EasyLan
Colour:
Length:

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day

Description

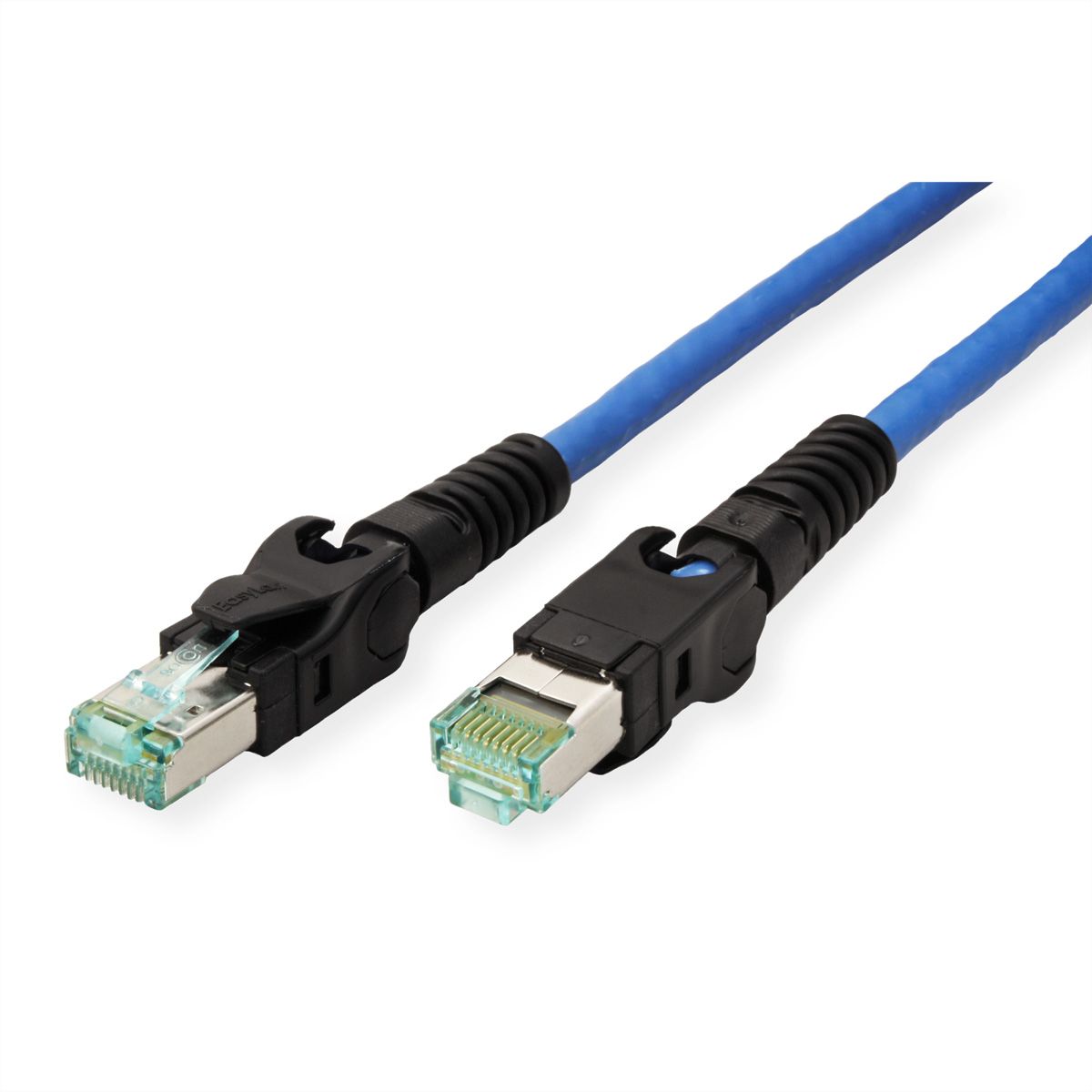

Patch cable RJ45, VarioBoot S/FTP Cat. 6A ISO/IEC, shielded

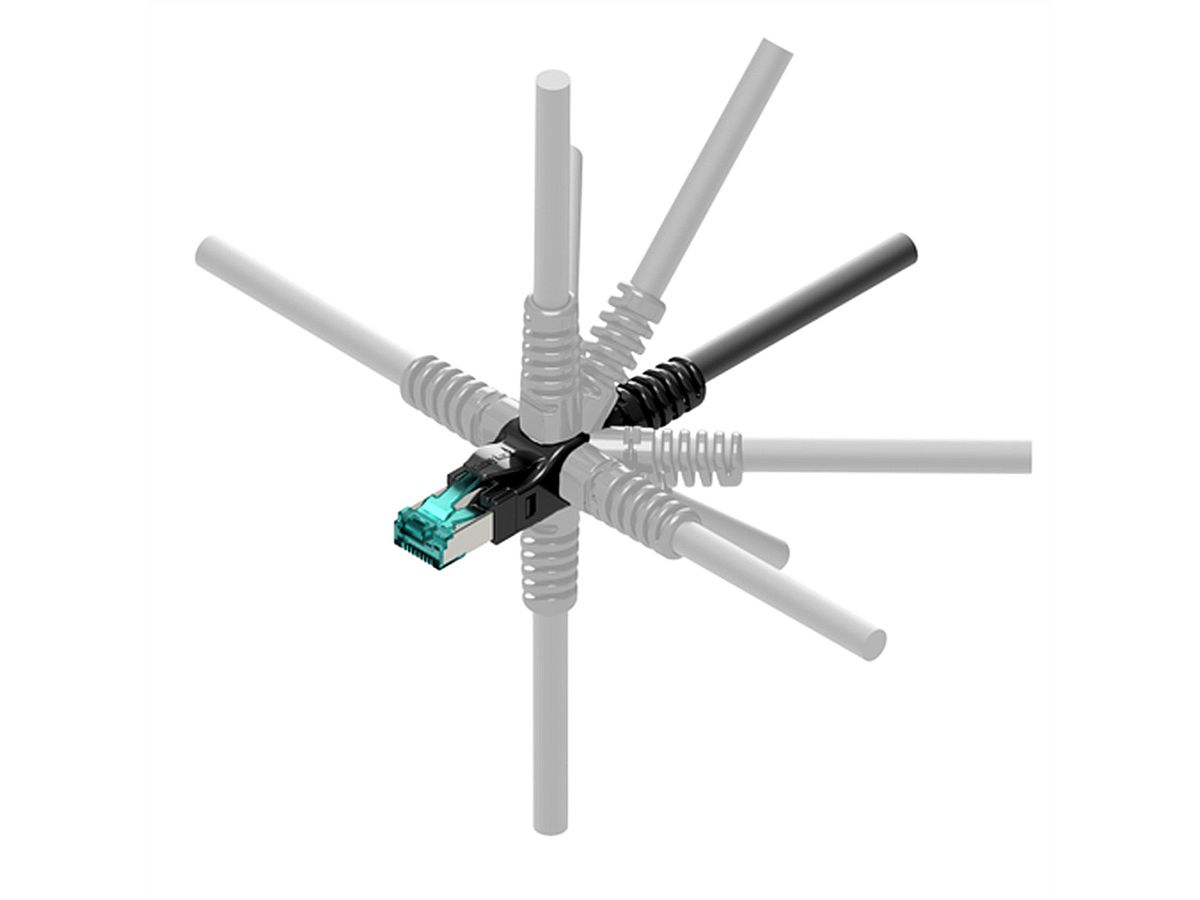

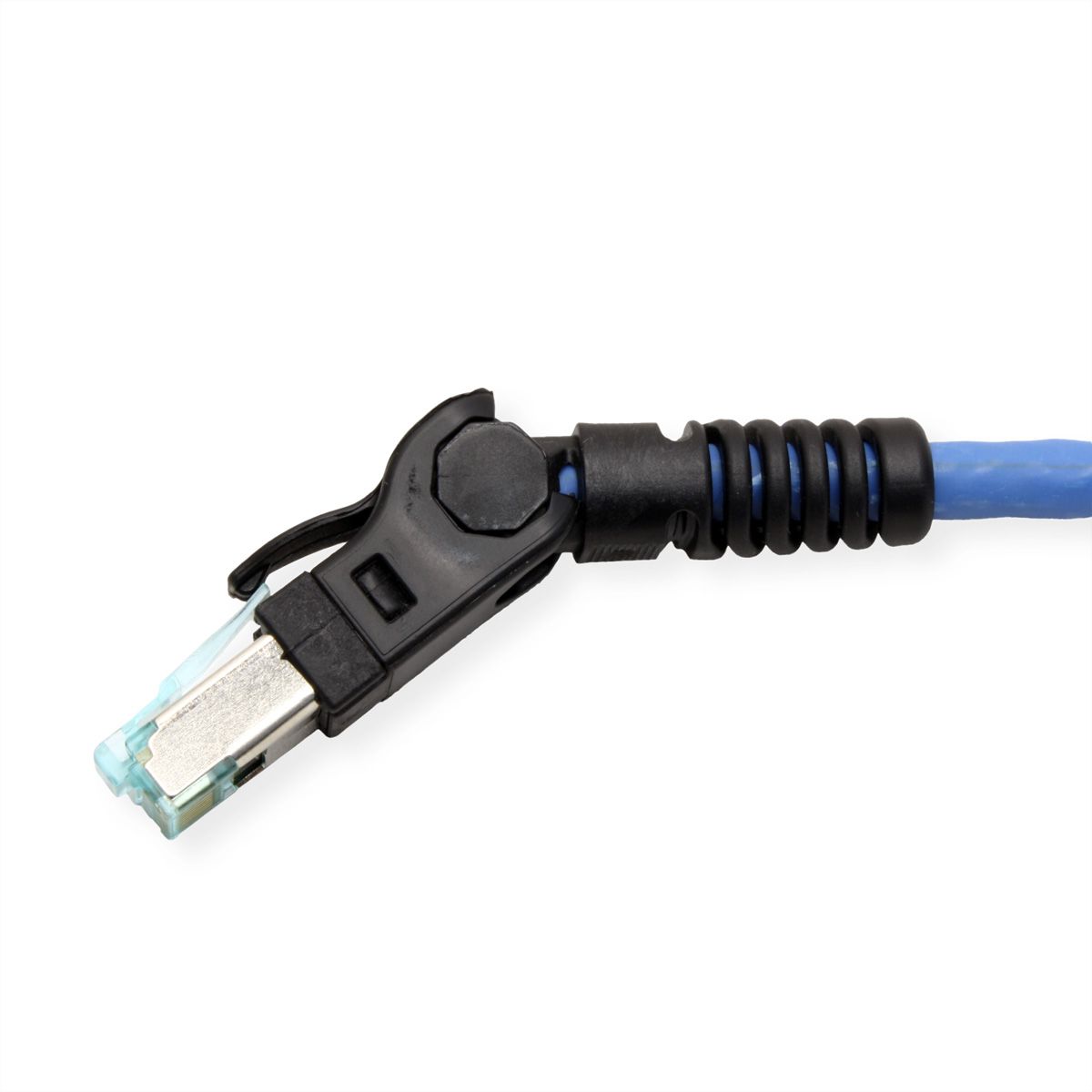

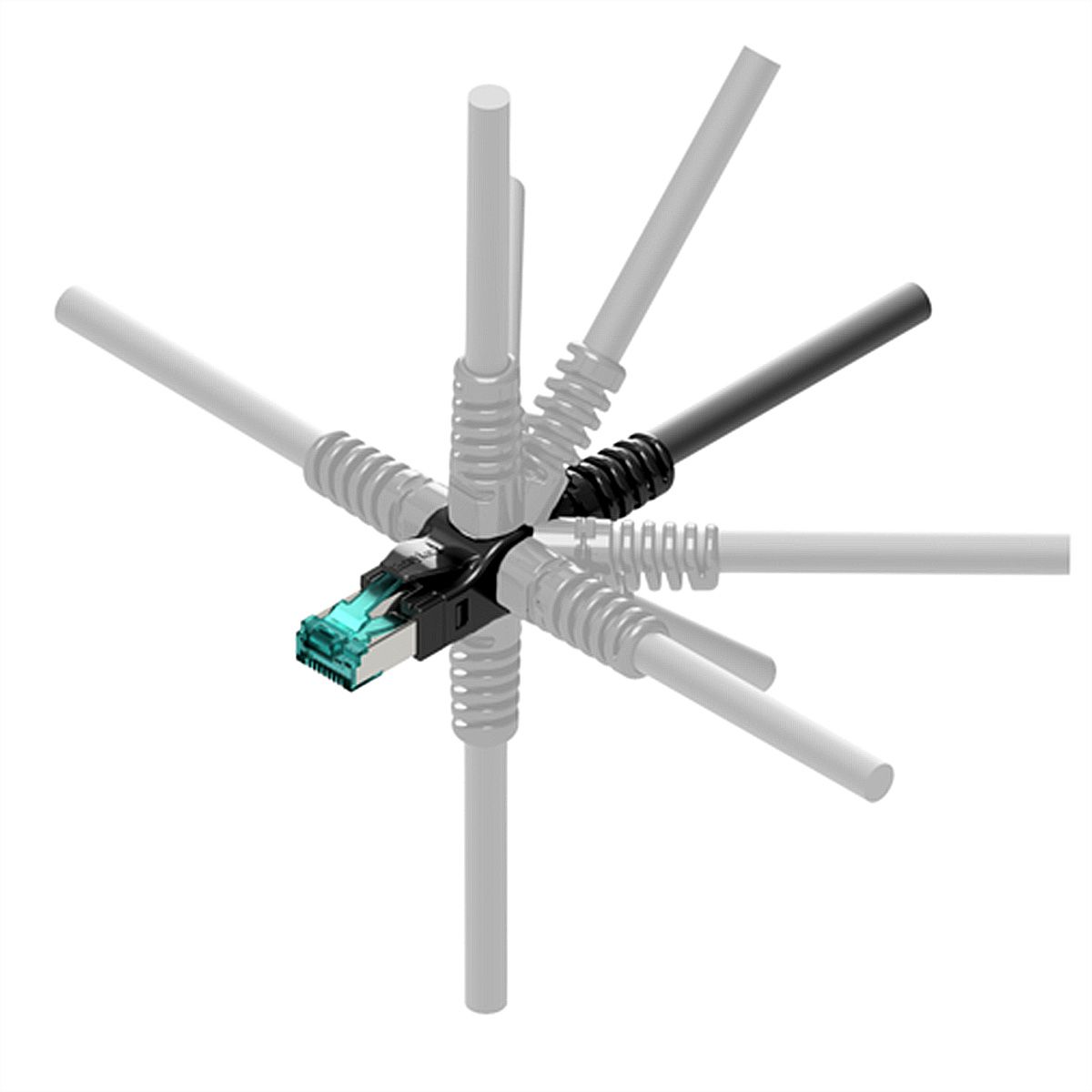

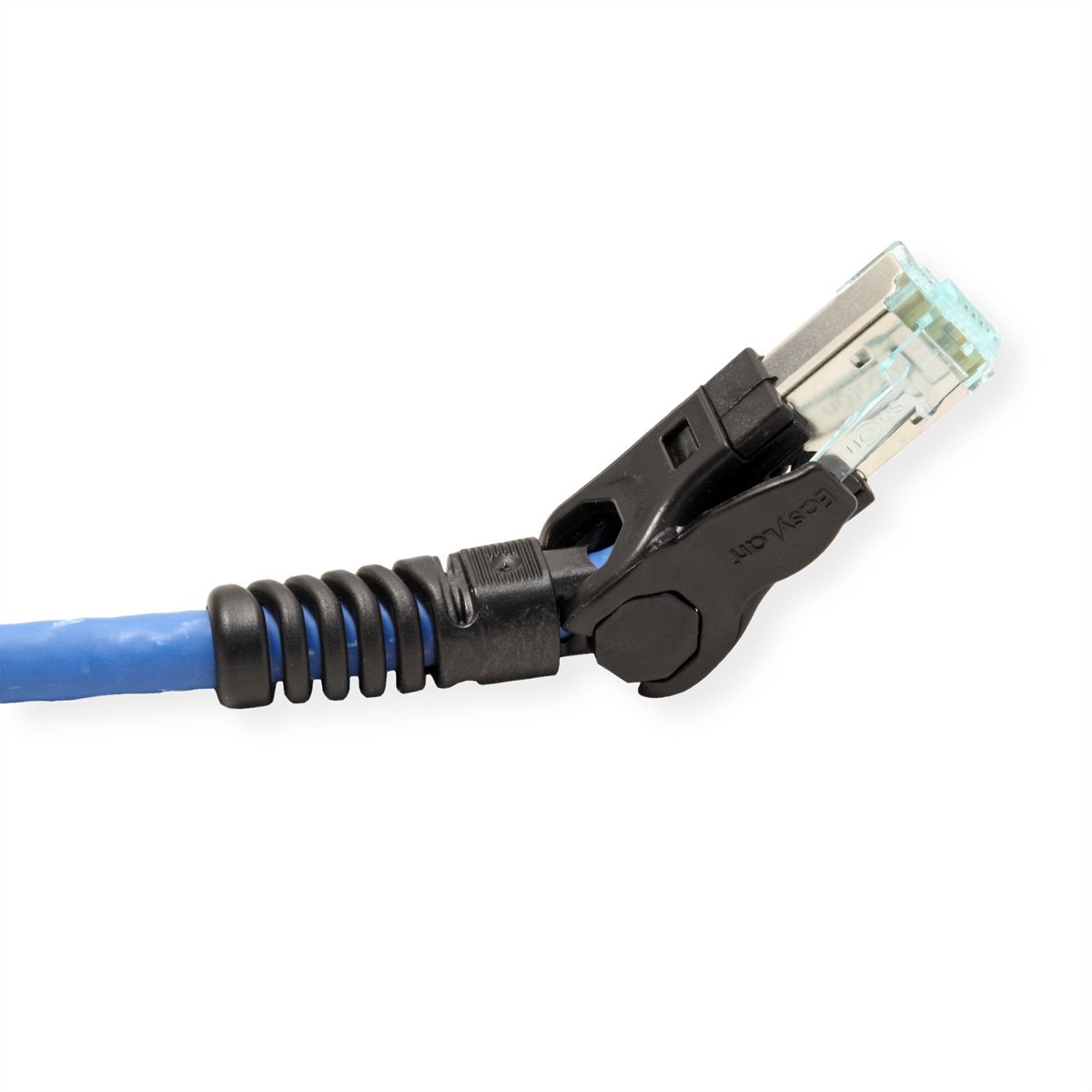

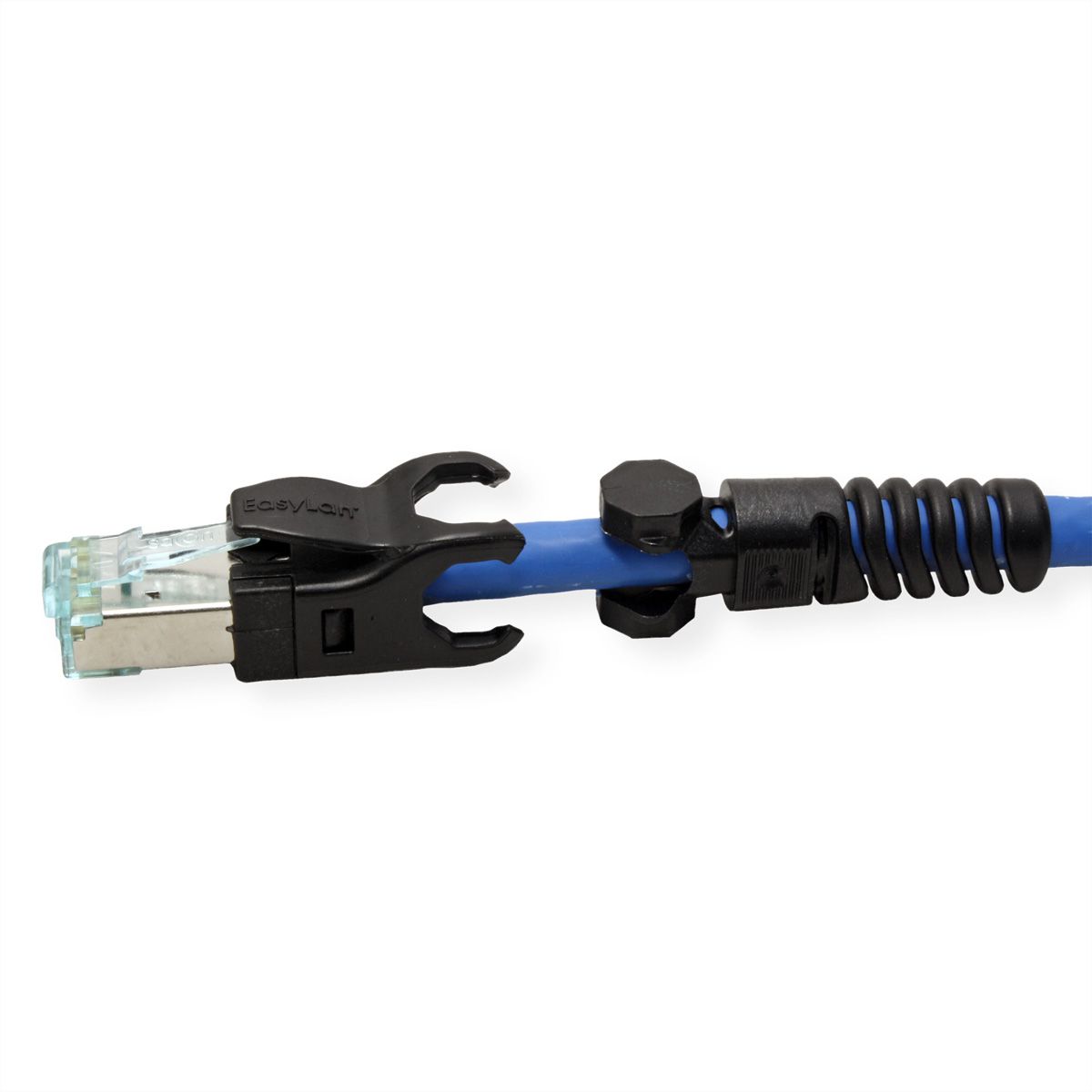

Connection cable RJ45/RJ45 shielded, 1:1 assignment with angle-adjustable plugs. This patch cable was developed for the use in offices and computer centers. The cable used with its combination shield (PiMf + meshwork) as well as the 360° shielded RJ45 plugs offers a high degree of data security. The VarioBoot patch cable provides nine different variants of outlet arrangements due to the easy dismantling of the grommet from the plug housing. A straight as well as a 45° or 90° arrangement can be realized. This means that the outlets can be adapted individually.

Specifications

Manufacturer
EasyLan
Product group
Twisted Pair Cable
Product type
S/FTP patch cord (PiMF)
Colour
blue
Length
2 m
Shield type
S/FTP (PiMF)
Transfer quality
Cat6A / Class EA
Impedance
100 Ohm
Conductor cross section (AWG)
AWG 26
Power over Ethernet (PoE)
yes
Assignment
1:1
Locking lever
yes
Anti-kink sleeve
Put-on
Colour (Spout)
black
Cable LSOH
yes
Side 1 Connector Type
RJ-45
Side 1 Connector Gender
Male
Side 2 Connector Type
RJ-45
Side 2 Connector Gender
Male
Connector Type RJ45
saCon®
Operating temperature min.
-25 °C
Operating temperature max.
60 °C
Height
14 mm
Width
13 mm
Depth
2000 mm
Weight
101.542 g
Height of packaging (single piece)
10 mm
Width of packaging (single piece)
160 mm
Depth of packaging (single piece)
160 mm
Package weight (single piece)
0.098 kg

With EASYLAN products, you can keep track of the network jungle. These include the DualBoot® LED S/FTP and fiber optic LED patch cables with light identification, the injectors for feeding energy into the patch cables and the marking clips. But also the DualBoot IP20 patch cables with PushPull locking instead of the usual jack release.
