EXSYS EX-12270HMS 10-Port USB 3.2 Gen 2x1 Metal HUB, 15KV ESD Protection for Wall and DIN-Rail Mounting

Item no. 15063498 Brand / Manufacturer EXSYS Manuf. item no. EX-12270HMS EAN 4718359122705 Item weight 0.874 kg

EXSYS EX-12270HMS 10-Port USB 3.2 Gen 2x1 Metal HUB, 15KV ESD Protection for Wall and DIN-Rail Mounting

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

Download PDF

Description

The rugged, industrial-grade EX-12270HMS is a metal USB 3.2 Gen 2x1 hub for up to ten devices that can be mounted on a wall or on a DIN-Rail. It connects to the host PC via a USB-C cable and provides ten USB-C 3.2 Gen 2x1 ports for end devices with outstanding performance of up to 10Gbps (SuperSpeed USB 10Gbps). Using the external power supply, the hub provides up to 2.4A per port with a maximum output of 79.5W. This makes it easy to charge iPhones, iPads, smartphones and tablets.

USB 3.2 Gen 2x1 Metal HUB with 10x USB-C Gen 2x1 downstream ports
15KV ESD protection for each output

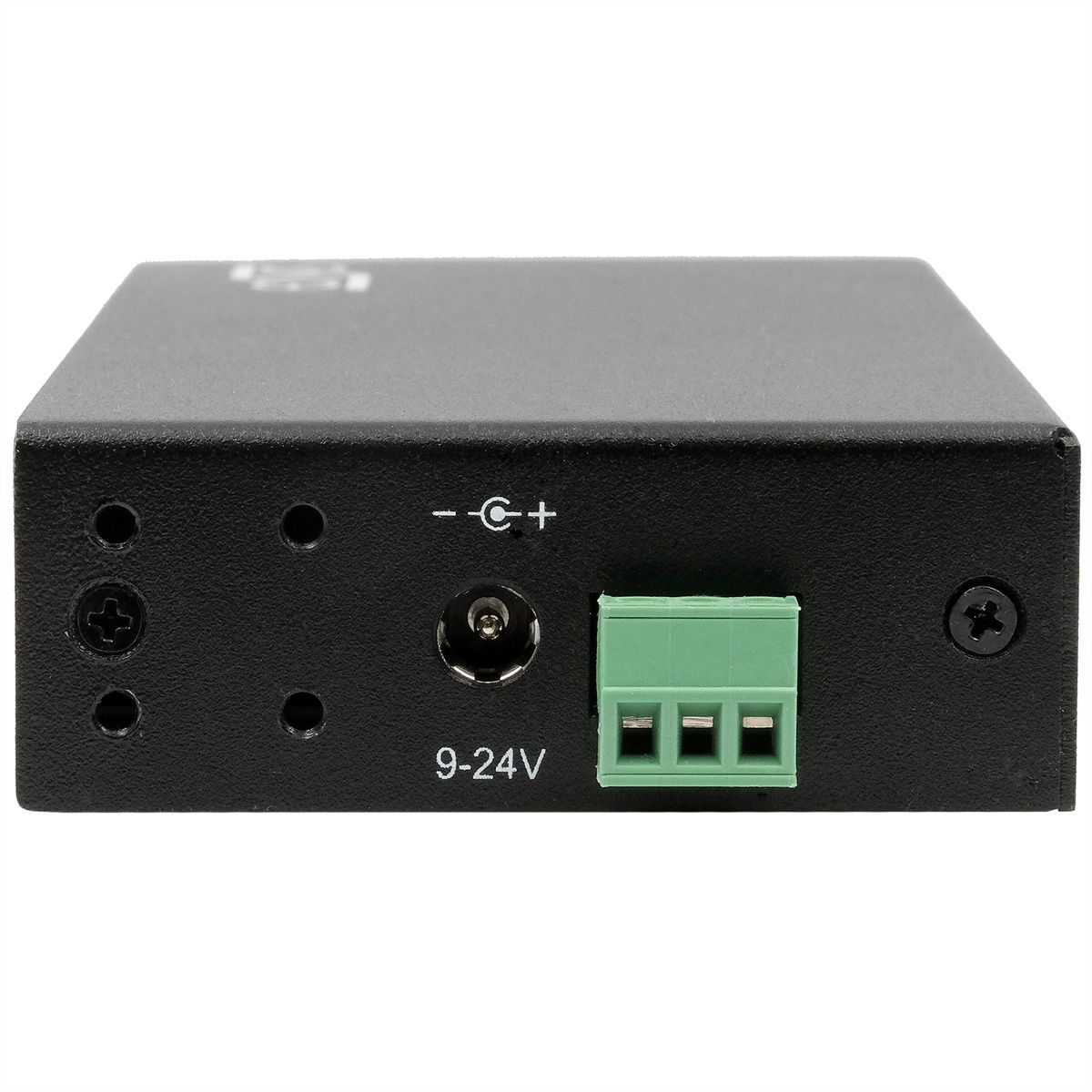

Power supply +9V to +24V DC via Terminal Block or DC-Socket
Up to 2.4A per port, total output power max. 79.5W
Supports USB battery charging V1.2
Can also be used as a USB charger without connection to the host PC
Automatically detects the data transfer rate of connected peripherals
Wall bracket and DIN-Rail kit included
Rugged metal housing with compact industrial design
LED indicators for power and link Status
Chipset: VL822-Q7

Specifications

Manufacturer: EXSYS
Product group: Industrial Networking
Product type: USB Hub
Colour: black

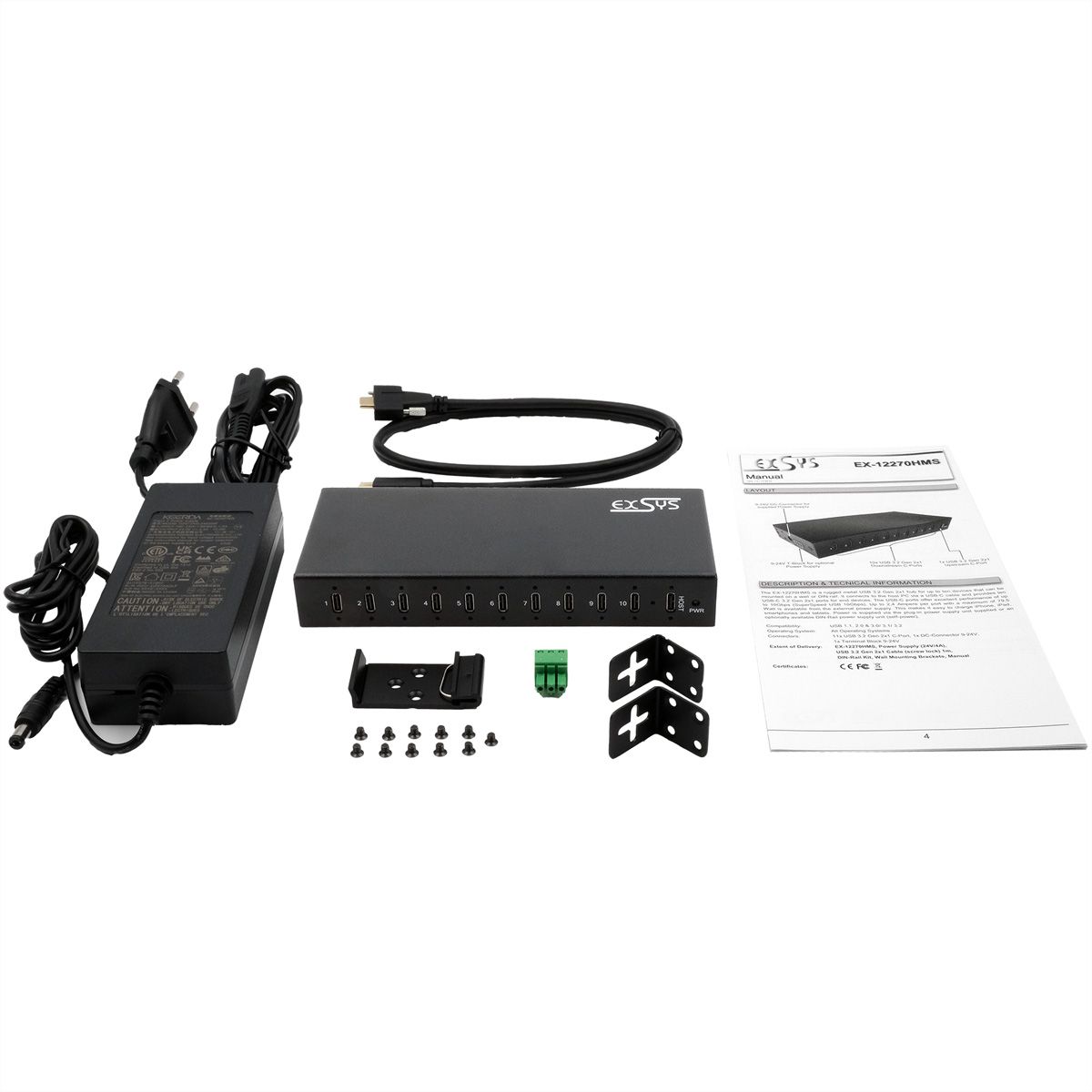

Scope of delivery: EX-12270HMS, Power Supply (24V/4A), USB 3.2 Gen 2x1 Cable (screw lock) 1m, DIN-Rail Kit, Wall mounting brackets, Manual
Device connection: 1x C-female upstream 10x C-female downstream
Transfer quality: USB 3.2 Gen 2 SuperSpeed 10 Gbit/s (USB 3.1 Gen 2, USB 3.1)
Side 1 Connector Type: USB Type C (USB-C)
Side 1 Connector Gender: Male
Side 2 Connector Type: USB Type C (USB-C)
Side 2 Connector Gender: Female
Quantity of ports: 10
Area of application: External
Material (casing): Metaal
Power supply unit required: yes
Power supply included: yes
Technical particularity: Stevige metalen behuizing
Operating temperature min.: 0 °C
Operating temperature max.: 55 °C
Height: 25.1 mm
Width: 161.5 mm
Depth: 68.2 mm
Weight: 345 g
Height of packaging (single piece): 60 mm
Width of packaging (single piece): 170 mm
Depth of packaging (single piece): 250 mm
Package weight (single piece): 0.874 kg
