EXSYS EX-12276HMS 16-Port USB 3.2 Gen 2x1 Metal HUB, 15KV ESD Protection for Wall and DIN-Rail Mounting

New products

EXSYS EX-12276HMS 16-Port USB 3.2 Gen 2x1 Metal HUB, 15KV ESD Protection for Wall and DIN-Rail Mounting

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Item no. 15063496
Marke / Hersteller EXSYS
Manuf. item no. EX-12276HMS
EAN 4718359122767
Paketgewicht 1.606 kg
EXSYS

Description

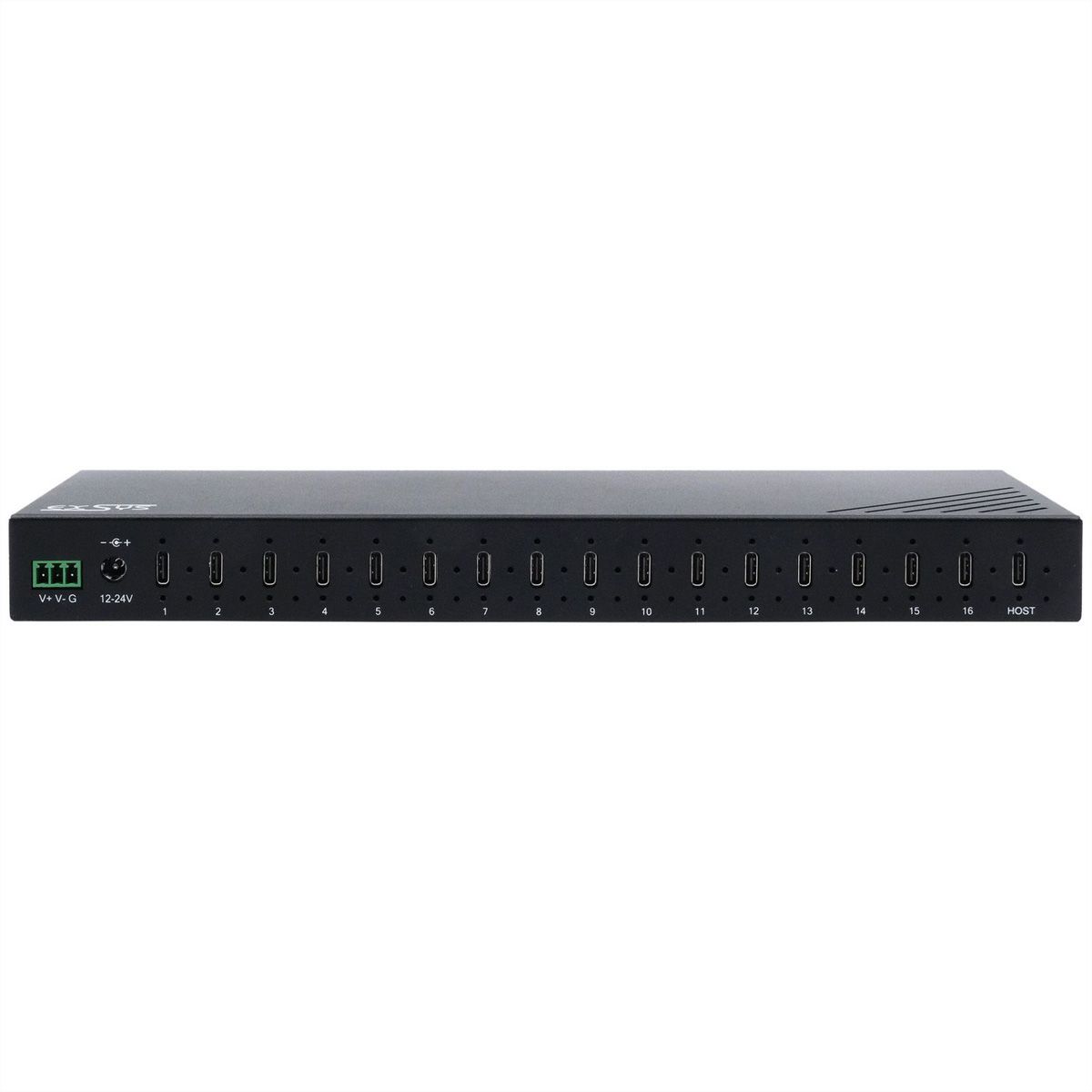

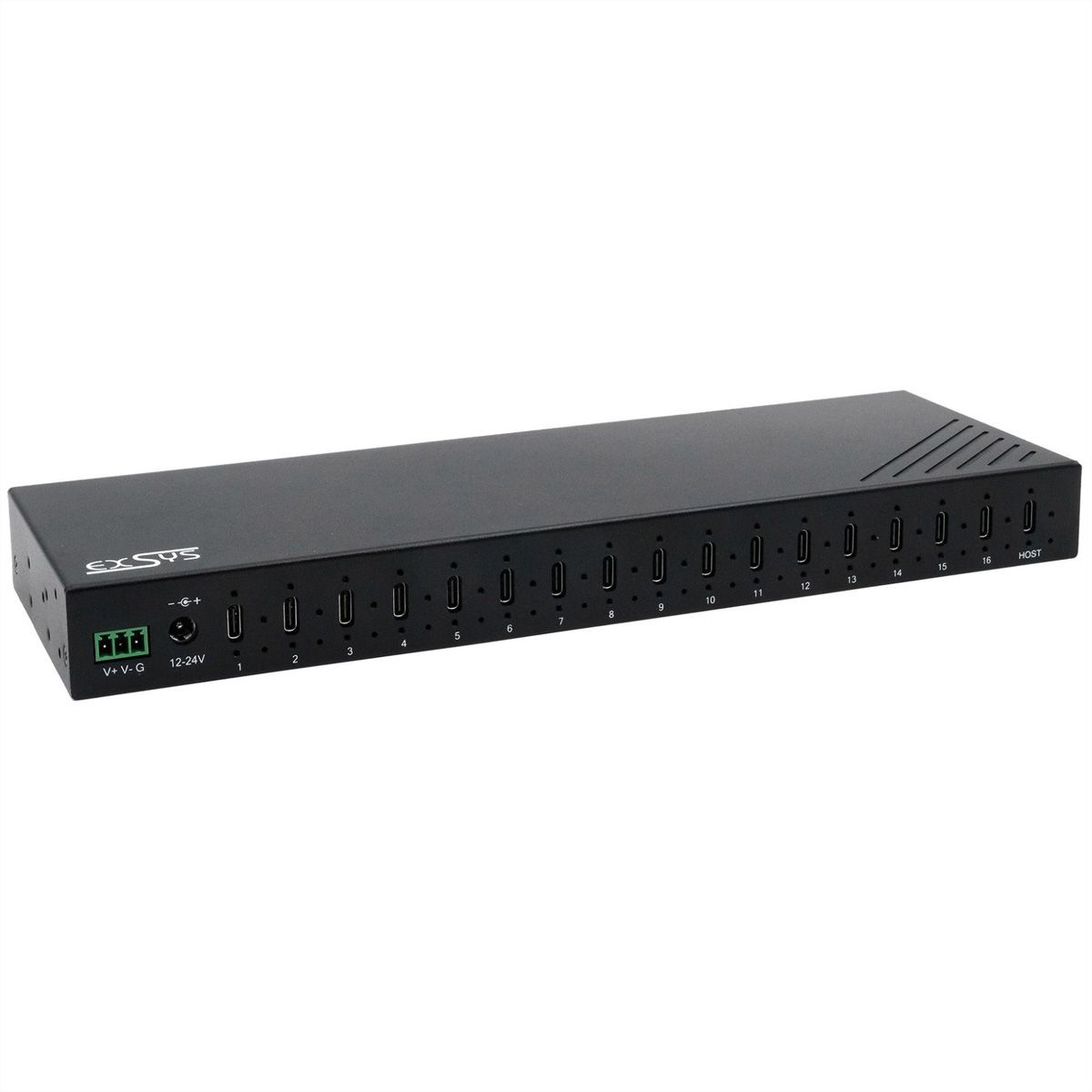

The rugged, industrial-grade EX-12276HMS is a metal USB 3.2 Gen 2x1 hub for up to sixteen devices that can be mounted on a wall, in a 19"-rack or on a DIN-Rail. It connects to the host PC via a USB-C cable and provides sixteen USB-C 3.2 Gen 2x1 ports for end devices with outstanding performance of up to 10Gbps (SuperSpeed USB 10Gbps). Using the external power supply, the hub provides up to 2.4A per port with a maximum output of 120W. This makes it easy to charge iPhones, iPads, smartphones and tablets.

  • USB 3.2 Gen 2x1 Metal HUB with 16x USB-C Gen 2x1 downstream ports
  • 15KV ESD protection for each output
  • Power supply +12V to +24V DC via Terminal Block or DC-Socket
  • Up to 2.4A per port, total output power max. 120W
  • Supports USB battery charging V1.2
  • Can also be used as a USB charger without connection to the host PC
  • Automatically detects the data transfer rate of connected peripherals

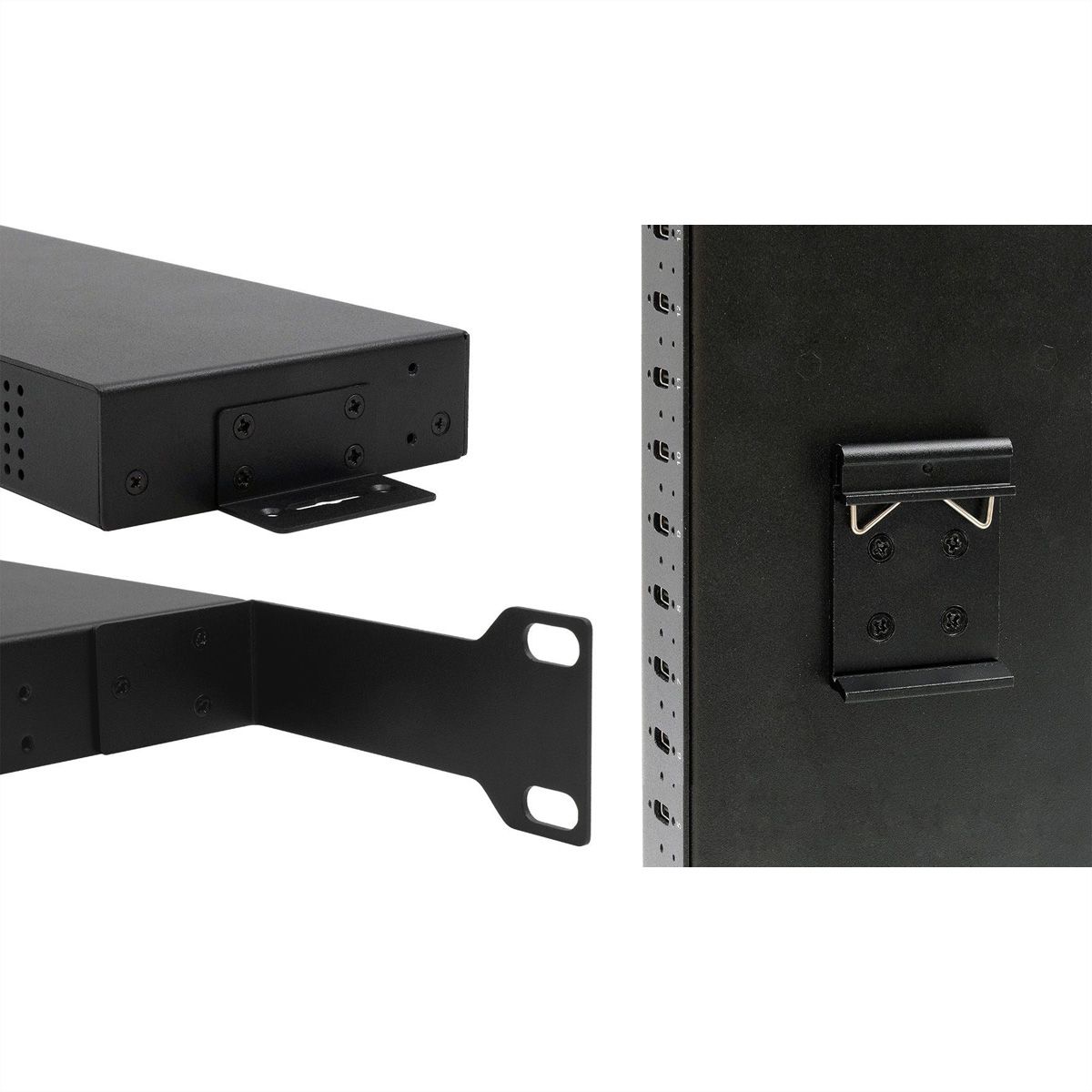

  • Wall bracket, 19"-rack bracket and DIN-Rail kit included

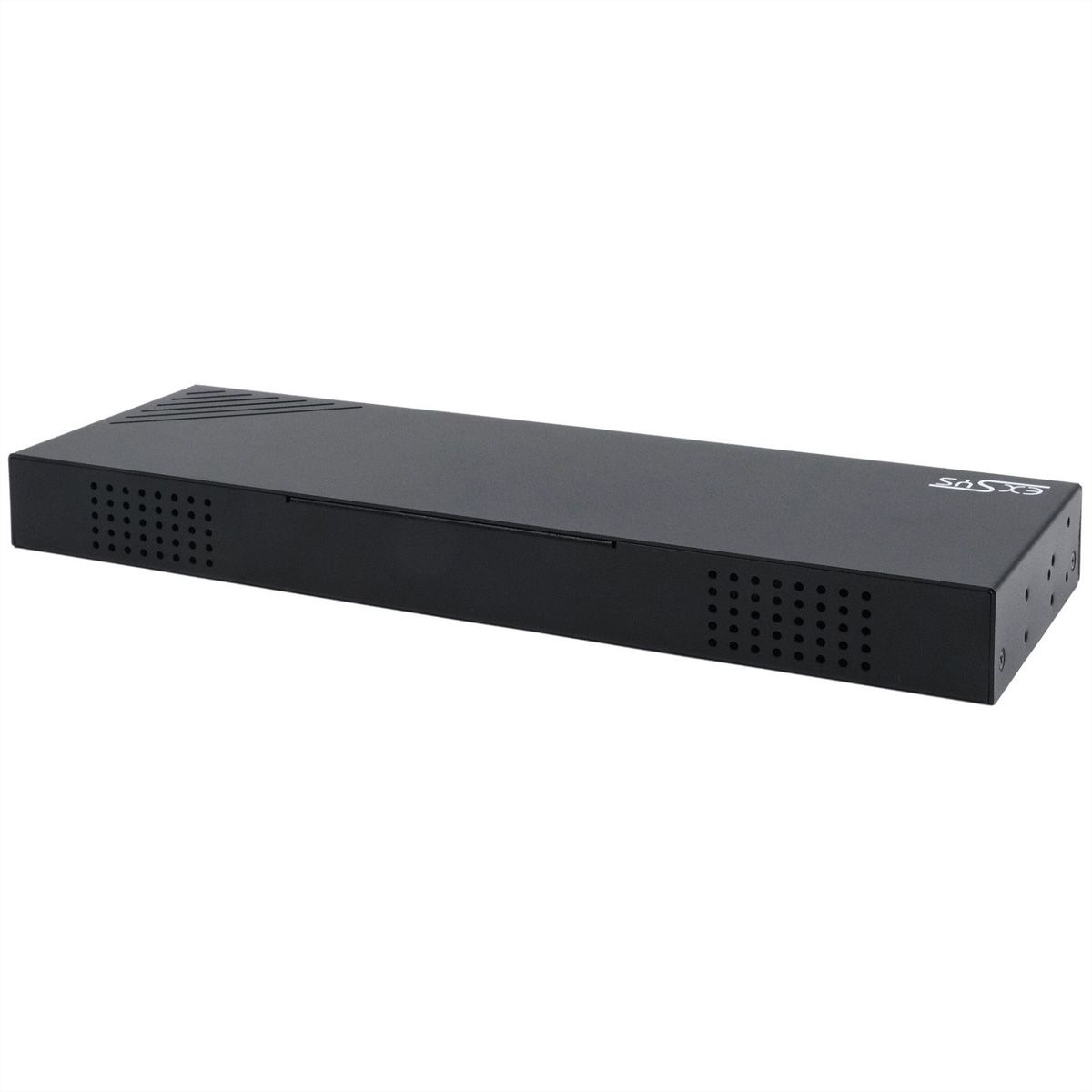

  • Rugged metal housing with compact industrial design
  • LED indicators for power and link Status
  • Chipset: VL822-Q7

Specifications

Manufacturer EXSYS
Product group Hubs
Product type USB Hub
Colour black

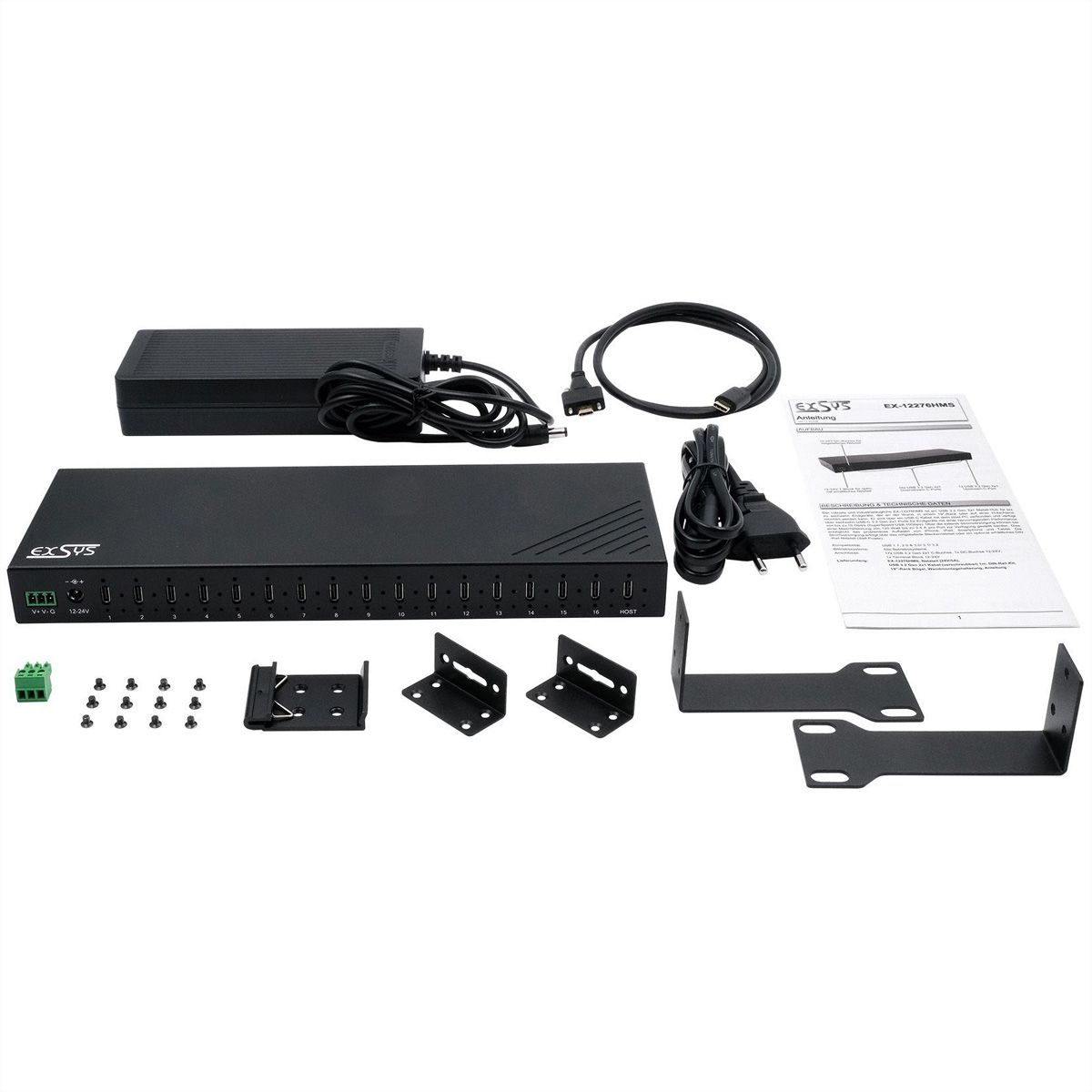

Scope of delivery EX-12276HMS, Power Supply (24V/5A), USB 3.2 Gen 2x1 Cable (screw lock) 1m, DIN-Rail Kit, 19"-rack brackets, Wall mounting brackets, Manual
Device connection 1x C-female upstream 16x C-female downstream
Transfer quality USB 3.2 Gen 2 SuperSpeed 10 Gbit/s (USB 3.1 Gen 2, USB 3.1)
Side 1 Connector Type USB Type C (USB-C)
Side 1 Connector Gender Male
Side 2 Connector Type USB Type C (USB-C)
Side 2 Connector Gender Female
Quantity of ports 16
Area of application External
Material (casing) Metaal
Power supply unit required yes
Power supply included yes
Technical particularity Stevige metalen behuizing
Operating temperature min. 0 °C
Operating temperature max. 55 °C
Height 28.1 mm
Width 280 mm
Depth 93 mm
Weight 713 g
Height of packaging (single piece) 90 mm
Width of packaging (single piece) 160 mm
Depth of packaging (single piece) 320 mm
Package weight (single piece) 1.606 kg

Downloads

Manufacturer data sheet - Deutsch (1.9 MB)

Download

Manufacturer data sheet - English (1.9 MB)

Download

User manual - Deutsch (546.5 KB)

Download

User manual - English (546.5 KB)

Download
