EXSYS EX-12280HMS 10 Port USB 3.2 Gen 2x1 Metal HUB, 4x USB-C, 6x USB-A 3.2 Gen 1, for desk, wall and DIN-Rail mounting

Item no. 15063499 Brand / Manufacturer EXSYS Manuf. item no. EX-12280HMS EAN 4718359122804 Item weight 0.484 kg

EXSYS EX-12280HMS 10 Port USB 3.2 Gen 2x1 Metal HUB, 4x USB-C, 6x USB-A 3.2 Gen 1, for desk, wall and DIN-Rail mounting

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

Download PDF

Description

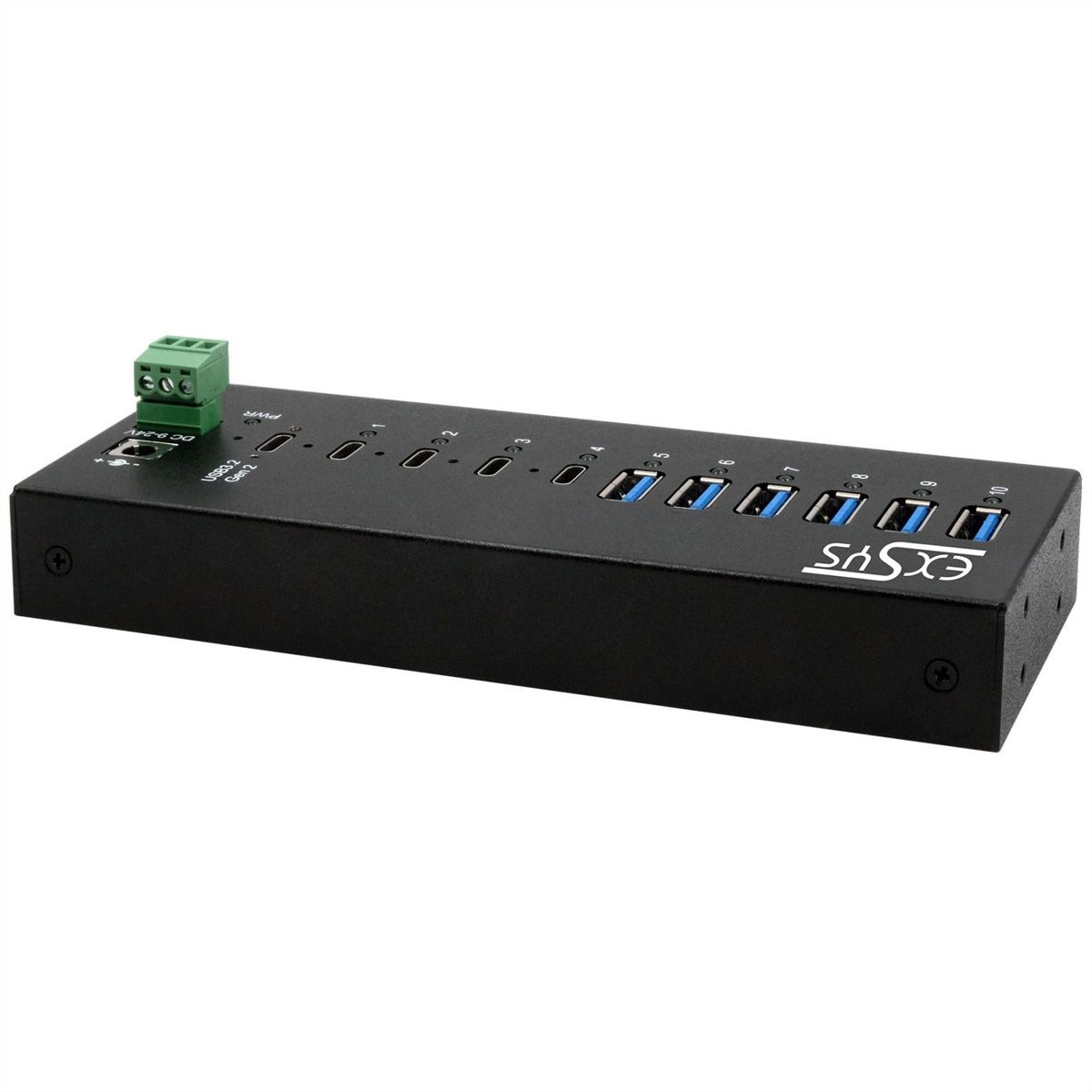

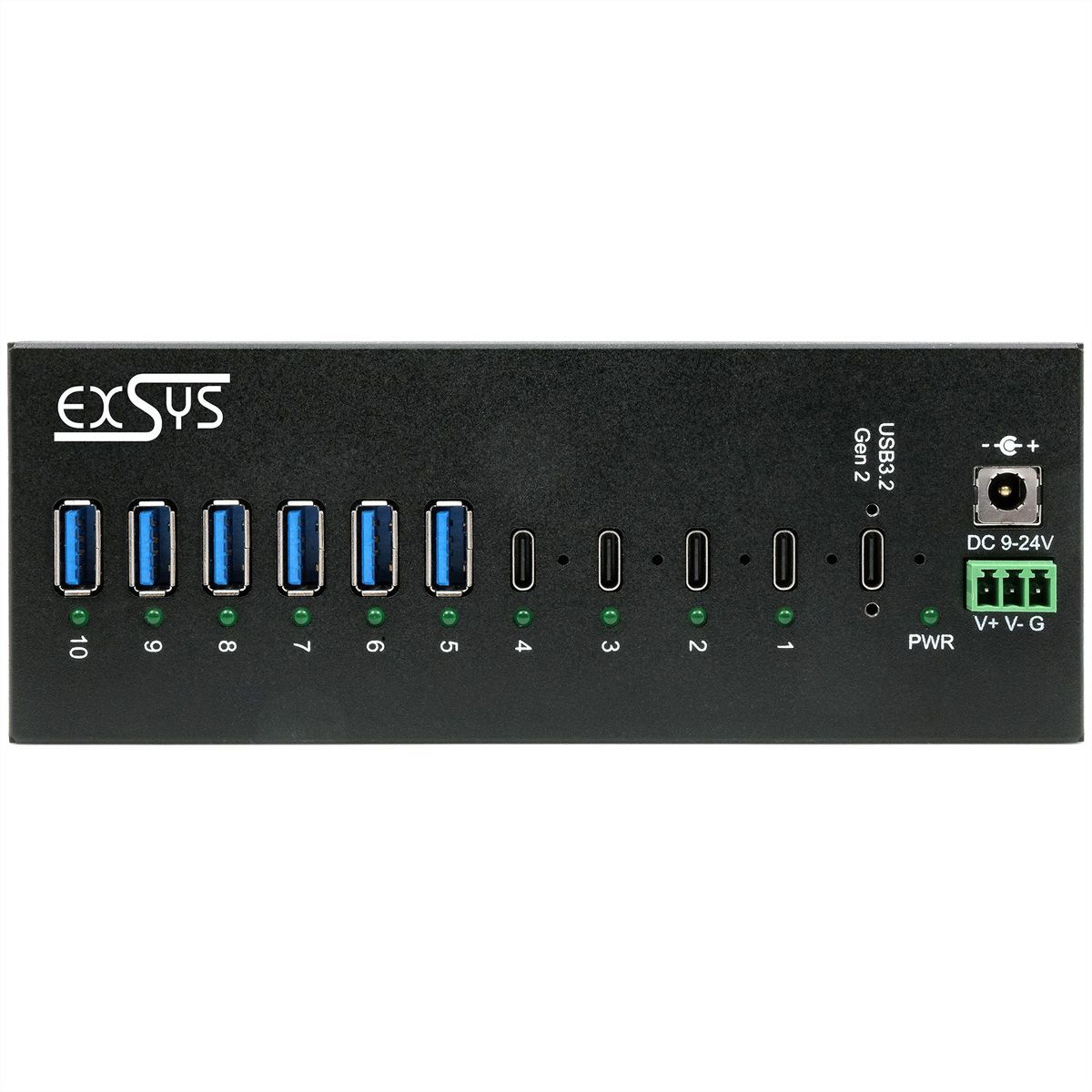

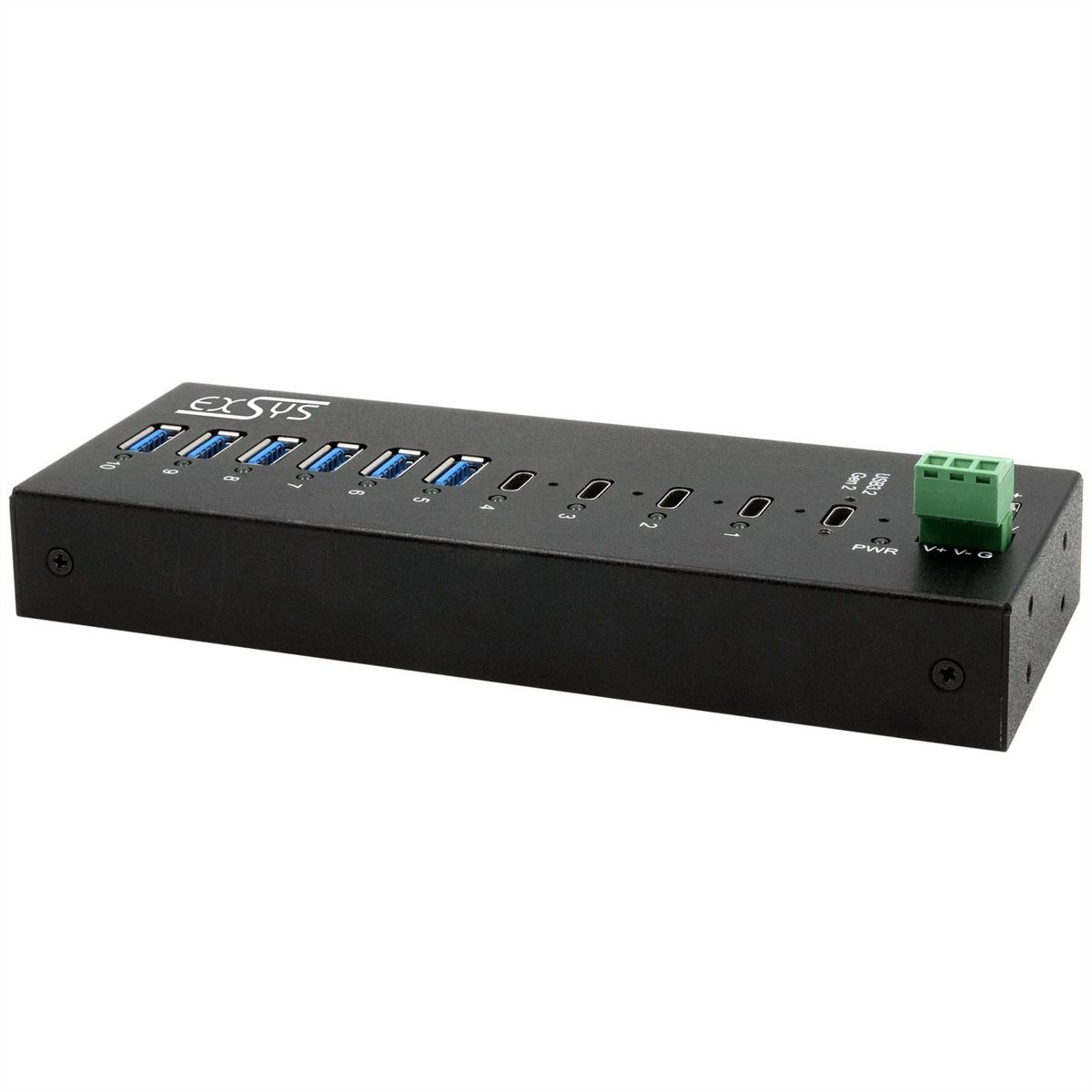

The rugged, industrial-grade EX-12280HMS is a USB 3.2 Gen 2x1 metal hub for up to ten end devices that can be wall-mounted or DIN-rail mounted. All connections are located on the top, providing flexibility for installation in a housing or cabinet.

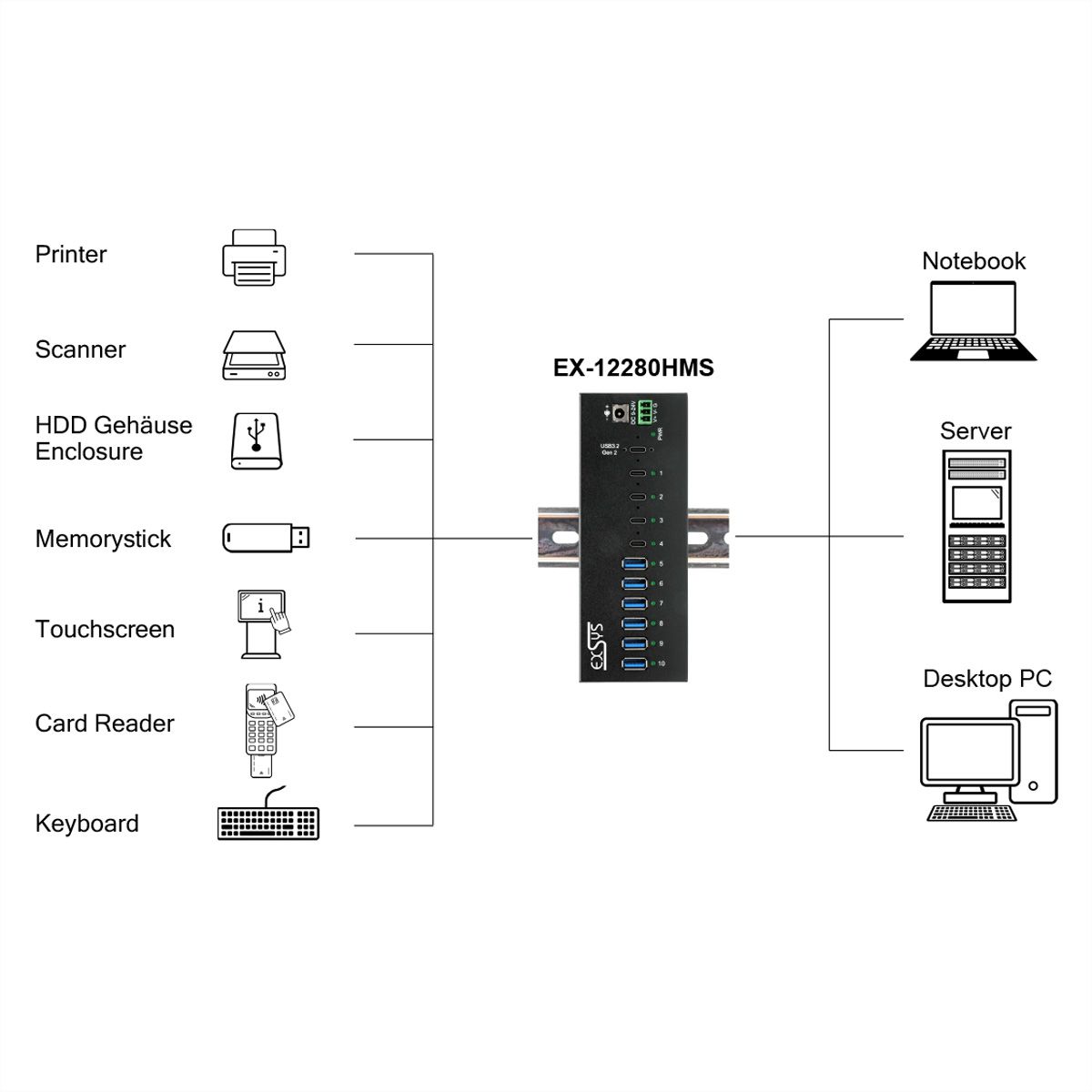

It connects to the host PC via a USB-C cable and has four USB-C 3.2 Gen 2x1 ports and six USB-A 3.2 Gen 1 ports for end devices. The USB-C ports offer outstanding performance of up to 10Gbps (SuperSpeed USB 10Gbps), while the USB-A ports transfer data at up to 5Gbps (SuperSpeed USB 5Gbps). Up to 2.4A per port can be provided with a maximum output of 64W using an external power supply. This makes it easy to charge iPhones, iPads, smartphones and tablets. A DC Jack (5.5 mm/2.1 mm) for a plug-in power supply and a terminal block for connecting a DIN-Rail power supply are available for power supply.

USB 3.2 Metal HUB with 4x USB-C Gen 2x1 and 6x USB-A Gen 1 downstream ports
15KV ESD surge protection for each output
Power supply +9V to +24V DC via terminal block or DC Jack
Up to 2.4A per port, total output power max. 64 W
Automatically detects data transfer rate of connected peripherals

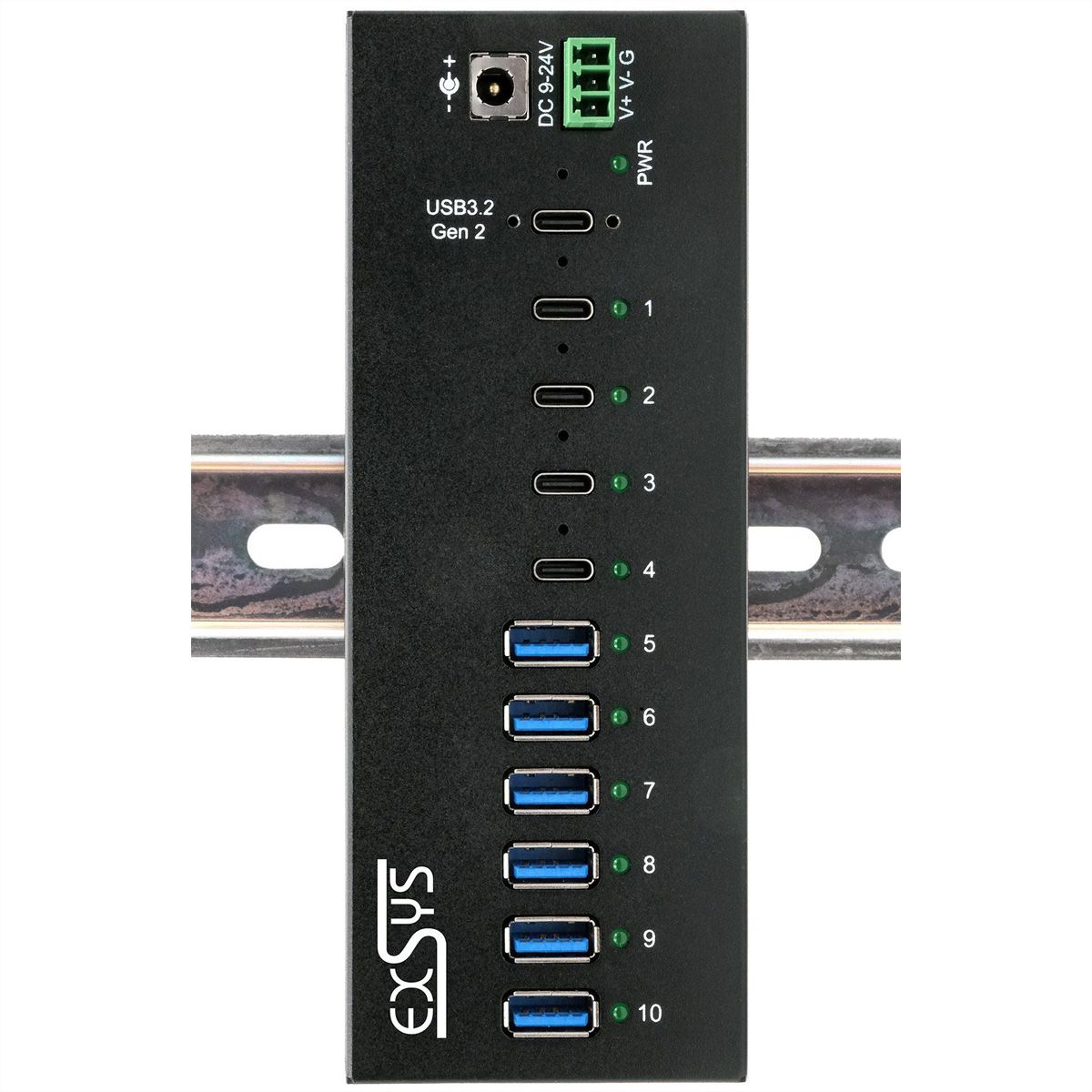

Wall bracket and DIN-Rail kit included
Compact industrial design
Rugged metal case
LED indicators for power and link status

Specifications

Manufacturer: EXSYS
Product group: Industrial Networking
Product type: USB Hub
Colour: black

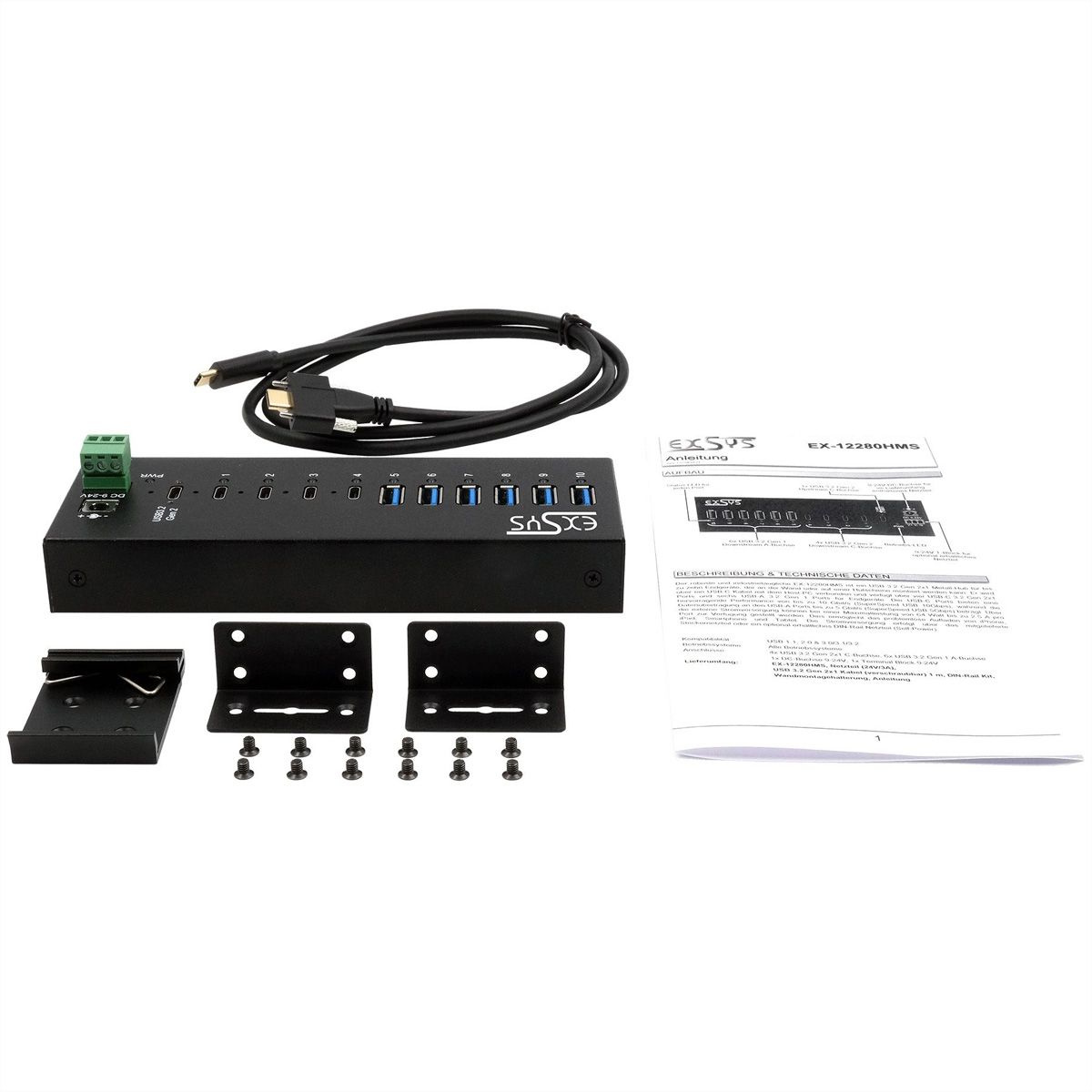

Scope of delivery: EX-12290HMS, USB 3.2 Gen 2x1 cable (screw lock) 1m, DIN-Rail Kit, Wall mounting brackets, Manual
Device connection: 1x C-female upstream 4x C-female en 6x A-female downstream
Transfer quality: USB 3.2 Gen 2 SuperSpeed 10 Gbit/s (USB 3.1 Gen 2, USB 3.1)
Side 1 Connector Type: USB Type C (USB-C)
Side 1 Connector Gender: Male
Side 2 Connector Type: USB Type C (USB-C)

USB 3 Type A

Terminal block
Side 2 Connector Gender: Female
Quantity of ports: 10
Area of application: External
Material (casing): Metaal
Power supply unit required: yes
Power supply included: no
Technical particularity: Stevige metalen behuizing
Operating temperature min.: 0 °C
Operating temperature max.: 55 °C
Storage temperature min.: -20 °C
Storage temperature max.: 85 °C
Height: 23 mm
Width: 160 mm
Depth: 60 mm
Weight: 302 g
Height of packaging (single piece): 80 mm
Width of packaging (single piece): 170 mm
Depth of packaging (single piece): 250 mm
Package weight (single piece): 0.484 kg
