EXSYS EX-1408 USB 3.2 Gen 2x1 active extension cable, USB-C plug / USB-C socket, 5 m

Item no. 15063513 Brand / Manufacturer EXSYS Manuf. item no. EX-1408 EAN 4718359014086 Item weight 0.339 kg
EXSYS

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

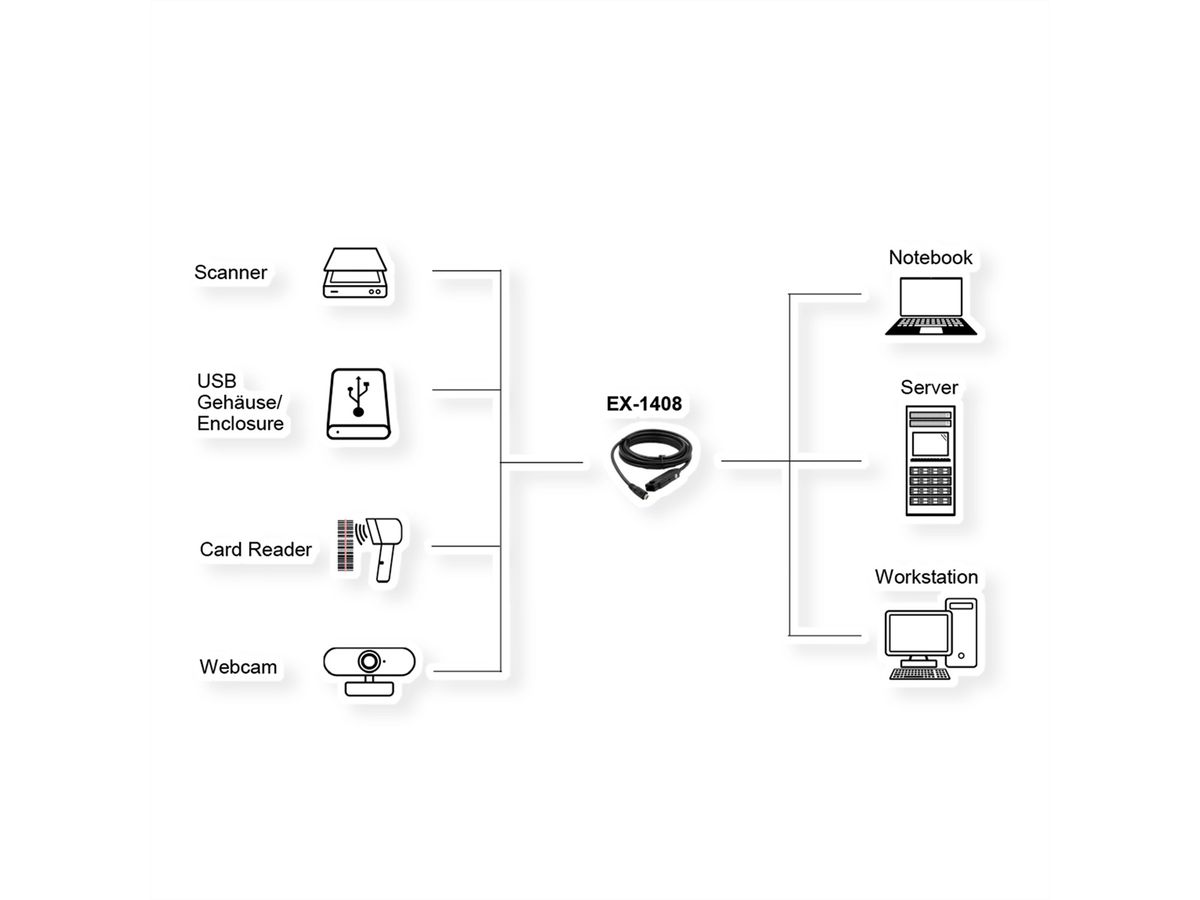

The EX-1408 USB-C extension cable extends your USB 3.2 Gen 2x1 cable by 5 metres. Up to three EX-1408 can be daisy-chained for a maximum length of 15 metres. In this case, an additional 5V/1.5A power supply must be installed. A connector is provided on the USB-C socket. As no drivers are required, installation is very simple. The EX-1408 supports data transfer rates of up to 10 Gbps and is fully backward compatible with USB 2.0/1.1.

  • Active USB 3.2 Gen 2x1 repeater cable up to 5 meters
  • USB 3.2 Gen 2x1 specification, downwards compatible to USB 2.0
  • Hot Plug and Play, no driver required
  • Power from USB (Bus-Power) or DC Jack (Self-Power)
  • Daisy-Chain Connection available, up to max. 15 meter
  • Optional external power supply unit 5V/1.5A required for daisy chaining

Specifications

Manufacturer
EXSYS
Product group
Adapters, Terminators, Converters
Product type
USB 3.2 Extension Cable
Colour
black
Length
5 m
Scope of delivery
EX-1408, handleiding
Transfer quality
USB 3.2 Gen 2 SuperSpeed 10 Gbit/s (USB 3.1 Gen 2, USB 3.1)
Side 1 connection (PC)
1x USB 3.2 Gen 2x1 C-male
Side 2 connection (Peripherals)
1x USB 3.2 Gen 2x1
Side 1 Connector Type
USB Type C (USB-C)
Side 1 Connector Gender
Male
Side 2 Connector Type
USB Type C (USB-C)
Side 2 Connector Gender
Female
Active / Passive
Active
Colour (Cable)
black
Maximum data transfer rate
10 Gbit/s
Operating temperature min.
0 °C
Operating temperature max.
50 °C
Height
1.75 cm
Width
2.22 cm
Depth
8.19 cm
Weight
245 g
Height of packaging (single piece)
70 mm
Width of packaging (single piece)
170 mm
Depth of packaging (single piece)
250 mm
Package weight (single piece)
0.339 kg

Downloads

Manufacturer data sheet - Deutsch (1,016.3 KB) Manufacturer data sheet - English (1,016.3 KB)
