EXSYS EX-6007PoE-WT PoE Gigabit Injector, Metal housing
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 15063530 |
|---|---|
| Marke / Hersteller | EXSYS |
| Manuf. item no. | EX-6007PoE-WT |
| EAN | 4718359600791 |
| Paketgewicht | 0.682 kg |
:strip_icc():strip_exif()/logos/exsys.png "EXSYS")
Description
With the EX-6007PoE-WT, end devices such as IP-telephones, IP-cameras, WLAN access points, etc. can be supplied with a voltage of 52V.
The EX-6007PoE-WT steps up a common 12-48VDC power input to 52VDC for PoE power source. With a slim, compact housing and a temperature range of -40ºF to +185ºF, it is ideal for use in industrial environments. The EX-6007PoE-WT operates as power source equipment (PSE) = 34.20 W for the powered device (PD) = 25.50 W. It provides the user with greater installation flexibility since the end device no longer has to be in the immediate proximity of an outlet. Using IEEE 802.3af/at Power over Ethernet (PoE), the EX-6007PoE-WT eliminates the need for a nearby power outlet and provides a reliable and user-friendly networking solution. This preserves the user's investment in LAN and Internet applications.
- Provides power to remote network devices
- Support a extended temperature field from -40°F to +185°F
- Support 10/100/1000 Base-T Ethernet standard
- Fully IEEE 802.3af/at compliant PoE (PSE) type 1 = 15.40W and IEEE802.3at PoE+ (PSE) type 2 = 34.20W
- Maximum Power Delivered (PD): Type 1 = 12.95W / Type 2 = 25.50W
- LED indicator for PoE power supply status
- Built in step-up converter from 12~48 VDC to 52 VDC
- Power Input: 12V up to 48V (DC Jack or Terminal Block)
- Built in isolated DC to DC converter

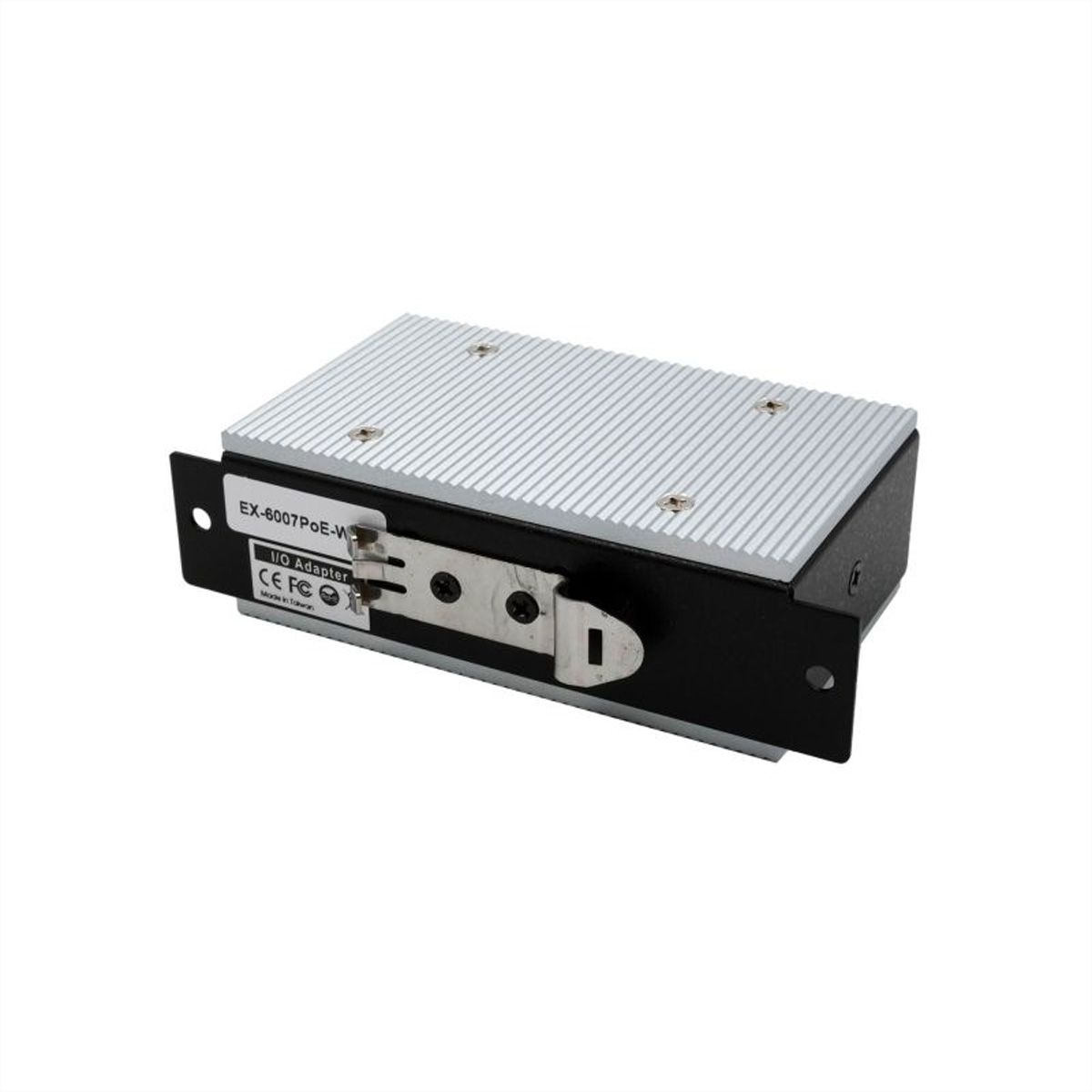

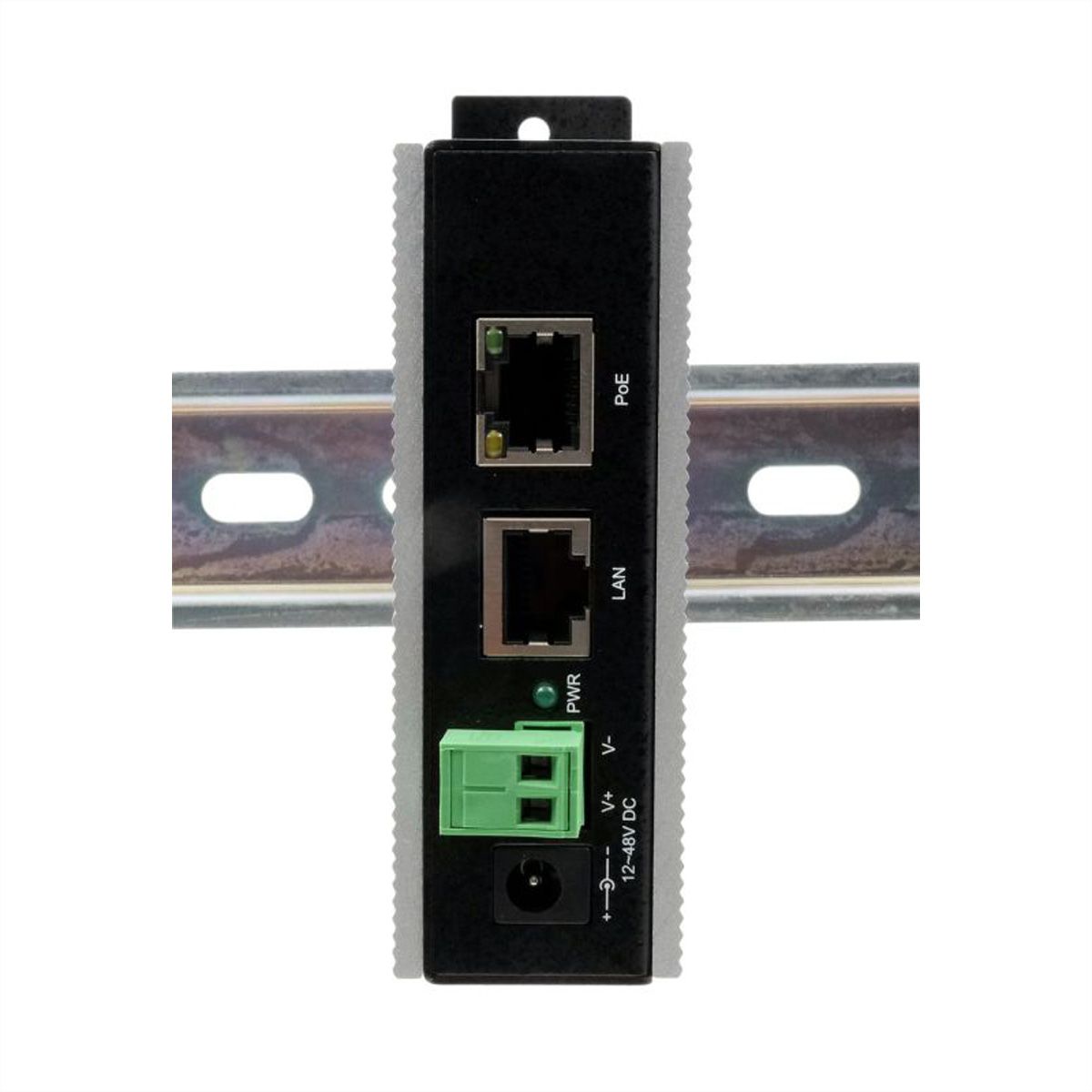

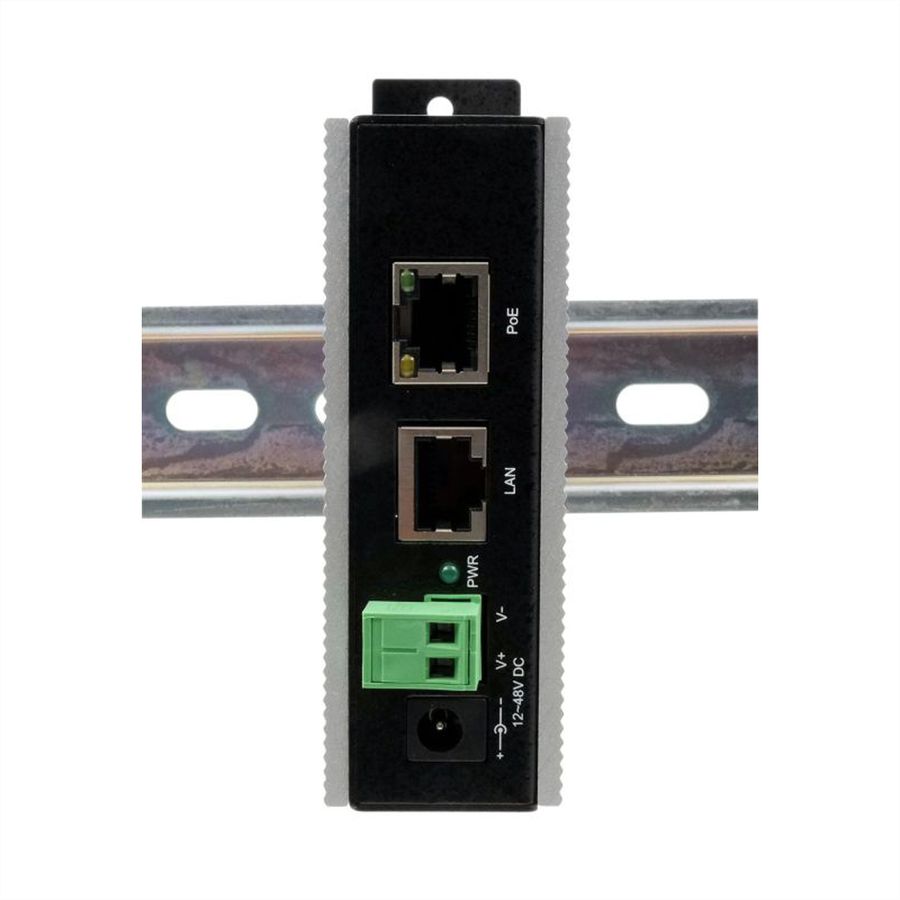

- Wall or DIN-Rail mounting
- Slim, rugged metal housing for critical applications
Specifications
| Manufacturer | EXSYS |
|---|---|
| Product group | PoE adapter |
| Product type | PoE-Injector |
| Colour | various |

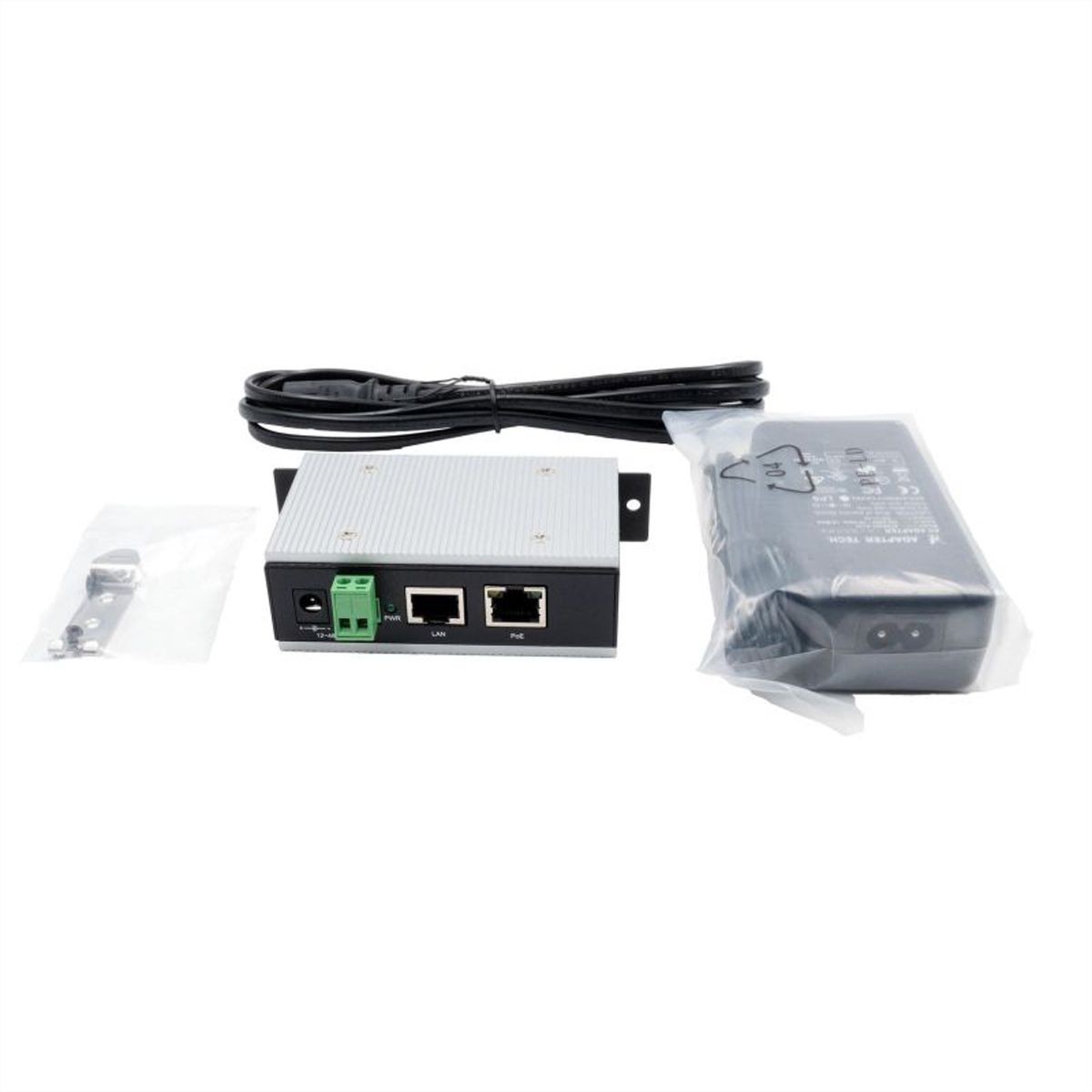

| Scope of delivery | EX-6007PoE-WT, Power Supply 12V/3A, DIN-Rail Kit, Manual |
| Network standard | Gigabit Ethernet |
| LAN (Mbps) | 10/100/1000 |
| Quantity of ports | 2 |
| Gigabit Ethernet Ports RJ-45 | 1 |
| Power over Ethernet (PoE) | PoE+ (IEEE 802.3at) |
| Quantity of PoE ports | 1 |
| Max. PoE output power per port | 30 W |
| Max. PoE output power (total) | 30 W |
| Protection class (IP Code) | IP30 |
| Power supply | External power supply unit |
| Mains connection | Loose cable / screw terminals |
| Operating temperature min. | -40 °C |
| Operating temperature max. | 85 °C |
| Height | 26 mm |
| Width | 114.5 mm |
| Depth | 57.25 mm |
| Weight | 860 g |
| Height of packaging (single piece) | 80 mm |
| Width of packaging (single piece) | 170 mm |
| Depth of packaging (single piece) | 250 mm |
| Package weight (single piece) | 0.682 kg |
