Description

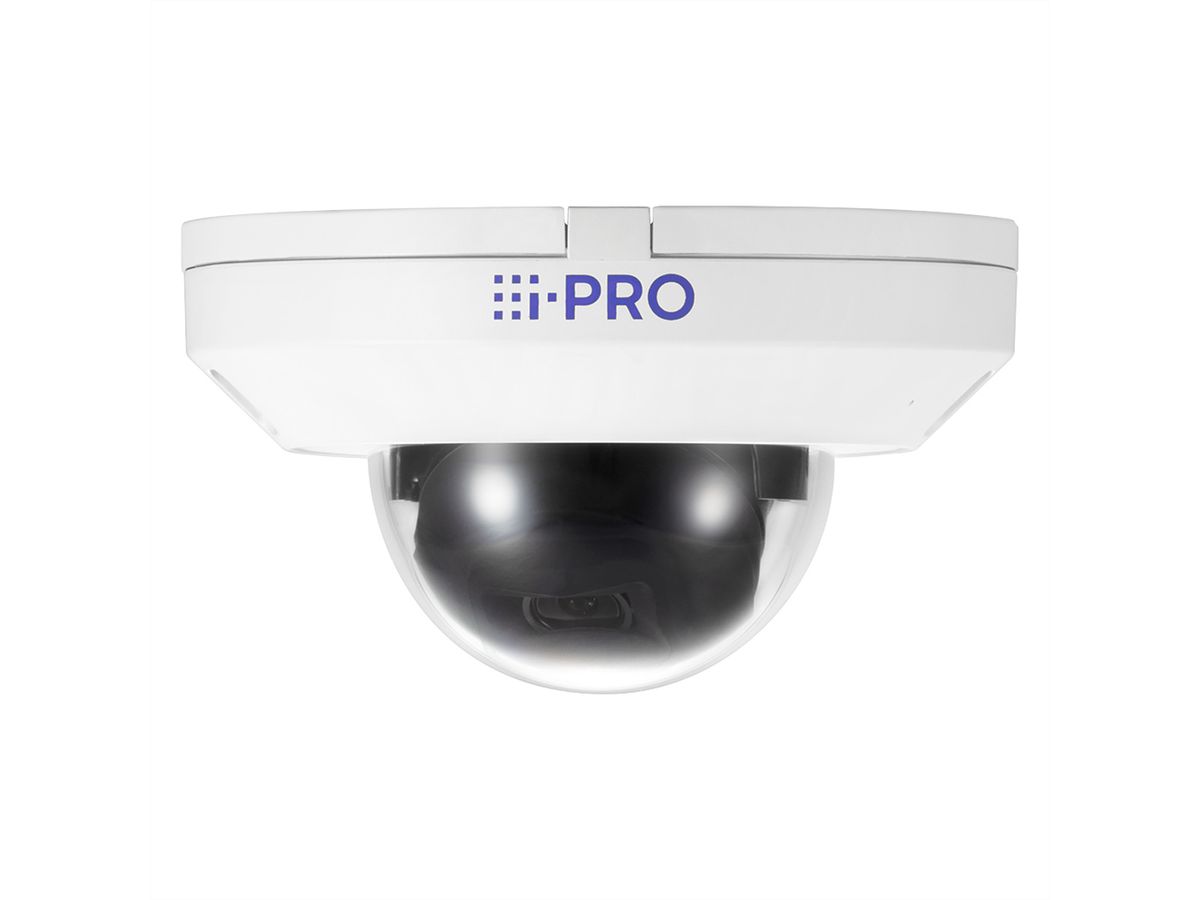

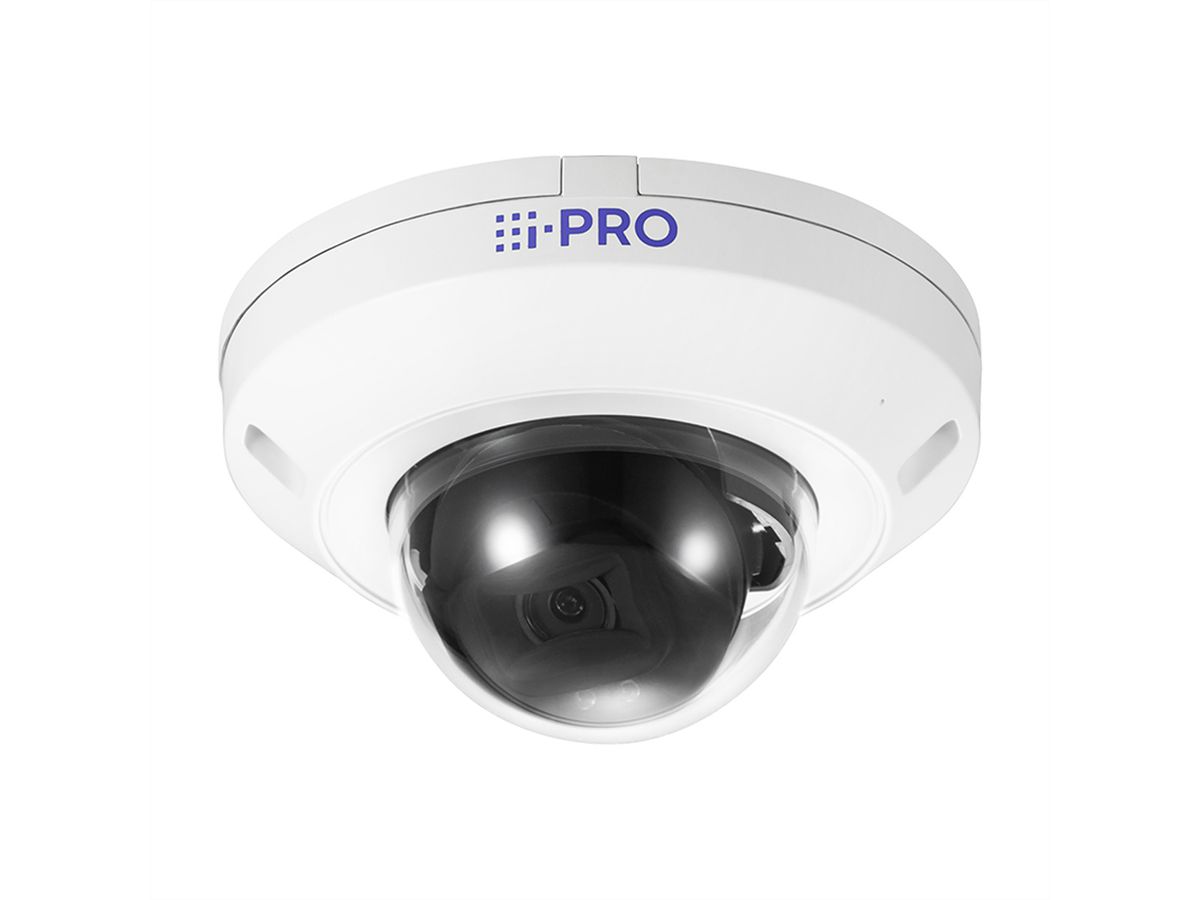

4K AI INDOOR VANDAL Dome Camera

The WV-U22750-F3L, Indoor, Dome, 8MP(4K)@30fps, Union, Fix, H:105deg.V:57deg., IR, H.265/H.264/JPEG, WDR[120dB], Preinstalled AI analytics applications, 1 AI slot, Onvif G, M, S, T, microSDXC, PoE, IK10, IP42, White(i-PRO), -10 °C to +50 °C, FIPS 140-3 Level3

Specifications

Manufacturer	i-PRO
Product group	IP surveillance
Product type	Fixed-Dome Network Camera
Colour	white
Mounting form	Fixed-Dome
Interface	LAN
ONVIF	yes
Image Sensor Type	1/2.8 CMOS
Resolution	8 MPx
Focal Length	3.2 mm
Horizontal viewing angle	105 °
Viewing angle vertical	57 °
IR LED	yes
IR range (max.)	28 m
WDR	WDR
Memory Card Slot	yes
Power over Ethernet (PoE)	yes
Protection class (IP Code)	IK10
Suitable for Outdoor Use	no
Mains connection	Power over Ethernet (PoE)
Operating temperature min.	-10 °C
Operating temperature max.	50 °C
Weight	0.25 kg
Height of packaging (single piece)	0 mm
Width of packaging (single piece)	0 mm
Depth of packaging (single piece)	0 mm
Package weight (single piece)	0 kg

Downloads

Manufacturer data sheet - English (554.7 KB)

Download

Quick Installation Guide - English (22.2 MB)

Download
