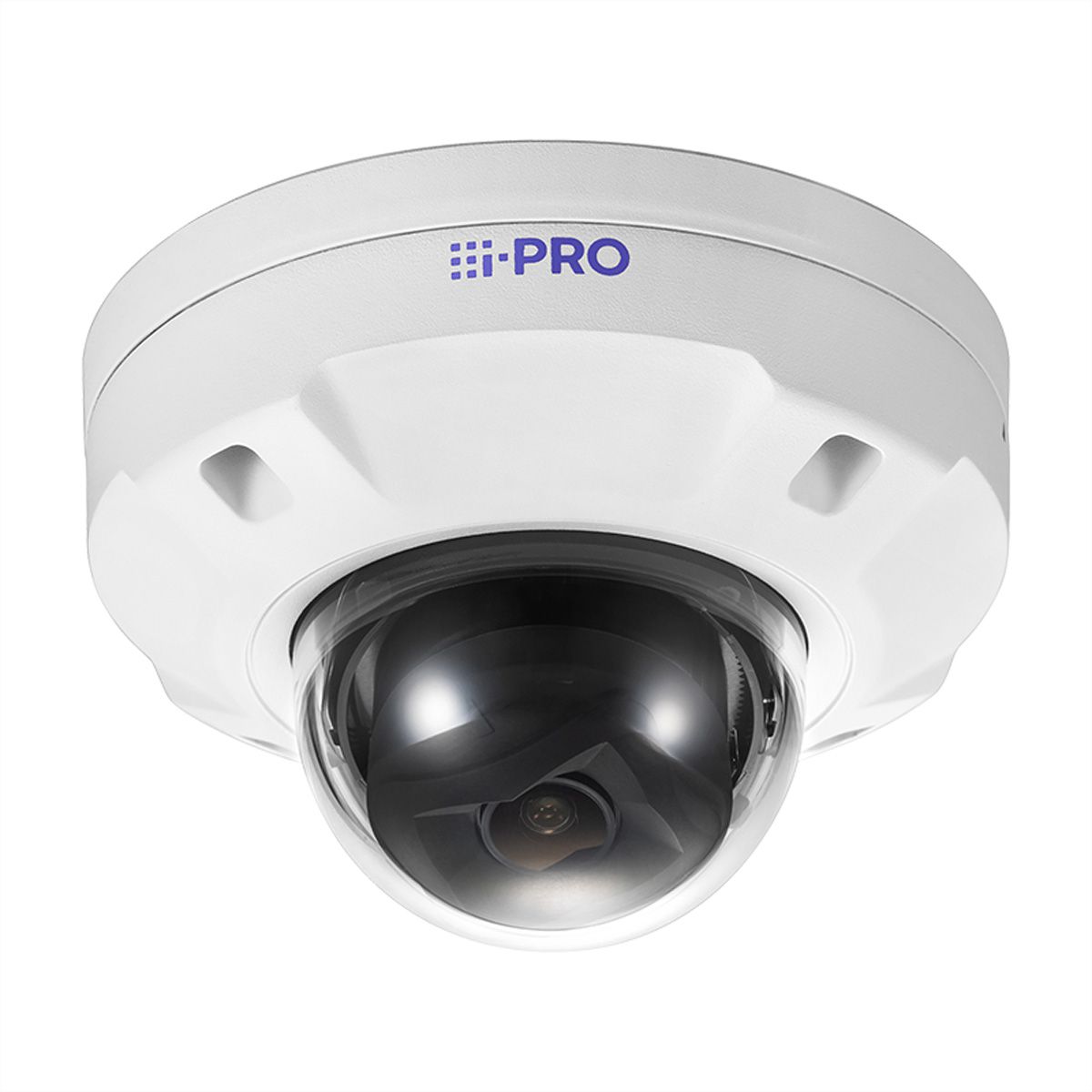

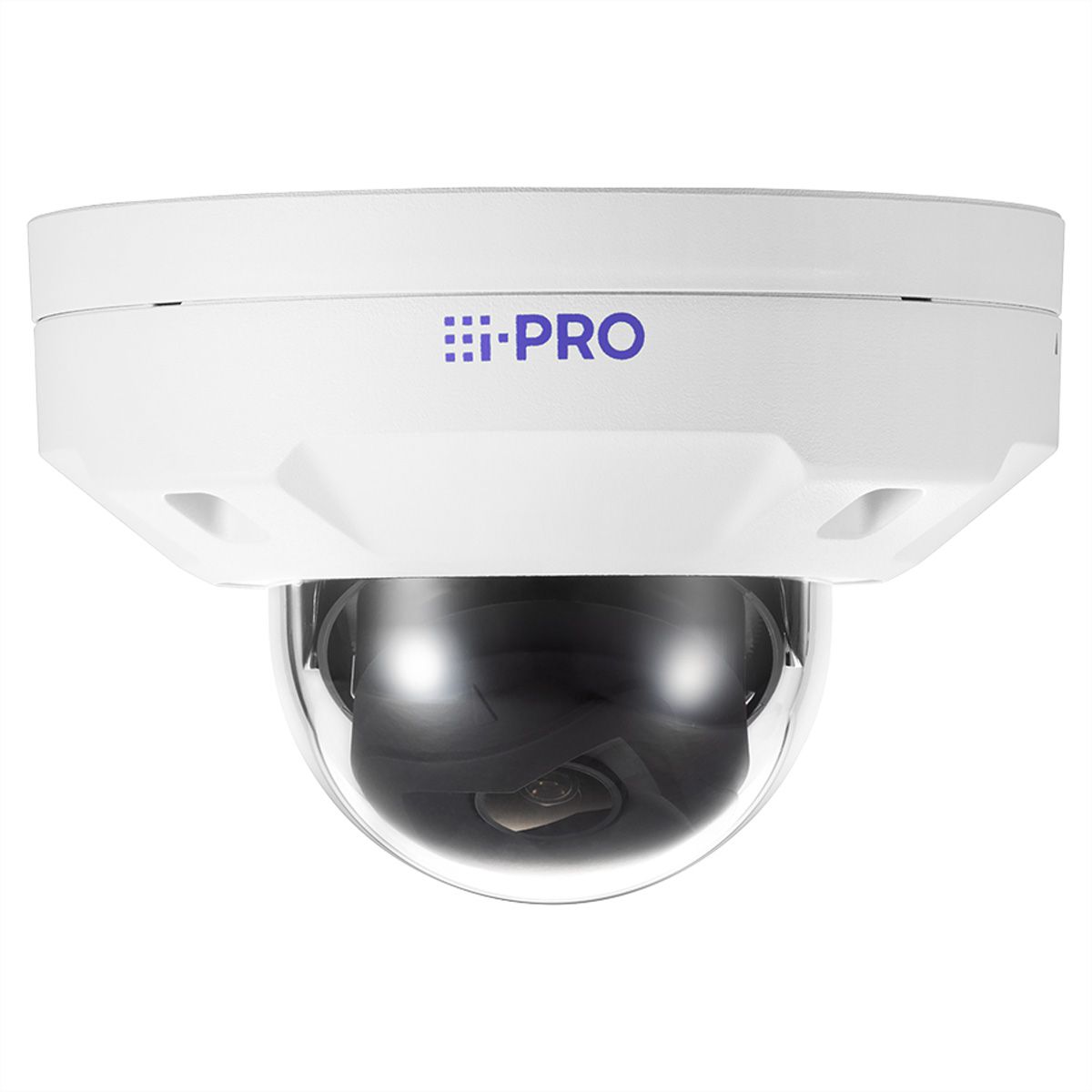

i-PRO 5MP OUTDOOR VANDAL Dome Camera

Item no. 21200266 Brand / Manufacturer i-PRO Manuf. item no. WV-U25502-V3L EAN 4570162074257 Item weight 1.369 kg

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Deliverable approx. 08/11/2026

Download PDF

Description

5MP OUTDOOR VANDAL Dome Camera

The WV-U25502-V3L, Outdoor, Dome, 5MP@30fps, RICOM, 3.2x, H:28 to 99deg.V:15 to 52deg., IR, H.265/H.264/JPEG, WDR[120dB], Onvif G, S, T, microSDXC, PoE, IK10, IP66, White(i-PRO), -30 °C to +50 °C, FIPS 140-3 Level3

Specifications

Manufacturer: i-PRO
Product group: IP surveillance
Product type: Fixed-Dome Network Camera
Colour: white
Mounting form: Fixed-Dome
Interface: LAN
ONVIF: yes
Image Sensor Type: 1/2.8 CMOS
Resolution: 5 MPx
Focal Length: 3.2 - 10.2 mm
Horizontal viewing angle: 99 °
Viewing angle vertical: 52 °
IR LED: yes
IR range (max.): 28 m
WDR: WDR
Memory Card Slot: yes
Power over Ethernet (PoE): yes
Protection class (IP Code): IK10

IP66
Suitable for Outdoor Use: yes
Mains connection: Power over Ethernet (PoE)
Operating temperature min.: -30 °C
Operating temperature max.: 50 °C
Height: 105 mm
Width: 154 mm
Depth: 154 mm
Weight: 974 g
Height of packaging (single piece): 180 mm
Width of packaging (single piece): 190 mm
Depth of packaging (single piece): 200 mm
Package weight (single piece): 1.369 kg

Downloads

Manufacturer data sheet - English (767.9 KB) Quick Installation Guide - English (38.9 MB)
