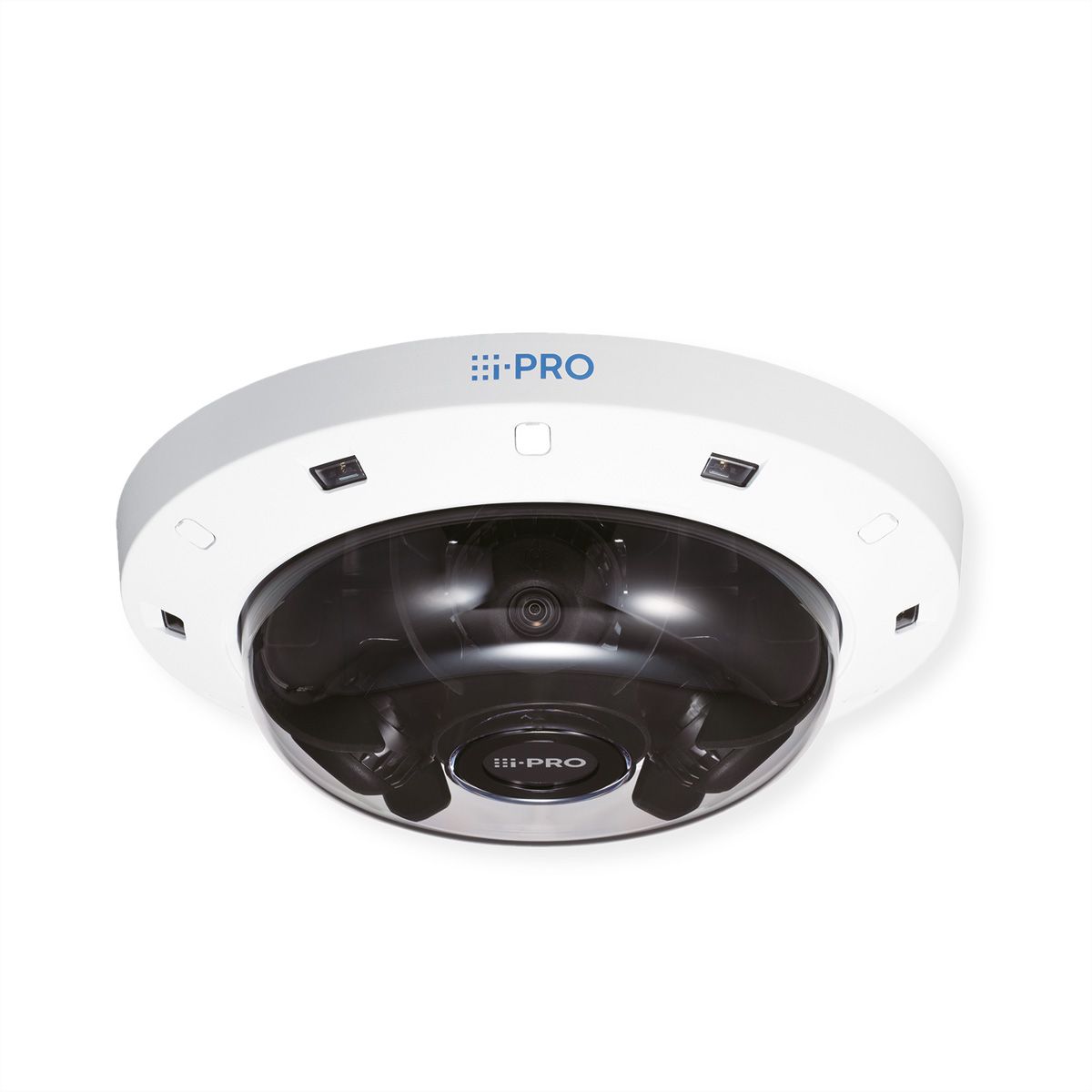

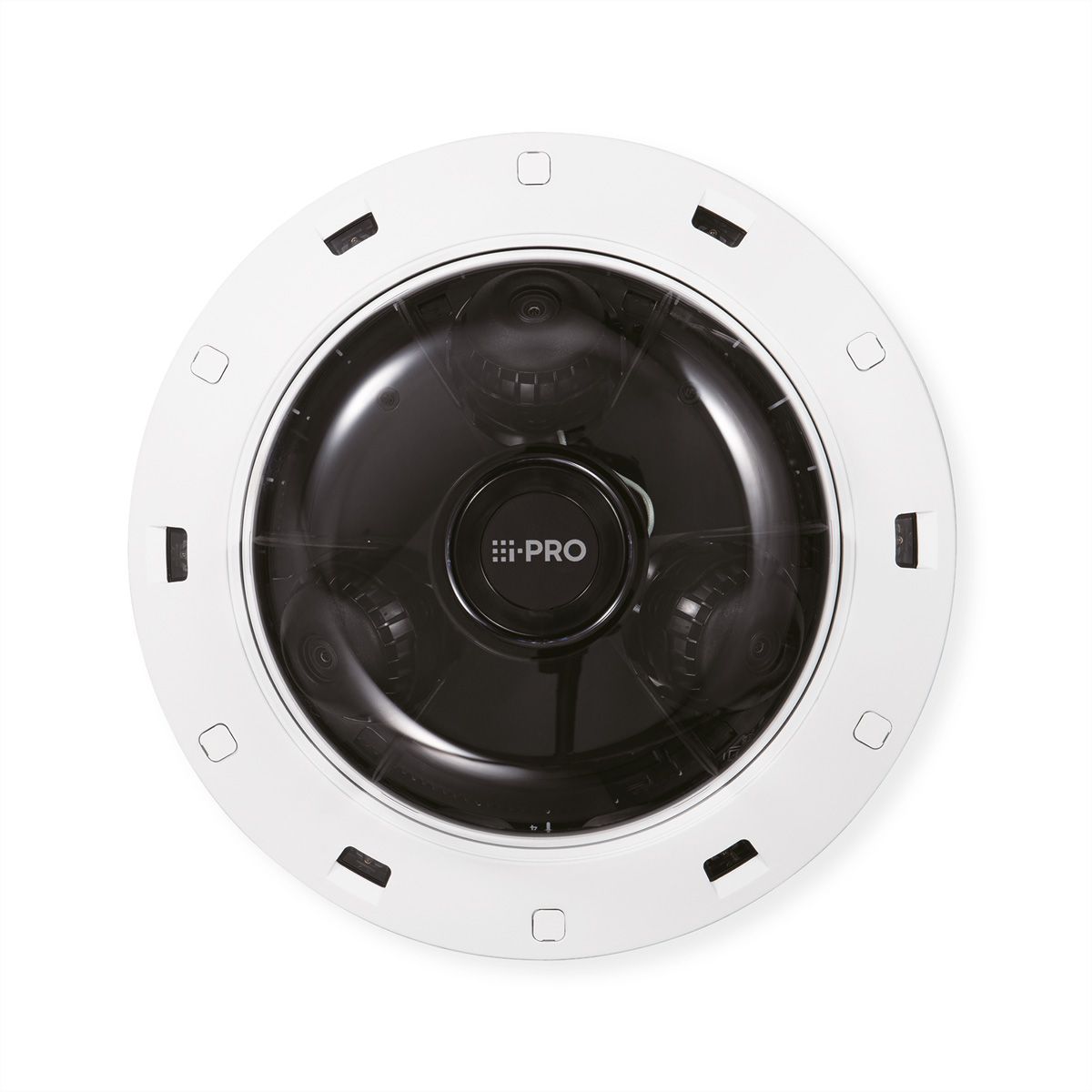

i-PRO WV-S8543L Multi-Sensor Kamera 3x 4 MP

Item no. 21194189 Brand / Manufacturer i-PRO Manuf. item no. WV-S8543L EAN 4582619071009 Item weight 4.287 kg
i-PRO

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
Deliverable approx. 08/11/2026
Download PDF

Description

3x4MP(12MP) Multi-Sensor-Netzwerkkamera für den Außenbereich mit AI-Engine

  • 3 x 4MP(12MP) 2688x1520 bis zu 30fps
  • 270°-Abdeckung mit einer IP-Adresse
  • Intelligente Automatik (mit AI-Engine)
  • Superdynamisch 108dB
  • Farbige Nachtsicht (0,21 bis 0,3 lx)
  • Intelligente Kodierung (mit AI-Engine)
  • Eingebaute 360° IR-LED
  • Ferngesteuerter Zoom und Fokus
  • Kontinuierliche Sichtunterstützung
  • Mechanismus zur Einstellung des Neigungswinkels über einen großen Bereich
  • ONVIF®-Profil G / M / S / T
  • FIPS 140-2 Stufe 3 zertifiziert

Specifications

Manufacturer
i-PRO
Product group
IP Überwachung
Product type
Multi-Sensor-Netzwerkkamera
Colour
white
Mounting form
Fixed-Dome
Interface
LAN
ONVIF
ja
Resolution
4 MPx
Maximum Resolution (Dots)
2688x1520
Framerate at max Resolution (Frames/Second)
30
Lens Type
Motorzoomobjektiv
Remote Controllable Optical Zoom
ja
Removable IR Cut Filter
ja
Day/Night Mode
ja
IR LED
ja
IR range (max.)
15 m
Audio Input
ja
Audio Output
ja
Digital Input
ja
Digital Output
ja
Motion Detection
ja
Memory Card Slot
ja
Power over Ethernet (PoE)
ja
WLAN
nein
Protection class
IP67/IP66 IK10
Suitable for Outdoor Use
ja
Mains connection
Power over Ethernet (PoE)
Operating temperature min.
-40 °C
Operating temperature max.
60 °C
Height
90 mm
Width
300 mm
Depth
300 mm
Weight
4.5 kg
Height of packaging (single piece)
370 mm
Width of packaging (single piece)
380 mm
Depth of packaging (single piece)
170 mm
Package weight (single piece)
4.287 kg

Downloads

Manufacturer data sheet - English (300.0 KB)

i-PRO EMEA - Industry know-how from Panasonic's history

(i-PRO EMEA has existed since October 1, 2021 as part of Japan-based i-PRO Co. Ltd.)

Building on a strong foundation with more than 60 years of industry know-how from Panasonic's history, i-PRO, as a proven and trustworthy partner among security manufacturers, offers high-performance hardware of the highest product standard.

These products are complemented by innovative open technology such as AI, taking data security and GDPR into account, and at a good price-performance ratio.
