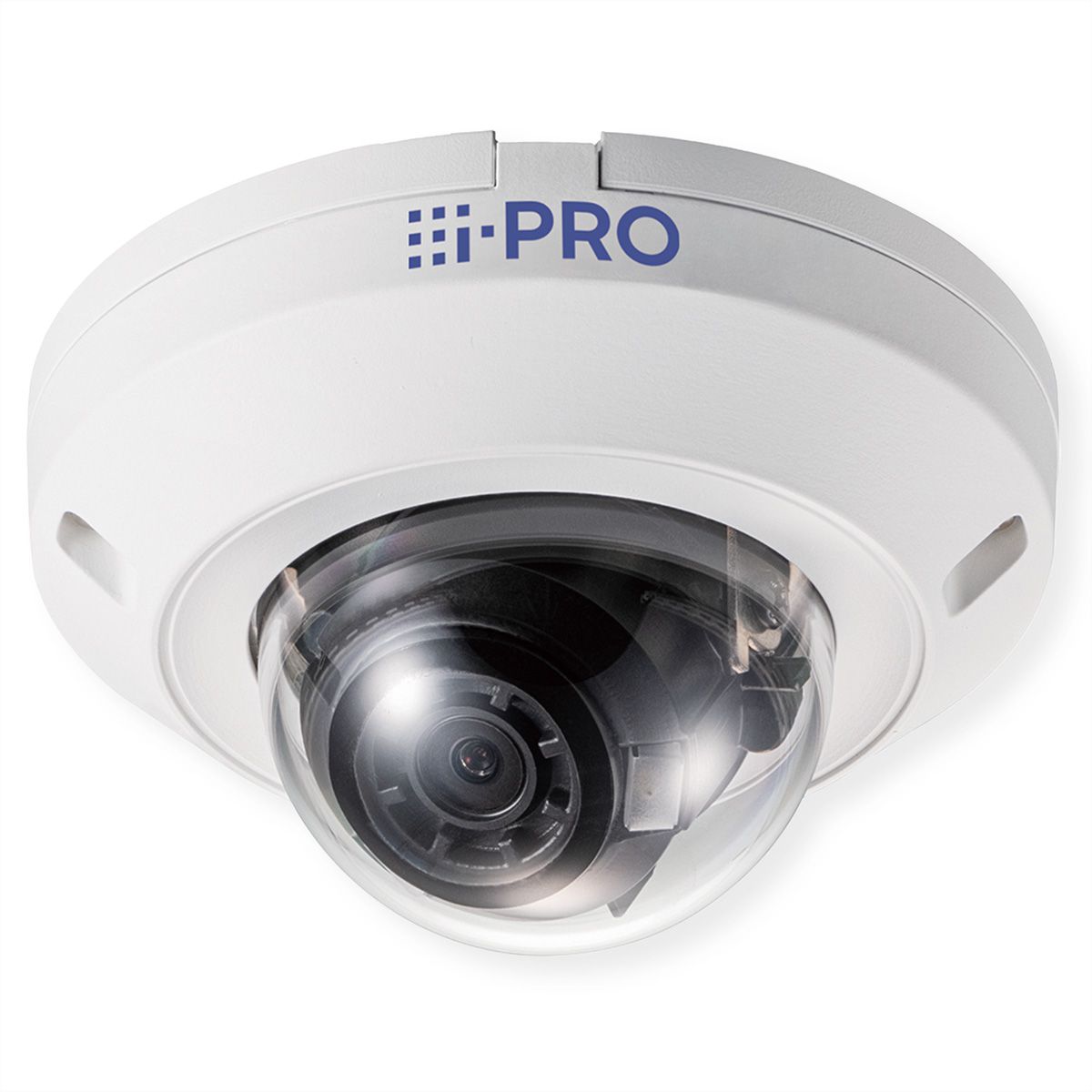

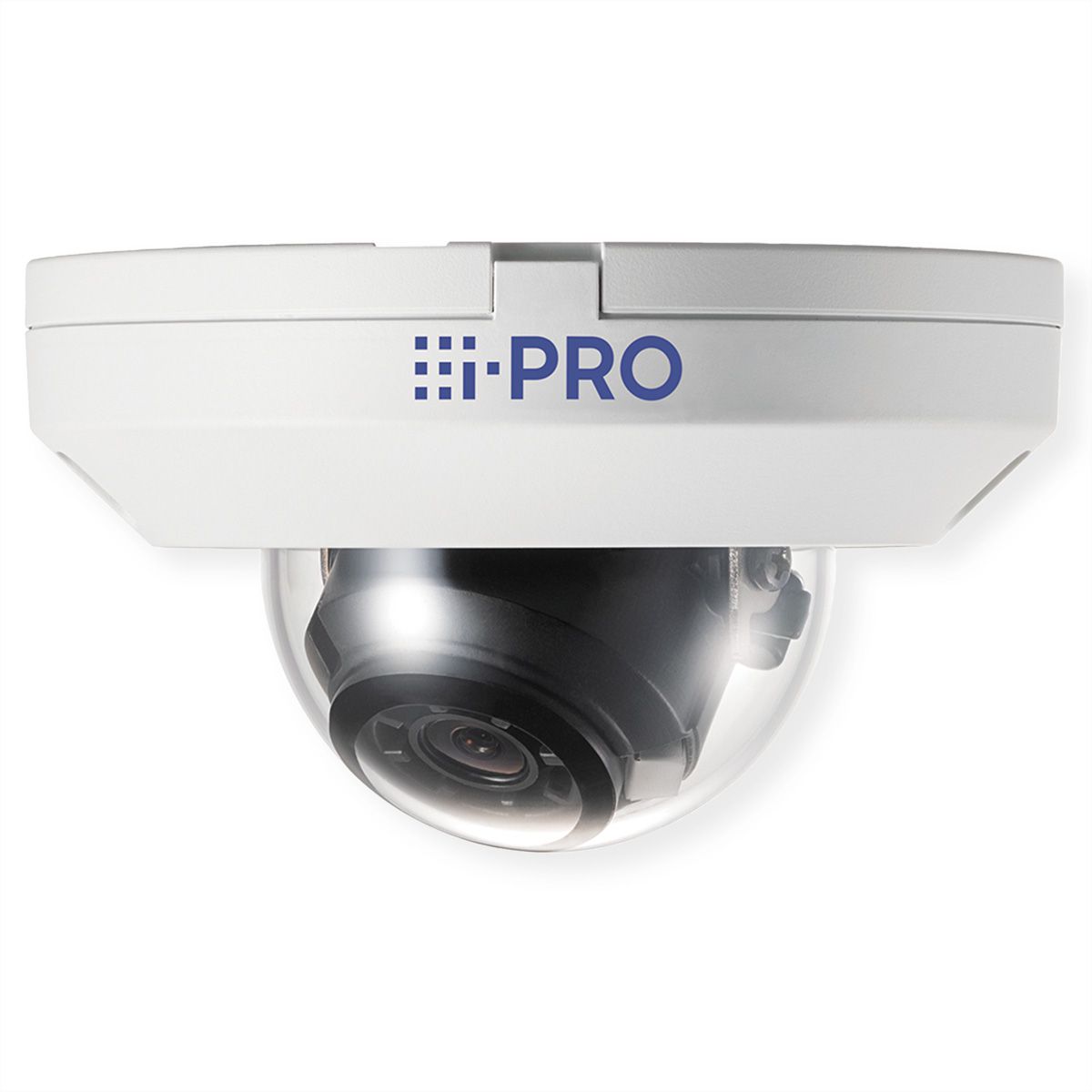

i-PRO WV-U2540LA Dome Kamera 4 MP, 100°, IR-LED 20m

Item no. 21194170 Brand / Manufacturer i-PRO Manuf. item no. WV-U2540LA EAN 4549980538364 Item weight 0.446 kg
i-PRO

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
Deliverable approx. 08/11/2026
Download PDF

Description

Netzwerkkamera 4 MP im gekapselten Fixkuppelgehäuse für den Außeneinsatz - 4MP Outdoor Dome Network Camera

Netzwerkkamera 4 MP im gekapselten Fixkuppelgehäuse für den Außeneinsatz, integrierte IR-LED-Beleuchtung, H.265/JPEG, 1/2.7 CMOS Sensor, Smart Coding, 30 Bilder/s, Lichtempfindlichkeit 0,3 Lux Farbe/ 0,12 Lux SW bei F2,0, Weitwinkel-Objektiv 3,16 mm, Öffnungswinkel H: 100° V: 54°, Stromversorgung PoE (IEEE802.3af) 5,3 W

  • 4 Megapixel bei bis zu 30 Bildern pro Sekunde
  • Integriertes Objektiv mit festem Fokus
  • iA (intelligente Automatik)
  • Super Dynamic 102 dB
  • Farb-Nachtsicht (0,019 bis 0,3 lx)
  • H.265 Smart Coding
  • Korridormodus (90 Grad oder 270 Grad Bilddrehung)

Specifications

Manufacturer
i-PRO
Product group
Sicherheitskameras
Product type
Fixed-Dome-Netzwerkkamera
Colour
white
Mounting form
Fixed-Dome
Interface
LAN
ONVIF
ja
Image Sensor Type
1/2.7 CMOS
Resolution
4 MPx
Maximum Resolution (Dots)
2560x1440
Framerate at max Resolution (Frames/Second)
30
Video Compression
H.265, JPEG
Lens Type
Fixes Objektiv
Focal Length
f=3.2 mm {1/8 inches}, F2.0
Horizontal viewing angle
100 °
Removable IR Cut Filter
ja
Day/Night Mode
ja
IR LED
ja
IR range (max.)
20 m
Memory Card Slot
ja
Power over Ethernet (PoE)
ja
Protection class
IK10
Suitable for Outdoor Use
ja
Mains connection
Power over Ethernet (PoE)
Operating temperature min.
-30 °C
Operating temperature max.
50 °C
Height
62 mm
Width
109 mm
Depth
109 mm
Weight
490 g
Height of packaging (single piece)
110 mm
Width of packaging (single piece)
160 mm
Depth of packaging (single piece)
160 mm
Package weight (single piece)
0.446 kg

Downloads

Manufacturer data sheet - English (227.2 KB)

i-PRO EMEA - Industry know-how from Panasonic's history

(i-PRO EMEA has existed since October 1, 2021 as part of Japan-based i-PRO Co. Ltd.)

Building on a strong foundation with more than 60 years of industry know-how from Panasonic's history, i-PRO, as a proven and trustworthy partner among security manufacturers, offers high-performance hardware of the highest product standard.

These products are complemented by innovative open technology such as AI, taking data security and GDPR into account, and at a good price-performance ratio.
