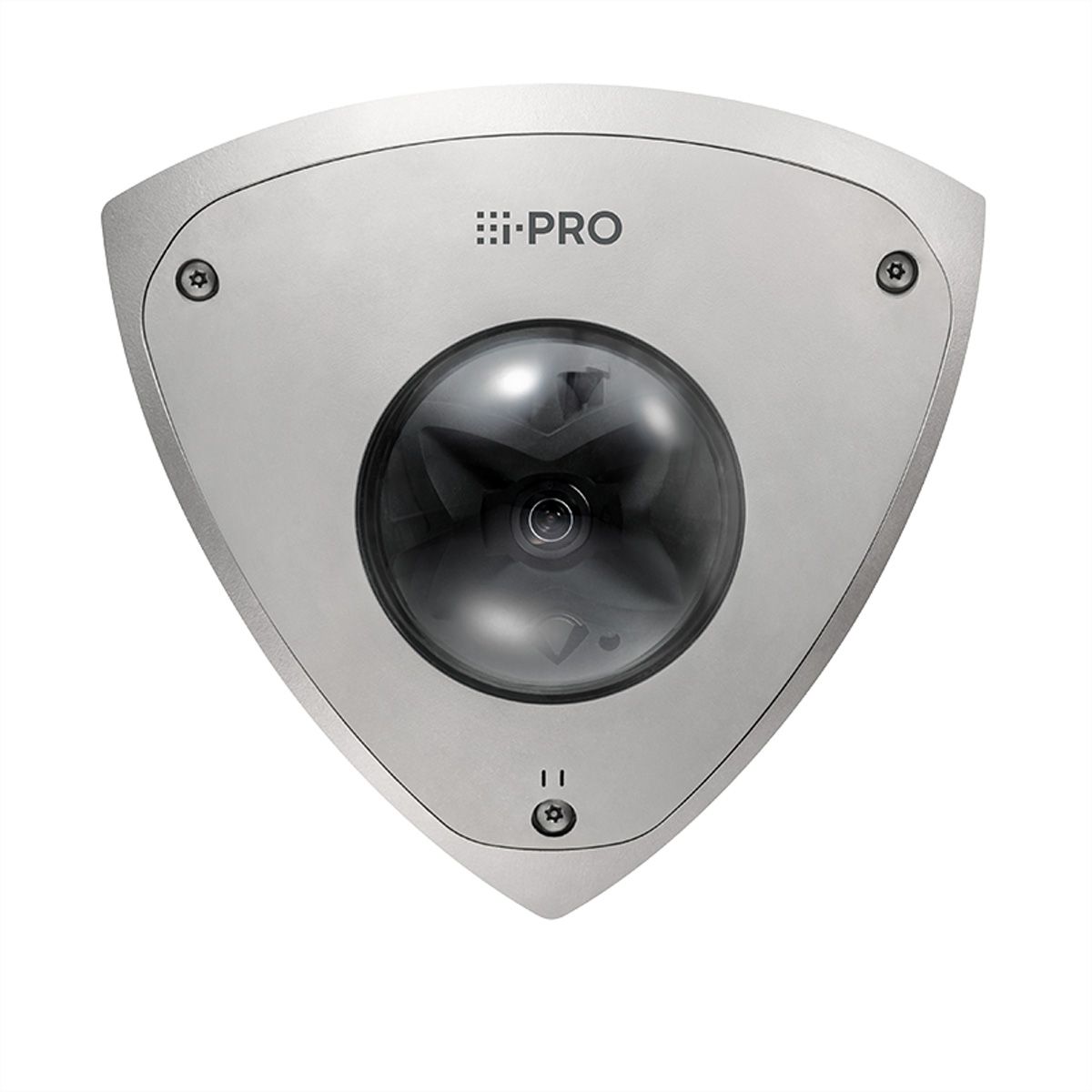

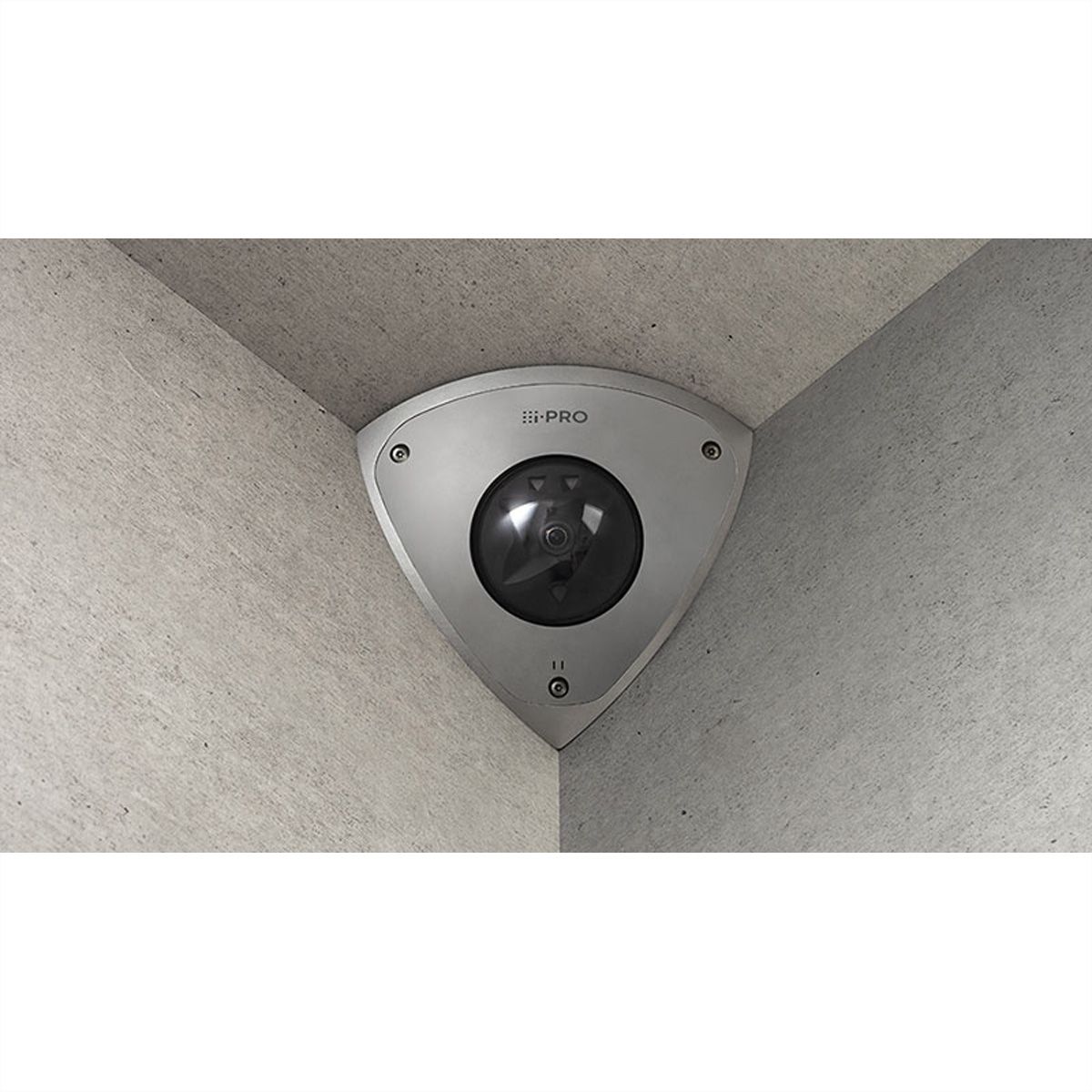

i-PRO WV-X25580-F2LN2V Corner Vandal-Kamera 5 MP, 131°, IR-LED 20m

Item no. 21196850 Brand / Manufacturer i-PRO Manuf. item no. WV-X25580-F2LN2V EAN 4570162072260 Item weight 2.794 kg
i-PRO
Product recommendations

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
Deliverable approx. 08/11/2026
Download PDF

Description

Edelstahl-Eckkamera mit stoßfestem Gehäuse und KI-gestützter Analytik

  • 5MP-Eckkamera
  • Bis zu 3 Edge AI-Analyse-Apps
  • Großer Blickwinkel (Horizontal 131°)
  • Ausgestattet mit IR LED für unsichtbare Infrarotstrahlen (940nm)
  • Eingebautes Mikrofon
  • IP66, IP67, IP69 zertifiziert, IK11+ (70J)*
  • Eingebautes FIPS 140-2 Level 3 zertifiziertes SecureElement
  • NDAA-konform, hergestellt in Japan

optimal geeignet für:

  • Gefängnisse / Haftzellen
  • Psychiatrien
  • Polizeistationen
  • Schulen und öffentliche Gebäude
  • Industrieanlagen
  • Unterführungen, Bahnhöfe, kritische Infrastruktur
  • Bereiche mit hohem Vandalismusrisiko

Specifications

Manufacturer
i-PRO
Product group
IP Überwachung
Product type
Fixed-Dome-Netzwerkkamera
Colour
grey
Mounting form
Fixed-Dome
Interface
LAN
ONVIF
ja
Image Sensor Type
1/2,8 type CMOS beeldsensor
Resolution
5 MPx
Maximum Resolution (Dots)
3072x1728
Framerate at max Resolution (Frames/Second)
25
Video Compression
H.265/H.264
Lens Type
Fixes Objektiv
Focal Length
2.3mm
Horizontal viewing angle
131 °
Viewing angle vertical
70 °
Removable IR Cut Filter
ja
Day/Night Mode
ja
IR LED
ja
IR range (max.)
20 m
Memory Card Slot
ja
Power over Ethernet (PoE)
ja
WLAN
nein
Protection class
IP66, IP67, IP69 gecertificeerd, IK11
Protection class (IP Code)
  • IP67
  • IK10
Suitable for Outdoor Use
ja
Mains connection
Power over Ethernet (PoE)
Operating temperature min.
-40 °C
Operating temperature max.
55 °C
Height
128 mm
Width
197 mm
Depth
138 mm
Weight
1900 g
Height of packaging (single piece)
260 mm
Width of packaging (single piece)
230 mm
Depth of packaging (single piece)
300 mm
Package weight (single piece)
2.794 kg
