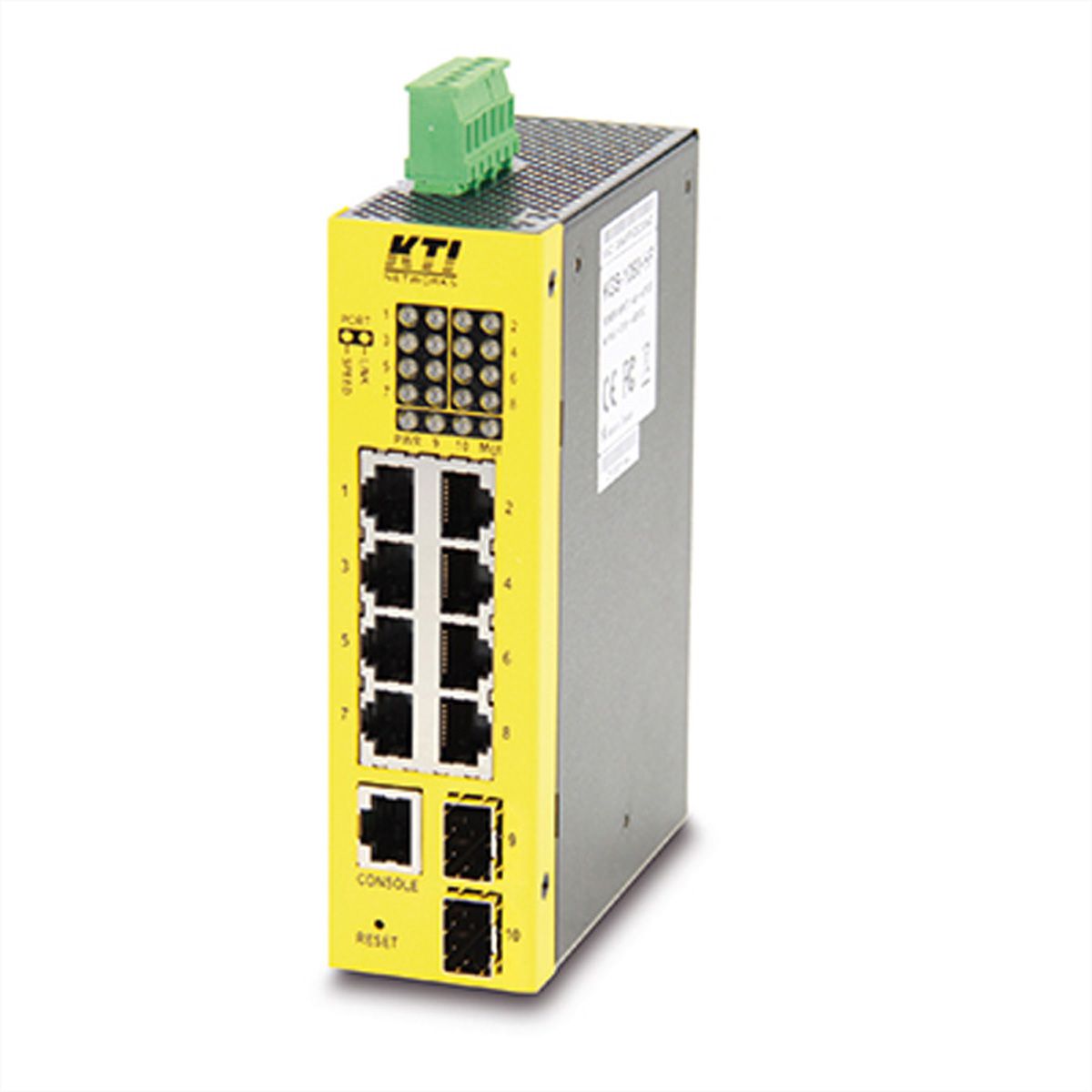

KTI KGS-1060-HP 10-Port Gigabit PoE Switch Industrie
Item no.
21131707
Brand / Manufacturer
KTI Networks
Manuf. item no.
KGS-1060-HP /B
EAN
4718723901967
Item weight
0.811 kg
:strip_icc():strip_exif()/logos/kti-networks.png "KTI Networks")
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Description
10-Port managed PoE Gigabit Industrie Switch mit 8x 10/100/1000 Mbps RJ45-Ports und 2x 100/1000 Mbps SFP (Dual Speed) Ports.
MDI/MDI-X auf allen RJ45 Ports, PoE nach IEEE802.3at Standard, Port 1-4 PSE Ports, Management via Web (HTTPS, SSH), Telnet und SNMP, unterstützt VLAN, QoS, IGMP Snooping, Spanning Tree, proprietäre Multi Redundant Ring Funktion, IPv6-fähig, SFP DDM, Hutschienenmontage, optimiertes Latenzverhalten, erweiterter Temperaturbereich, Stromversorgung +12 bis +57 VDC, erweiterte Temperatur -30°C bis 70°C, Stromversorgung nicht im Lieferumfang, lüfterlos im Metallgehäuse- 8x 10/100/1000Mbit/s RJ-45 und 2x Dual-Speed SFP Slots
- Alle Kupfer-Ports unterstützen Auto-Negotiation und Auto-MDI/MDI-X Erkennung
- Zwei SFP-Slots für 100Base-FX und 1000Base-SX Transceiver
- In-band web und SNMP Management Interfaces
- Port Link Aggregation
- Unterstützt 802.3x Flow Control für Full-Duplex und Backpressure für Halb-Duplex
- Vier PoE PSE-Ports (IEEE 802.3at)
- Unterstützt SFP mit Digital Diagnostic Monitoring (DDM)
Specifications
- Manufacturer
- KTI Networks
- Product group
- Industrial Networking
- Product type
- Netzwerk-Switch
- Scope of delivery
- Switch
- Network standard
- Gigabit Ethernet
- LAN (Mbps)
- 10/100/1000
- Quantity of ports
- 10
- Gigabit Ethernet Ports RJ-45
- 8
- Fast Ethernet Ports Fibre
- 2
- Gigabit Ethernet Ports Fibre
- 2
- Free slots for SFPs
- 2
- Power over Ethernet (PoE)
- ja
- Quantity of PoE ports
- 4
- Mounting form
- Hutschiene
- Stackable
- nein
- Dimensions (HxWxD)
- 140 x 106 x 42 mm
- Power supply
- Externes Netzteil
- Operating temperature min.
- -30 °C
- Operating temperature max.
- 70 °C
- Height
- 140 mm
- Width
- 106 mm
- Depth
- 42 mm
- Height of packaging (single piece)
- 80 mm
- Width of packaging (single piece)
- 170 mm
- Depth of packaging (single piece)
- 280 mm
- Package weight (single piece)
- 0.811 kg
Downloads
User manual - English (549.8 KB)Product security
