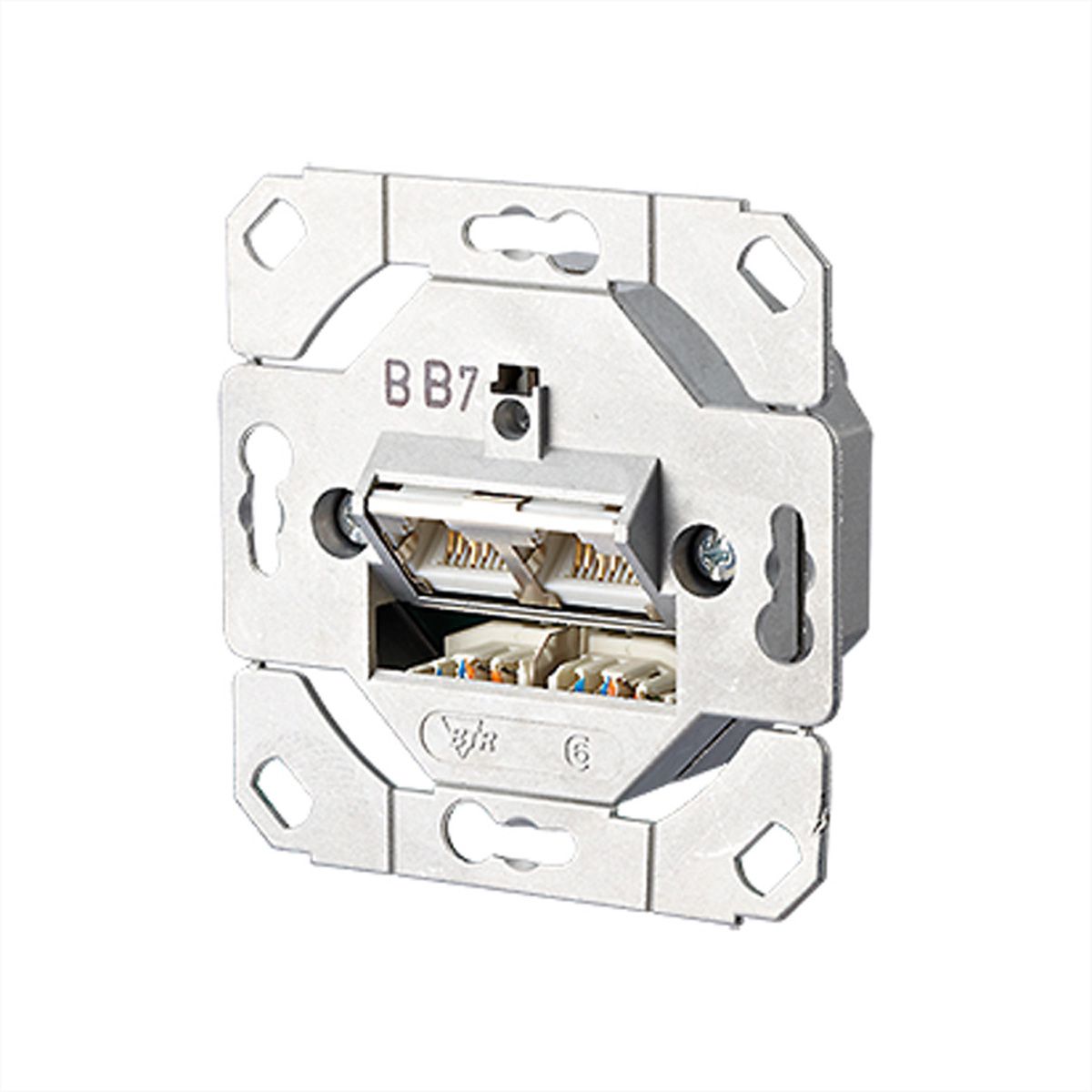

METZ CONNECT E-DAT C6 Anschlussdose UP0 zweifach

Item no. 25168467 Brand / Manufacturer METZ CONNECT Manuf. item no. 1307381200-I EAN 4250184102656 Item weight 0.131 kg
METZ CONNECT

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day

Description

Anschlussdose Kat.6/CLASS E mit zwei 8-poligen RJ45-Buchsen

  • ohne Rahmen und ohne Frontblende
  • Einhaltung der Klasse EA nach ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09
  • Link getestet bis 500 MHz - für 10GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus und UPoE) und HDBaseT geeignet
  • Steckrichtung der RJ45-Stecker 45° nach unten geneigt
  • Praxisgerechte Kabelzuführung von 8 Seiten
  • LSA Schneidklemmtechnik - Beschaltung nach ISO/IEC 11801/EN 50173-1 Norm
  • Mit Sichtfenster für Beschriftungseinlage (beiliegend)
  • Vollgeschirmt
  • EMV-sicher nach EN 55022-B, EN 50082-1
  • Geeignet zu Montag in Standard-Unterputzbechern und Hohlwandbecher
  • Integrierte Staubschutzklappen
  • Oberfläche matt strukturiert

Specifications

Manufacturer
METZ CONNECT
Product group
Anschlusstechnik TP
Product type
Anschlussdose Kat.6 / Klasse E
Colour
silver
Shield type
geschirmt
Transfer quality
Cat6 / Class E
Wall fixening
Unterputz
Quantity of ports
2
Assembly cable connection
Krone LSAplus
Modular assembly
nein
Shield contacts
ja
separate strain relief
ja
Connection direction
45°-Neigung
Dimensions (HxWxD)
80,5 x 80,5 x 38,5 mm
Assembly depth
32 mm
Height
80.5 mm
Width
80.5 mm
Depth
38.5 mm
Weight
132 g
Height of packaging (single piece)
50 mm
Width of packaging (single piece)
100 mm
Depth of packaging (single piece)
140 mm
Package weight (single piece)
0.131 kg

Downloads

Manufacturer data sheet - Français (3.5 MB) Manufacturer data sheet - Deutsch (3.4 MB) Manufacturer data sheet - English (3.4 MB)
