Description

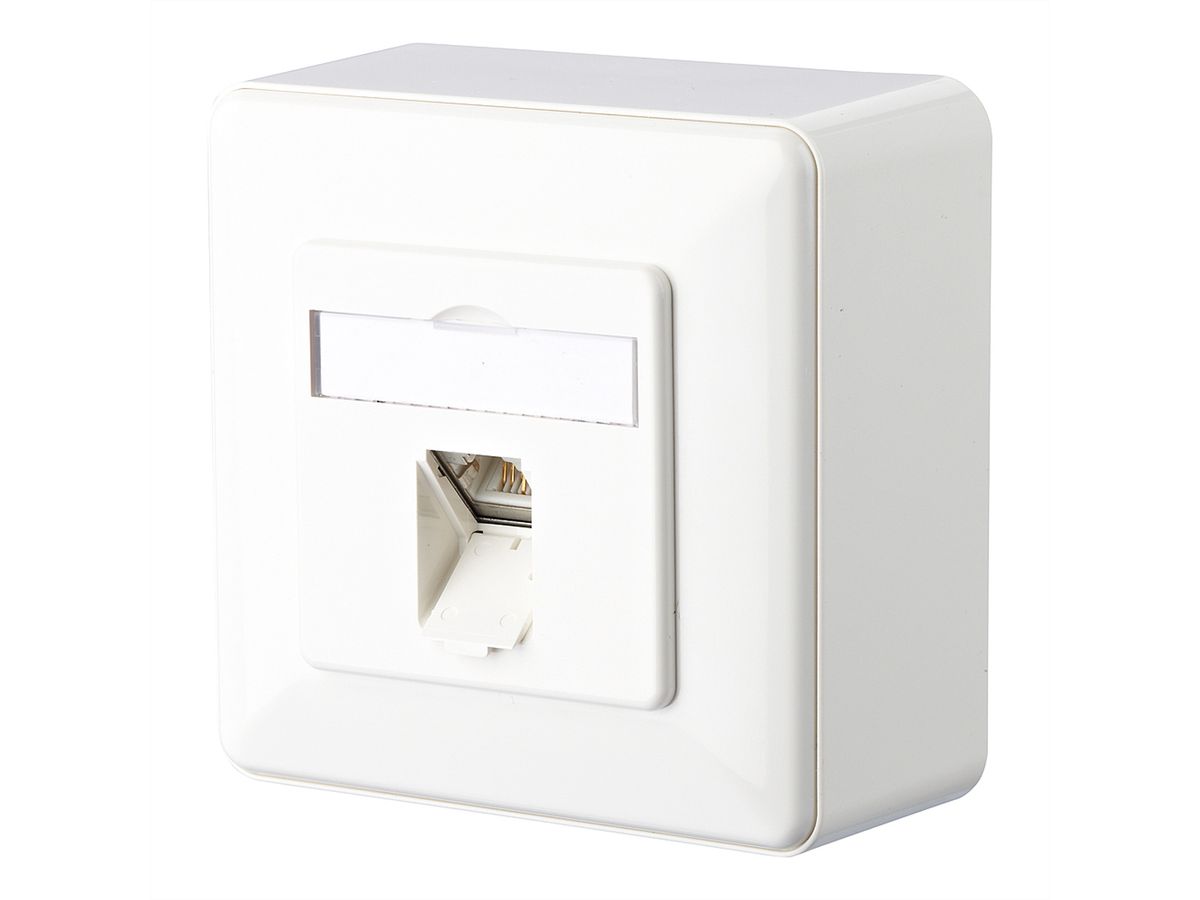

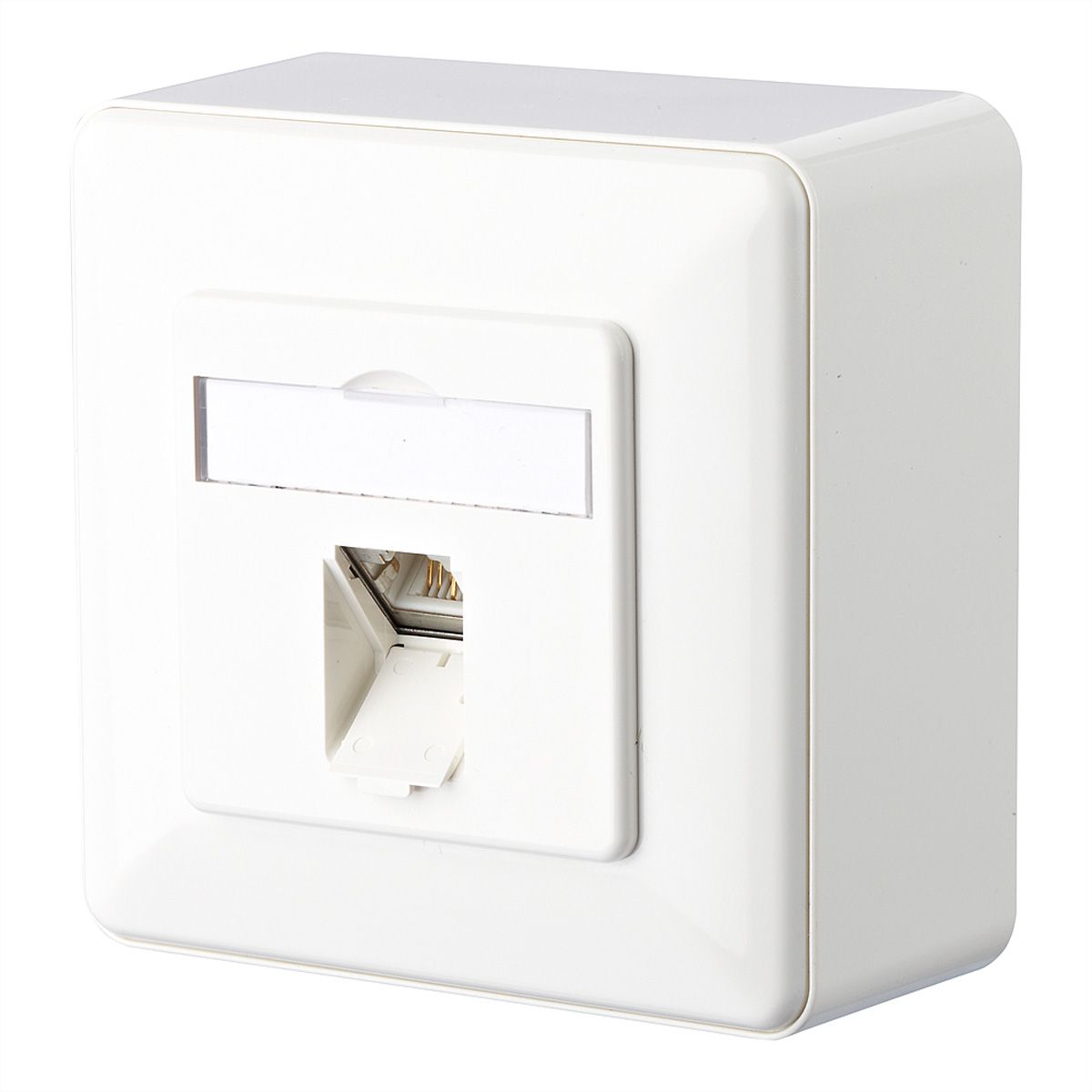

Compact wall outlet for the construction of a passive network infrastructure with the highest quality requirements.

The junction box is suitable for connecting telephones up to 10 Gbit networks and power supply with PoE with up to 90W. The installer can connect the very robust zinc die-cast wall outlet very easily and in the shortest possible time with an LSA installation tool without errors. In addition to the permanent quality control during production, independent test laboratories confirm the very good quality with various certificates.

Specifications

Manufacturer	METZ CONNECT
Product group	Connection technology TP
Product type	Connection box Cat.6A
Colour	white
Shield type	Screened
Transfer quality	Cat6A / Class EA
Wall fixening	Wall mount
Quantity of ports	1
Assignment	EIA/TIA 568A & 568B
Halogen free	yes
Protection class (IP Code)	IP20
Connection direction	45°-inclination
RAL colour	RAL 9010 Pure white
Operating temperature min.	-40 °C
Operating temperature max.	70 °C
Height	85 mm
Width	85 mm
Depth	43 mm
Weight	198.7 g
Height of packaging (single piece)	50 mm
Width of packaging (single piece)	100 mm
Depth of packaging (single piece)	120 mm
Package weight (single piece)	0.2 kg

Downloads

Manufacturer data sheet - Français (5.5 MB)

Download

Manufacturer data sheet - Deutsch (5.5 MB)

Download

Manufacturer data sheet - English (5.5 MB)

Download

Accesories

METZ CONNECT Abdeckplatte 80 x 80 mm reinweiß, E-DAT C6

Item no.:	26110777
Manuf. item no.	816718-0102-I

None EUR incl. VAT



METZ CONNECT Aufputzrahmen 85 x 85 x 35 mm, 1fach, reinweiß

Item no.:	26110794
Manuf. item no.	130829-02-I

None EUR incl. VAT





The company METZ CONNECT was formed more than 10 years ago, bringing BTR and other brands together under one company roof.

With its BTR Netcom brand, METZ CONNECT is one of the technological market leaders in the passive network technology market. Anyone who wants to set up a high-quality data infrastructure is well advised to use the products of this company.

More about METZ CONNECT

Product security

Information in accordance with the EU Product Safety Regulation, (GPSR):

METZ CONNECT GmbH
Im Tal 2, 78176 Blumberg, Germany
