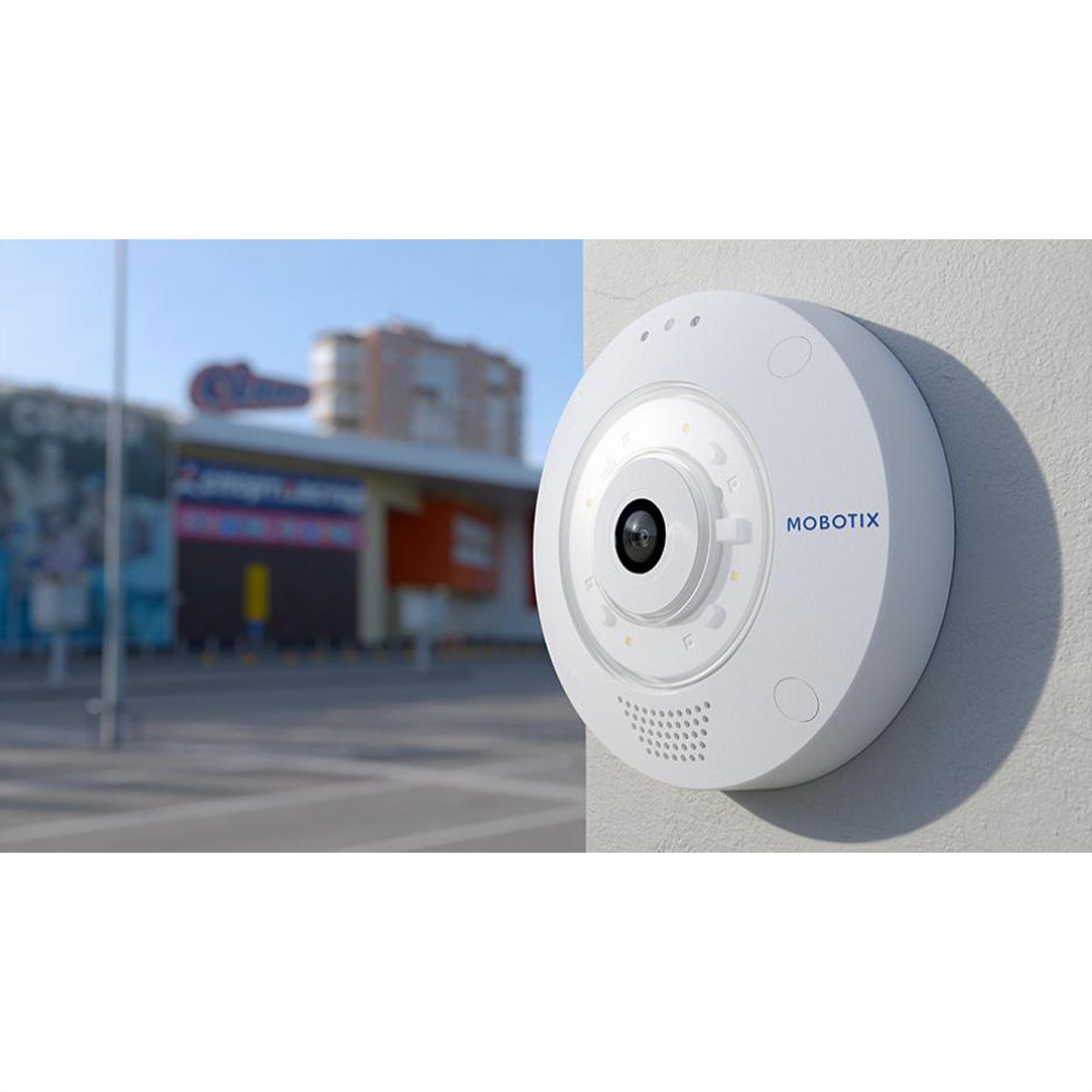

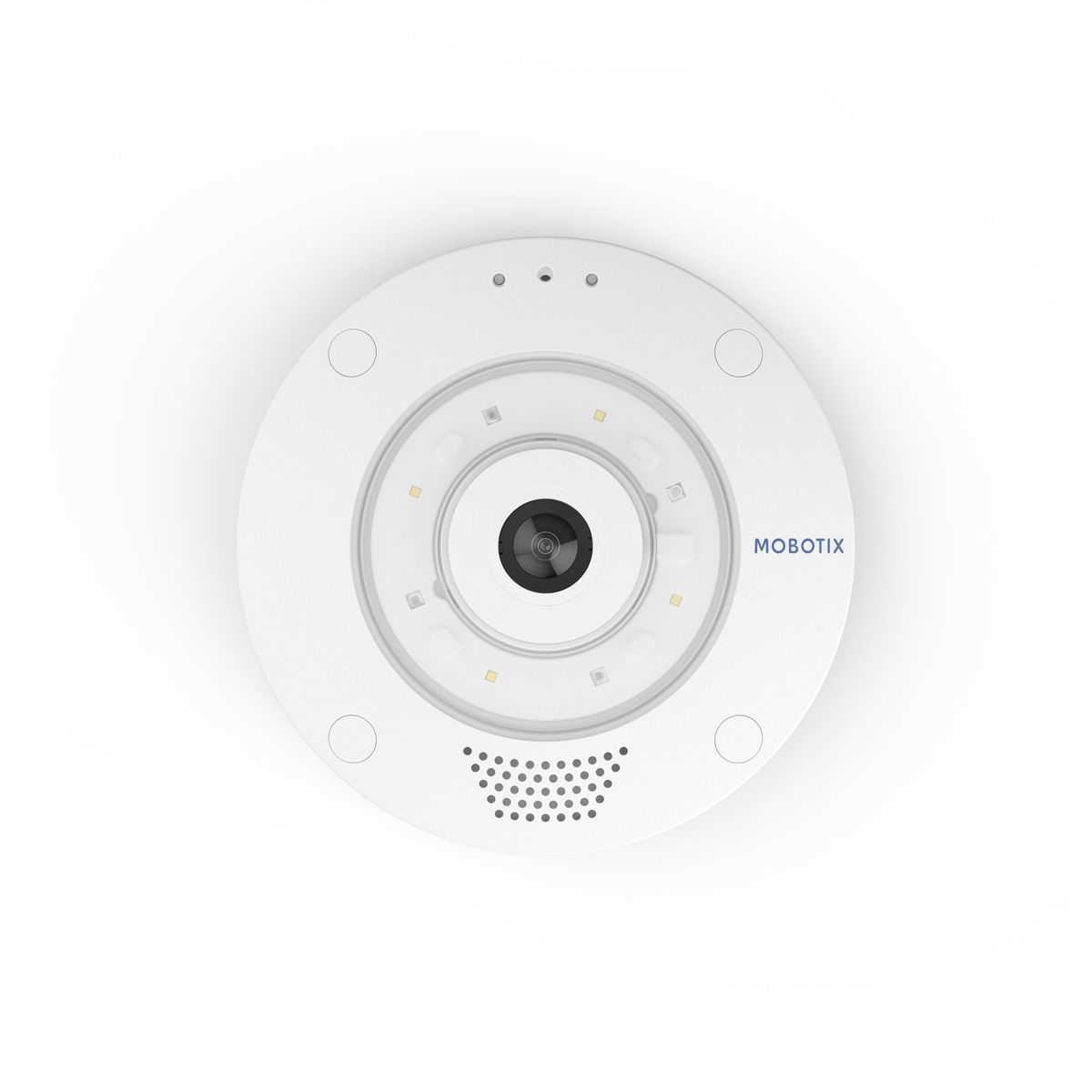

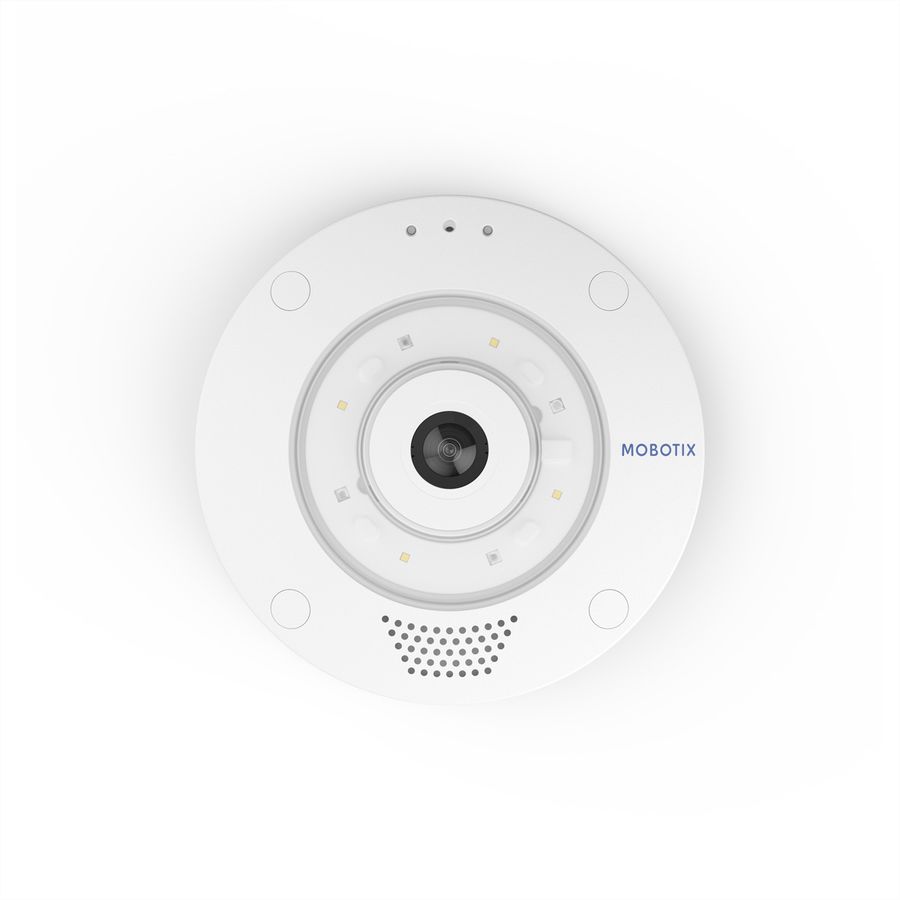

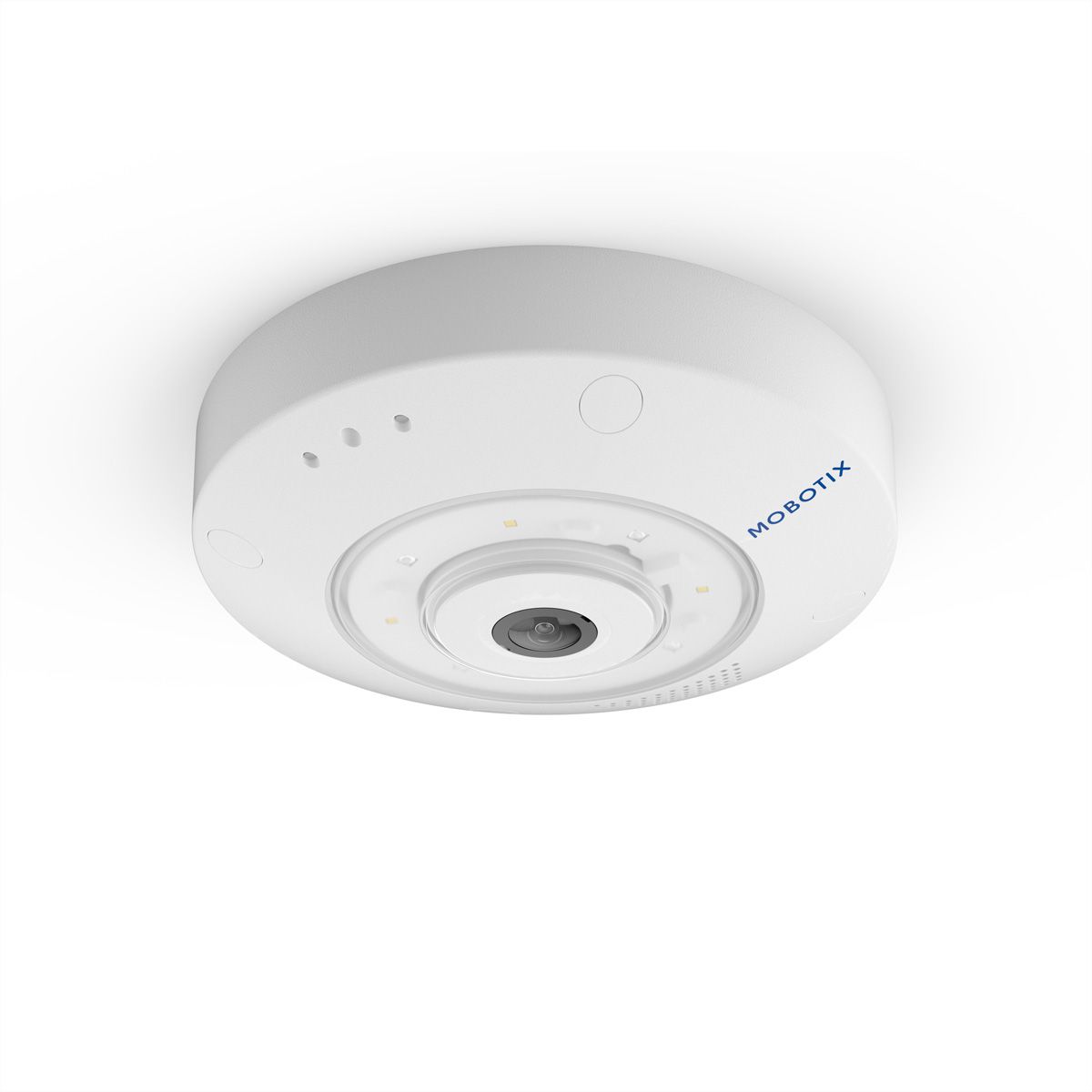

Mobotix Q71B Fisheye Kamera 12 MP, 180°/360°, Weisslicht & IR-LED bis 15m

Item no. 21194544 Brand / Manufacturer MOBOTIX Manuf. item no. Mx-Q71B-12DN016 EAN 4047438050135 Item weight 1.031 kg
MOBOTIX
Product recommendations

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
Deliverable approx. 08/11/2026

Description

Die MOBOTIX Q71 sieht alles und immer. Ihre 360° Optik ist überall. Zum ersten Mal sind IR- und LED-Weisslicht in einer hemisphärischen Kamera vereint. So machen Sie sogar die Nacht farbig! 12 Megapixel und WDR sorgen für brillante Bildqualität und beeindruckende Details. Die integrierte Audiofunktion verschafft Ihnen Gehör. Eingebettet in die MOBOTIX 7 Plattform mit ihren intelligenten Apps bietet Ihnen das umfassende Videosystem eine unendliche Palette an Analysemöglichkeiten.

So komplett war Rundum noch nie:

  • Diskrete 360° Rundumsicht (Fish-Eye)
  • IR- und Weisslicht in einer hemisphärischen Kamera
  • 12 MP-Sensor mit WDR-Funktion
  • Tag-/Nacht-Umschaltung
  • Wetterfestes Aluminiumgehäuse für innen und außen
  • Inklusive Audiofunktion für direkte Kommunikation
  • Wetterfest (IP66, -40 bis 65 °C) und stossgeschützt (IK10)
  • Teil der MOBOTIX 7 Plattform inkl. intelligenter Apps

MOBOTIX stellt im Rahmen eines technischen Updates alle MOBOTIX 7 Single Lens Kameras von A- auf B-Modelle um. Dabei werden bestimmte Hardwarekomponenten ausgetauscht, ohne dass sich die Funktionen ändern. Zusätzlich erhalten die Modelle D71 und Q71 einen potenzialfreien Relais-Ausgang für den Schaltausgang – analog zur MOBOTIX ONE.

Specifications

Manufacturer
MOBOTIX
Product group
Sicherheitskameras
Product type
Fish-Eye-Netzwerkkamera
Colour
white
Mounting form
Fish-Eye
Type
MOBOTIX Q71
Interface
LAN
Resolution
12 MPx
Maximum Resolution (Dots)
2882 x 2882 (12MP hemispheric)
Framerate at max Resolution (Frames/Second)
30fps@4K (H.264/H.265)
Video Compression
MxPEG, M-JPEG, H.264, H.265
Lens Type
Fixes Objektiv
Field of View
180° / 360°
Removable IR Cut Filter
ja
Day/Night Mode
ja
IR LED
ja
IR range (max.)
15 m
WDR
WDR
Audio Input
ja
Audio Output
ja
Digital Input
ja
Digital Output
ja
Integrated PIR Sensor
nein
Motion Detection
ja
Memory Card Slot
ja
Power over Ethernet (PoE)
ja
WLAN
nein
Protection class (IP Code)
  • IP66
  • IK10
Suitable for Outdoor Use
ja
Mains connection
Power over Ethernet (PoE)
Operating temperature min.
-40 °C
Operating temperature max.
65 °C
Height
14.8 cm
Width
18 cm
Depth
19.6 cm
Weight
1 kg
Height of packaging (single piece)
160 mm
Width of packaging (single piece)
180 mm
Depth of packaging (single piece)
200 mm
Package weight (single piece)
1.031 kg
