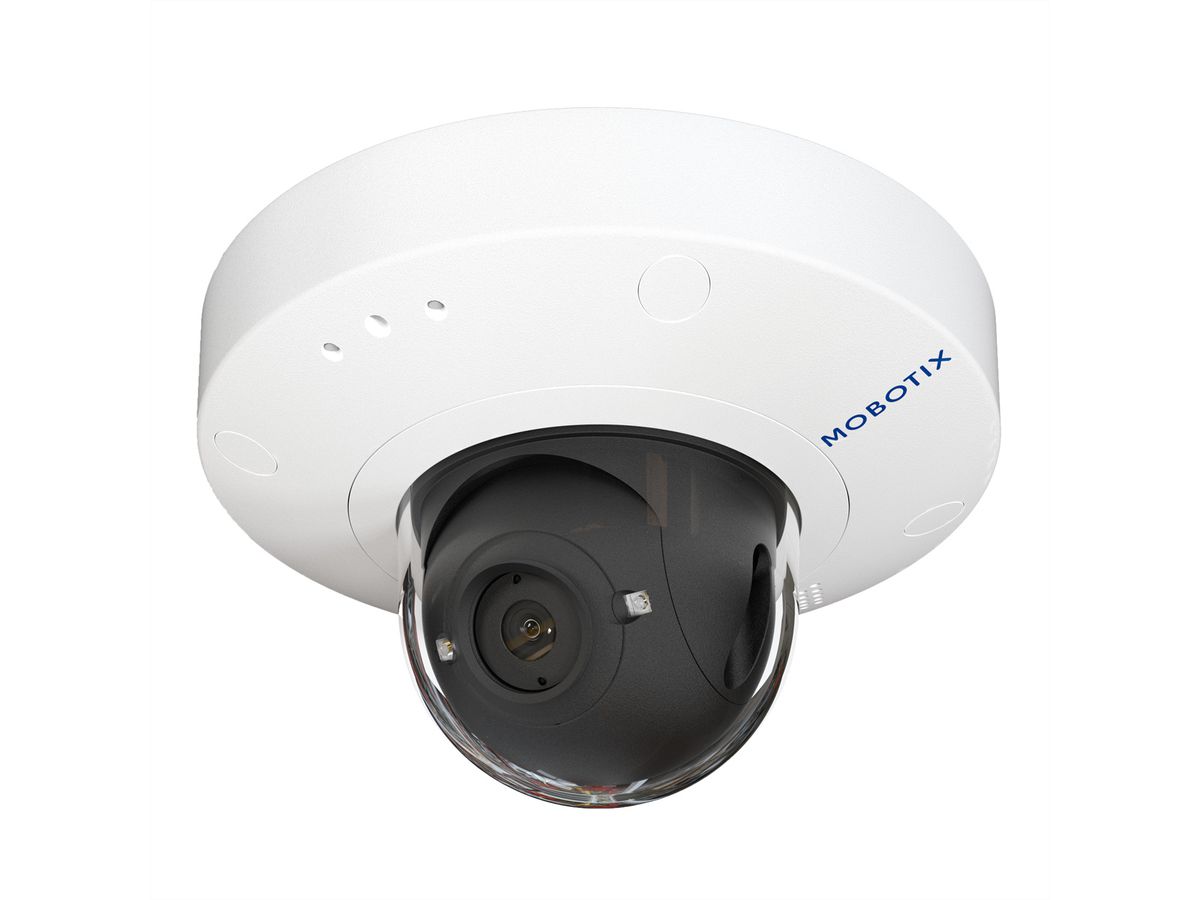

MOBOTIX v71B Indoor Dome Kamera 8 MP, 95°, IR-LED 30m

MOBOTIX v71B Indoor Dome Kamera 8 MP, 95°, IR-LED 30m

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
Deliverable approx. 09/19/2025
Item no. 21194564
Brand / Manufacturer MOBOTIX
Manuf. item no. Mx-v71B-8DN050
EAN 4047438050395

Description

Dezent in ihrer Erscheinung und grossartig in den Möglichkeiten: Das ist die MOBOTIX v71 Dome, die vor allem innen zum Einsatz kommt. Die kompakte Single Lens Ka mera ist durch eine robuste Kuppel geschützt. Drei manuell bewegliche Achsen ermöglichen die exakte Ausrichtung der konfigurierbaren Optik. Unendlich flexibel wird die v71 mit den intelligenten Videoanalyse-Apps der MOBOTIX 7 Plattform. Alles ist möglich. Alles passt unter die Kuppel der v71 Dome!

Kompakte Kuppel. Riesige Möglichkeiten.:

  • Filigran & komfortabel: In drei Achsen manuell justierbar
  • Flexibel durch Objektivauswahl mit 15° bis 95° Blickwinkel
  • Automatische Tag-/Nacht-Umschaltung
  • Robustes Aluminiumgehäuse
  • Audiofunktion für direkte Kommunikation
  • Offen für intelligente Videoanalyse mit Kamera-Apps
  • Made in Germany für beste Cybersicherheit

MOBOTIX stellt im Rahmen eines technischen Updates alle MOBOTIX 7 Single Lens Kameras von A- auf B-Modelle um. Dabei werden bestimmte Hardwarekomponenten ausgetauscht, ohne dass sich die Funktionen ändern. Zusätzlich erhalten die Modelle D71 und Q71 einen potenzialfreien Relais-Ausgang für den Schaltausgang – analog zur MOBOTIX ONE.

Specifications

Manufacturer MOBOTIX
Product group Sicherheitskameras
Product type Dome-Netzwerkkamera
Colour white
Scope of delivery Camera met lens, bevestigingsmateriaal, 8GB MicroSD-kaart, ethernetkabel 0,5m
Mounting form Fixed-Dome
Type MOBOTIX v71
Interface LAN
ONVIF ja
Resolution 8 MPx
Maximum Resolution (Dots) 3840 x 2160
Framerate at max Resolution (Frames/Second) 30fps@4K (H.264/H.265) / 20fps@4K (MxPEG)
Video Compression MxPEG, M-JPEG, H.264, H.265
Lens Type Fixes Objektiv
Removable IR Cut Filter ja
Day/Night Mode ja
IR LED ja
IR range (max.) 30 m
WDR WDR
Audio Input ja
Audio Output ja
Digital Input ja
Digital Output ja
Integrated PIR Sensor nein
Motion Detection ja
Memory Card Slot ja
Power over Ethernet (PoE) ja
WLAN nein
Suitable for Outdoor Use nein
Mains connection Power over Ethernet (PoE)
Operating temperature min. -10 °C
Operating temperature max. 50 °C
Height 96 mm
Width 164 mm
Depth 164 mm
Weight 1.1 kg
Height of packaging (single piece) 0 mm
Width of packaging (single piece) 0 mm
Depth of packaging (single piece) 0 mm
Package weight (single piece) 0 kg
