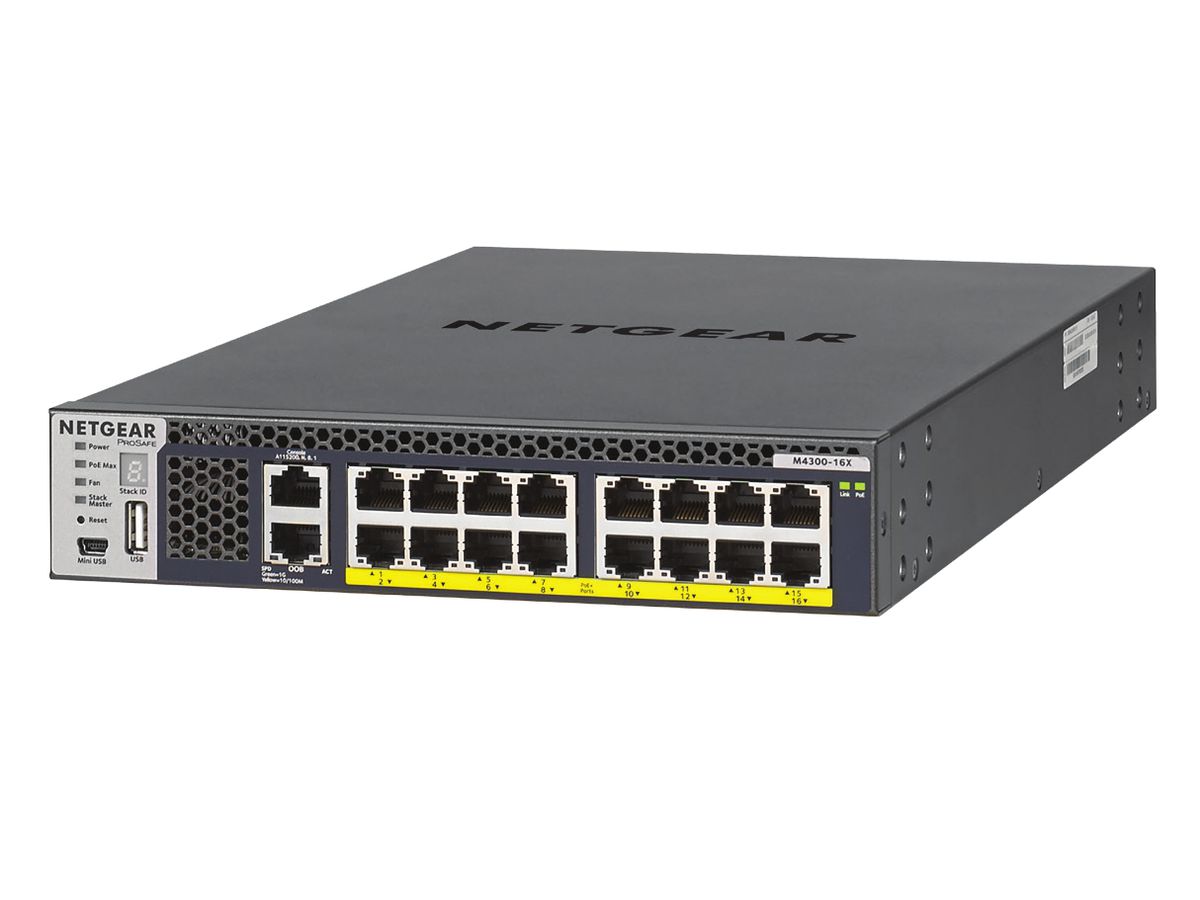

Netgear M4300-16X Managed L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Black
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 522427971 |
|---|---|
| Brand / Manufacturer | NETGEAR |
| Manuf. item no. | XSM4316PB-100NES |
| EAN | 0606449140989 |
:strip_icc():strip_exif()/logos/netgear.png "NETGEAR")
Description
Netgear M4300-16X. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 16, USB 2.0 ports quantity: 1, Console port: RJ-45/Mini-USB. MAC address table: 16000 entries, Switching capacity: 320 Gbit/s. Networking standards: IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1v,IEEE 802.1w,IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U
The world’s only 1G, 10G and 40G stackable platform designed for server and audiovisual installations, converged access layer and dependable core in SMB environments. M4300 stacking topologies deliver 384-port 1G, 768-port 10G, 192-port 40G, or a combination in redundant, unstoppable systems for edge to core connectivity.The NETGEAR M4300 Stackable Switch Series delivers L2/L3/L4 and IPv4/IPv6 cost-effective services for mid-enterprise edge with full PoE+ and SMB core deployments with unrivalled ease of use: 10 Gigabit models can seamlessly stack with 1 Gigabit models within the series, enabling spine and leaf line-rate stacking topologies. Non-stop forwarding (NSF) virtual chassis architectures provide advanced High Availability (HA) with hitless failover across the stack. Dual redundant, modular power supplies equipping full width models contribute to business continuity management. Layer 3 feature set includes static, dynamic and policy-based routing – as standard. The NETGEAR M4300 Switch Series is perfect for wireless access, unified communications and professional AV-over-IP installations.
Specifications
| Manufacturer | NETGEAR |
|---|---|
| Product type | Network Switches |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 16 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Console port | RJ-45/Mini-USB |
| USB 2.0 ports quantity | 1 |
Weight & dimensions
| Width | 212 mm |
|---|---|
| Depth | 345 mm |
| Height | 44 mm |
| Weight | 3.22 kg |
Power
| Power supply included | Y |
|---|---|
| Number of power supply units | 1 |
| Power consumption (max) | 610 W |
Operational conditions
| Heat dissipation | 2081.64 BTU/h |
|---|
Protocols
| GARP VLAN Registration Protocol (GVRP) | Y |
|---|---|
| Routing protocols | OSPF,OSPFv3,RIP,RIP-1,RIP-2 |
Network
| Networking standards | IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1v,IEEE 802.1w,IEEE 802.3,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3bz,IEEE 802.3u |
|---|---|
| 10G support | Y |
| Port mirroring | Y |
| IP routing | Y |
| Link aggregation | Y |
| Auto-sensing | Y |
| VLAN support | Y |
| Virtual LAN features | Private VLAN,Tagged VLAN,Voice VLAN |
| Number of VLANs | 4093 |
Data transmission
| MAC address table | 16000 entries |
|---|---|
| Switching capacity | 320 Gbit/s |
| Throughput | 238 Mpps |
| Store-and-forward | Y |
| Number of queues | 8 |
| Number of static routes | 64 |
| Jumbo frames support | Y |
| Jumbo frames | 9000 |
Packaging data
| Rack mount kit | Y |
|---|
Security
| DHCP features | DHCP client,DHCP snooping,DHCPv6 client,DHCPv6 relay,DHCPv6 server,DHCPv6 snooping |
|---|---|
| Access Control List (ACL) | Y |
| IGMP snooping | Y |
| BPDU filtering/protection | Y |
| Authentication | Guest VLAN, MAC-based authentication |
Management features
| Switch type | Managed |
|---|---|
| Switch layer | L3 |
| Quality of Service (QoS) support | Y |
Design
| Rack mounting | Y |
|---|---|
| Stackable | Y |
| Form factor | 1U |
| Product colour | Black |
| Airflow direction | Front-to-back airflow |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Y |
|---|---|
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 500 W |
Performance
| Physical stacking (units) | 8 |
|---|---|
| Built-in processor | Y |
| Processor frequency | 800 MHz |
| Internal memory | 1024 MB |
| Noise level | 35 dB |
| Mean time between failures (MTBF) | 690301 h |
Multicast features
| Multicast support | Y |
|---|---|
| Number of multicast groups filtered | 4000 |
