The products of our own brand ROLINE are designed for professional continuous operation.
With a 5-year functional guarantee, we stand by our performance promise.
ROLINE – Quality makes the difference.

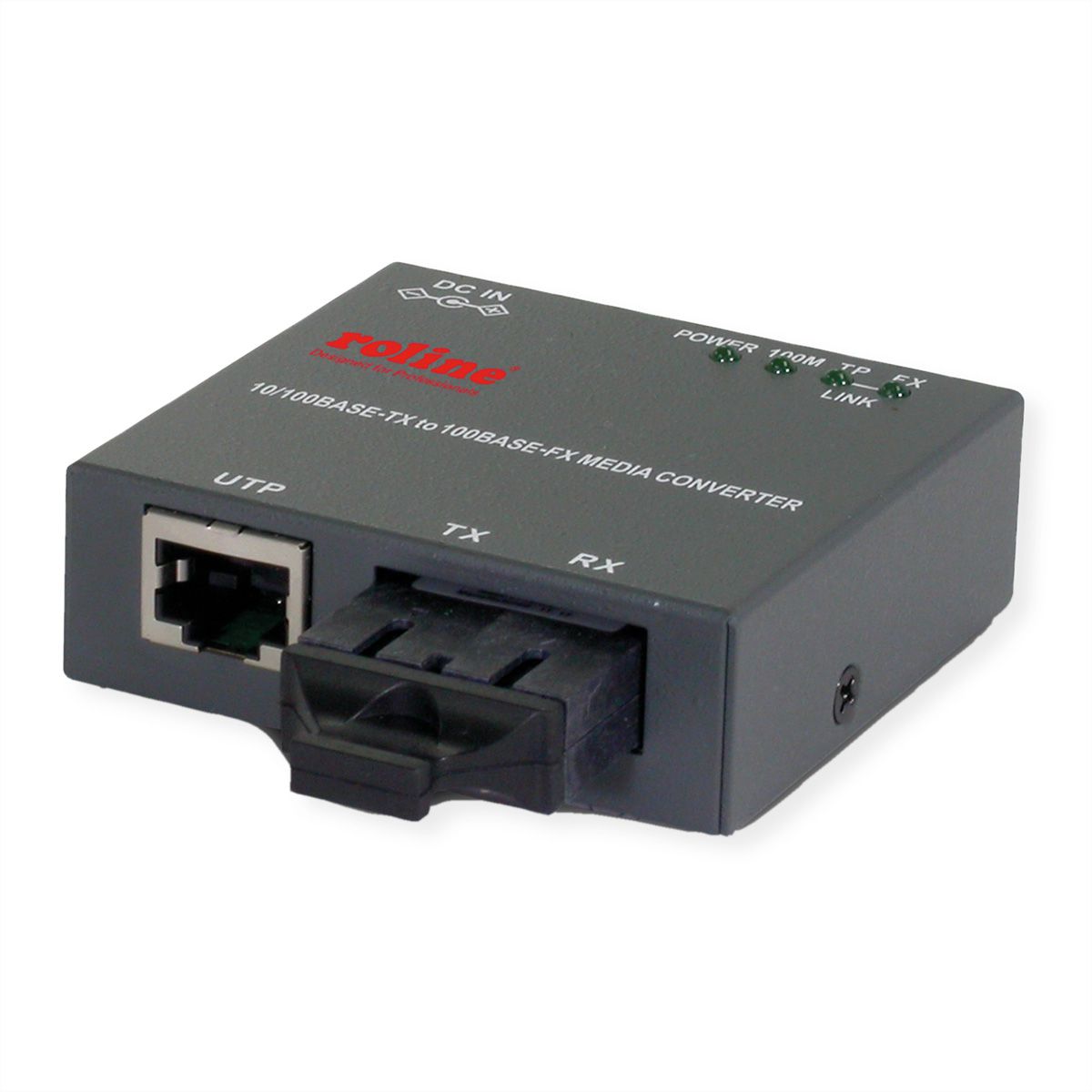

ROLINE 10/100Base-TX to 100Base-FX Media Converter
Item no.
21131132
Brand / Manufacturer
ROLINE
Manuf. item no.
21.13.1132
EAN
7630049628915
Item weight
0.3 kg
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Description
This converter changes a Fast Ethernet TP port (RJ45) to multimode fiber optic (SC).
- Supports full wire speed copper-to-fiber media conversion for 10/100Mbit/s speed and media types
- Supports auto-negotiation 10/100Mbps on the copper port
- Auto MDI/MDI-X crossover function on the copper port
- Supports IEEE 802.3x flow control
- Transparent conversion to 802.1Q VLAN tagged packets
- Provides Far End Fault function on FX (fiber) port
- Low power consumption
- Supports DIN rail mounting and wall mounting
- LEDs: Power status, TP speed, TP Link/Activity, FX Link/Activity
- Packet Size: Up to 1536 bytes
- Operating temperature.: 0 ºC - +50 ºC
- Storage Temperature: -30°C ~ 80°C
- Relative Humidity: 5% ~ 95% non-condensing
- DC Input via external power adapter
Specifications
- Manufacturer
- ROLINE
- Product group
- Network converters
- Product type
- Media Converter
- Colour
- black
- Scope of delivery
- Media Converter, Power supply unit, USB power cable, Installation manual
- RJ-45 Port (Mbps/s)
- 100
- Fibre Ports (Mbps)
- 100
- Quantity of RJ45 ports
- 1
- Quantity of fibre SC ports
- 1
- Converts to
- RJ-45/SC
- Fibre
- Multi mode
- Ethernet fibre standard
- 100Base-FX
- Operating temperature min.
- 0 °C
- Operating temperature max.
- 50 °C
- Storage temperature min.
- -30 °C
- Storage temperature max.
- 80 °C
- Height
- 59 mm
- Width
- 64 mm
- Depth
- 21 mm
- Weight
- 150 g
- Height of packaging (single piece)
- 60 mm
- Width of packaging (single piece)
- 150 mm
- Depth of packaging (single piece)
- 150 mm
- Package weight (single piece)
- 0.3 kg
