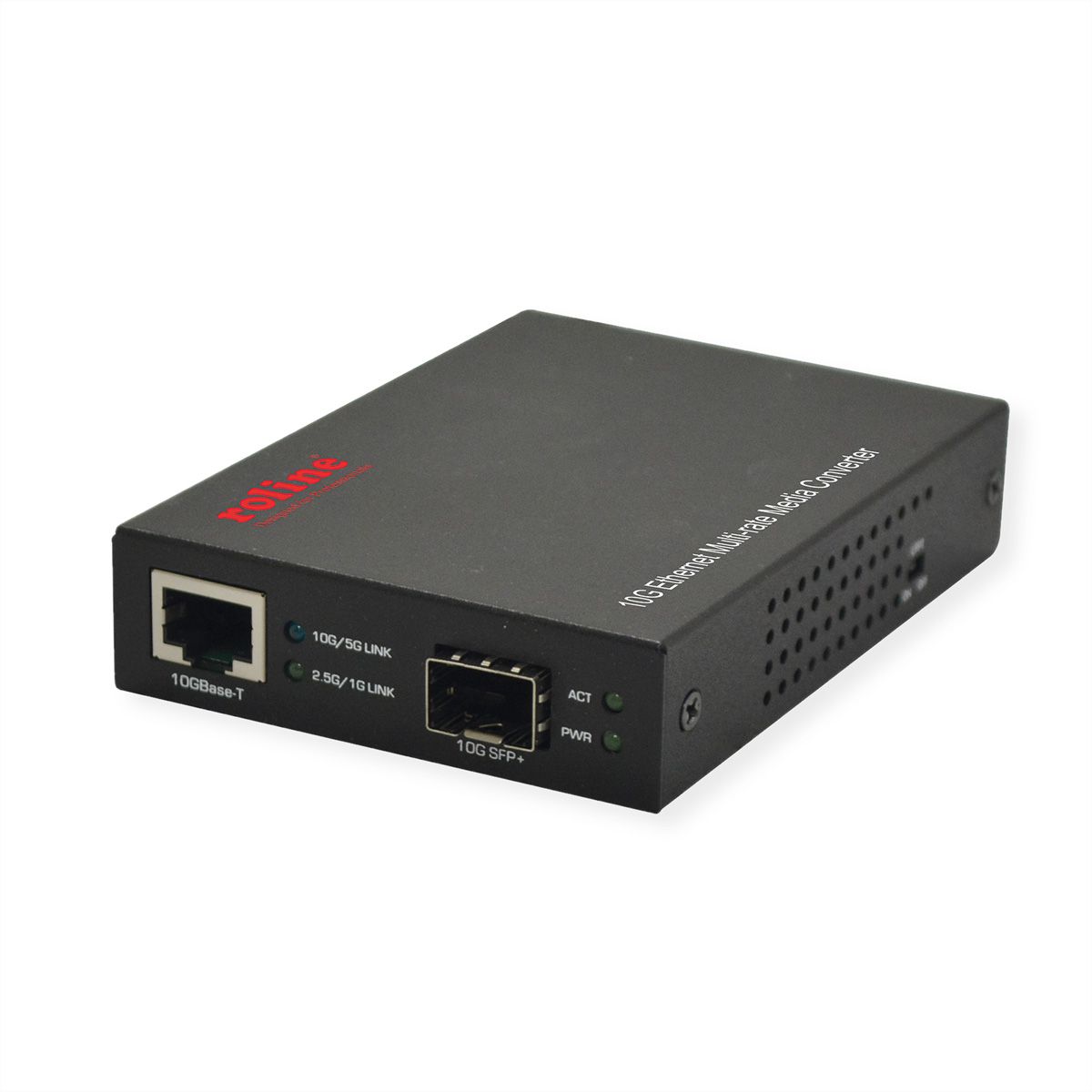

ROLINE 10G Ethernet Multi-rate Media Converter, Industrial Converter RJ45, Fiber Optic

Item no. 21131133 Brand / Manufacturer ROLINE Manuf. item no. 21.13.1133 EAN 7630049628922 Item weight 0.4 kg

ROLINE 10G Ethernet Multi-rate Media Converter, Industrial Converter RJ45, Fiber Optic

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

Download PDF

Description

This Ethernet Multi-rate Media Converter enables the conversion from copper to fiber at 1G, 2.5G, 5G and 10G.

The device supports the following multi-rate and media conversion:

- 10GBASE-T to 10GBASE-R conversion
- 5GBASE-T to 5GBASE-R conversion
- 2.5GBASE-T to 2500BASE-X conversion
- 1000BASE-T copper to 1000BASE-X (without auto-negotiation support) fiber conversion

Supports auto-negotiation and Auto-MDI/MDI-X detection
Supports full wire speed conversion
Supports transparent conversion for any packet types with no packet length limitation
Provides link fault pass through function
LED Indication Power status, Activity, Speed link status
Copper port:

- Shielded RJ-45,
- Auto-negotiation capable
- Auto-MDI/MDI-X 10G/5G/2.5G/1Gbps, Full/Half duplex

Fiber port:

- SFP+ slot for SFP or SFP+ fiber transceiver
- 10G/5G/2.5G/1Gbps, Full duplex
- LFPT function

Power: Input: 5VDC 1.5A, consumption: 3.8W (max.)
Operating Temperature: - 20 °C - +70 °C
Dimensions: 75 x 102 x 22.2 mm (WxDxH)

Specifications

Manufacturer: ROLINE
Product group: Network converters
Product type: Media Converter
Colour: black
RJ-45 Port (Mbps/s): 10G/5G/2.5G/1Gbps
Fibre Ports (Mbps): 10G/5G/2.5G/1Gbps
Quantity of RJ45 ports: 1
Quantity of fibre LC ports: 1
Managed: no
Operating temperature min.: 0 °C
Operating temperature max.: 50 °C
Height: 22.2 mm
Width: 75 mm
Depth: 102 mm
Weight: 272 g
Height of packaging (single piece): 50 mm
Width of packaging (single piece): 130 mm
Depth of packaging (single piece): 170 mm
Package weight (single piece): 0.4 kg
Scope of delivery: Multi-Rate Media Converter, Power supply, Installation Instructions
