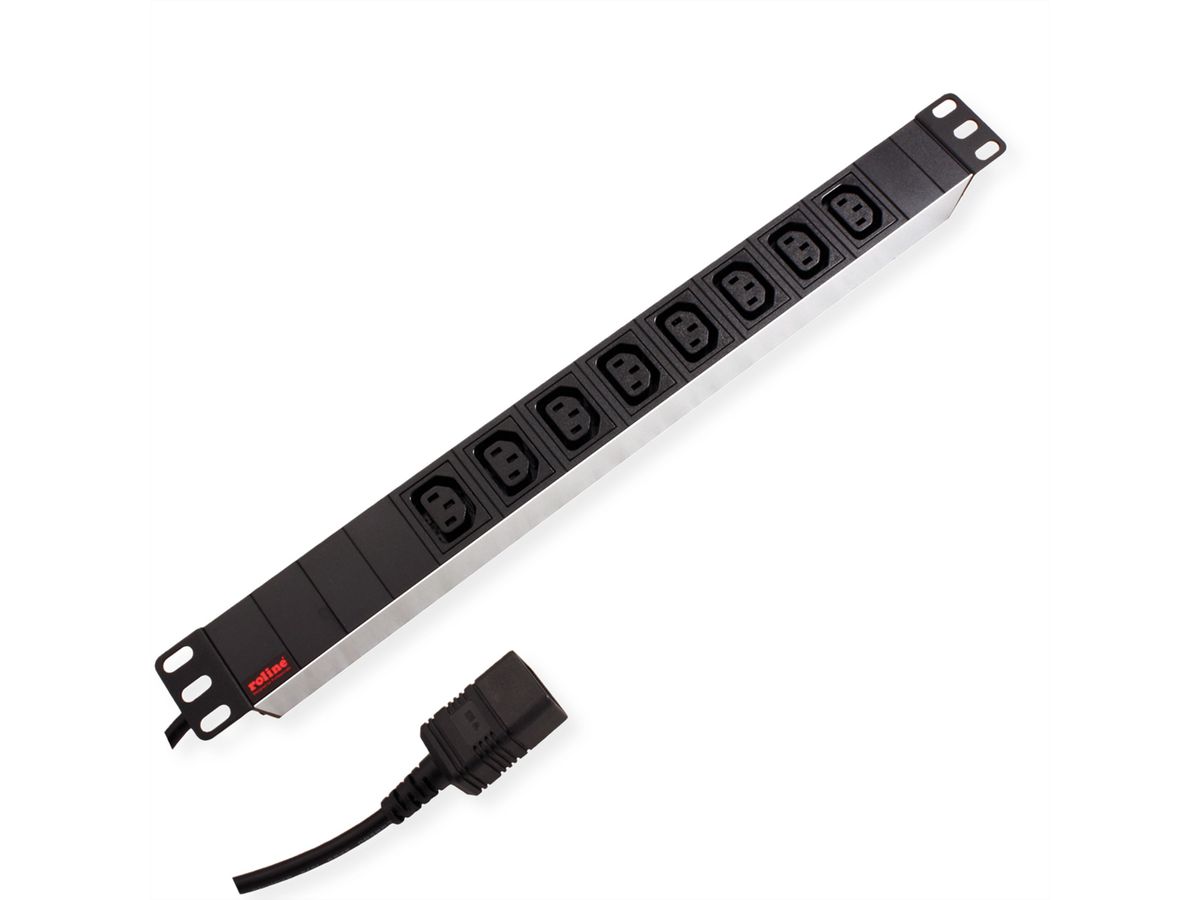

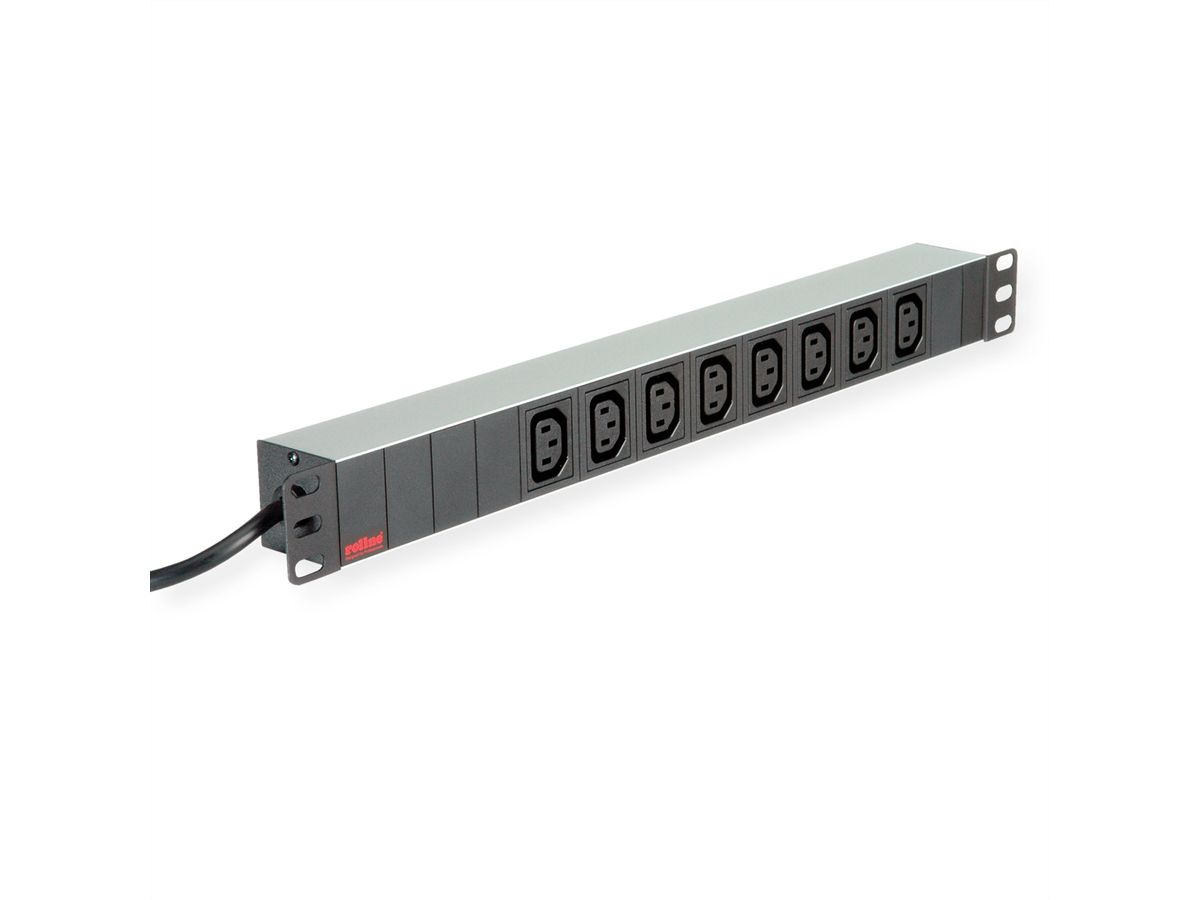

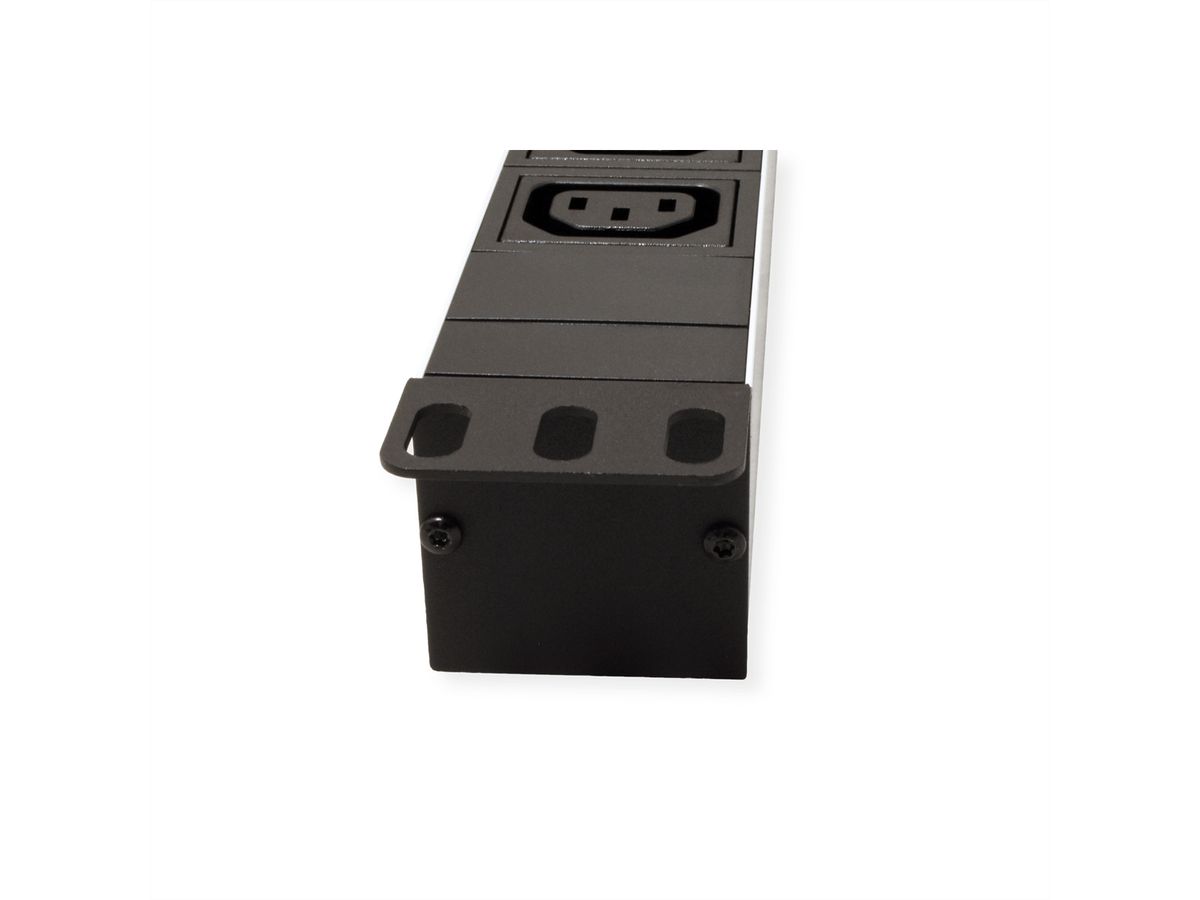

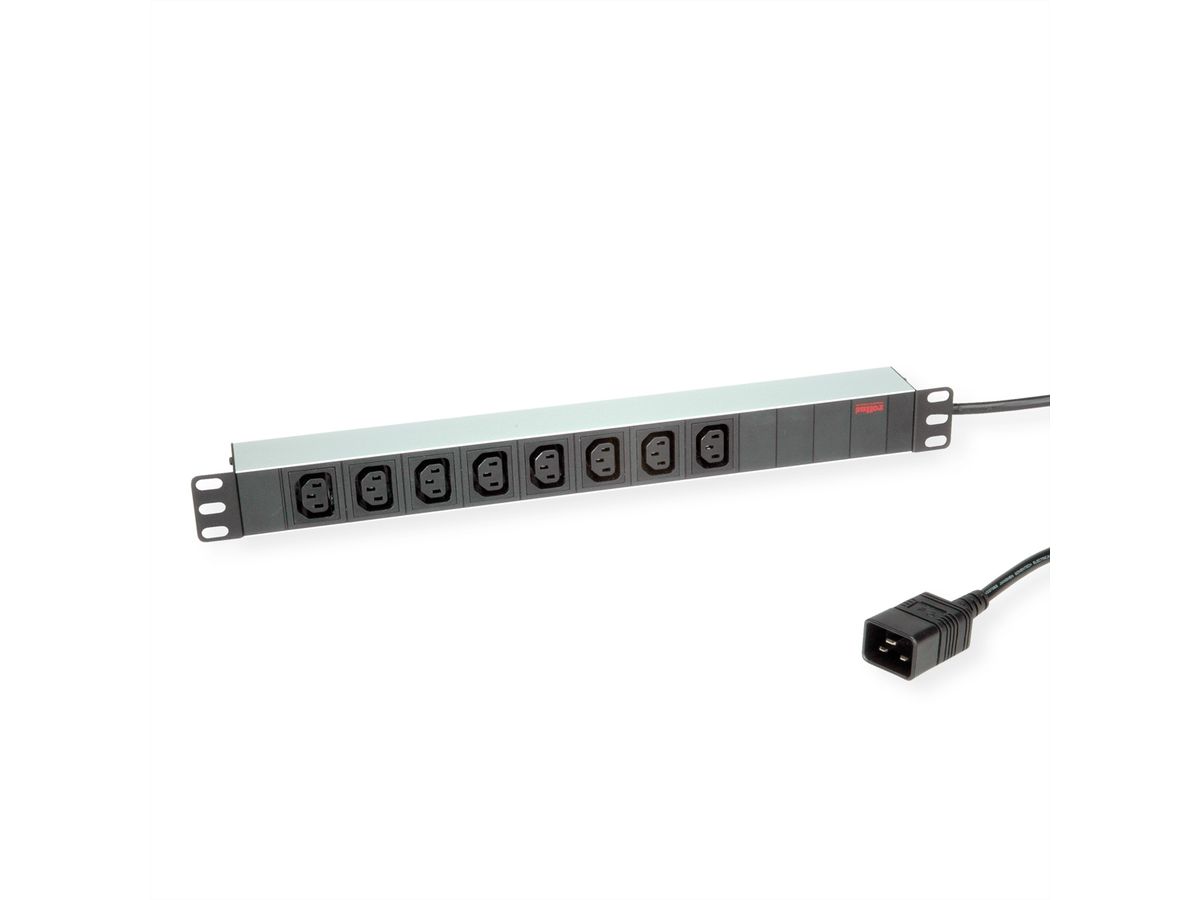

ROLINE 19" PDU for Cabinets 8x 3600W, IEC320 C13 - C20 M, Aluminium, 2 m
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 19071627 |
|---|---|
| Brand / Manufacturer | ROLINE |
| Manuf. item no. | 19.07.1627 |
| EAN | 7630049610897 |
| Item weight | 0.95 kg |
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
Description
19" socket strip with 8x C13 connection and C20 supply cable, 1U, for installation in 19" cabinets, incl. mounting brackets.
- 19 "socket (1UH) for installation in 19" cabinets, incl. installation angles.
- Arrangement of sockets: 90°
- Profile of anodized aluminium.
- Cable type: 2.0m H05VV-F 3G 1,5mm², black
- Max load/power: 16A 3600W
- Color: ALU / light gray RAL 7035
- Width: 440mm
Specifications
| Manufacturer | ROLINE |
|---|---|
| Product group | Power Bars |
| Product type | 19" power strip |
| Colour | Aluminium |
| Length | 2 m |
| Function | 19'' PDU for Cabinets |
| Mounting form | 19" Rackmount |
| Max. capacitance | 3600W |
| Max. voltage | 250V AC |
| ON/OFF Switch | no |
| Number of socket pots | 8 |
| Quantity of outputs/angles | 8 / 90° |
| Output alignment | Line |
| Socket type |
|
| Material (casing) | Aluminium |
| Colour (Design profile) | Aluminium |
| Connection cable | H05VV-F 3G 1.5mm² |
| Connector plug | IEC320 C20 |
| Plug type | IEC320 C20, 16A |
| Regional use | Without restriction |
| Height | 44 mm |
| Width | 440 mm |
| Depth | 44 mm |
| Weight | 769.2 g |
| Height of packaging (single piece) | 60 mm |
| Width of packaging (single piece) | 120 mm |
| Depth of packaging (single piece) | 500 mm |
| Package weight (single piece) | 0.95 kg |
