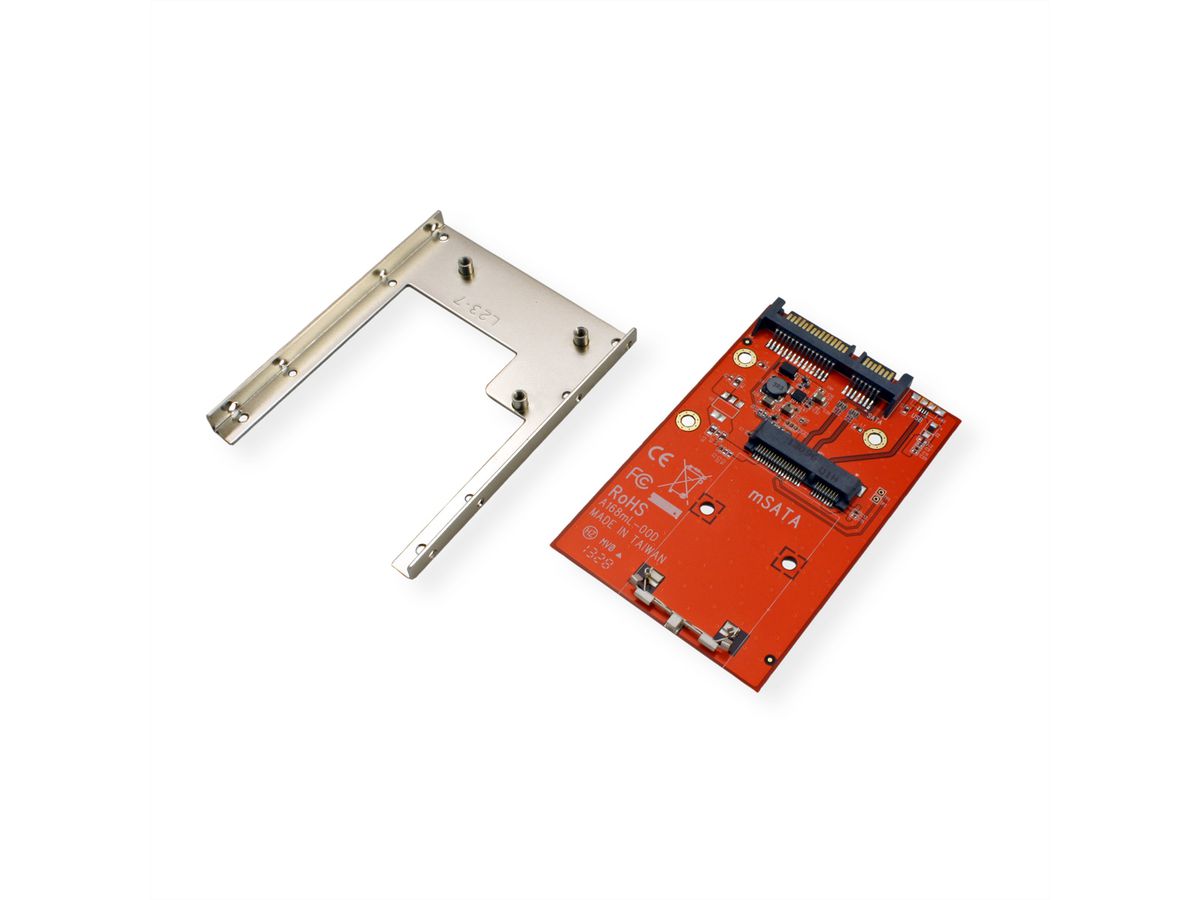

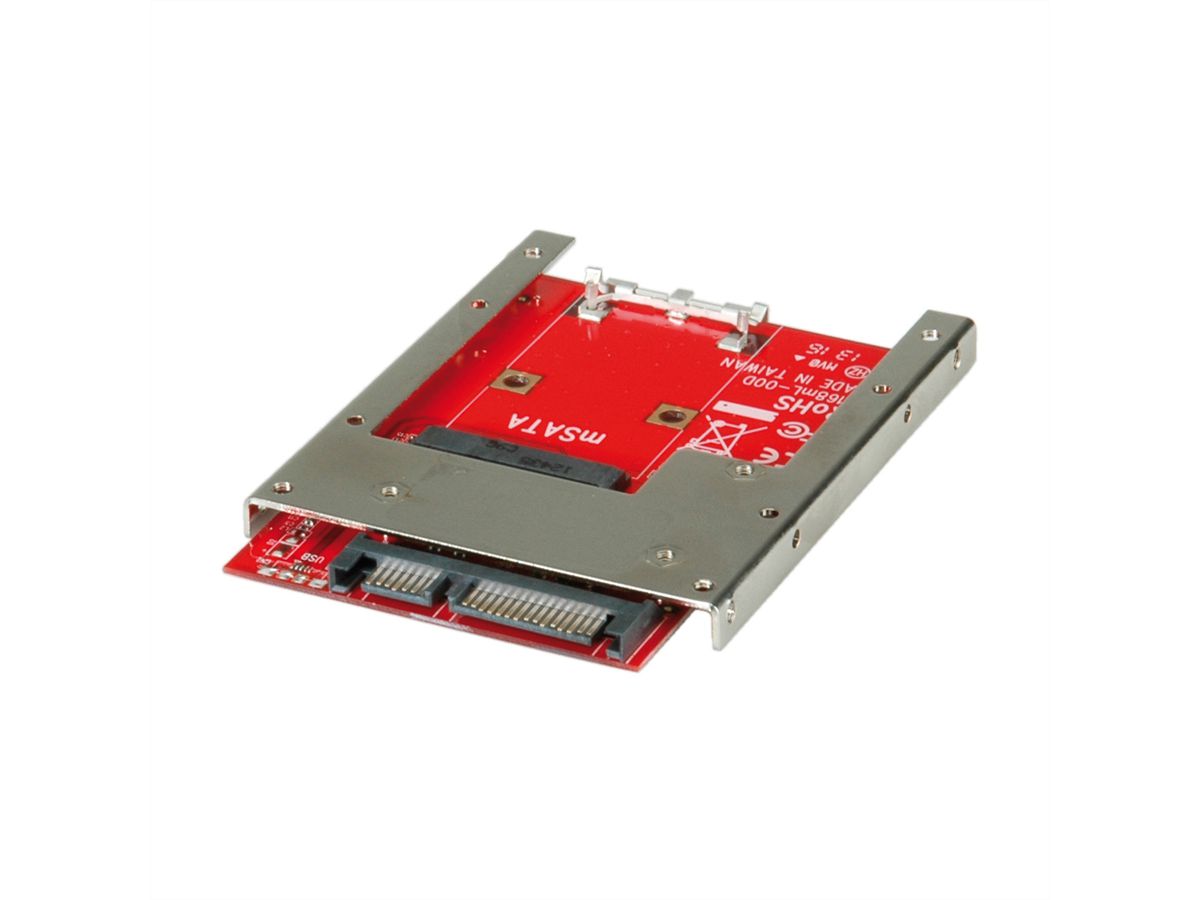

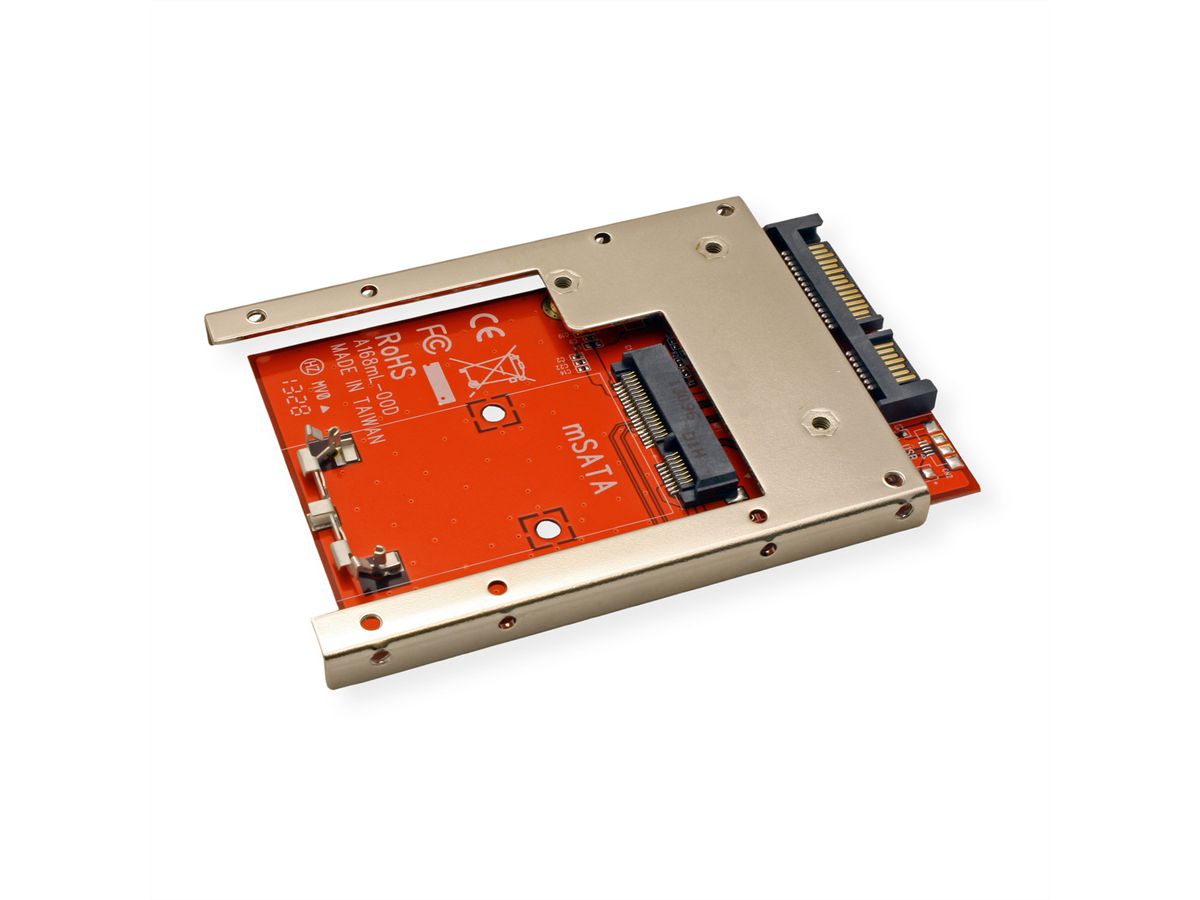

ROLINE Adapter, mSATA SSD to 2.5 SATA 22pin
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 11031567 |
|---|---|
| Brand / Manufacturer | ROLINE |
| Manuf. item no. | 11.03.1567 |
| EAN | 7611990128143 |
| Item weight | 0.1 kg |
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
Description
Best Solution that convert and easily retain mSATA SSD as normally standard 2.5 SATA SSD- Convert Full Size mSATA SSD to 2.5 Form Factor
- Supports up to SATA 6Gb/s
- Compatible with 2.5 SATA drive mechanical specifications
- 22 pin SATA (signals and power) male connector on board
- Transparent to the operating system and no driver required
- Latch mSATA connector on board, no need the screw for the retention of mSATA module
Specifications
| Manufacturer | ROLINE |
|---|---|
| Product group | Cable |
| Product type | SATA-Adapter |
| Colour | red |
| Scope of delivery | adapter, 2.5 drive metal frame (with 8 mounting holes and 4 HDD screws), manual |
| Connection ports | SATA 22-pin (Data+Power) Male / Micro SATA 16-pin Male |
| Side 1 Connector Type | SATA 22-pin (Data+Power) |
| Side 1 Connector Gender | Male |
| Side 2 Connector Type | Micro SATA 16-pin |
| Side 2 Connector Gender | Male |
| Area of application | Internal |
| Hand locking screws | no |
| Height | 7 mm |
| Width | 69.85 mm |
| Depth | 100.45 mm |
| Weight | 48.3 g |
| Height of packaging (single piece) | 50 mm |
| Width of packaging (single piece) | 160 mm |
| Depth of packaging (single piece) | 220 mm |
| Package weight (single piece) | 0.1 kg |
