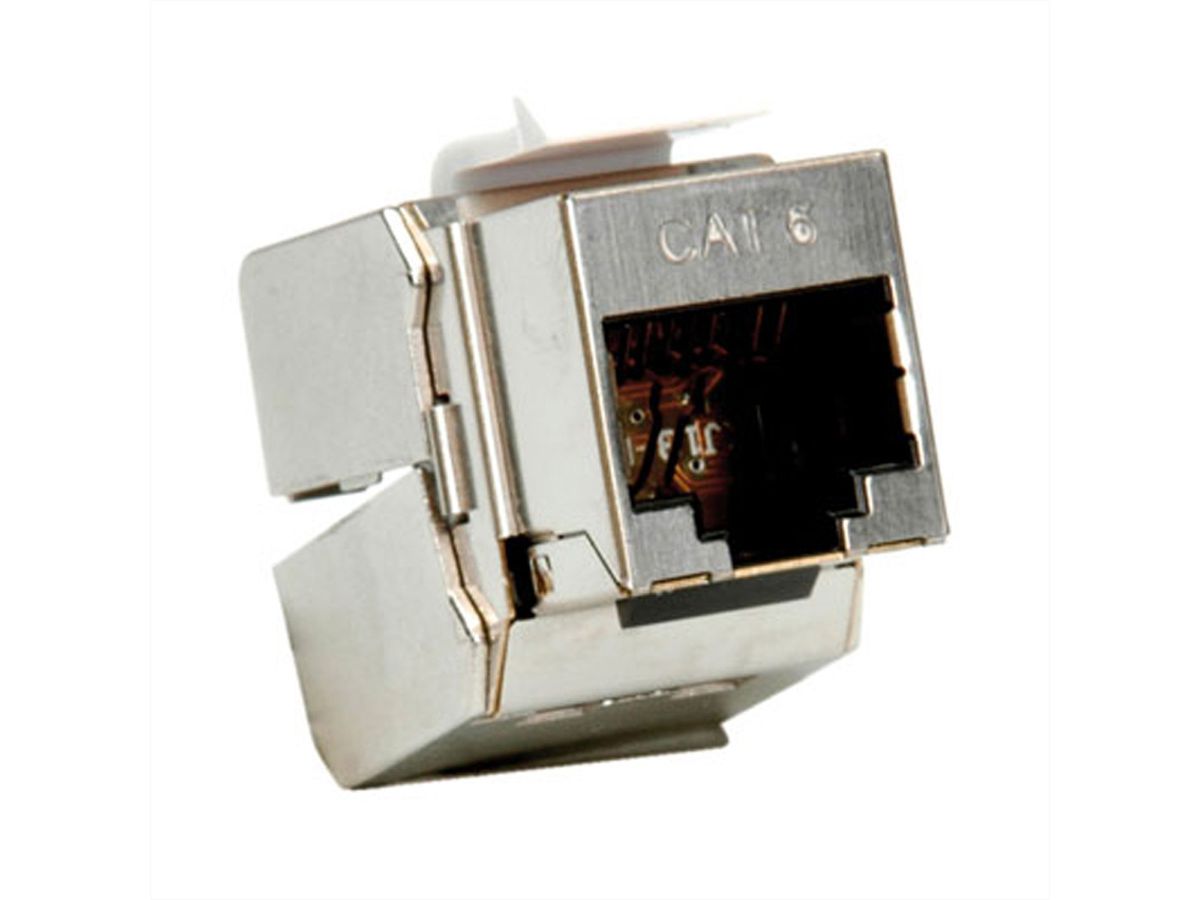

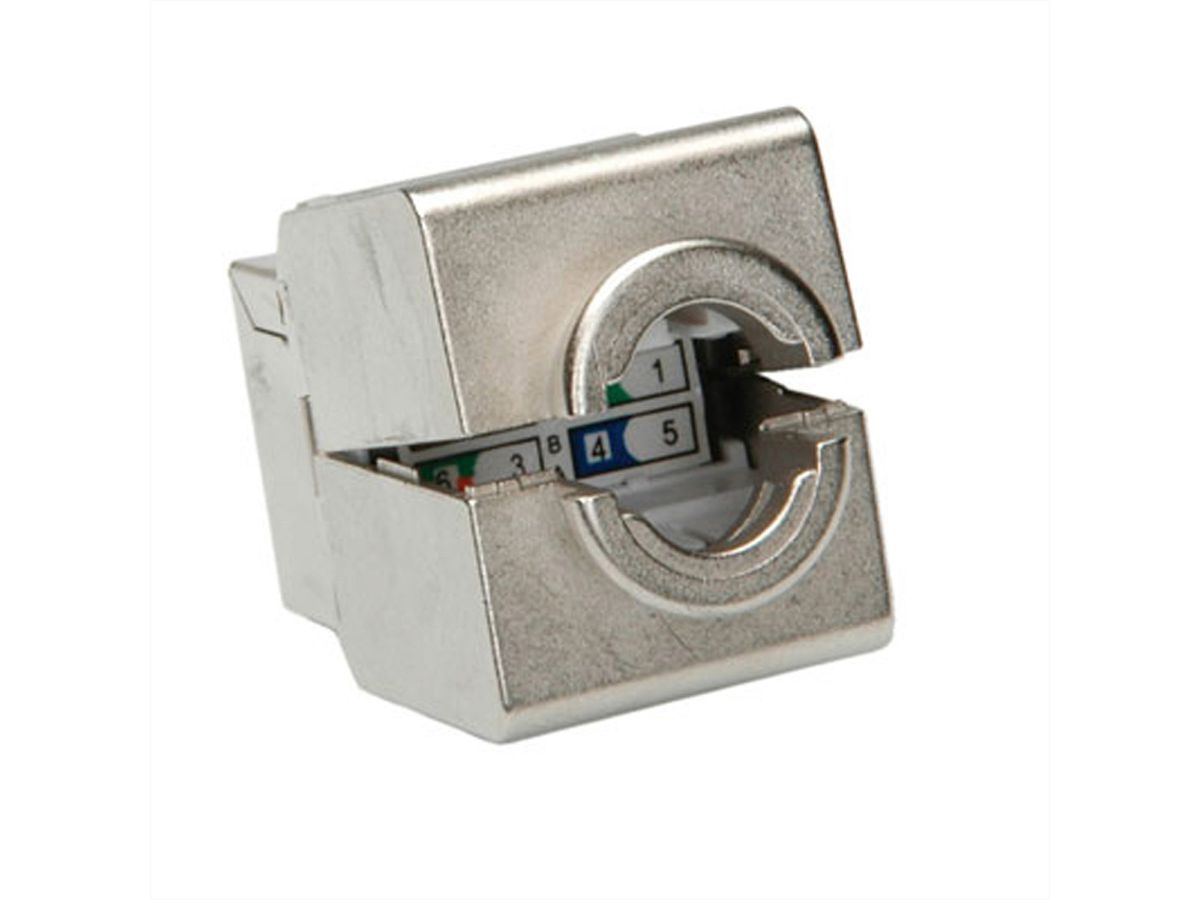

ROLINE Cat.6 (Class E) Keystone Jack, RJ-45, STP, tool-free, silver colour

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Available - can be delivered within 24 hours

Ordered by 2 p.m. - usually shipped the same day

Item no.	26110358
Brand / Manufacturer	ROLINE
Manuf. item no.	26.11.0358
EAN	7611990173389
Item weight	0.023 kg

Description

The ROLINE Cat. 6/Class E 19" keystone patch panel system is composed of a 19" STP patch panel frame (please order separately!) and these shielded Cat.6 RJ-45 keystone jacks

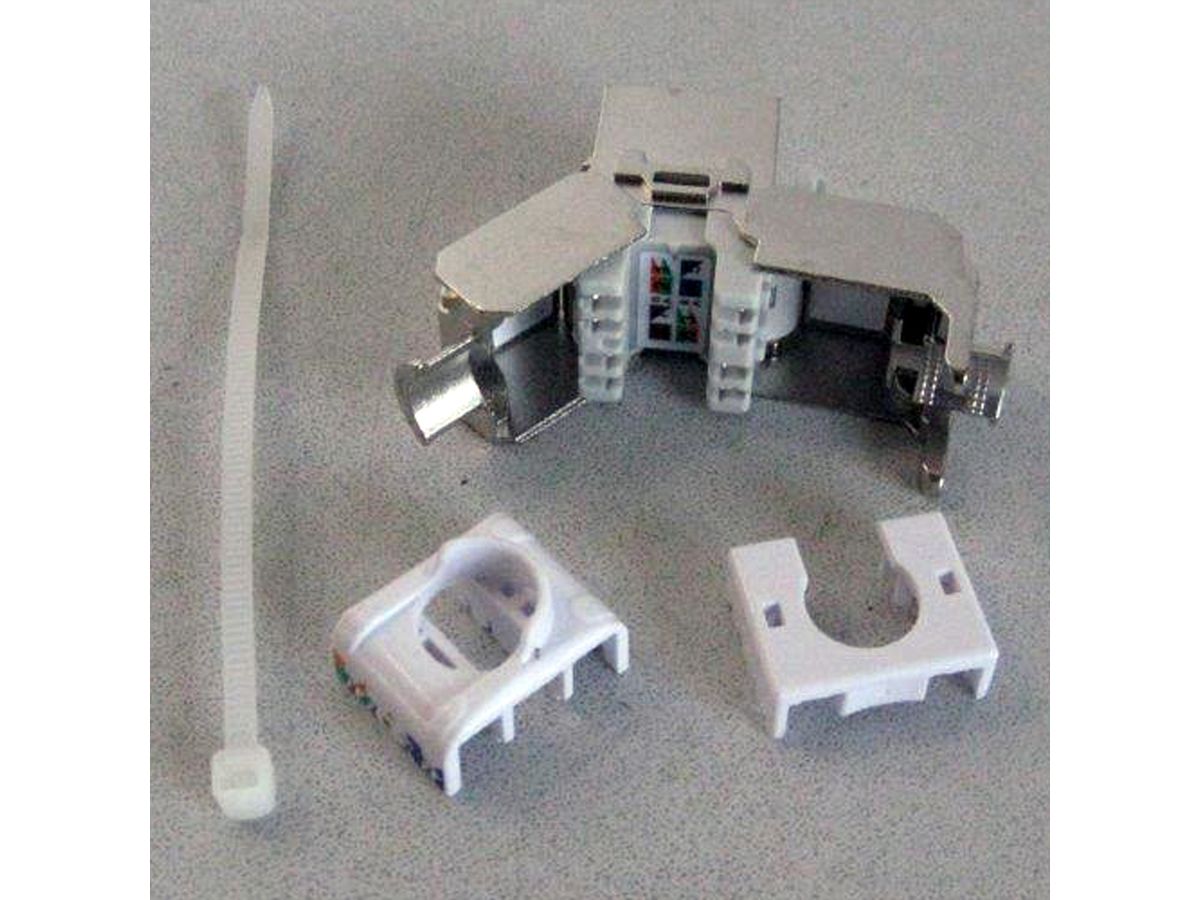

Assembling takes place over LSA-plus

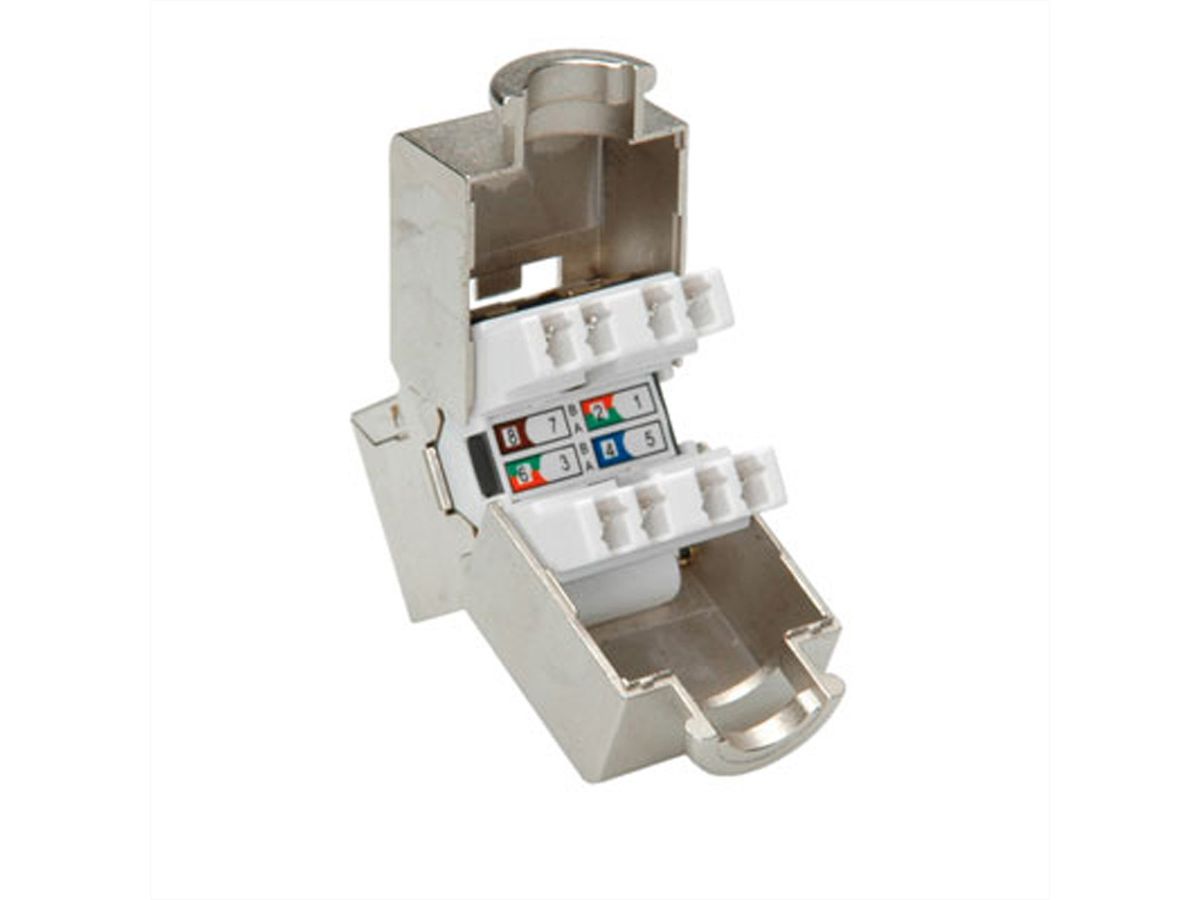

Colour code on the keystone jacks based on the standard EIA/TIA 568
Colour: silver
For a structured shielded Cat.6 cabling system we recommend to use the following components:

ROLINE Cat.6 S/FTP Cable, Solid Wire, AWG23: 21.15.0890 (100 m), 21.15.0891 (300 m)
ROLINE Flush Mount Wall Jack for Keystones, unloaded: 25.16.8579
ROLINE Cat.6 Keystone, RJ-45, shielded: 26.11.0358
ROLINE Cat.6 19" Keystone Patch Panel, 24 ports, shielded: 26.11.0359 (light grey), 26.11.0360 (black)
ROLINE Cat.6 S/FTP Patch Cord, grey, 5 m: 21.15.0835
Our in-house laboratory has tested this cable-plug combination, in a Channel of 100 meters, in compliance with Class E specification.

Specifications

Manufacturer	ROLINE
Product group	Connection technology TP
Product type	RJ45 Keystone Jack
Colour	silver
Shield type	Screened
Transfer quality	Cat6 / Class E
Quantity of ports	24
Assembly cable connection	Krone LSAplus
Assignment	EIA/TIA 568A & 568B
Modular assembly	yes
Connection direction	Straight
Height	21 mm
Width	12 mm
Depth	38 mm
Weight	21 g
Height of packaging (single piece)	20 mm
Width of packaging (single piece)	60 mm
Depth of packaging (single piece)	120 mm
Package weight (single piece)	0.023 kg

Downloads

Product data sheet - English (49.9 KB)

Download

Manufacturer data sheet - English (647.3 KB)

Download

User manual - Deutsch (2.2 MB)

Download

User manual - Français (2.1 MB)

Download

User manual - English (2.2 MB)

Download
