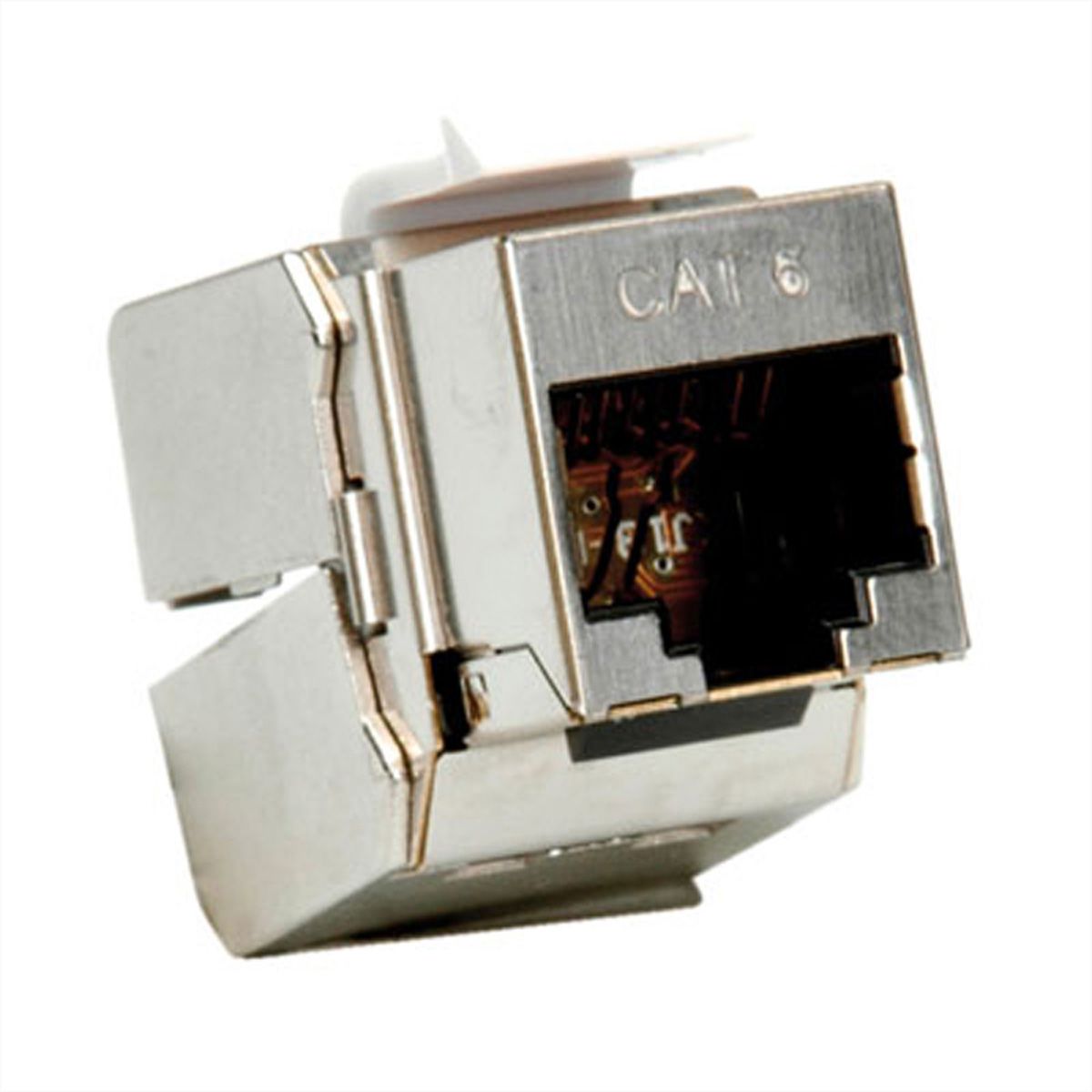

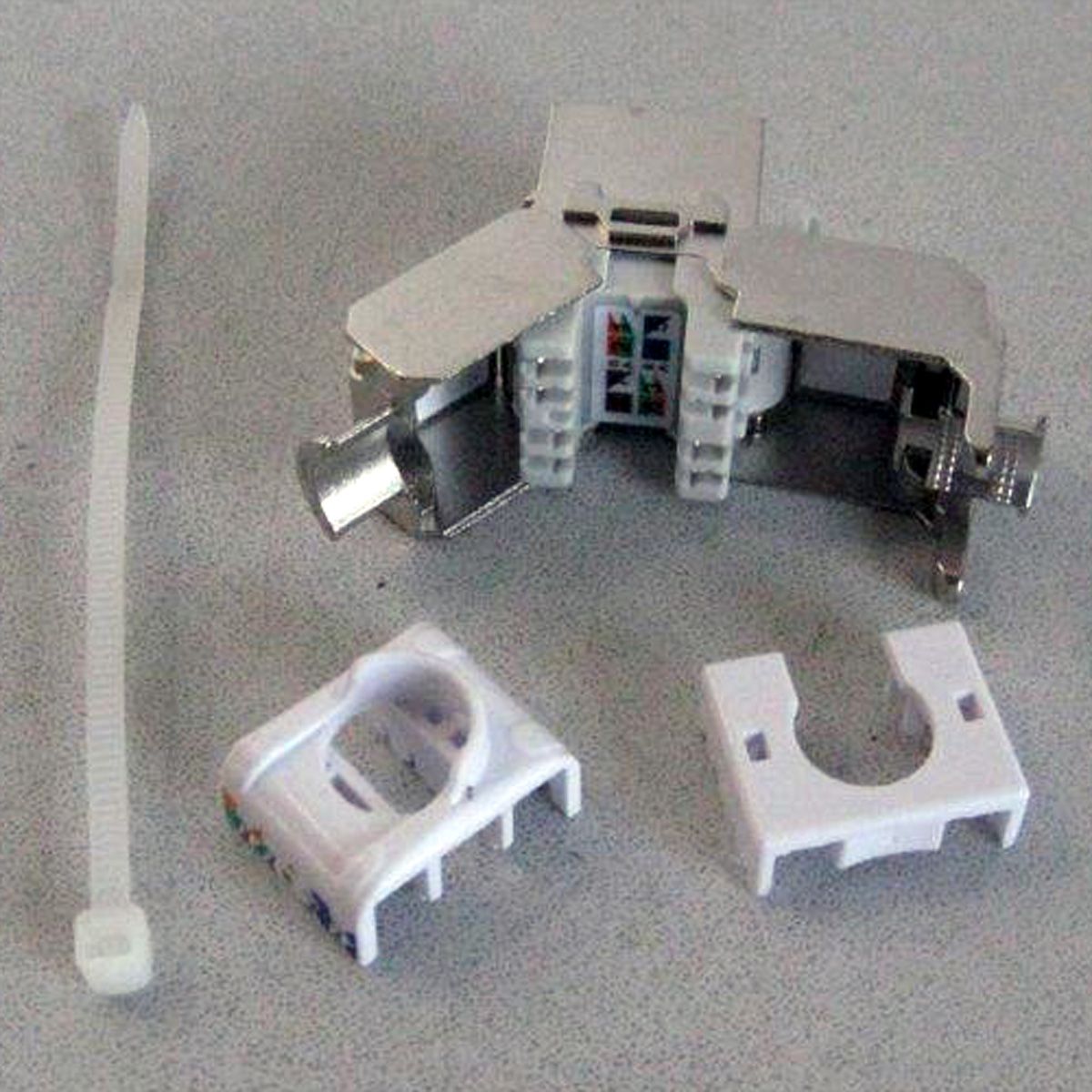

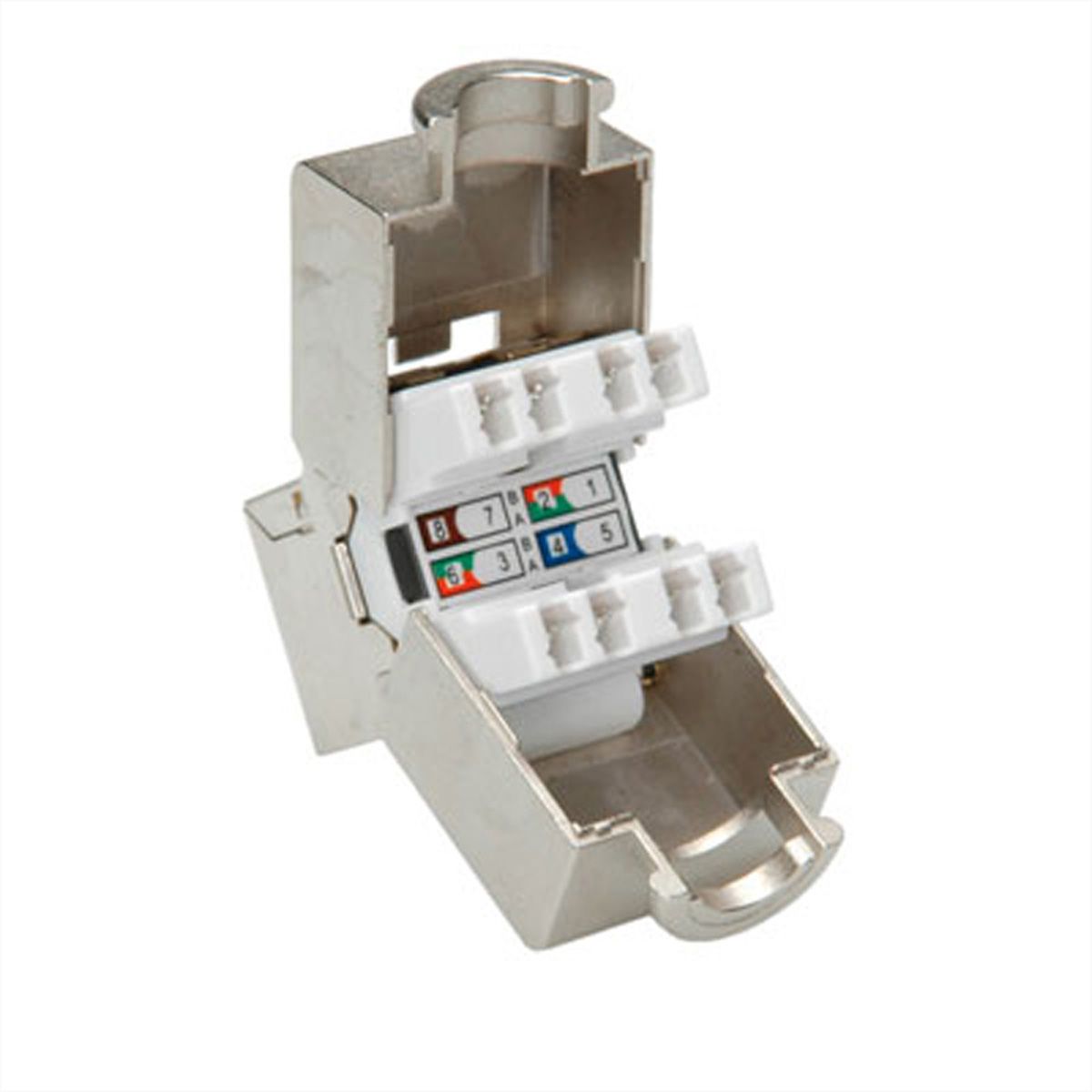

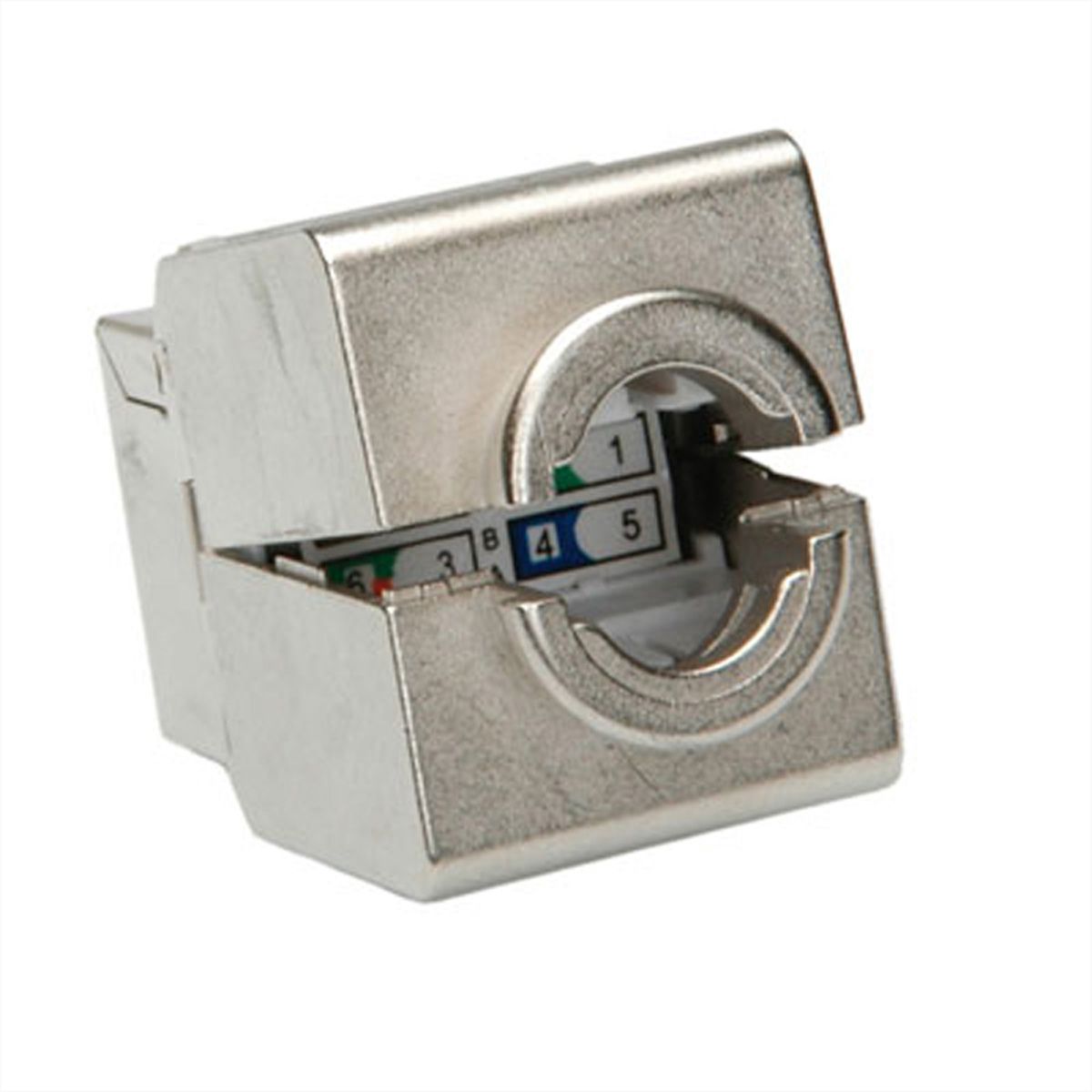

ROLINE Cat.6 (Class E) Keystone Jack, RJ-45, STP, tool-free, silver colour

Item no. 26110358 Brand / Manufacturer ROLINE Manuf. item no. 26.11.0358 EAN 7611990173389 Item weight 0.023 kg
ROLINE
Product recommendations

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

  • The ROLINE Cat. 6/Class E 19" keystone patch panel system is composed of a 19" STP patch panel frame (please order separately!) and these shielded Cat.6 RJ-45 keystone jacks
  • Assembling takes place over LSA-plus
  • Colour code on the keystone jacks based on the standard EIA/TIA 568
  • Colour: silver
  • For a structured shielded Cat.6 cabling system we recommend to use the following components:
ROLINE Cat.6 S/FTP Cable, Solid Wire, AWG23: 21.15.0890 (100 m), 21.15.0891 (300 m)
ROLINE Flush Mount Wall Jack for Keystones, unloaded: 25.16.8579
ROLINE Cat.6 Keystone, RJ-45, shielded: 26.11.0358
ROLINE Cat.6 19" Keystone Patch Panel, 24 ports, shielded: 26.11.0359 (light grey), 26.11.0360 (black)
ROLINE Cat.6 S/FTP Patch Cord, grey, 5 m: 21.15.0835
Our in-house laboratory has tested this cable-plug combination, in a Channel of 100 meters, in compliance with Class E specification.

Specifications

Manufacturer
ROLINE
Product group
Connection technology TP
Product type
RJ45 Keystone Jack
Colour
silver
Shield type
Screened
Transfer quality
Cat6 / Class E
Quantity of ports
1
Assembly cable connection
Krone LSAplus
Assignment
EIA/TIA 568A & 568B
Modular assembly
yes
Connection direction
Straight
Height
21 mm
Width
12 mm
Depth
38 mm
Weight
21 g
Height of packaging (single piece)
20 mm
Width of packaging (single piece)
60 mm
Depth of packaging (single piece)
120 mm
Package weight (single piece)
0.023 kg

Downloads

Product data sheet - English (49.8 KB) Manufacturer data sheet - English (647.3 KB) User manual - Deutsch (2.2 MB) User manual - Français (2.1 MB) User manual - English (2.2 MB)
