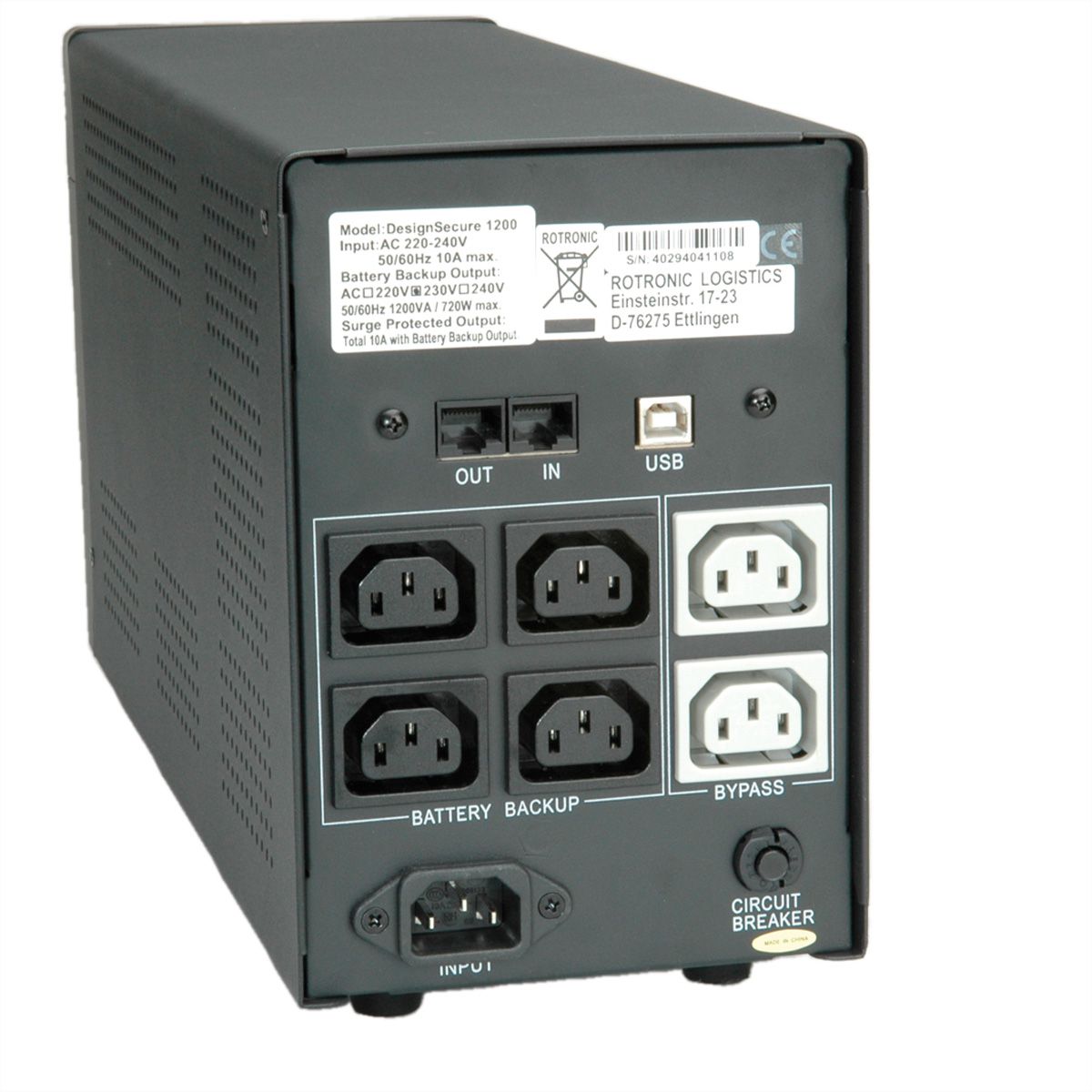

ROLINE DesignSecure 1200

Item no. 19401212 Brand / Manufacturer ROLINE Manuf. item no. 19.40.1212 EAN 7611990976768 Item weight 14.84 kg
ROLINE
Output (VA/W):
Interface:

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

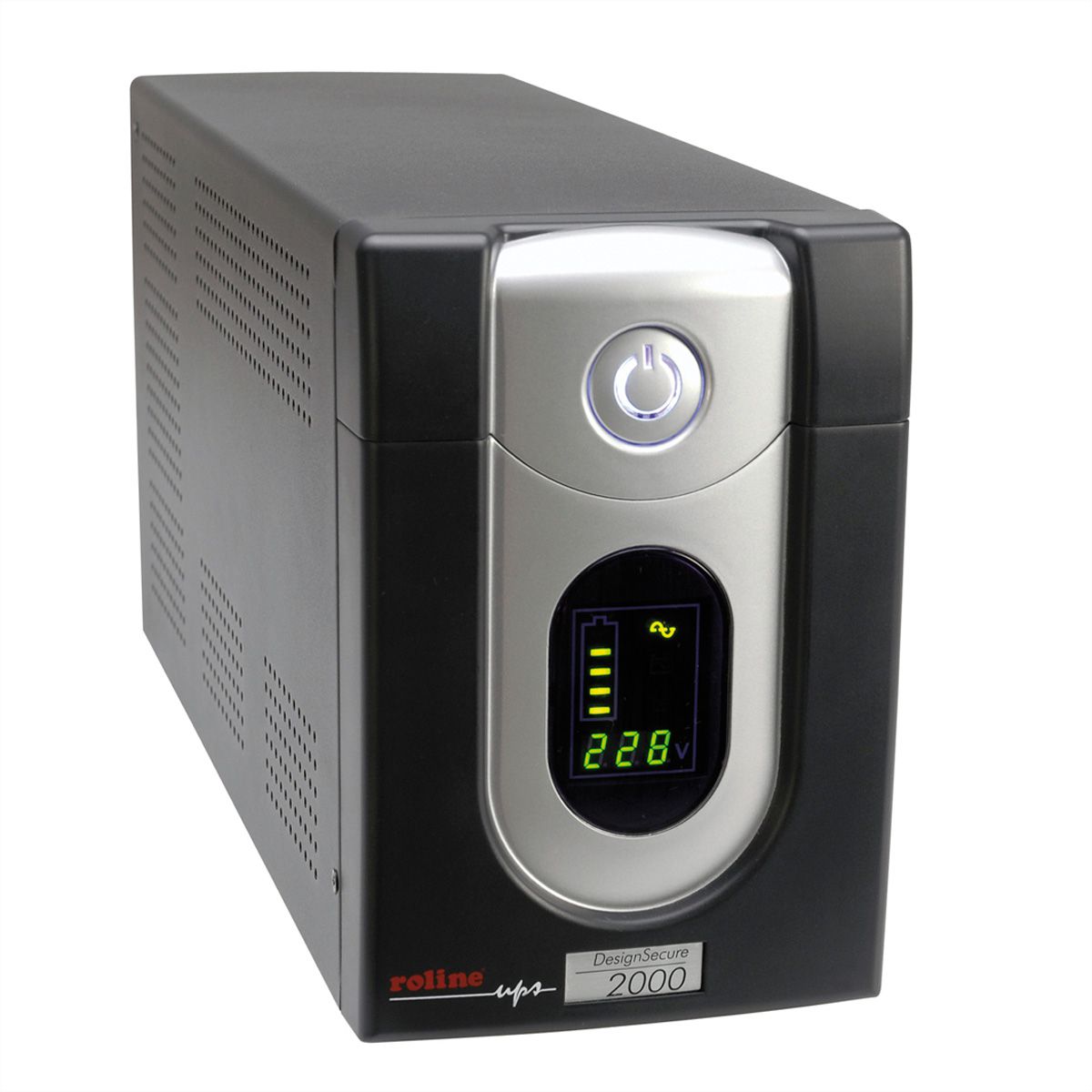

  • Compact designed UPS in futuristic design
  • For Workstations and PCs
  • LineInteractive UPS
  • AVR (Automatic Voltage Regulation)
  • Digital status display
  • Integrated overvoltage protection
  • Telephone/Modem connections
  • USB Port for advanced Power Management Software (incl, in content of delivery)
  • EMI/RFI Noise Filter
  • Dimensions (HxLxW) 168 x 105 x 334 mm
  • Weight: 6.3 kg
  • Backup Time: up to 4 Minutes

Specifications

Manufacturer
ROLINE
Product group
UPS
Product type
UPS Line Interactive
Colour
black / silver
Scope of delivery
UPS, Software, Cable Set
Classification (IEC 62040-3)
VI-SS-333
UPS technology
Line Interactive
Power class
1000 ... 1900 VA
Output (VA/W)
1200 / 720
Backup time
3 min
Backup time full/half-load
3 / 6 min
Dimensions (HxWxD)
168 x 105 x 334 mm
Mounting form
Tower
Voltage (input)
230 V
Voltage (output)
230 V
Output voltage regulation
yes
Frequency
50 Hz
Connector type (input)
cold connector IEC320 C14
Outputs
4
Connector type (output)
4 cold connector IEC320 C13
Phase in/output
230V/230V / 50Hz
Over current protection
EMI,- RFI-Filter
Max. quantity of delay expansion units
0
Delay expansion unit
--
Slots for adapter card
0
Slot for adapter card
--
Interface
USB
USB 2.0 Interface
yes
Hot swap batteries
no
Bypass
no
Additional over current protector
Telephone/Fax
Activity
Display
Activity LED
--
Activity Display
yes
incl.Management Software
Windows
Internal cooling
Passive
Ambient temperature
0-40 °C
Mains connection
Cold appliance connection
Battery category
Industrial battery
Number of batteries
2 pieces
Battery Voltage
12 V
Battery Capacity
7 Ah
Battery type
Pack
Battery
built-in
Battery technology
Lead-acid
Operating temperature min.
0 °C
Operating temperature max.
40 °C
Height
192 mm
Width
130 mm
Depth
382 mm
Weight
14 kg
Height of packaging (single piece)
320 mm
Width of packaging (single piece)
260 mm
Depth of packaging (single piece)
490 mm
Package weight (single piece)
14.84 kg
Backup Time
Capacity (VA / W)
minutes
200/120
40
400/240
18
600/360
9
800/480
5
1000/600
3,5
1200/720
2,5

Downloads

Product data sheet - English (45.5 KB) User manual - English (628.1 KB) User manual - Deutsch (664.0 KB) Safety instructions - Deutsch - English - Français - Italiano (189.1 KB)
