Item no.:19401206Herst.-Art.-Nr.:19.40.1206
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day

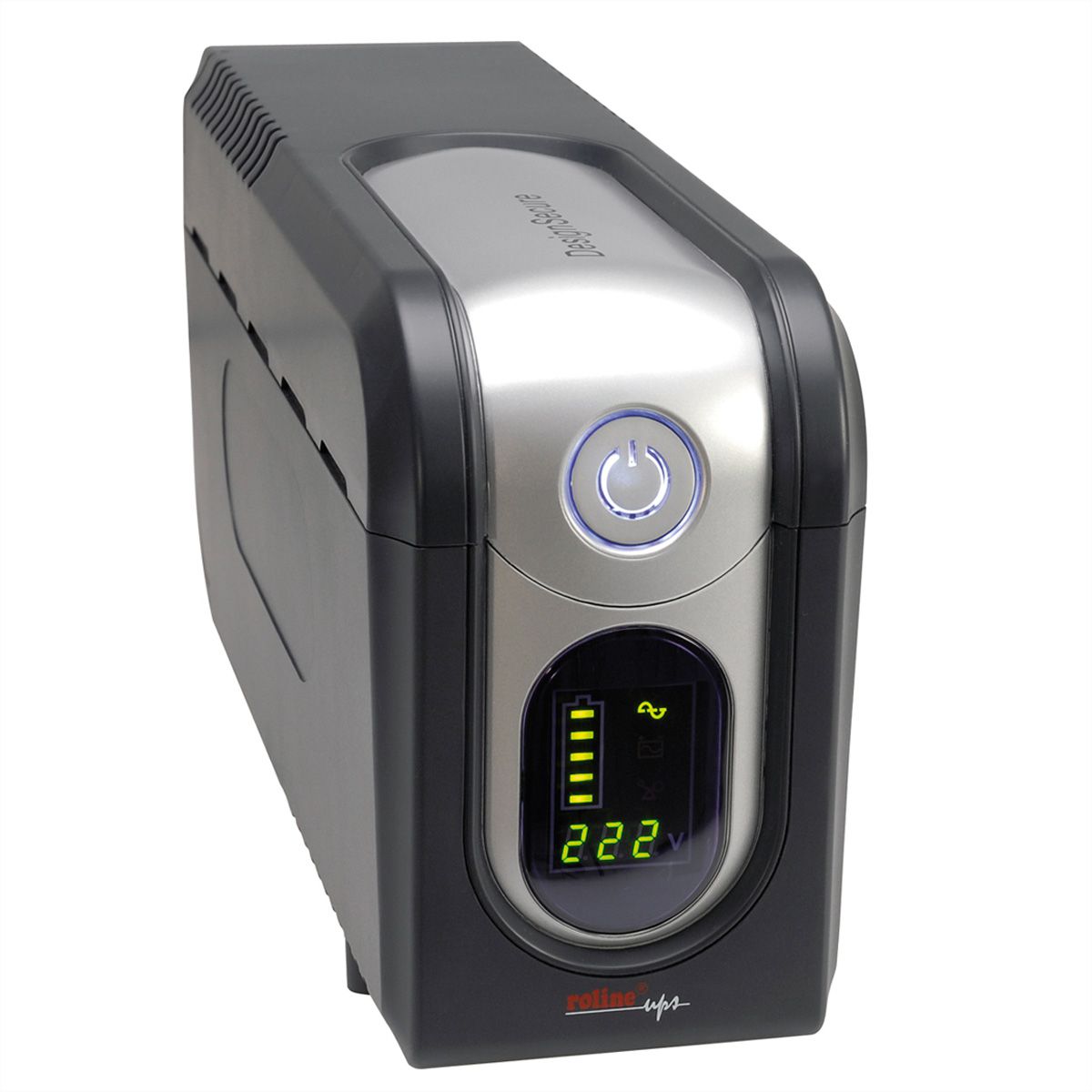

ROLINE DesignSecure 525
Item no.
19401205
Brand / Manufacturer
ROLINE
Manuf. item no.
19.40.1205
EAN
7611990171019
Item weight
6.846 kg
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
Output (VA/W):
Interface:
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Description
- Compact designed UPS in futuristic design
- For Workstations and PCs
- LineInteractive UPS
- AVR (Automatic Voltage Regulation)
- Digital status display
- Integrated overvoltage protection
- Telephone/Modem connections
- USB Port for advanced Power Management Software (incl, in content of delivery)
- EMI/RFI Noise Filter
- Dimensions (HxLxW) 168 x 105 x 334 mm
- Weight: 6.3 kg
- Backup Time: up to 4 Minutes
Specifications
- Manufacturer
- ROLINE
- Product group
- UPS
- Product type
- UPS Line Interactive
- Colour
- black / silver
- Scope of delivery
- UPS, Software, Cable Set
- Classification (IEC 62040-3)
- VI-SS-333
- UPS technology
- Line Interactive
- Power class
- 100 ... 500 VA
- Output (VA/W)
- 525 / 315
- Backup time
- 3 min
- Backup time full/half-load
- 3 / 6 min
- Dimensions (HxWxD)
- 168 x 105 x 334 mm
- Mounting form
- Tower
- Voltage (input)
- 230 V
- Voltage (output)
- 230 V
- Output voltage regulation
- yes
- Frequency
- 50 Hz
- Connector type (input)
- cold connector IEC320 C14

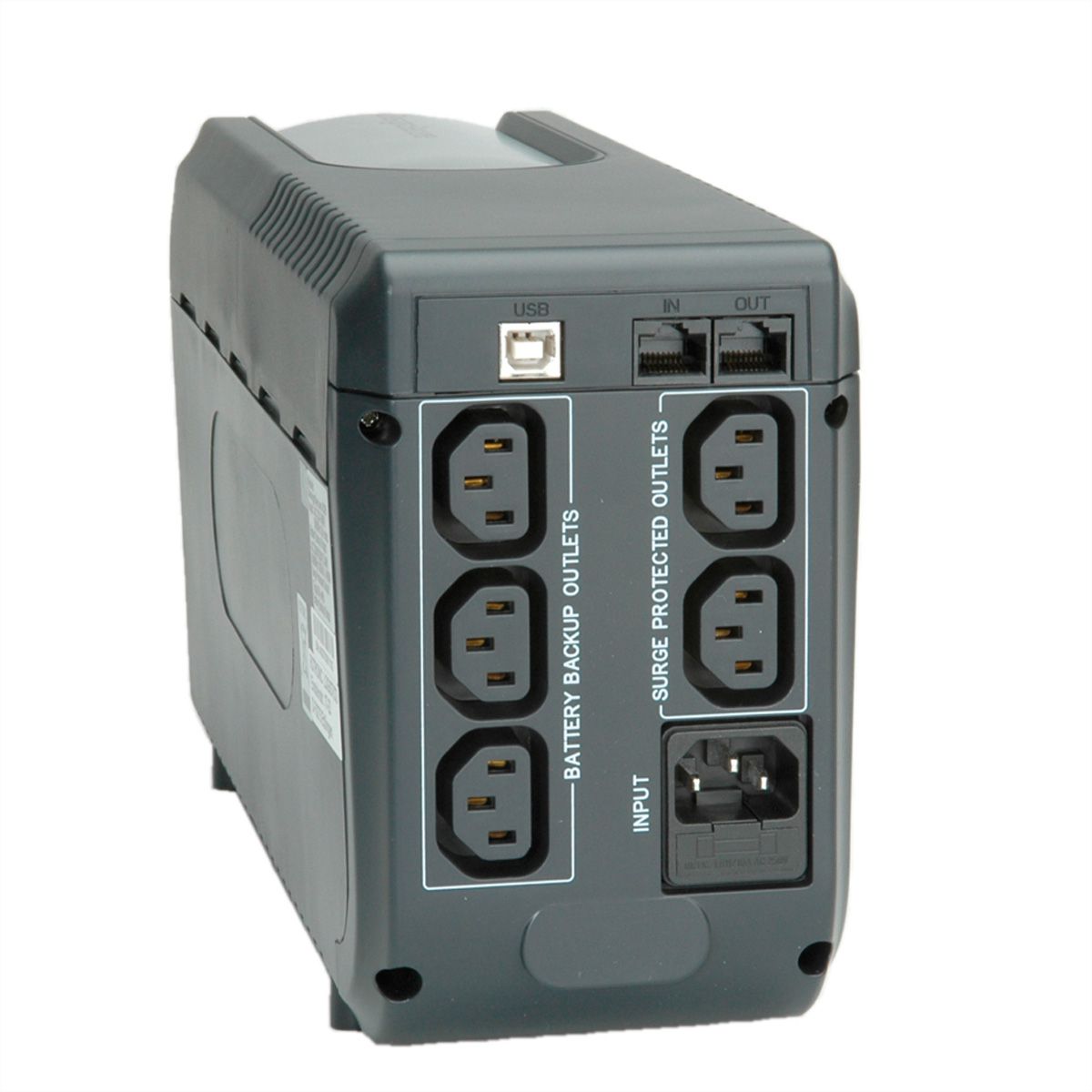

- Outputs
- 5
- Connector type (output)
- 2x 3 cold connector IEC320 C13
- Phase in/output
- 230V/230V / 50Hz
- Over current protection
- EMI,- RFI-Filter
- Max. quantity of delay expansion units
- 0
- Delay expansion unit
- --
- Slots for adapter card
- 0
- Slot for adapter card
- --
- Interface
- USB
- USB 2.0 Interface
- yes
- Hot swap batteries
- no
- Bypass
- no
- Additional over current protector
- Telephone/Fax
- Activity
- Display
- Activity LED
- --
- Activity Display
- yes
- incl.Management Software
- Windows
- Internal cooling
- Passive
- Ambient temperature
- 0-40 °C
- Mains connection
- Cold appliance connection
- Battery category
- Industrial battery
- Number of batteries
- 1 pieces
- Battery Voltage
- 12 V
- Battery Capacity
- 7 Ah
- Battery type
- Pack
- Battery
- built-in
- Battery technology
- Lead-acid
- Operating temperature min.
- 0 °C
- Operating temperature max.
- 40 °C
- Height
- 168 mm
- Width
- 105 mm
- Depth
- 334 mm
- Weight
- 5.8 kg
- Height of packaging (single piece)
- 270 mm
- Width of packaging (single piece)
- 200 mm
- Depth of packaging (single piece)
- 420 mm
- Package weight (single piece)
- 6.846 kg
Backup Time
- Capacity (VA / W)
- minutes
- 100
- 48
- 200
- 17
- 300
- 7
- 425
- 5
- 525
- 4
