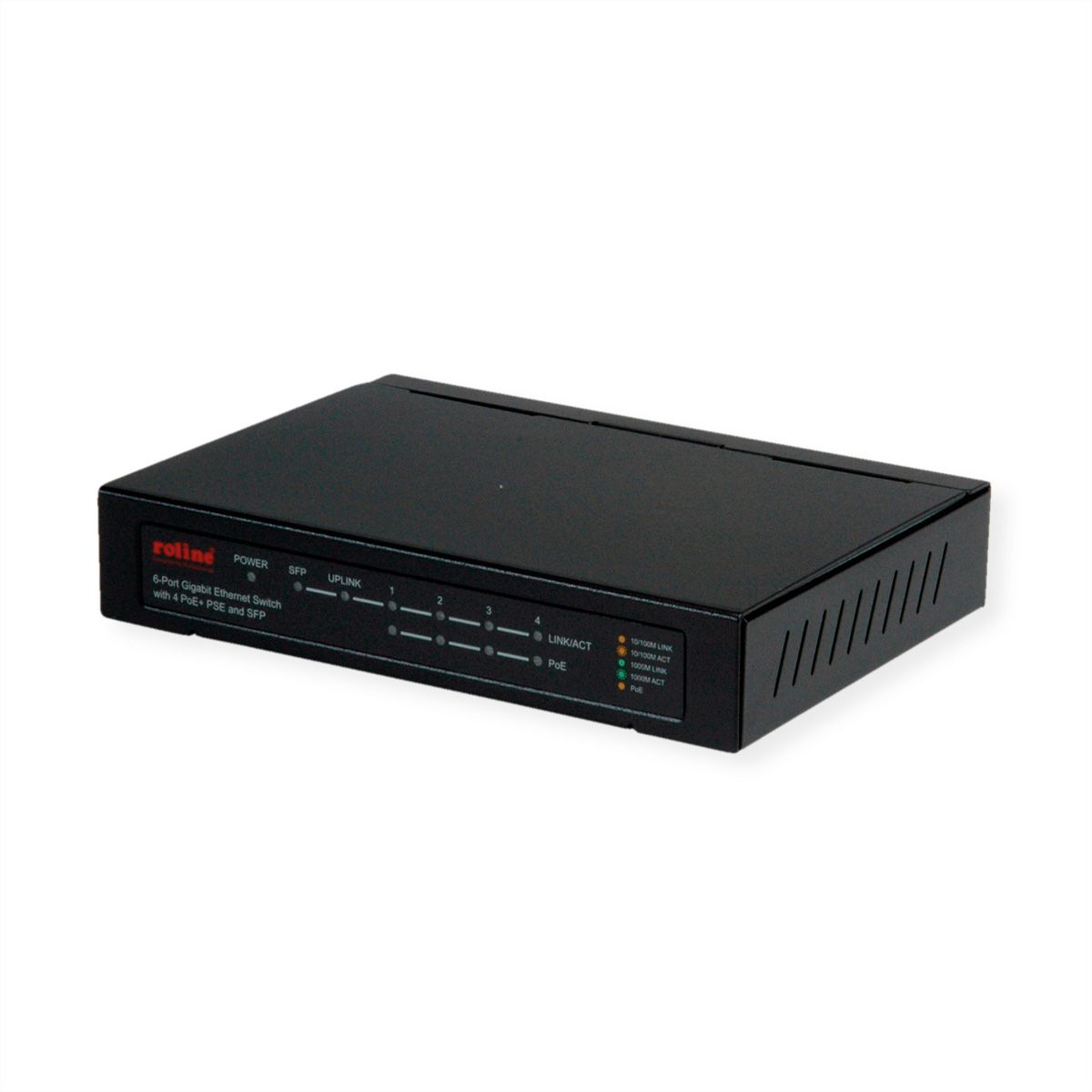

ROLINE Gigabit Ethernet Switch, 6x (5xGbE + 1x Gbic(SFP), 4x PoE+)

Item no. 21143524 Brand / Manufacturer ROLINE Manuf. item no. 21.14.3524 EAN 7630049619104 Item weight 1.137 kg
ROLINE

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

  • Provides 5x TP 10/100/1000Mbps Gigabit Ethernet ports and 1x Gbic (SFP)) 100/1000Mbit/s Fibre: MultiMode 50/125μm, 60/125μm, SingleMode 9/125μm
  • All 10/100/1000M ports support auto-negotiation and auto-MDI/MDI-X detection
  • Supports full/half-duplex transfer mode for 10/100Mbps
  • Supports full-duplex transfer mode for 1000Mbps
  • Store-and-Forward switching method
  • Wire-speed packet filtering and forwarding rate
  • Supports IEEE 802.3x flow control
  • 4x PoE Ports (IEEE 802.3at)
  • Supports Jumbo Frame up to 9K Bytes
  • MAC Address Table: 2K
  • Buffer Memory: 128 kBytes
  • LED Indication
  • Environment Operating Temperature: 0°C ~ 40°C (main device)
  • Dimensions (WxDxH): 147 x 106 x 28 mm

Specifications

Manufacturer
ROLINE
Product group
Network Switches
Product type
Network Switch
Colour
black
Scope of delivery
Switch, power supply (54V DC, 1.6A), manual
Network standard
Gigabit Ethernet
LAN (Mbps)
10/100/1000
Quantity of ports
6
Gigabit Ethernet Ports RJ-45
5
Gigabit Ethernet Ports Fibre
1
Power over Ethernet (PoE)
PoE+ (IEEE 802.3at)
Quantity of PoE ports
4
Stackable
no
Dimensions (HxWxD)
147 x 106 x 28 mm
Power supply
External power supply unit
Mains connection
Appliance Europlug, Type-C
Height
147 mm
Width
106 mm
Depth
28 mm
Weight
459 g
Height of packaging (single piece)
90 mm
Width of packaging (single piece)
160 mm
Depth of packaging (single piece)
220 mm
Package weight (single piece)
1.137 kg

Downloads

Product data sheet - English (46.5 KB) User manual - Deutsch (430.4 KB) User manual - English (434.1 KB) User manual - Français (427.2 KB) Safety instructions - Deutsch (244.9 KB) Safety instructions - English (244.9 KB) Safety instructions - Français (244.9 KB)
